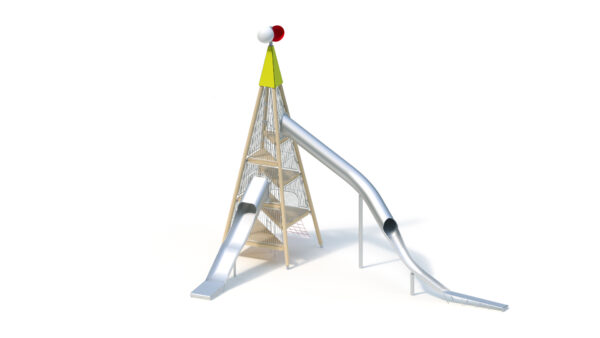

Dalben tower combination consisting of:
Dalben tower (10.50 m) with tunnel hand slide 30° (6.00 m), add-on wide slide with tunnel seat (3.00 m) and net ascent (2.00 m);
Yellow tower bonnet, with wind rotor

Technical data

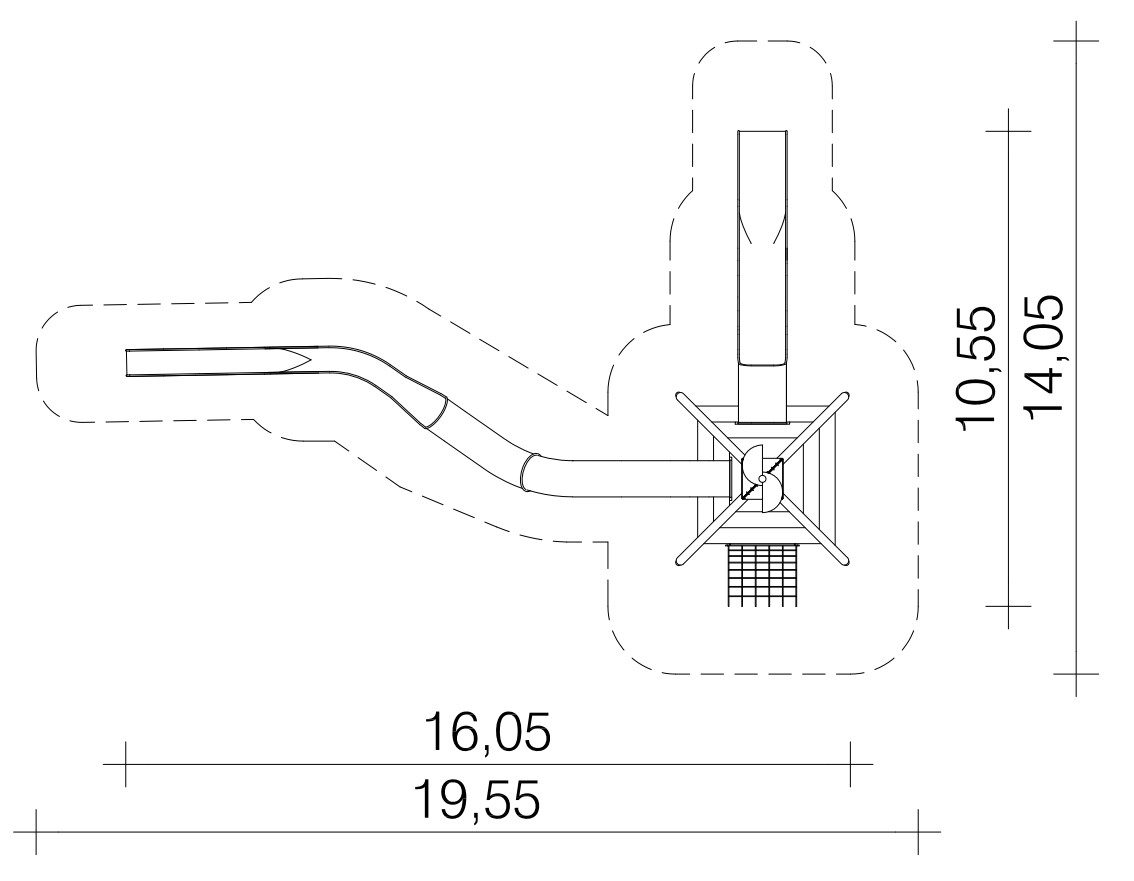

Floor area: approx. 10.55 x 16.05 m
Minimum space: approx. 14.05 x 19.55 m (115 m²)
Height: approx. 10.50 m + tower top
Platform heights: 1.00/2.00/3.00/4.00/5.00/6.00 m

Support post
Glued laminated larch Ø 200 mm with triple wood preservative coating, on hot-dip galvanised steel legs

Platform floors
Triangular wooden platforms, glued laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections on the uprights.
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.

The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.

Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights

Tower bonnet
High-pressure laminate 15 mm, colour yellow

Tower top
Wind rotor 2-fold

Ascent on platform 2.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)

K&K add-on wide slide with tunnel seat, Ah 3.00 m
Mounting height: 3.00 m
Seat height: 3.10 m
Slide inclination: 36°
Slide width: 1.10 m
Sliding plate thickness: 2.5 mm

Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, tunnel seat, speed regulation by shaft. Particularly quiet due to trough shape.

Including K&K support post made of stainless steel tube Ø 120 mm, stainless steel mounting flange.

K&K tunnel slope slide 30°, Ah 6.00 m
Mounting height: 6.00 m
Seat height: 6.10 m
Slide inclination: 30°
Slide width: 0.80/0.60 m
Sliding plate thickness: 2.5 mm

Slide segments made of stainless steel, particularly quiet due to tubular/hollow shape, three-part slide, including connecting flanges for assembly on site. Consisting of the following elements:

- 16100 K&K tunnel slide single seat 30°
- 16110 K&K tunnel slide straight 30°, 2 pcs.
- 16110050 K&K tunnel slide straight 30°,
Length 0.50 m
- 16160 K&K tunnel slide curve 30°, 7 pcs,
Turning 35° right
- 16110 K&K tunnel slide-straight 30°
- 41590 K&K slope slide tunnel adapter 30°
- 41610 K&K slope slide space curve 30°, 4 pcs,
Turning 36° left
- 41550028 K&K slope-slide-straight 30°,
Length 0.28 m
- 41670 K&K tunnel slide maxi run-out

Including K&K support post made of stainless steel tube Ø 120 mm, stainless steel mounting flange.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.

Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
2 pcs. 2.80 x 0.30 x 0.40 m
1 piece 1.40 x 1.25 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
2 units 0.60 x 0.60 x 0.60 m
Concrete volume: 3.90 m³

Assembly time
2 fitters 18 hours each, plus lifting gear
(without foundation)

Free fall height
2,40 m

Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities

Item number: 912105006
