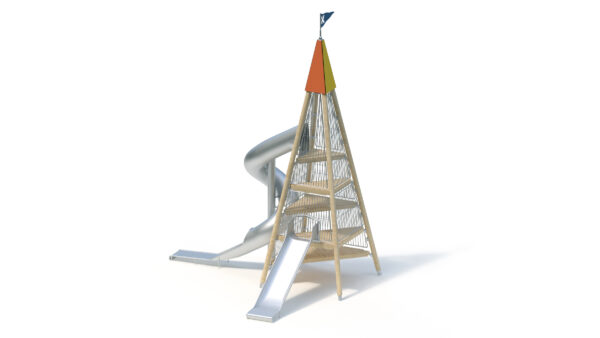

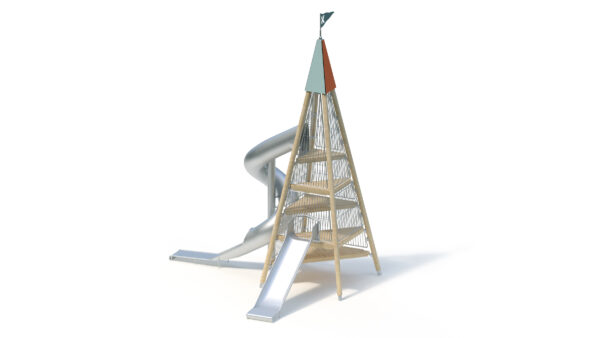

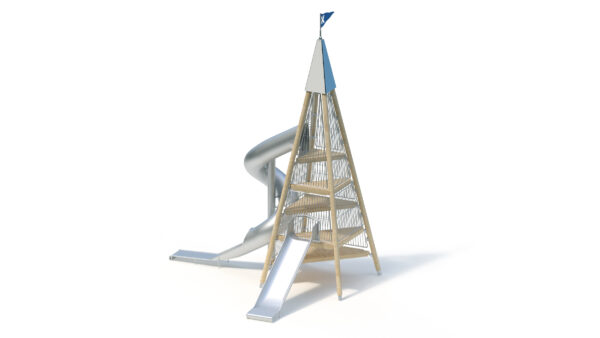

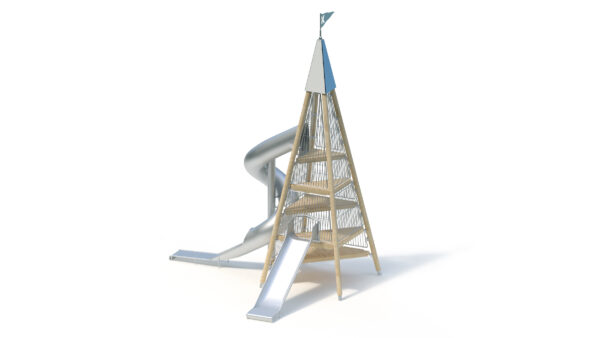

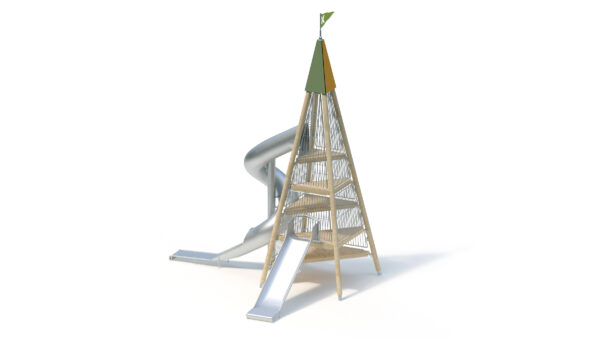

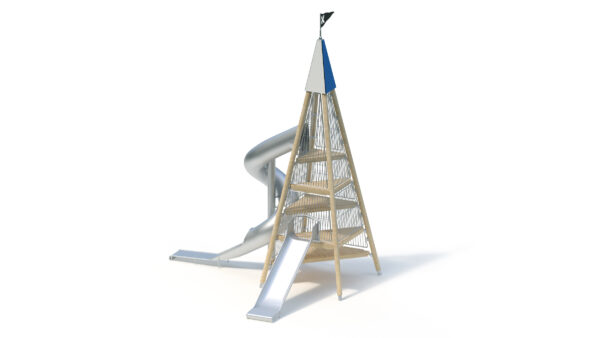

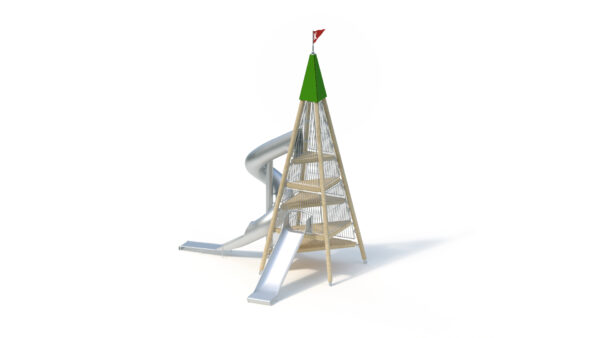

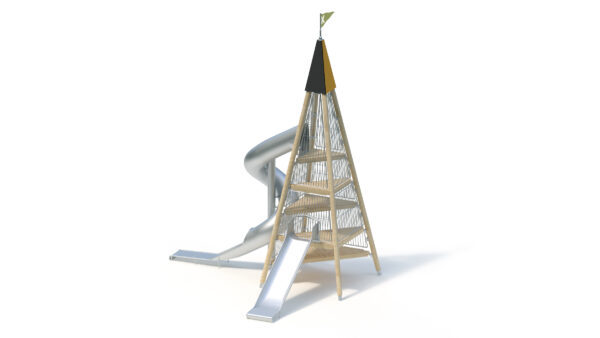

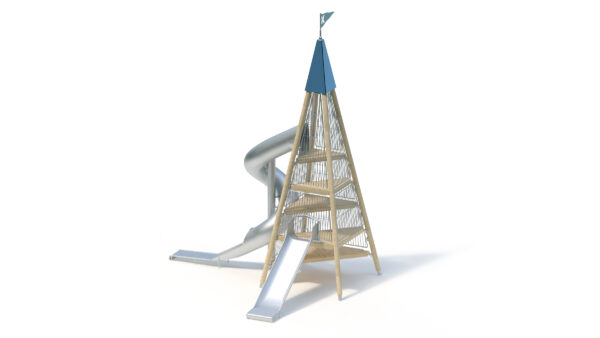

Dalbentur system consisting of:
Dalben tower (9.50) with tunnel spiral slide 30°/38° (5.00 m) and extension wide slide (2.00 m);
Tower canopy green / similar to RAL 6029 with wind vane

Technical data
Floor area: 7.00 x 8.00 m
Minimum space: 10.50 x 11.50 m (68 m²)
Height: 9.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 / 5.00 m

Support post
Glued laminated larch Ø 20 cm with triple wood preservative coating, on hot-dip galvanised steel legs

Platform floors
Triangular wooden platforms, laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections on the uprights
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.

The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights

Tower bonnet
High-pressure laminate 15 mm, colour green / similar to RAL 6029

Tower top
Wind vane

Extension wide slide, Ah 2.00 m
Mounting height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 1.10 m
Sliding plate thickness: 2.5 mm

Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, with roll-off protection above the single-seat section, particularly quiet due to the trough shape.

Tunnel spiral slide 30°/38°, Ah 5.00 m
Slide attachment height: 5.00 m
Seat height: 5.10 m
Slide inclination: 30°/38°
Turning: 360° clockwise
Tunnel diameter: 0.80 m
Sliding plate thickness: 2.5 mm

Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded together to form a three-part slide coiled around a centre pylon for transport reasons, including corresponding connecting flanges to facilitate assembly on site.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.

Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 1.00 x 0.40 x 0.50 m
1 piece 0.80 x 0.80 x 1.00 m
1 piece 0.90 x 1.25 x 0.40 m
Concrete volume: 3.30 m³

Assembly time
2 fitters 20 hours each, plus lifting gear
(without foundation)

Free fall height
2,10 m

Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities

The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least σR,d = 150 kN/m². In the case of deviating soil conditions and installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ≥0.85 kN/m²), technical modifications to the product design may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.

Item number: 912095001
