Dalben tower (7,50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 40 persons |
| Activities ? | - |
Technical data
| Device length ? | 10,60 m |
|---|---|
| Device width ? | 12,70 m |
| Device height ? | 7,50 m |
| Free fall height ? | 2,30 m |
| Platform heights | - |
| Total weight ? | 0.00 kg |
| Heaviest single item ? | 0.00 kg |
| Minimum room length ? | 14,10 m |
| Minimum room width ? | 15,70 m |
| Minimum room height ? | 7,50 m |
Assembly & Foundations
| Assembly time ? | 36,0 h |
|---|---|
| Number of fitters ? | 4 persons |
| Lifting gear required | - |
| Foundations | 100x100x050 |
Product Downloads
Product description

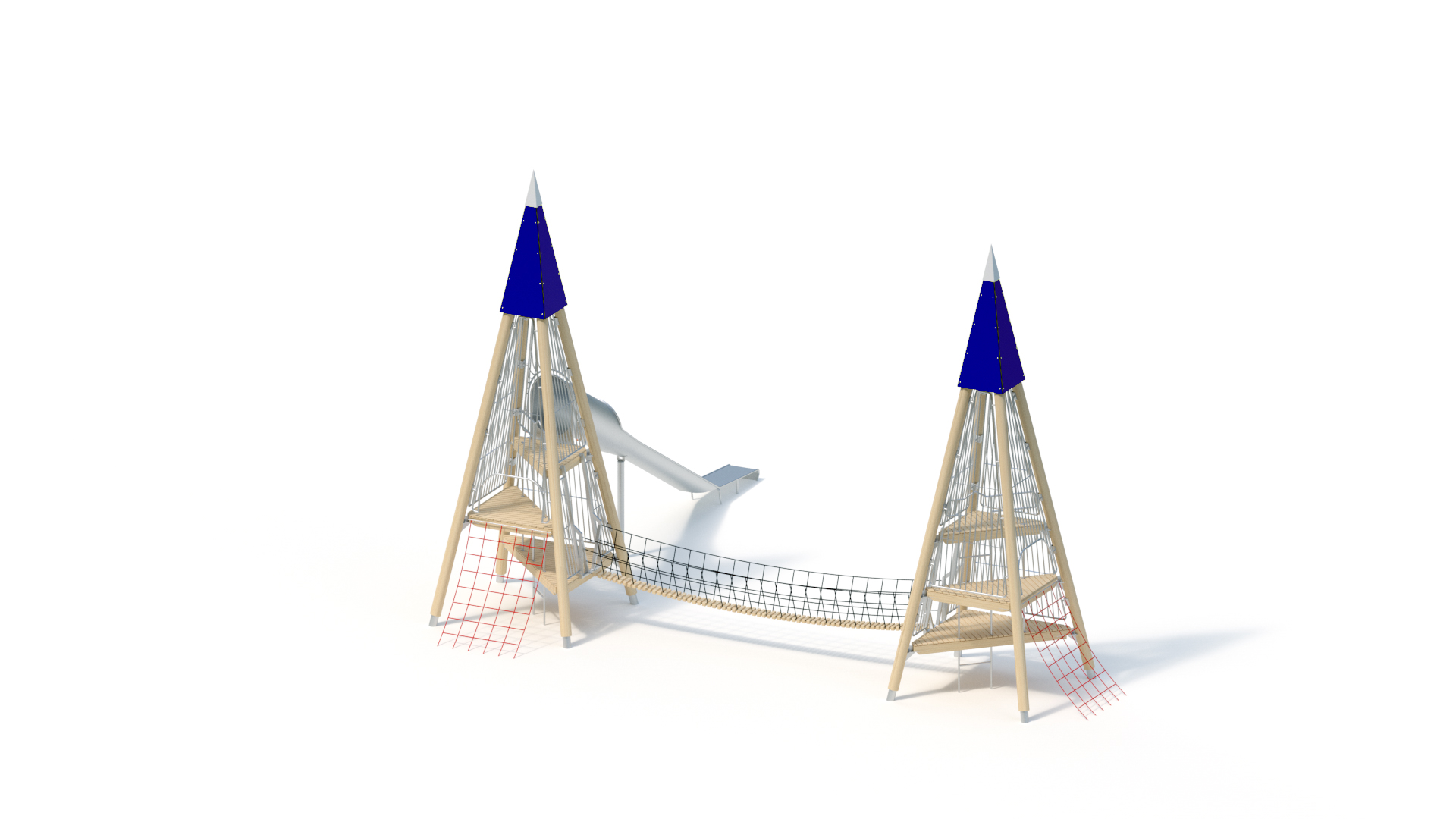

Dalbentur system consisting of:
- Dale tower (7.50) with tunnel slide (3.00 m) and net ascent (2.00 m), blue tower cover
- Dale tower (7.50) with net ascent (2.00 m), tower bonnet
- Connection of the towers by footbridge, length 7.00 m, at platform height 1.00 m
Technical data

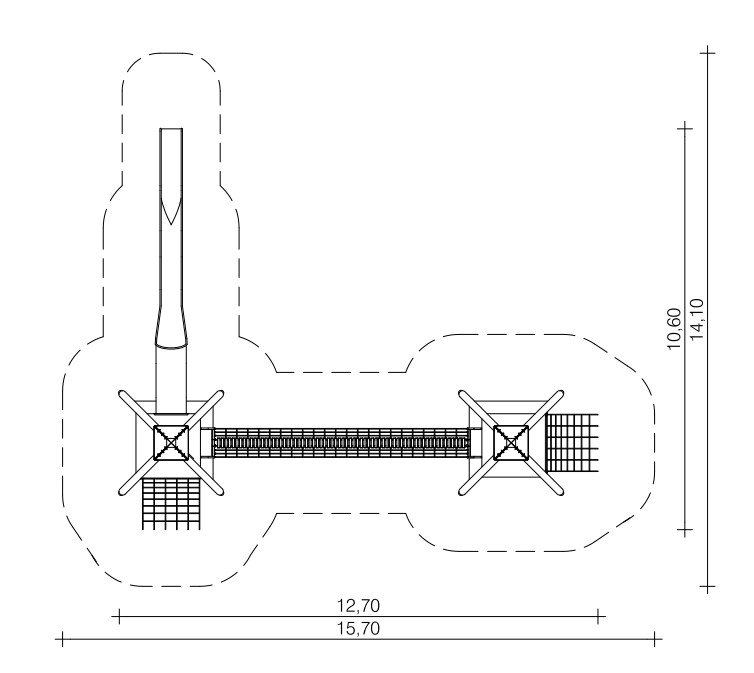

Floor area: approx. 10.60 x 12.70 m
Minimum space: approx. 14.10 x 15.70 m (104 m²)
Height: 7.50 m + tower top
Platform heights: 1.00/2.00/3.00m
Slide attachment height: 3.00 m
Seat height: 3.10 m
Slide inclination: 30°
Slide width: 0.80/0.60 m
Sliding plate thickness: 2.5 mm
Support post
Glued laminated larch Ø 200 mm with triple wood coating on hot-dip galvanised steel legs
Platform floors
Triangular wooden platforms, glued laminated larch beams, Robine 95 x 30 mm platform decking, screwable flange connections on the uprights.
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.
The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnets
High-pressure laminate 15 mm, colour blue
alternatively: yellow, red, green
Tower top
End cover made of stainless steel sheet
Footbridge
Connection to platform height 1.00 m
Robinia 60 x 60 mm, Hercules rope Ø 16 mm, length 7.00 m
Ascents to platform height 2.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)
Tunnel slope slide 30°, Ah 3.00 m
Slide segments made of stainless steel, particularly quiet due to tubular trough shape, welded to form a one-piece slide.
Course: straight
Incl. support post, stand post made of stainless steel tube Ø 120 x 3 mm, mounting flange made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Assembly time
4 fitters 36 hours each, plus lifting gear
(without foundation)
Foundations (client-provided)
8 pcs. 1.00 x 1.00 x 0.50 m
1 piece 1.40 x 0.75 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 4.52m³
Free fall height
2,30 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 912075001
This Kaiser & Kühne product enables:
