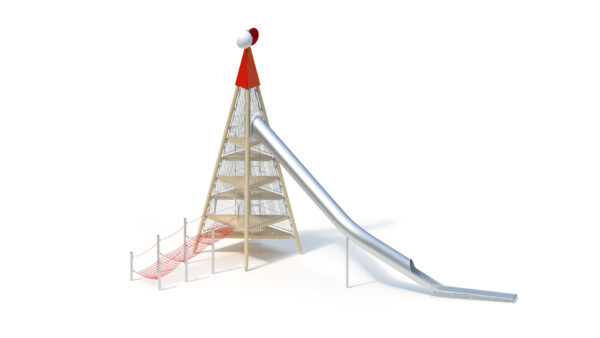

Dalben tower (10.50)

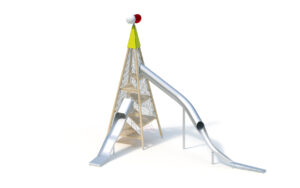

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 83 persons |
| Activities ? | - |
Technical data
| Device length ? | 0,00 m |
|---|---|
| Device width ? | 0,00 m |
| Device height ? | 0,00 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 0.00 kg |
| Minimum room length ? | 0,00 m |
| Minimum room width ? | 0,00 m |
| Minimum room height ? | 0,00 m |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 persons |
| Lifting gear required ? | - |
| Foundations | - |
Product Downloads
Product description
Technical data

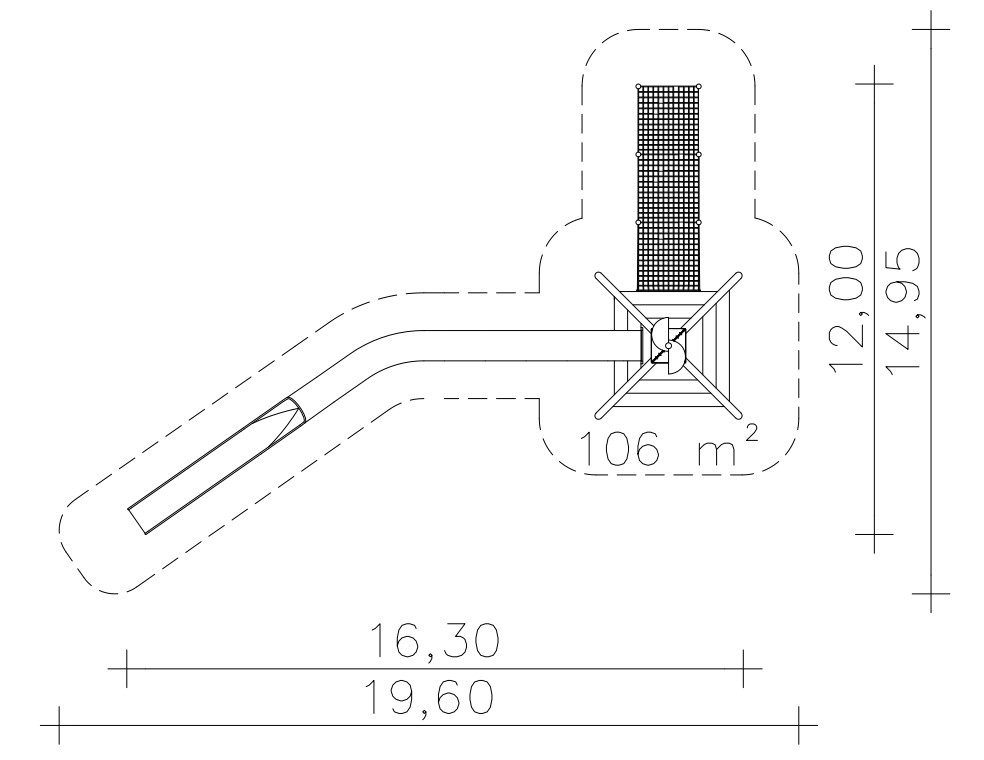

Floor area: 12.00 x 16.30 m
Minimum space: 14.95 x 19.60 m (106 m²)
Height: 10.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 / 5.00 / 6.00 m
Slide attachment height: 6.00 m
Seat height: 6.10 m
Slide inclination: 30°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Support post
Glued laminated larch Ø 20 cm with triple wood coating, on hot-dip galvanised steel legs
Platform floors
Triangular wooden platforms, glued laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections to the uprights.
Stainless steel ladder for access from platform to platform (including safety railing), height of first rung: 0.50 m
The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High-pressure laminate 15 mm, colour red / similar to RAL 2002
Tower top
Wind rotor 2-fold
Ascent to platform height 2.00 m
- Hercules rope net, Ø 16 mm, with steel core, colour red.
Length: approx. 5.00 m
Width: approx. 1.60 m
Mesh size: 135 x 135 mm
Attachment to the 2.00 m platform when installing the dolphin tower on a level surface.
Tunnel slide 30°, Ah 6.00 m
Slide segments made of stainless steel, particularly quiet due to tubular shape, two-part slide, including connecting flanges for assembly on site, consisting of the following elements:
- 16100 K&K tunnel slide single seat 30°,
- 16110 K&K tunnel slide straight 30°, 4 pcs.
- 16110625 K&K tunnel slide straight 30°,
Length 0.625 m
- 16170 K&K tunnel slide curve 30°, 7 pcs,
Turning 35° left
- 16110 K&K tunnel slide-straight 30°
- 16190 K&K tunnel slide outlet 30°
Incl. K&K tunnel slide support post made of stainless steel tube Ø 120 mm, stainless steel mounting flange
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
6 units 0.70 x 0.70 x 0.40 m
5 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 4.07 m³
Assembly time
2 fitters 18 hours each, plus lifting gear
(without foundation)
Free fall height
2,00 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 912105042
This Kaiser & Kühne product enables:
