The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Climbing combination

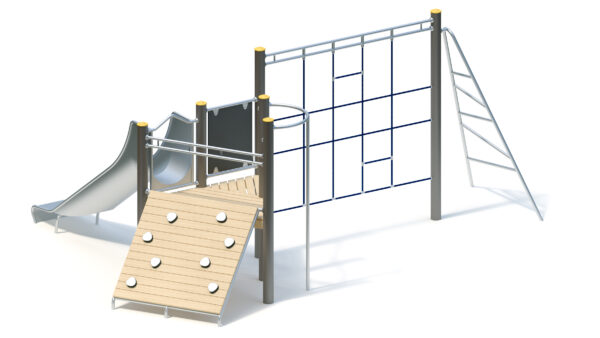

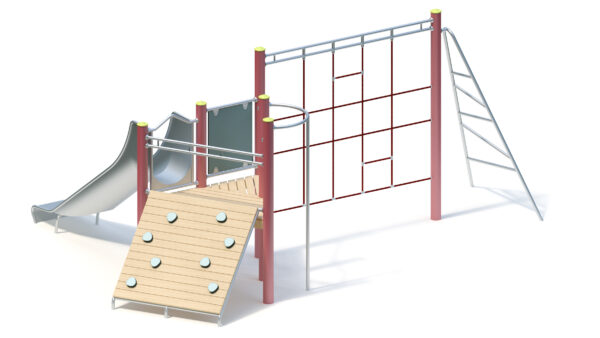

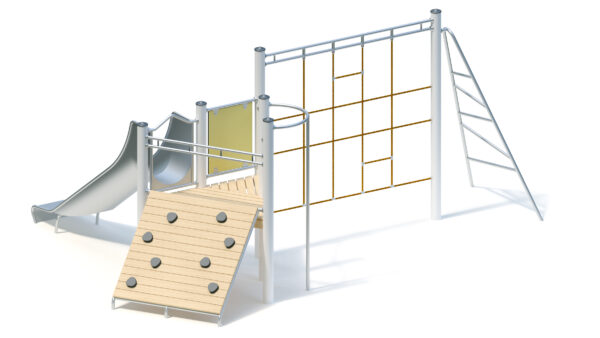

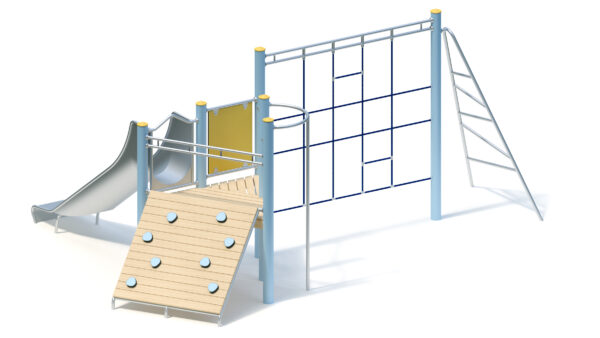

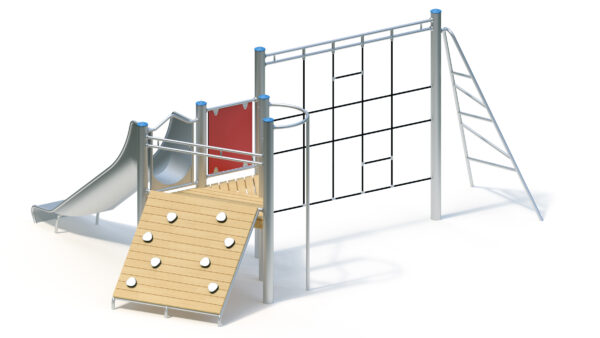

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 15 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 5,85 m |
|---|---|
| Device width ? | 4,30 m |
| Device height ? | 2,55 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 8,85 m |
| Minimum room width ? | 8,10 m |
| Minimum room height ? | 2,55 m |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data

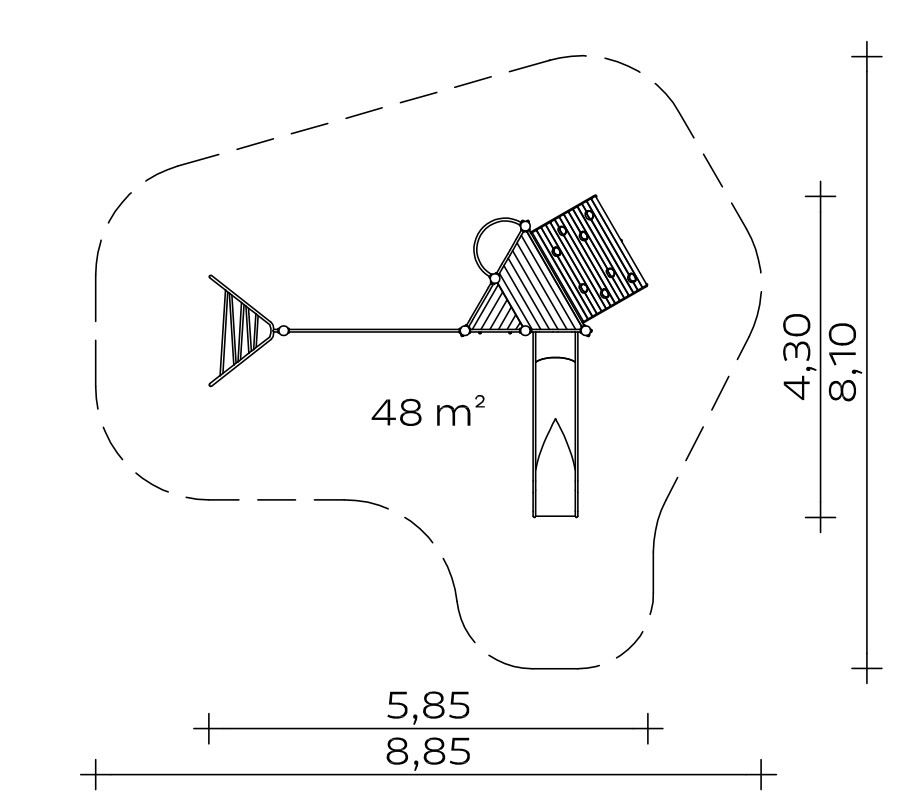

Total height: 2.55 m
Floor area: 5.85 x 4.30 m
Minimum space: 8.85 x 8.10 m
Impact area: 48 m²
Platform height: 1.00 m
Seat height: 1.10 m
Weight: 100 kg heaviest individual part
480 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Triangular rung wall made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
6 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.72 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
2,42 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Physical activities
Item number: 021290501
This Kaiser & Kühne product enables:
