Spare parts

- +

1

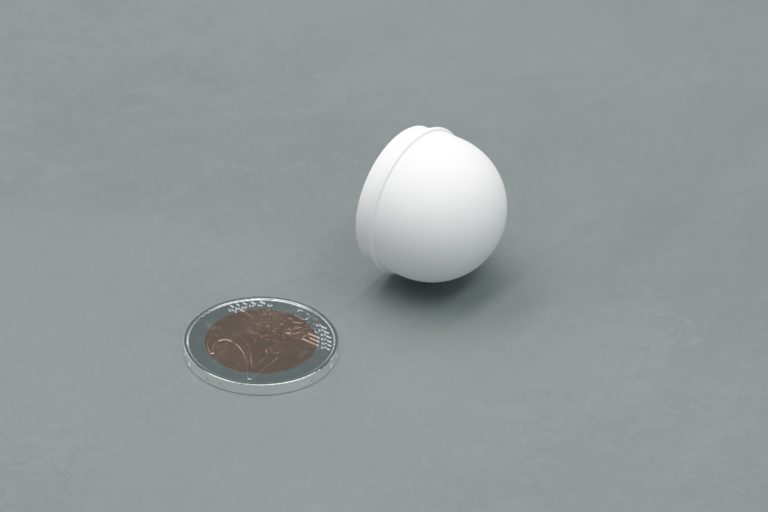

Screw cap upper part M10, colour: white

Item no.: 3300057

- +

1

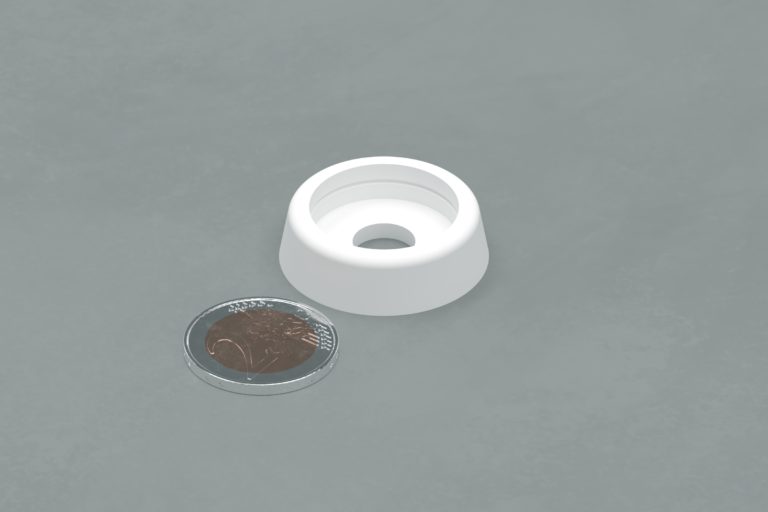

Screw cap lower part M10, colour: white

Item no.: 3300056

- +

1

Screw cap upper part M12, colour: red

Item no.: 3300055

- +

1

Screw cap lower part M12, colour: red

Item no.: 3300054

- +

1

Screw cap upper part M12, colour: blue

Item no.: 3300108

- +

1

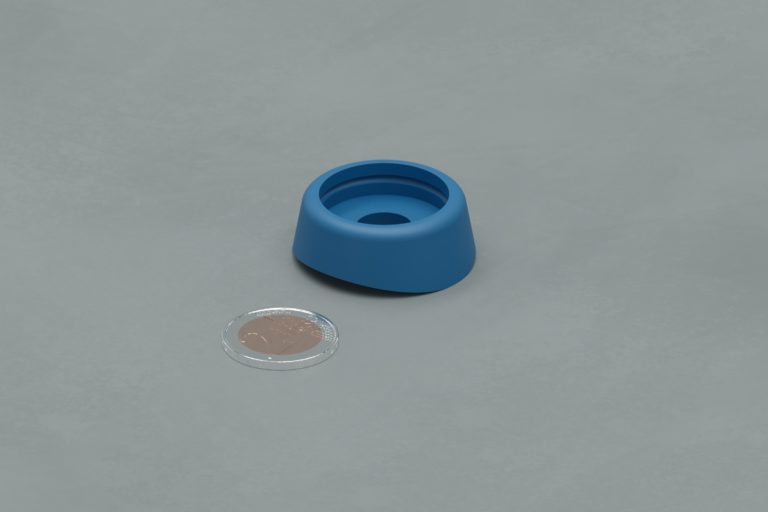

Screw cap lower part M12, colour: blue

Item no.: 3300107

- +

1

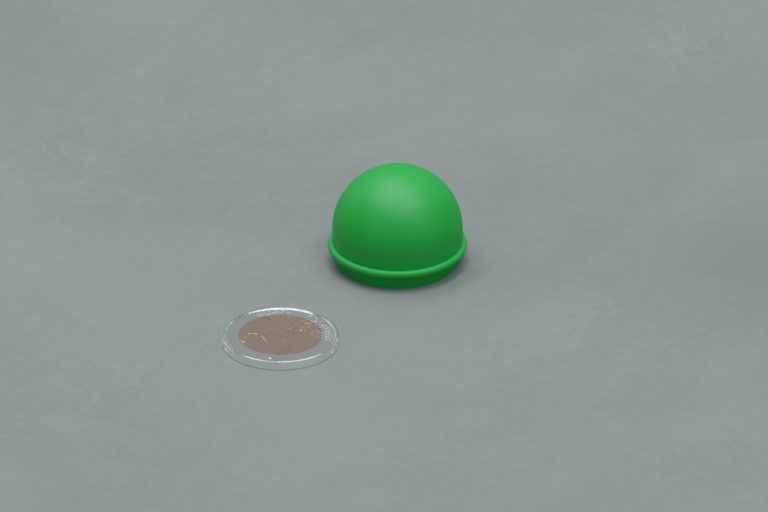

Screw cap upper part M12, colour: green

Item no.: 3300110

- +

1

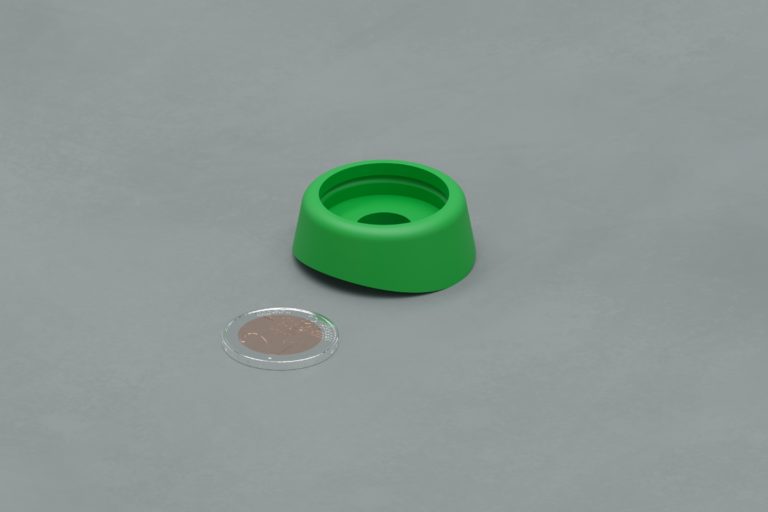

Screw cap lower part M12, colour: green

Item no.: 3300109

- +

1

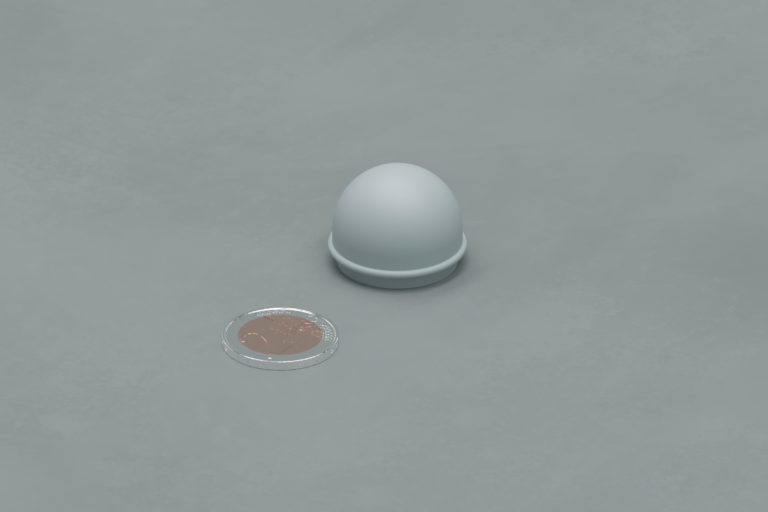

Screw cap upper part M12, colour: grey

Item no.: 3300135

- +

1

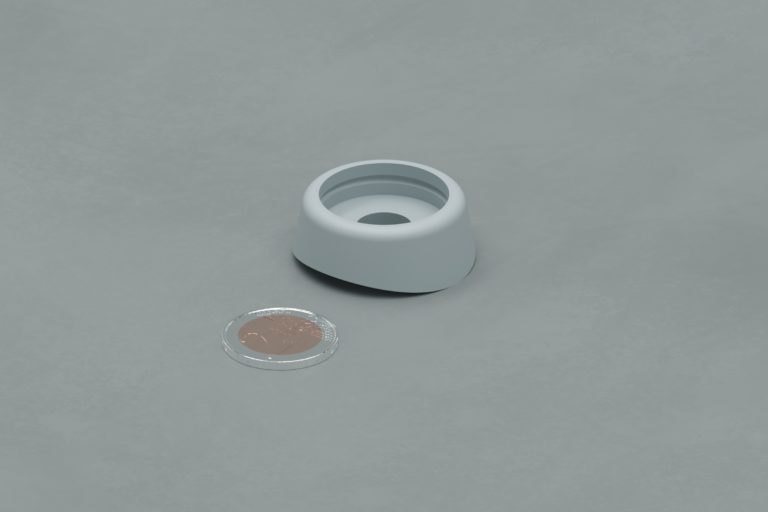

Screw cap lower part M12, colour: grey

Item no.: 3300134

- +

1

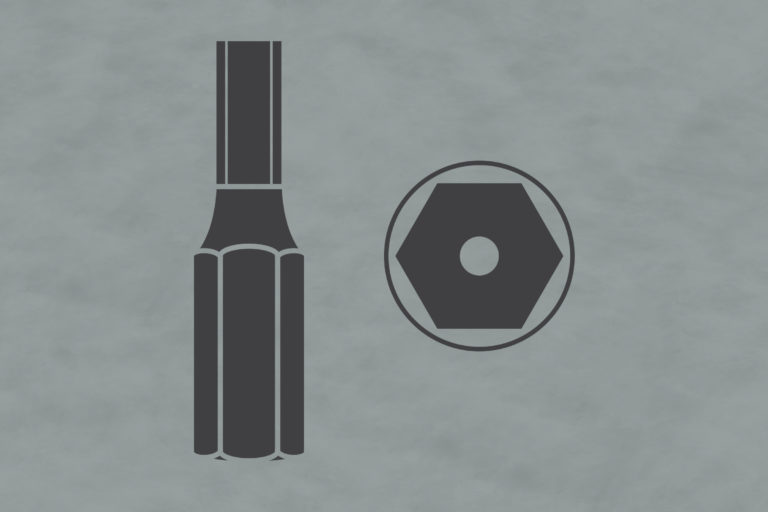

Hexagon socket 10 mm 1/2'' with hole

Item no.: 2030170

- +

1

Safety bit Torx Plus 5-star 30 IPR x 25 with hole

Item no.: 3490038

- +

1

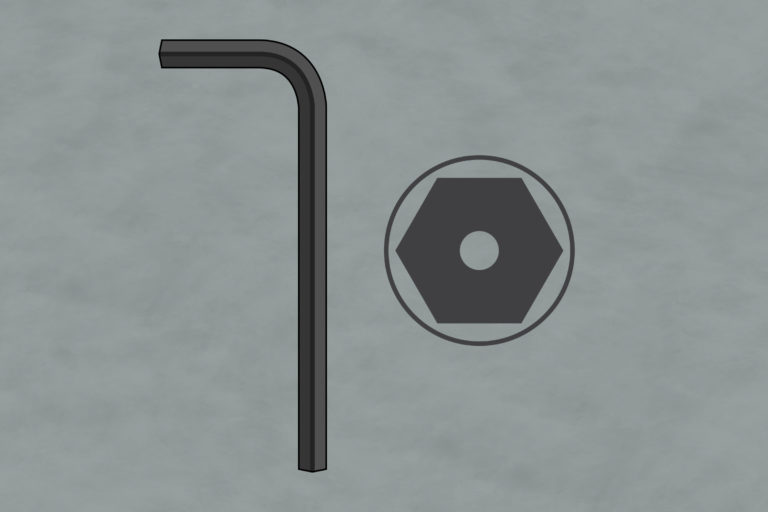

Hexagon socket screwdriver SW8 with hole for pin

Item no.: 3490057

- +

1

Torx T25 offset screwdriver with hole for pin

Item no.: 3490126

- +

1

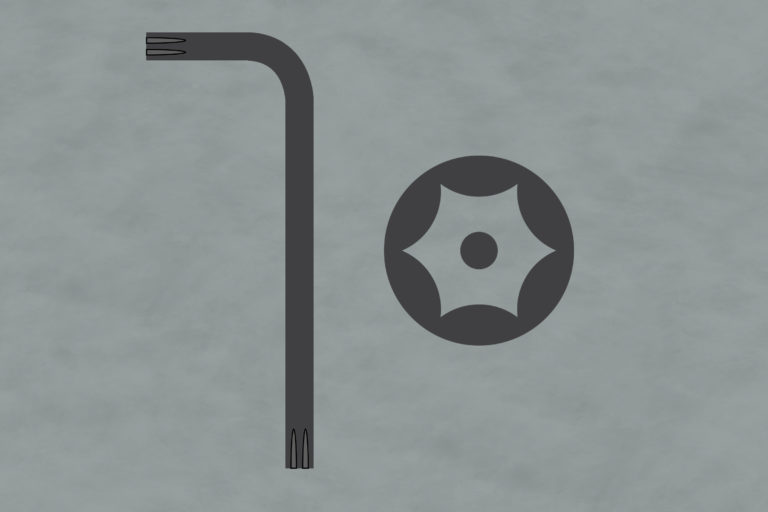

Torx T30 offset screwdriver with hole for PIN

Item no.: 3490080

- +

1

Torx T40 offset screwdriver with hole for PIN

Item no.: 3490081

- +

1

Torx T45 offset screwdriver with hole for PIN

Item no.: 3490033

- +

1

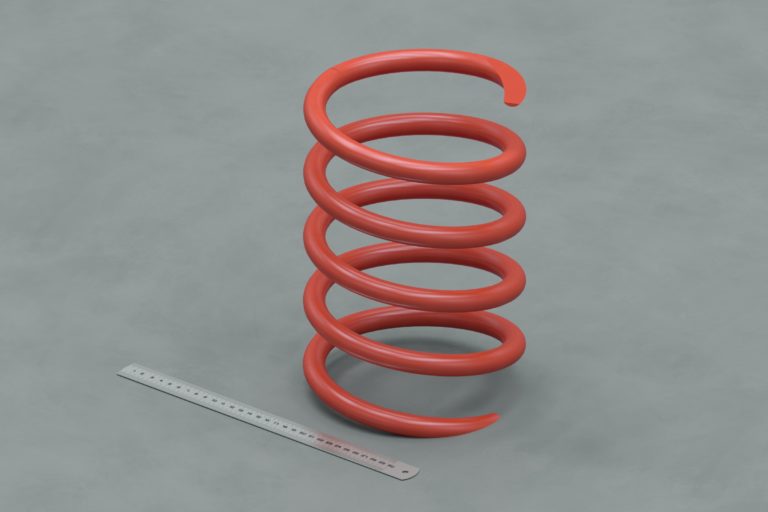

Compression spring Balancing bar Ø180 x 300 x Ø20 mm, standard: RAL 2002

Item no.: 1100242

- +

1

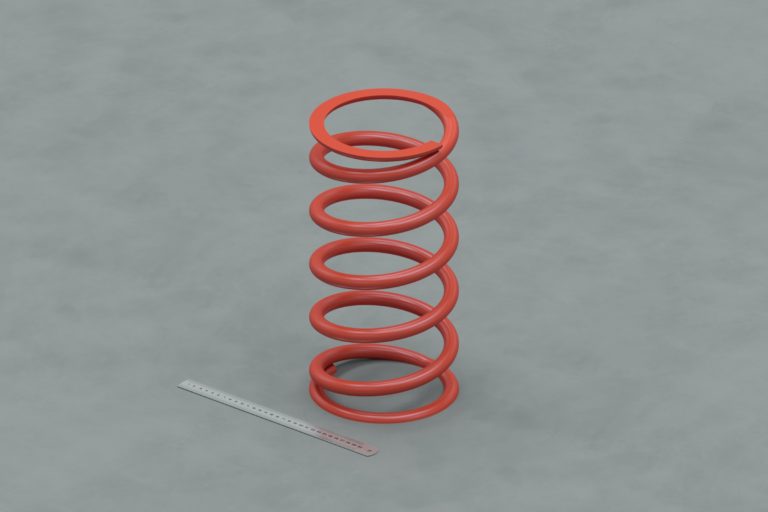

Compression spring Spring rocker Ø 180 x 400 x 20 mm

Art.: 1100246 | for all spring rockers

- +

1

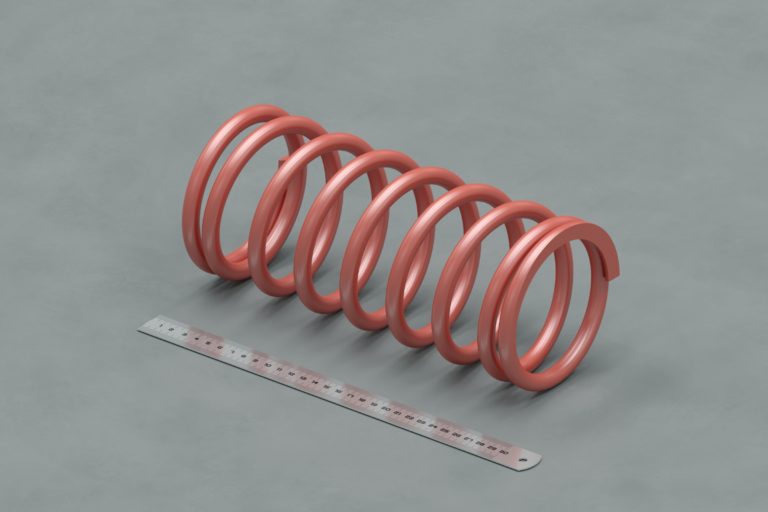

Pressure spring bounce plate disc Ø120x280x12 Standard: RAL 2002

Art.: 1100244 | for bouncing disc Art. No. 0-44145-000

- +

1

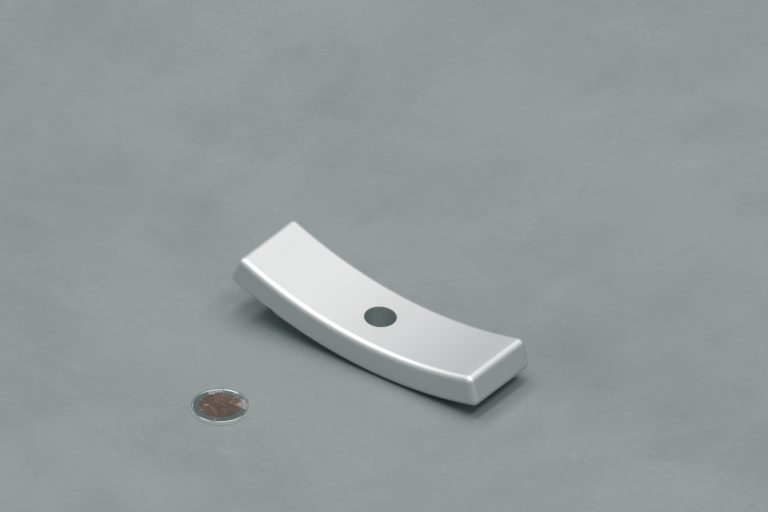

Spring holder bounce plate/disc & wobble plate 136x40x15, galvanised steel

Item no.: 1100177

- +

1

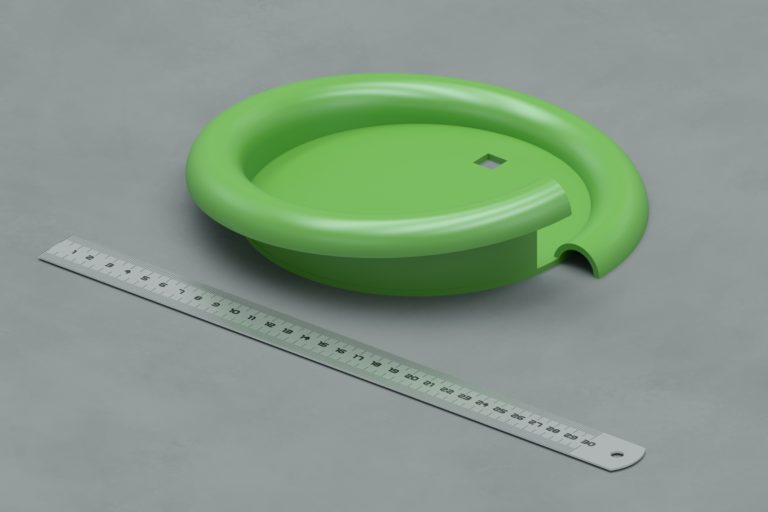

Spring disc Ø 210 mm for compression spring diameter Ø 180 mm

Item no.: 1100243

- +

1

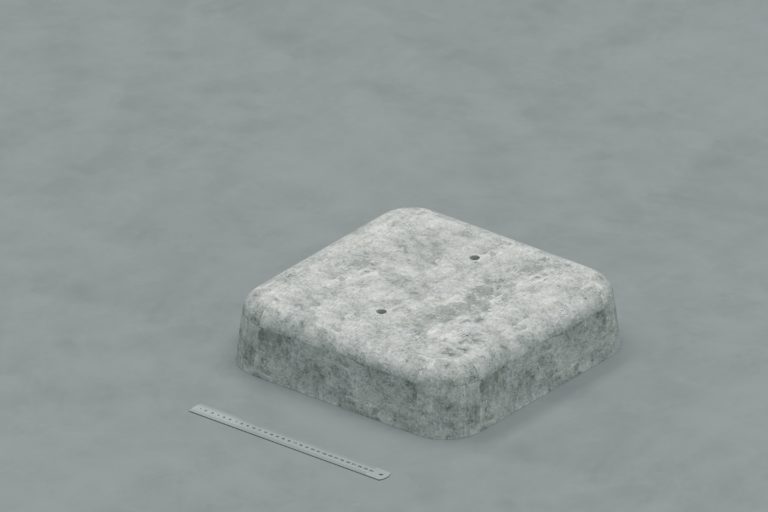

Prefabricated foundation

Item no.: 015150 | Prefabricated concrete foundation: 0.40 x 0.40 x 0.10 m, weight approx. 35 kg, Rounded edges. 2 M12 threaded dowels (e.g. for screwing on the water spiral base bearing)

- +

1

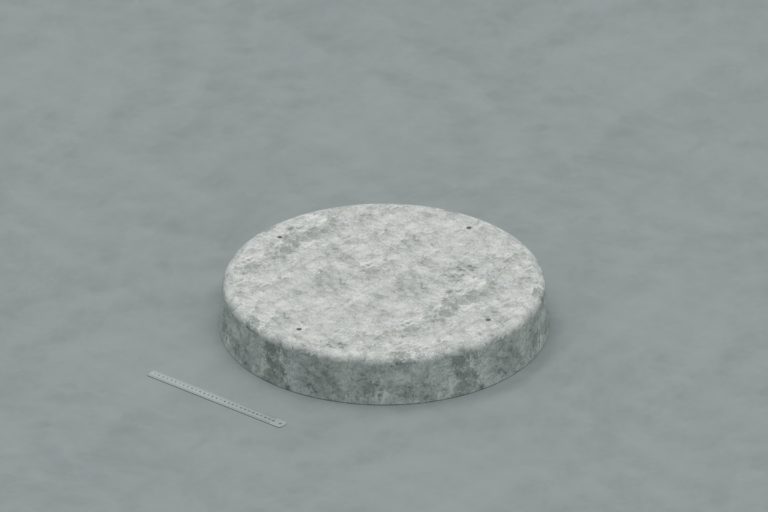

Prefabricated foundation for water distribution tables

Item no.: 015166 | Size: Ø 0.63 x 0.10 m, weight: 78 kg, solid concrete base, rounded edges; 4 M10 threaded dowels, suitable as a concrete base for K&K water distribution tables

- +

1

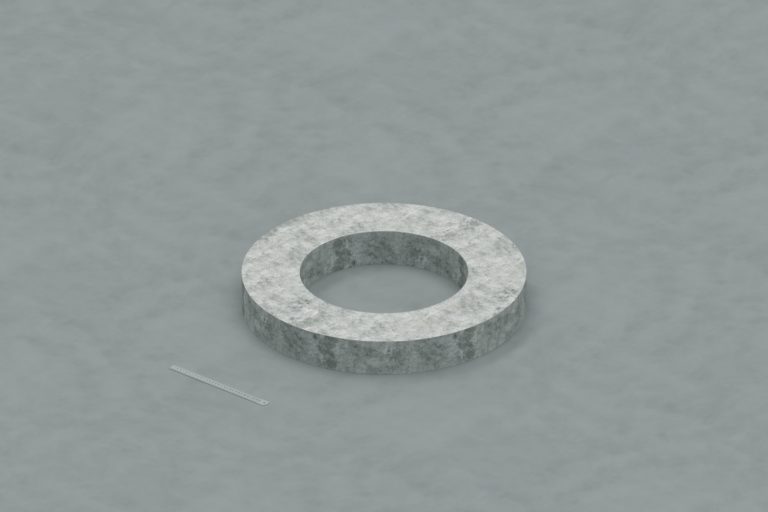

Moulding stone

Item no.: 015170 | Size: Ø 0.76/0.45 x 0.10 m, weight: 65 kg, moulded concrete block, for bricking up with mortar joint, suitable for 15165 ring foundation, for levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.)

- +

1

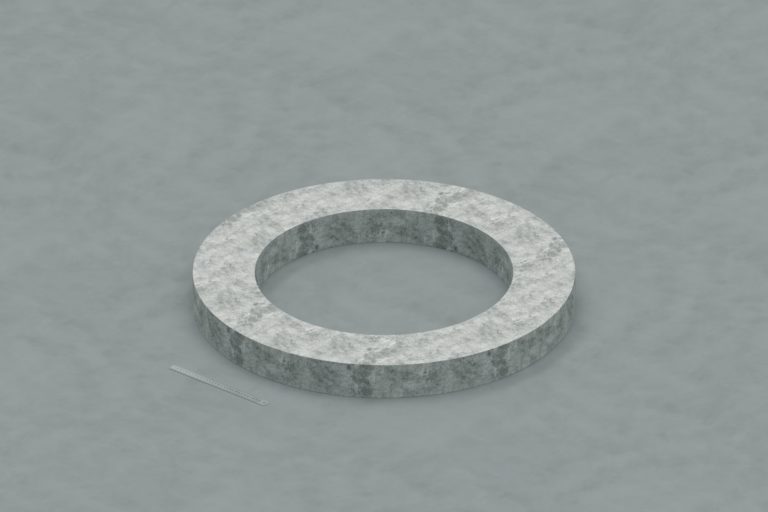

Moulded stone 1.02 x 0.69 x 0.10 m for delivery basin

Item no.: 015169 | Size: Ø 1.02/0.69 x 0.10 m, weight: 65 kg, moulded concrete block, for bricking up with mortar joint, suitable for mortar joint, suitable for 15168 ring foundation, for levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.)

- +

1

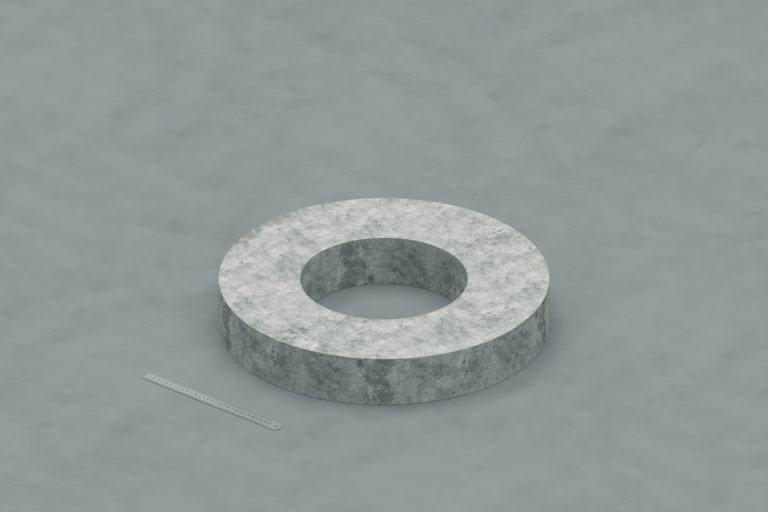

Moulding stone for water distribution tables

Item no.: 015167 | Size: Ø 0.63 x Ø 0.32 x 0.10 m, moulded concrete block, for bricking up with mortar joint, suitable for 15166 ring foundation, for levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.)

- +

1

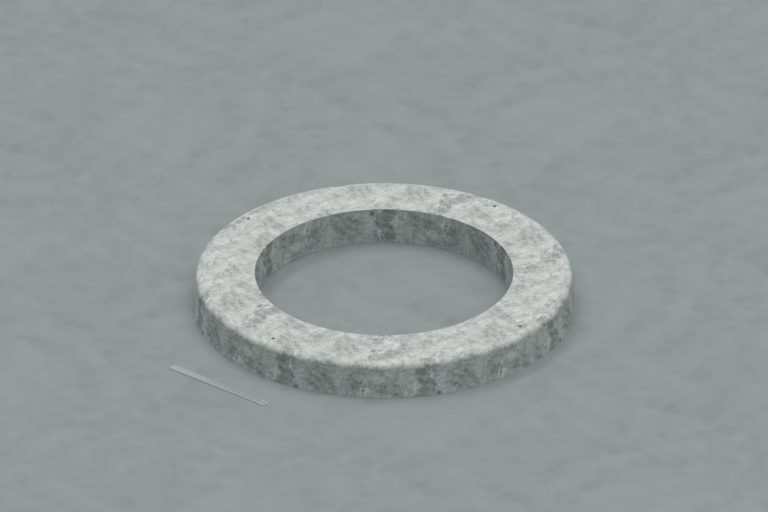

Ring foundation 1.02 x 0.69 x 0.10 m for delivery basin

Item no.: 015168 | Size: Ø 1.02/0.69 x 0.10 m, Weight: 64 kg, Fixing holes: 4 x M10 LKØ935mm, Concrete base, rounded edges; 4 M10 threaded dowels, suitable as a concrete base for a conveyor basin (solitary)

- +

1

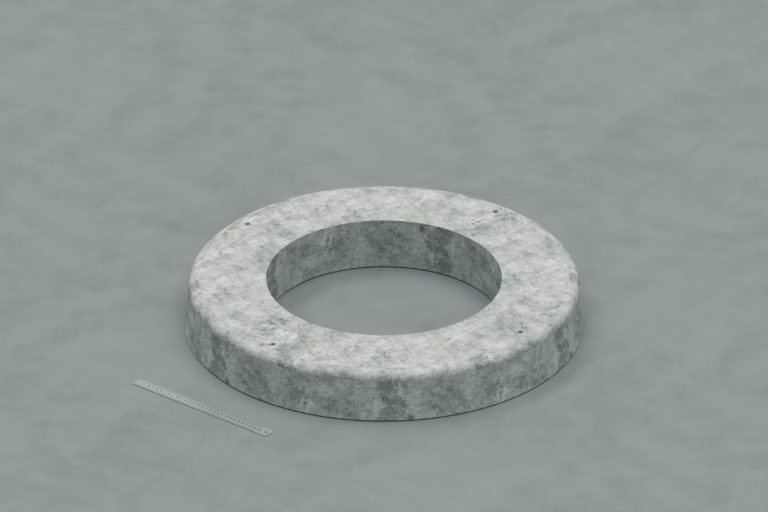

Ring foundation Ø 0.76/0.45 x 0.10 m

Item no.: 015165 | Size: Ø 0.76/0.45 x 0.10 m, weight: 64 kg, concrete base, rounded edges; 4 threaded dowels, suitable as a base for K&K water feature elements with standing cylinder.

- +

1

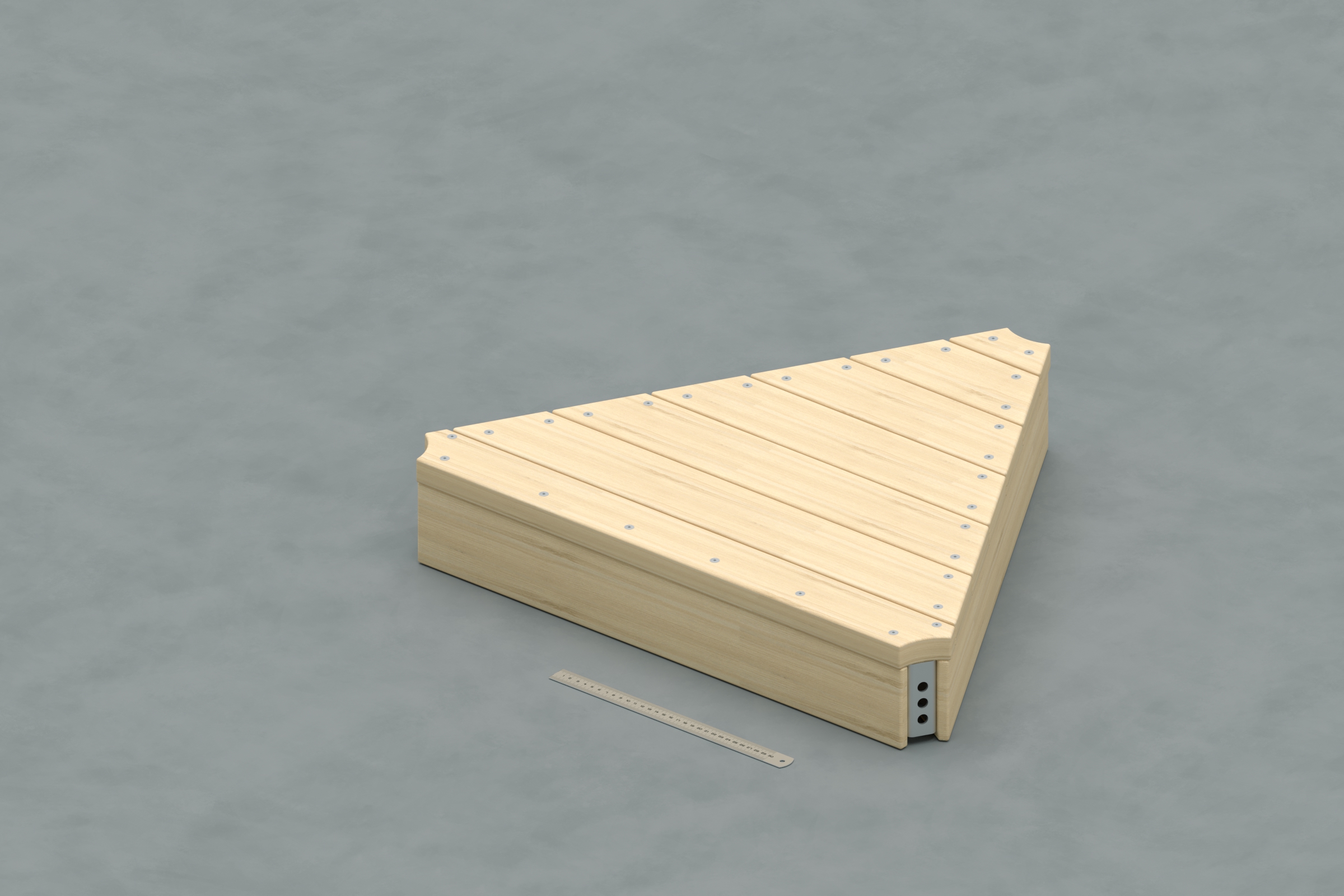

Triangular platform 3 x 0.80 m

Art.: 1200004 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

- +

1

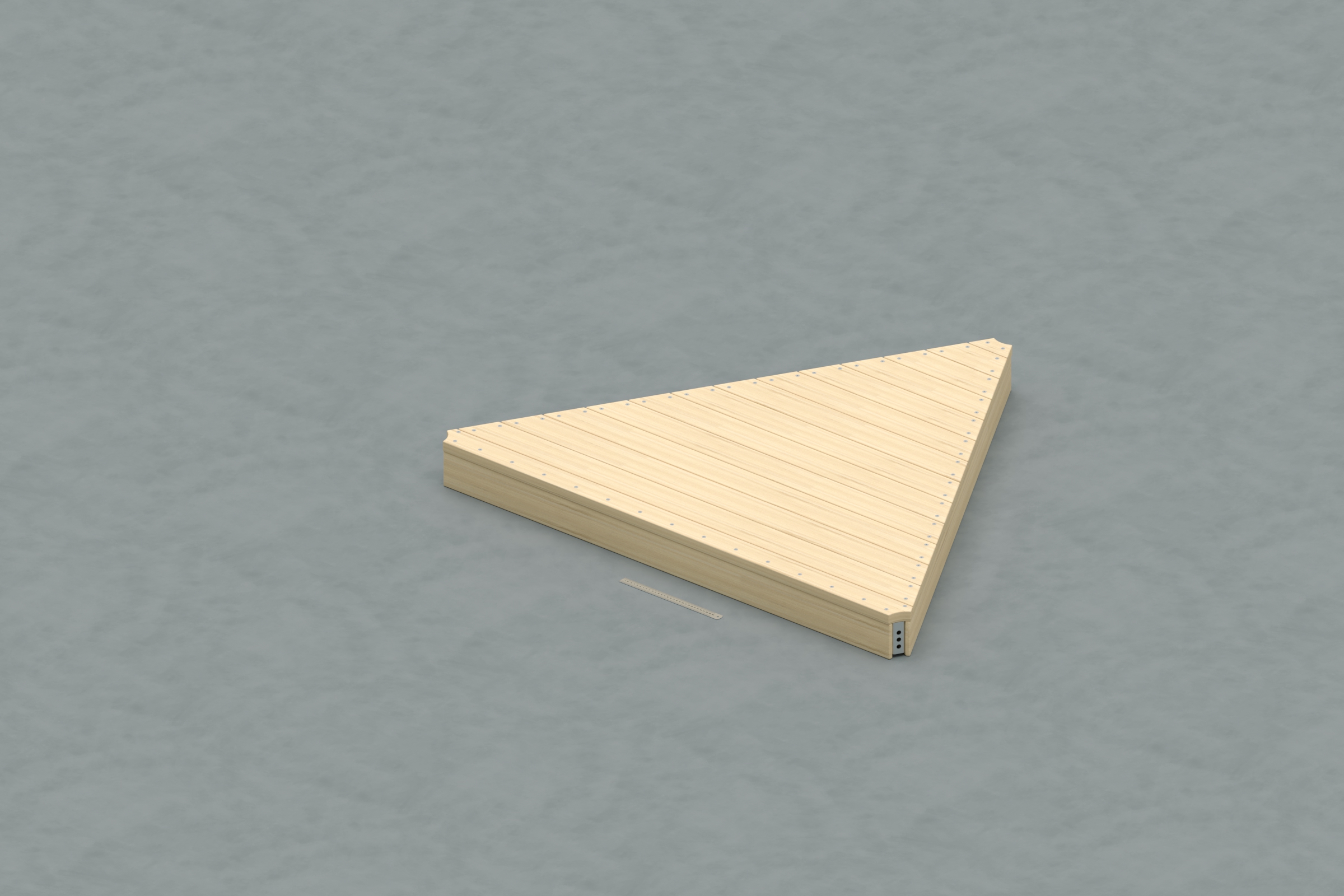

Triangular platform 3 x 1.60 m

Art.: 1200005 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection.

- +

1

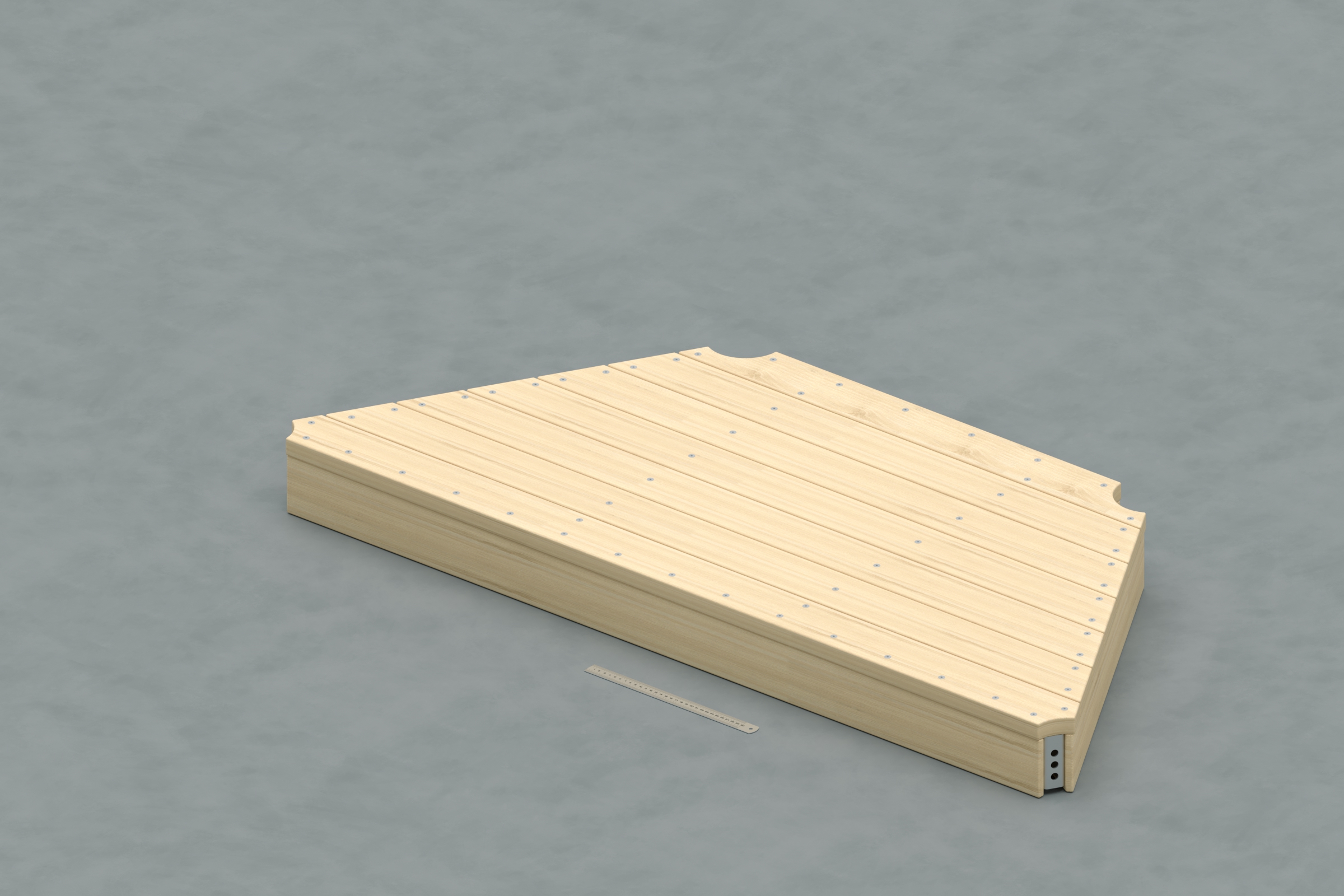

Trapezoidal platform 0.80 m/1.60 m

Art.: 1200017 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn robinia timber is planed, bevelled and free from rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

- +

1

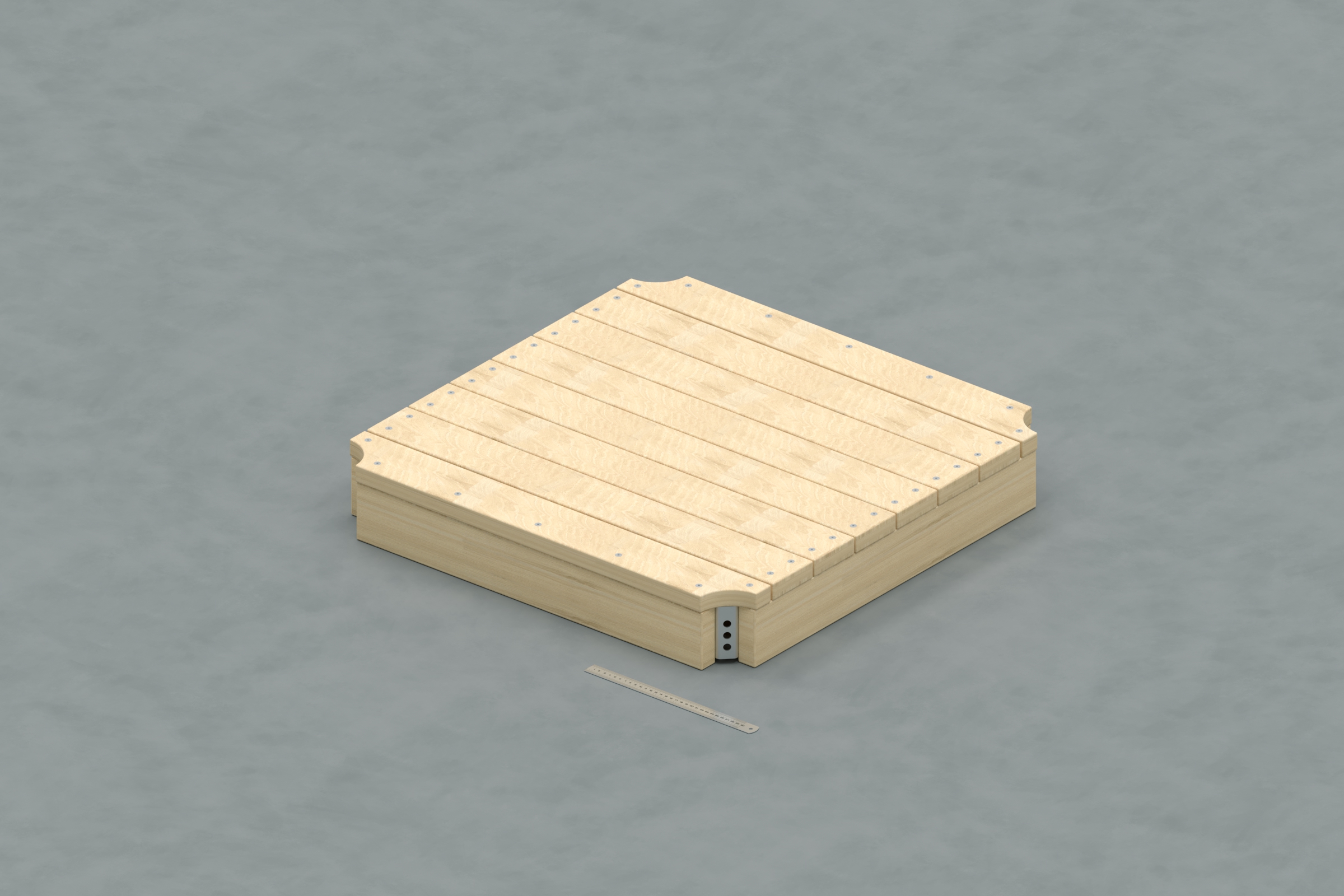

Square platform 0.80 m x 0.80 m

Art.: 1200000 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn robinia timber is planed, bevelled and free from rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection

- +

1

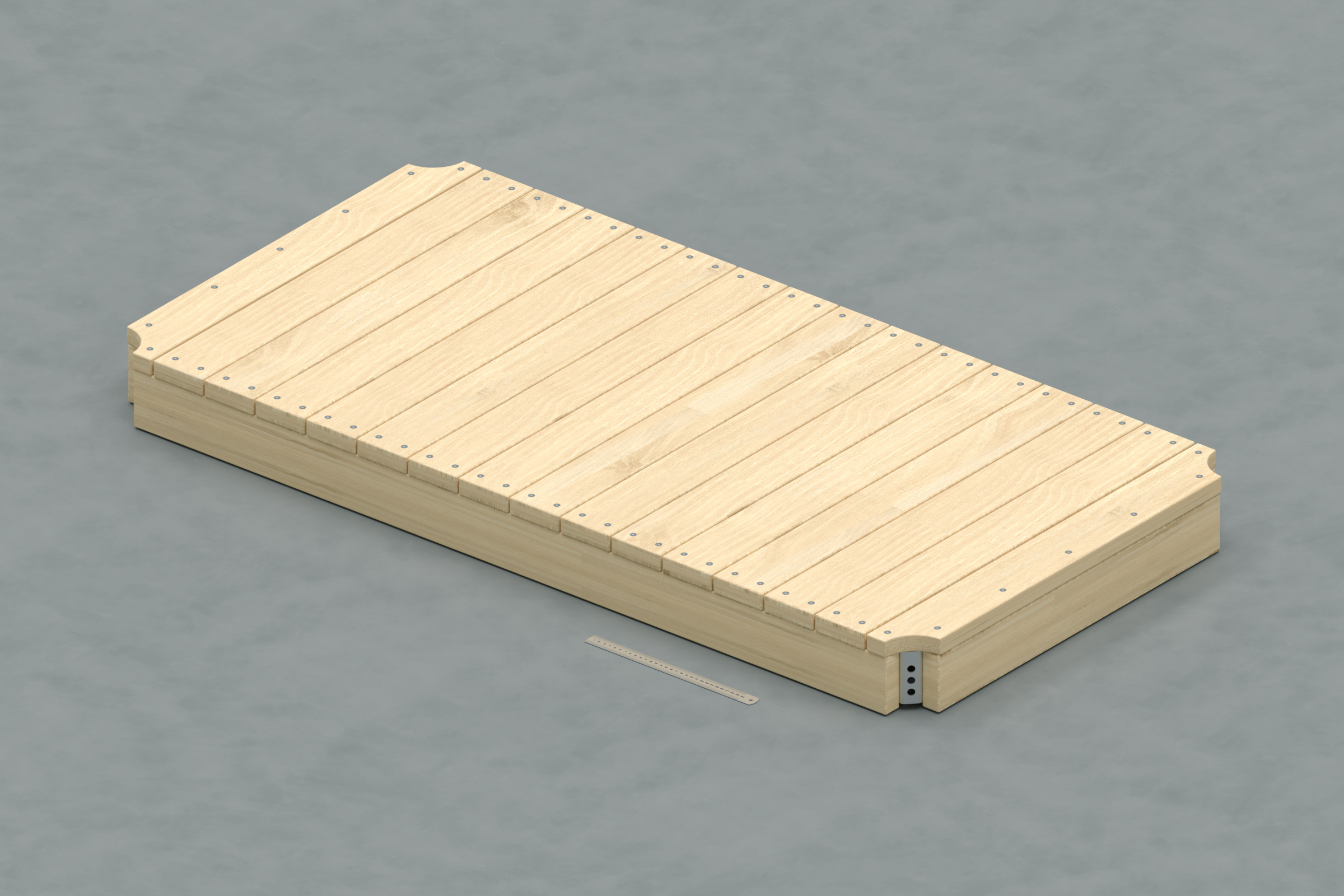

Rectangular platform 0.80 m x 1.60 m

Art.: 1200001 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn robinia timber is planed, bevelled and free from rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection.

- +

1

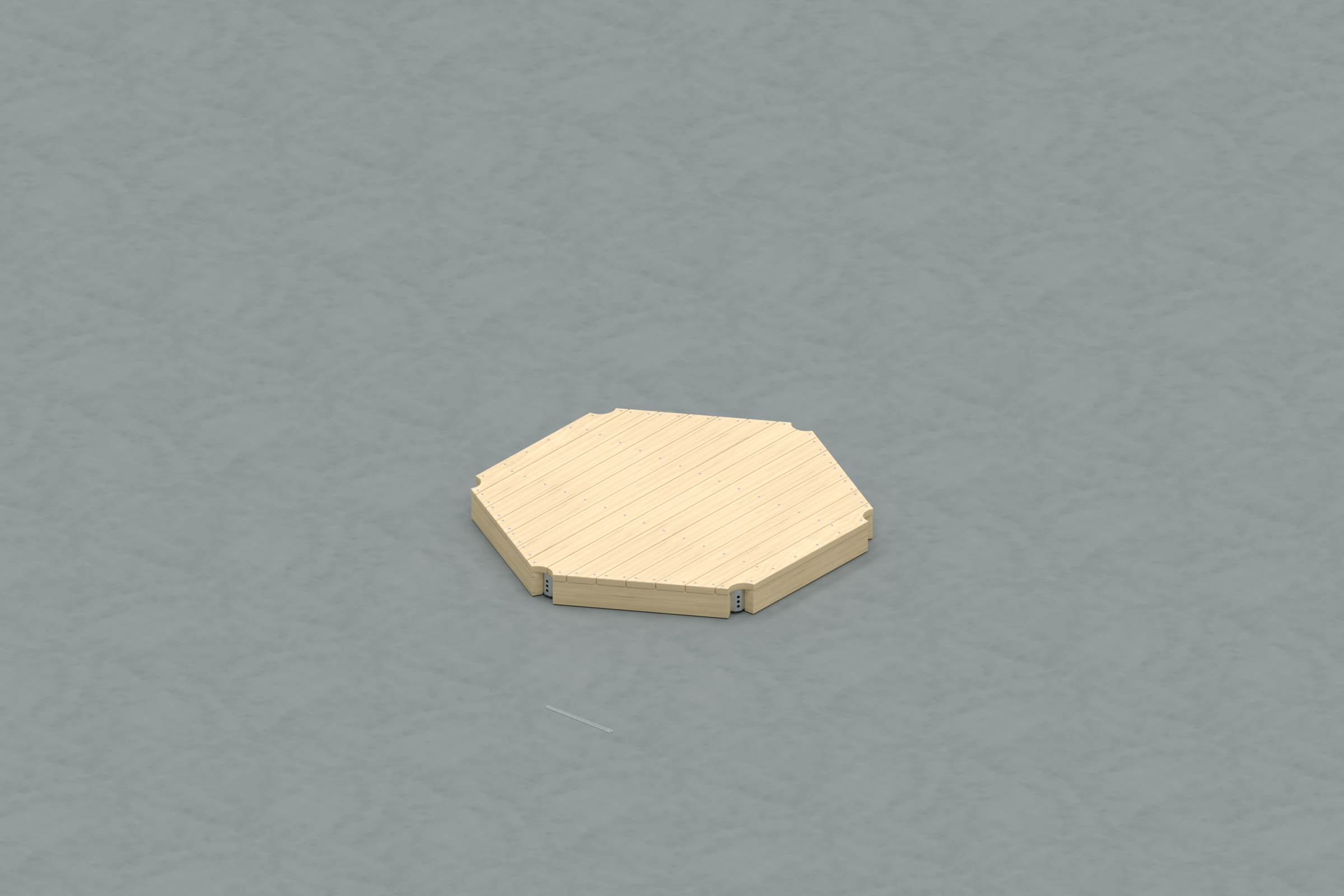

Hexagonal platform 6 x 0.80 m

Art.: 1200006 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets and a continuous bolt connection.

- +

1

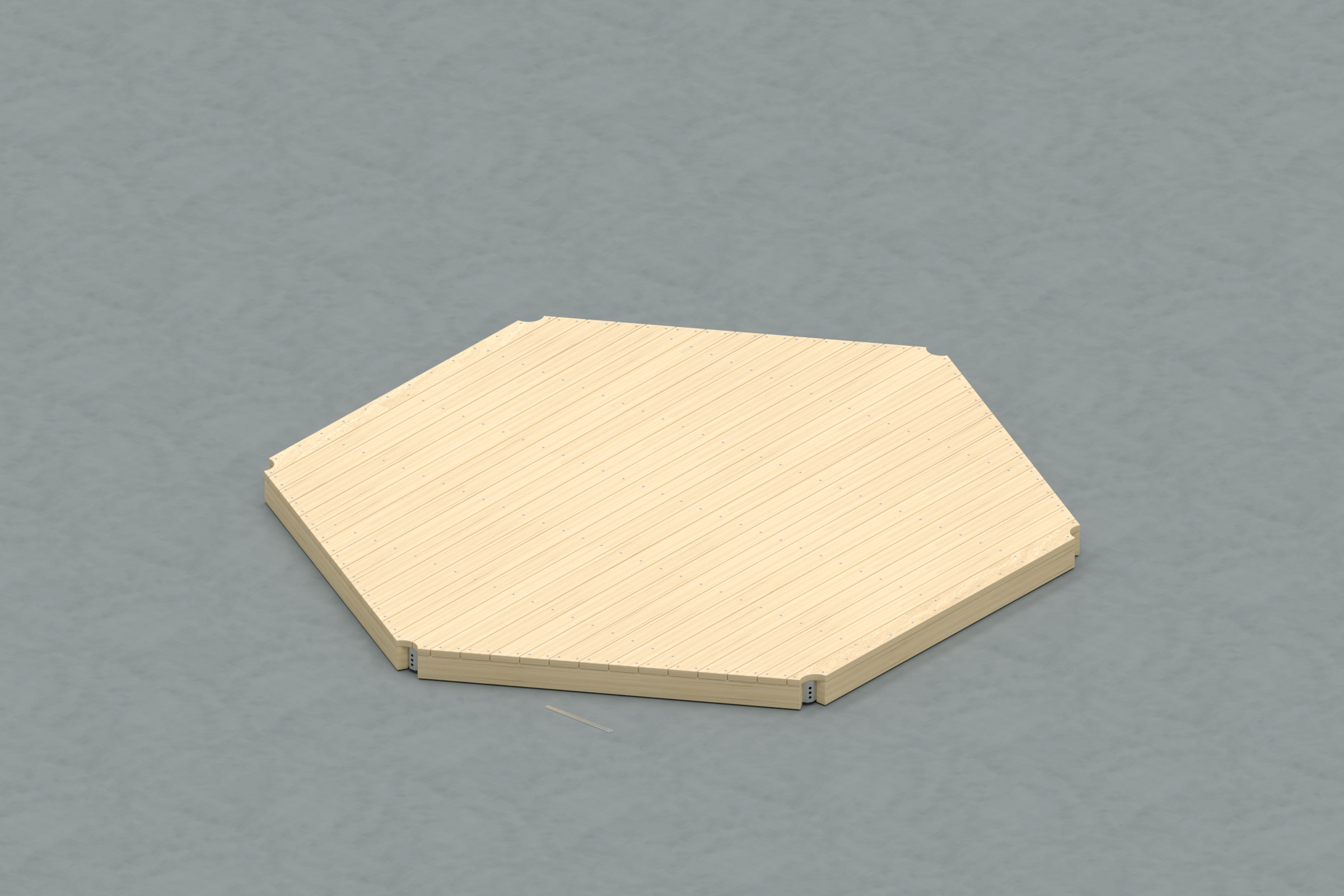

Hexagonal platform 6 x 1.60 m

Art.: 1200007 | Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening

- +

1

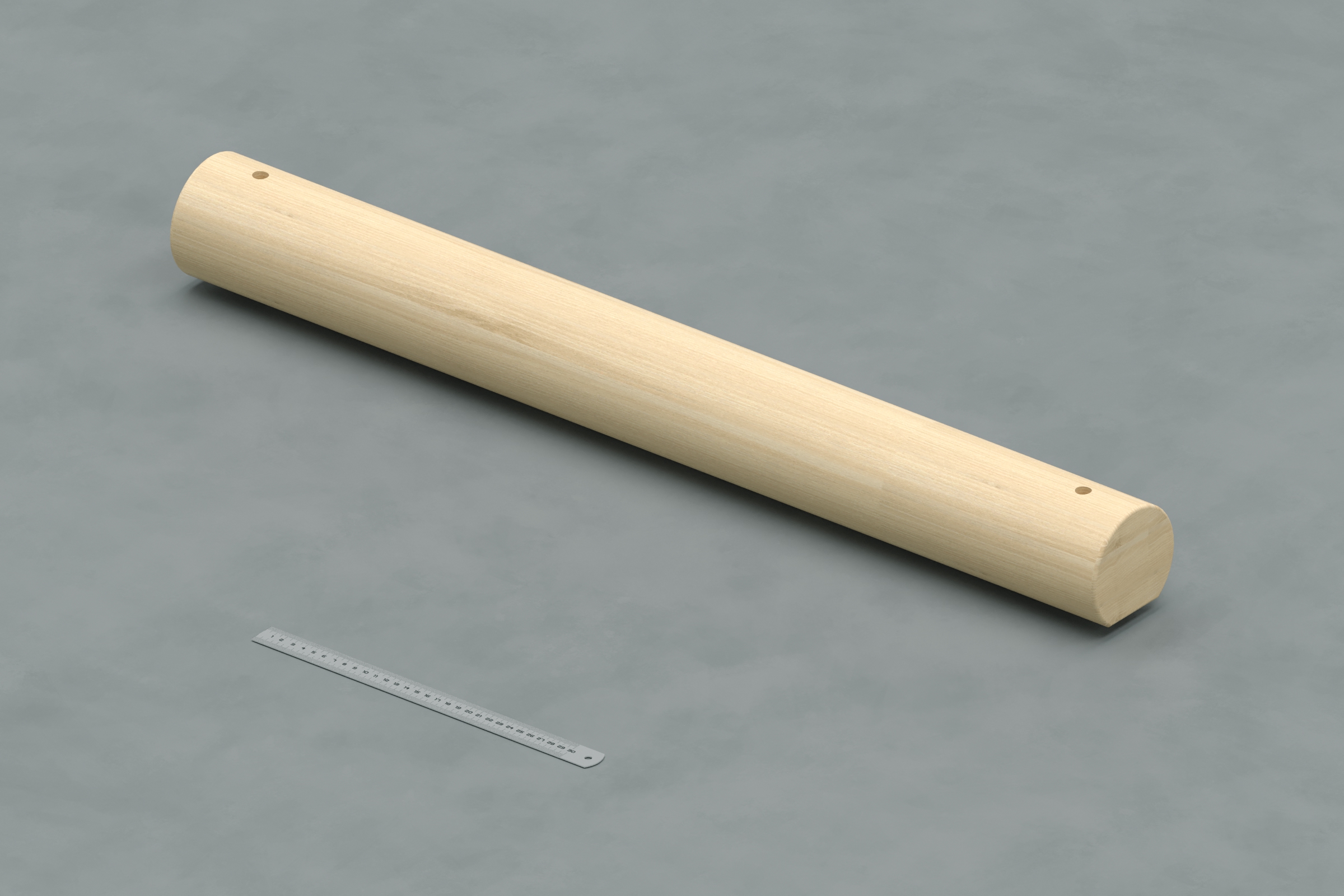

Wobbly stairs/wobbly bridge Ø100x900 laminated robinia wood

Item no.: 6200063

- +

1

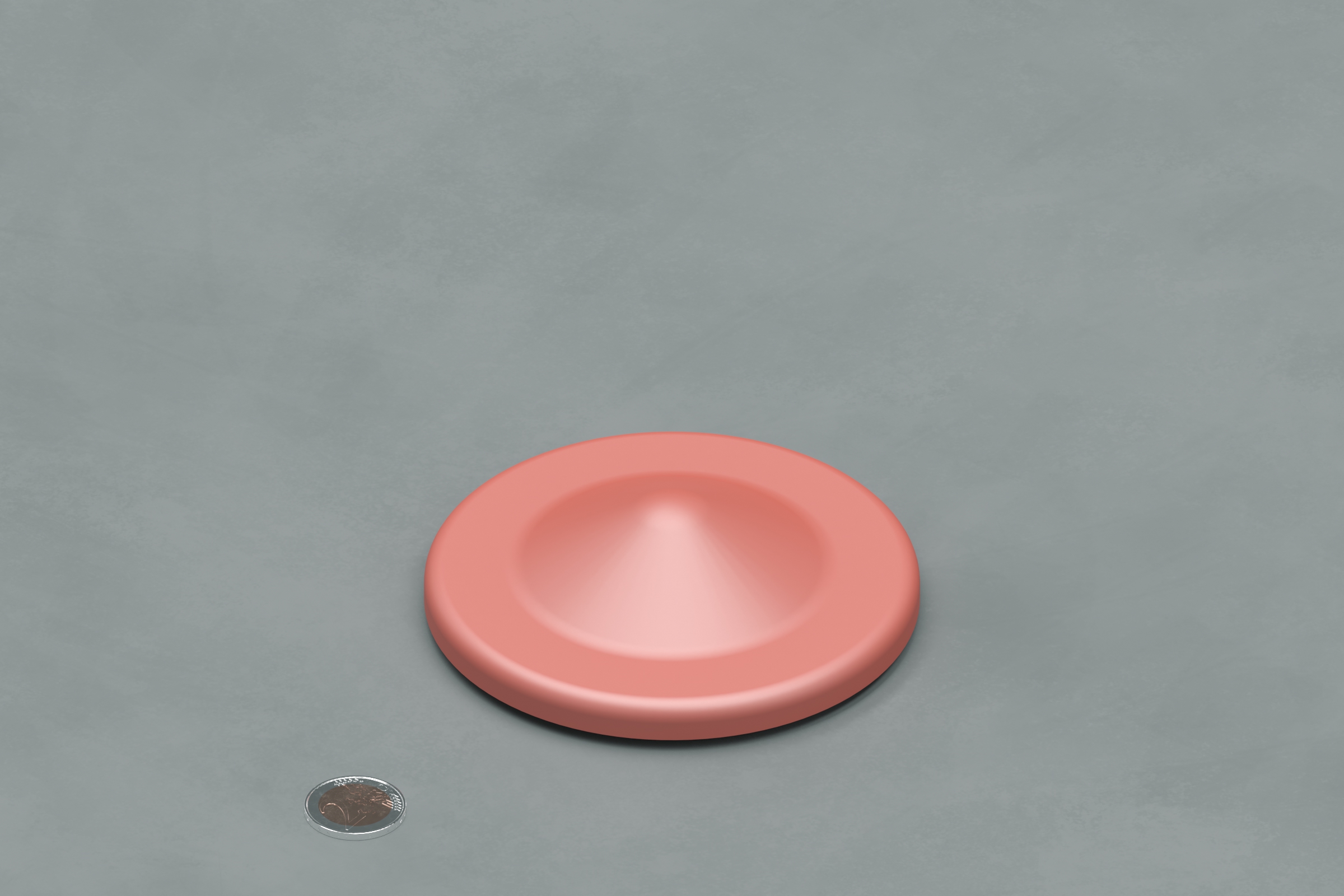

Post cap ES120

Art.: 6290043 | All RAL colours possible, except fluorescent colours, mica shades and RAL design colours. Please specify the desired RAL colour when ordering.

- +

1

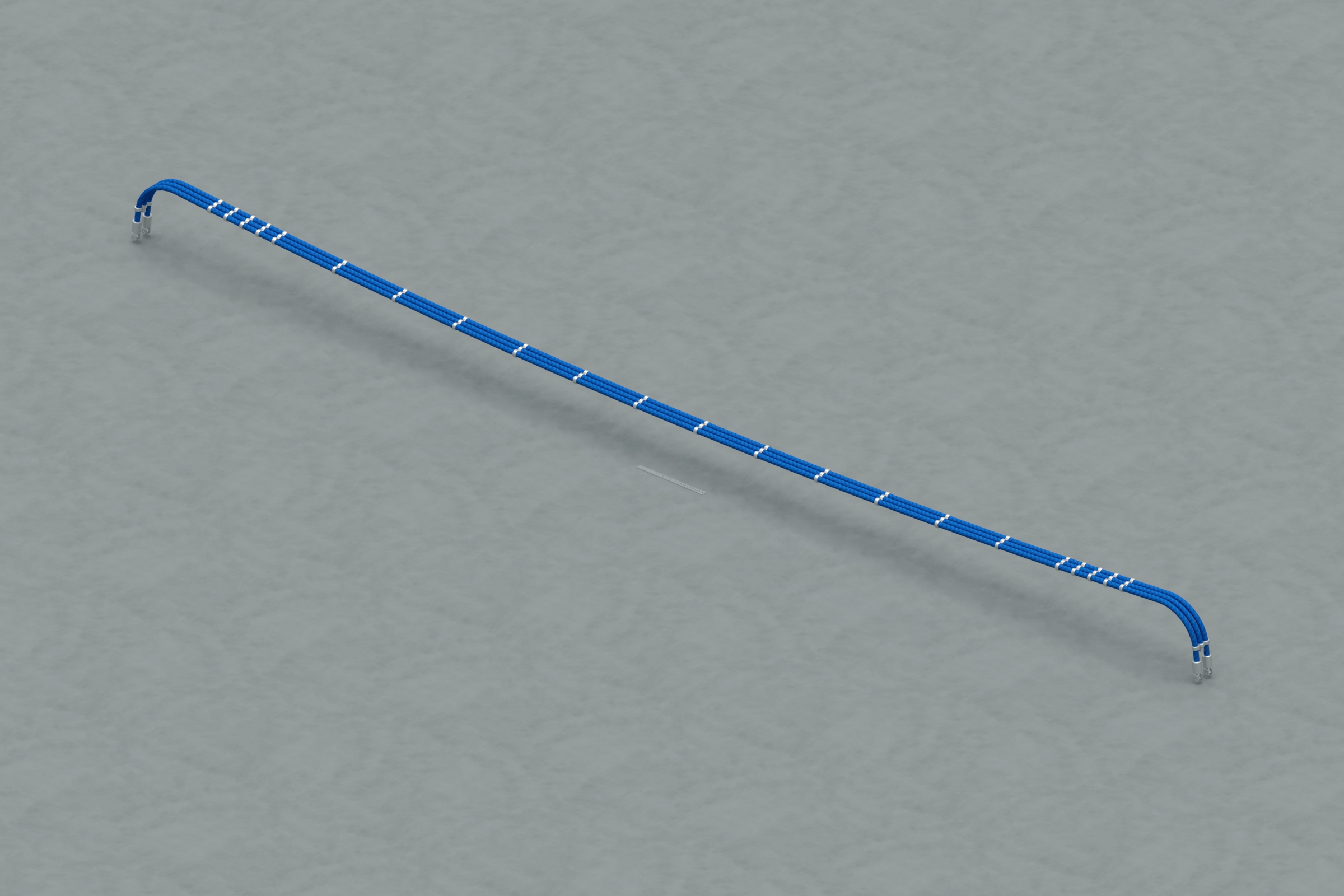

Triple balancing rope for 0-52126-000/1, 3-ply/Ø 20 mm/5.665m/blue suspension tape

Art.: 3510328 | Floating belt made of three firmly connected Hercules cables running side by side, approx. 90 mm wide

- +

1

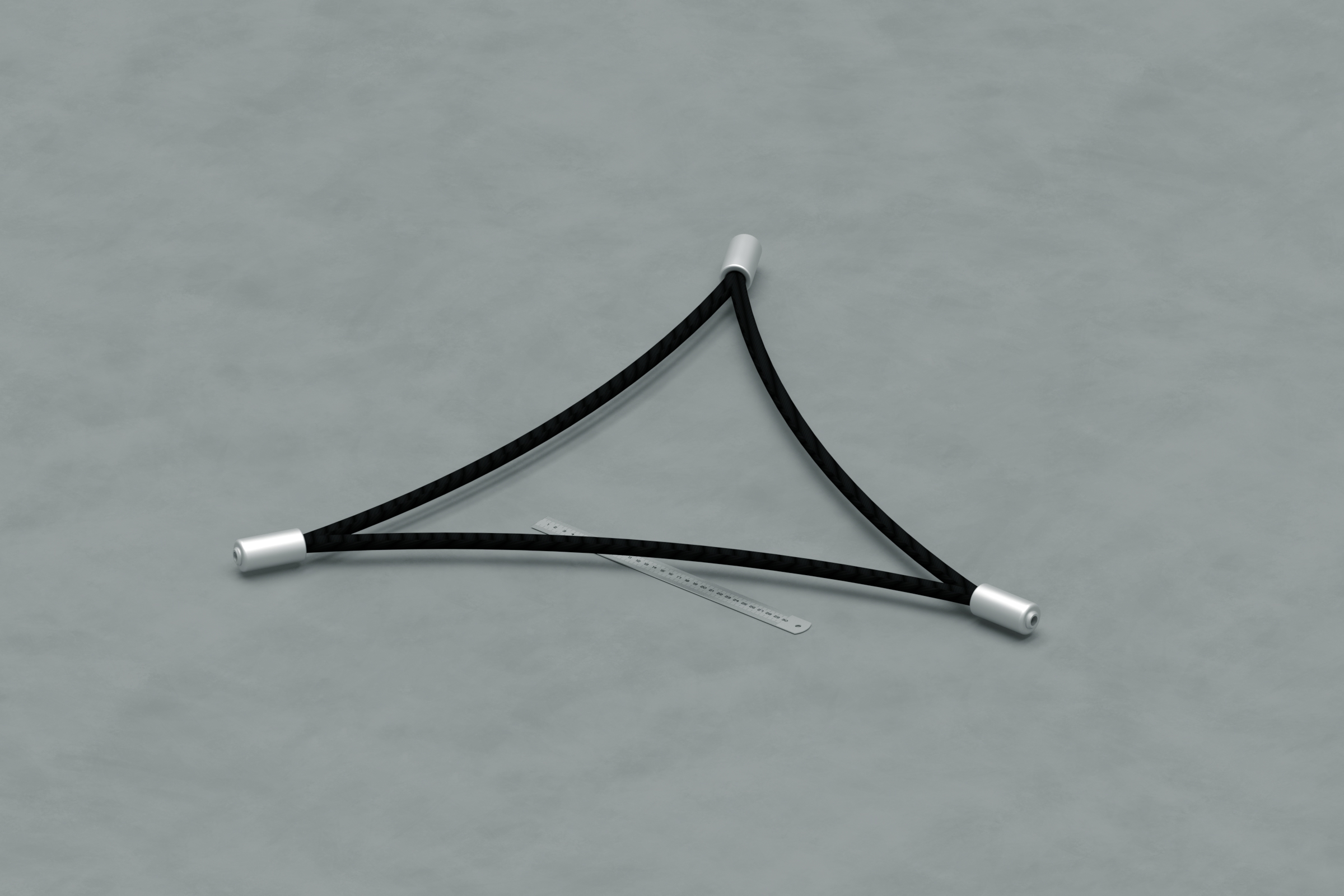

Hercules triangle (3 x 0.80) ES/RS 120 with internal thread M12

Art.: 1230236 | Climbing triangle made of Hercules rope, Ø 16 mm, incl. 3 pcs. Threaded bush Art. No. 2030289 per rope triangle, for combinations Art. No. 0-55210-503/703 0-55215-501/701 0-55220-504/704

- +

1

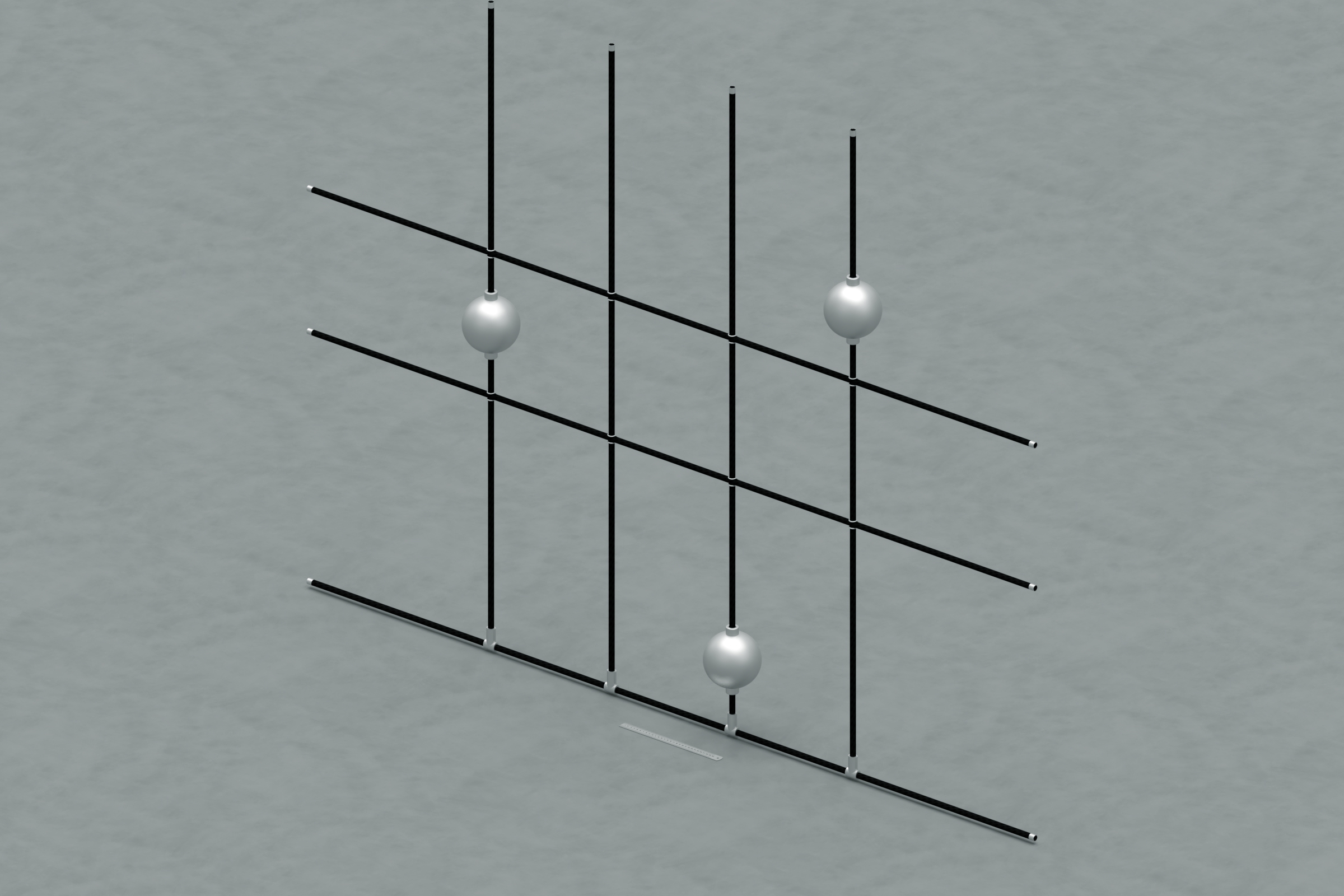

Hercules climbing net 3 black / with balls, 4 vertical ropes/3 horizontal ropes

Art.: 3510083 | for combinations (standard) Art. No. 0-21540-501/701 0-55400-500/700 0-55600-504/704

- +

1

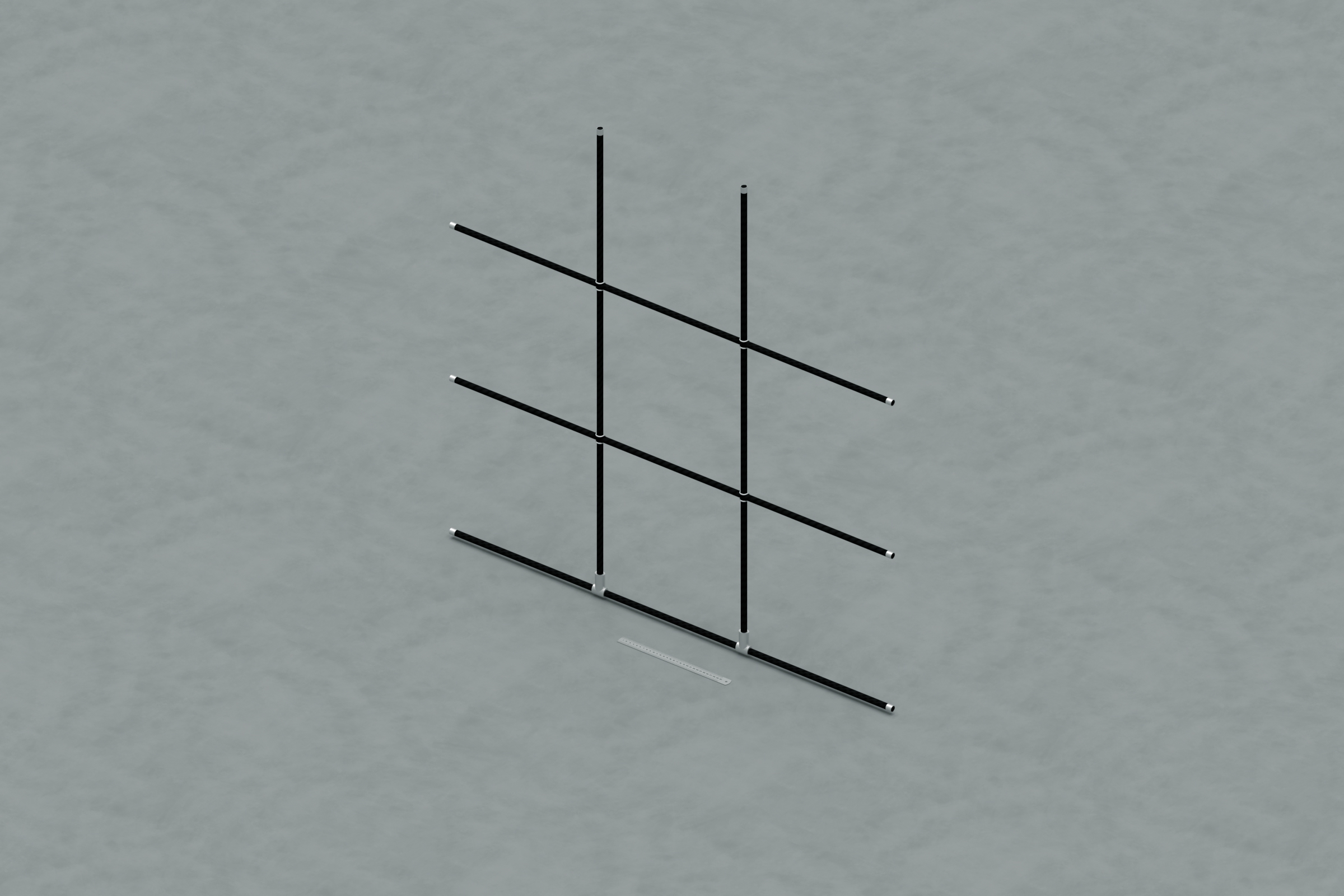

Hercules net duck net AH1.40/1.60m Ø 16 black

Art.: 3510170 | for combinations Art. No. 0-22680-701/501 0-23500-500/700

- +

1

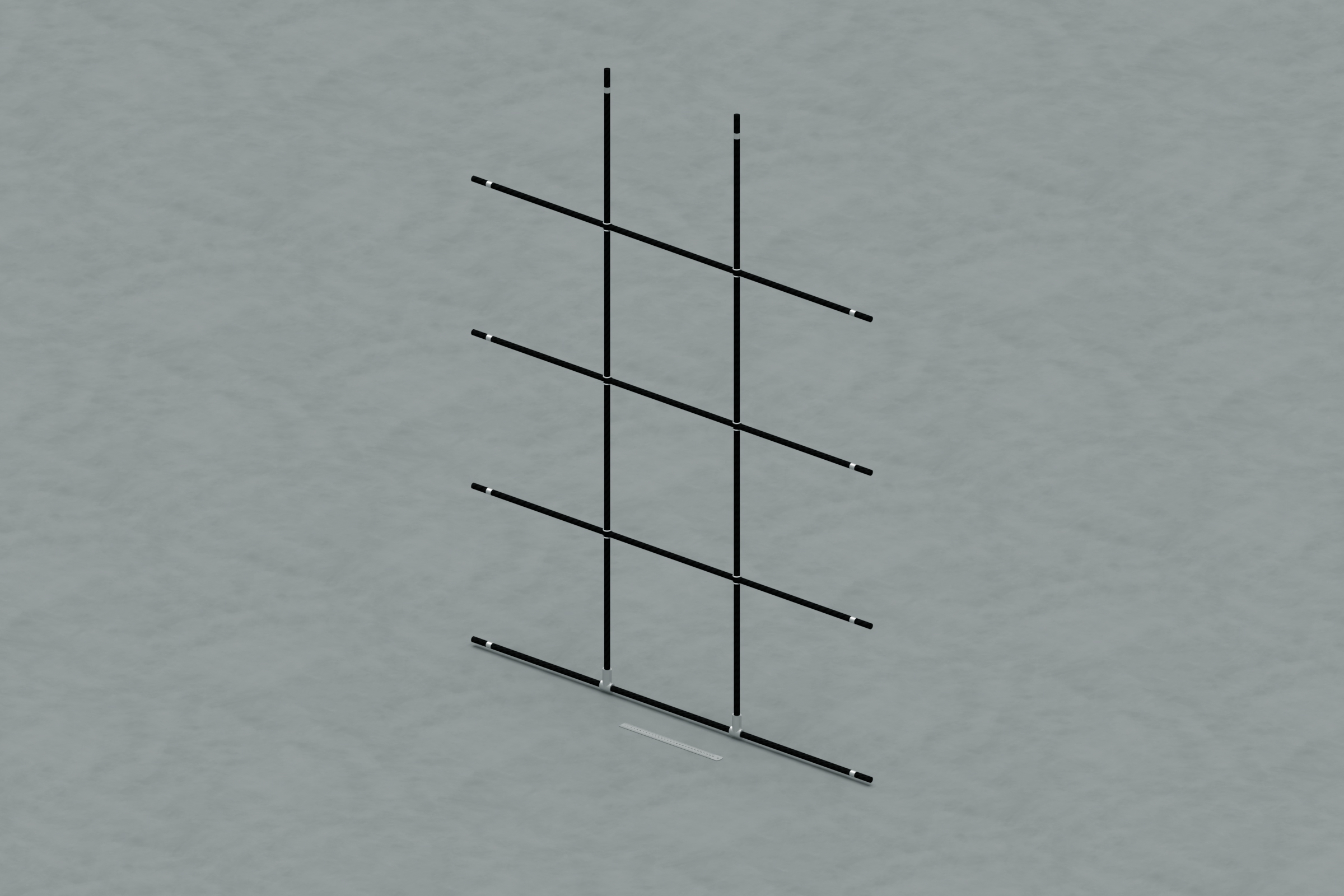

Hercules net duck net AH1.80/2.00m Ø16 black

Art.: 3510077 | for combinations (standard) Article no. 0-21185-504/704 0-21634-501/701 0-21770-502/702 0-22680-501/701 0-55411-502/702 0-55441-501/701

- +

1

Hercules net Climbing net 1; Ø 16 black, 4 vertical ropes/3 horizontal ropes

Item no.: 3510084 | for combinations Item no. 0-21775-503/703 0-31660-502/702 0-55470-501/702 0-55480-503/703 0-55485-503/703

- +

1

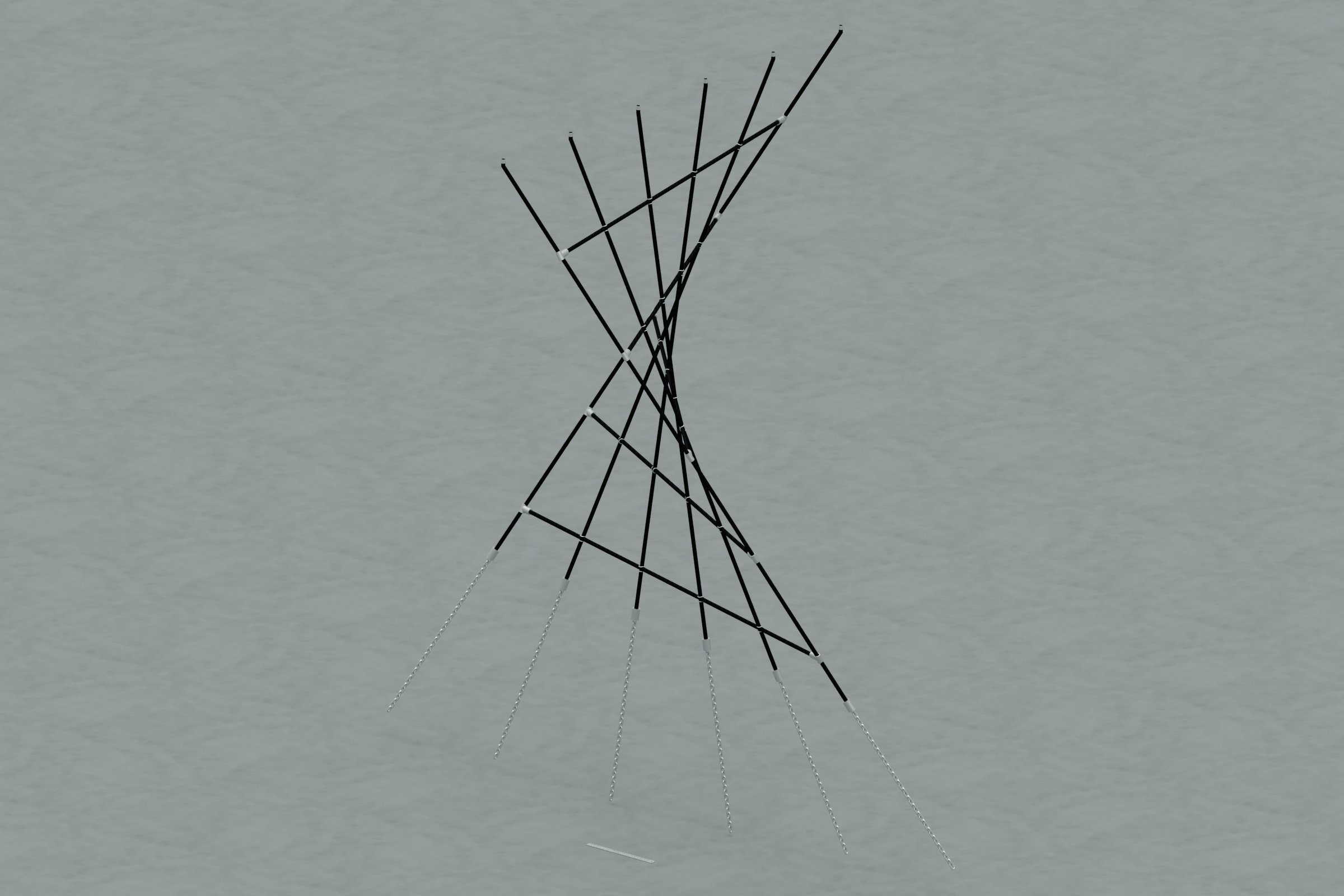

Spacenet ROWOCON/chain connection black, 6 ropes vertical/5 ropes horizontal (1)

Item no.: 3510093

- +

1

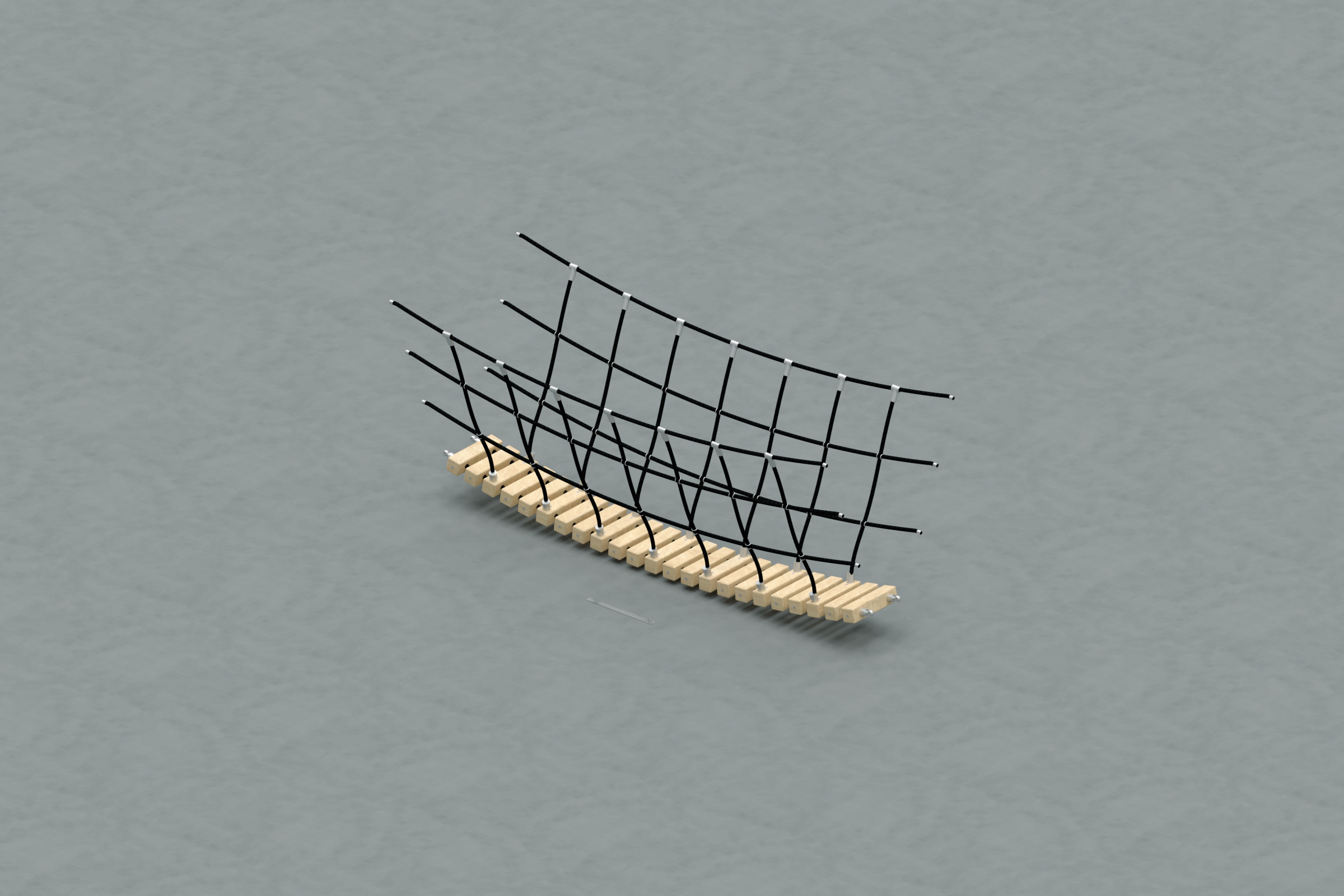

Bridge l= 2.4m h=0.750m, Hercules rope Ø16/black incl. timbers (1)

Item no.: 6200156

- +

1

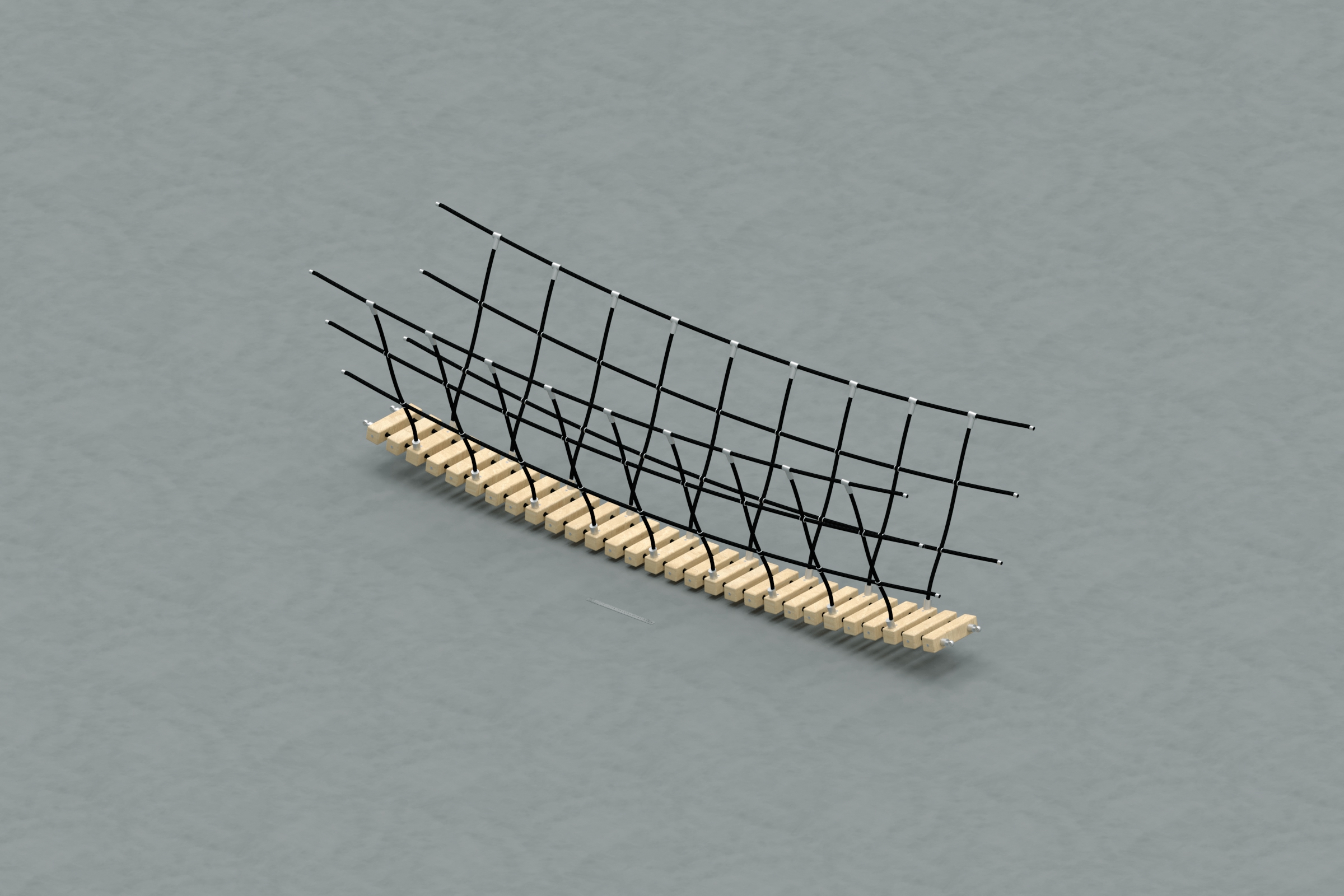

Bridge l= 3.2m h=0.750m, Hercules rope Ø16/black incl. timbers

Item no.: 6200158

- +

1

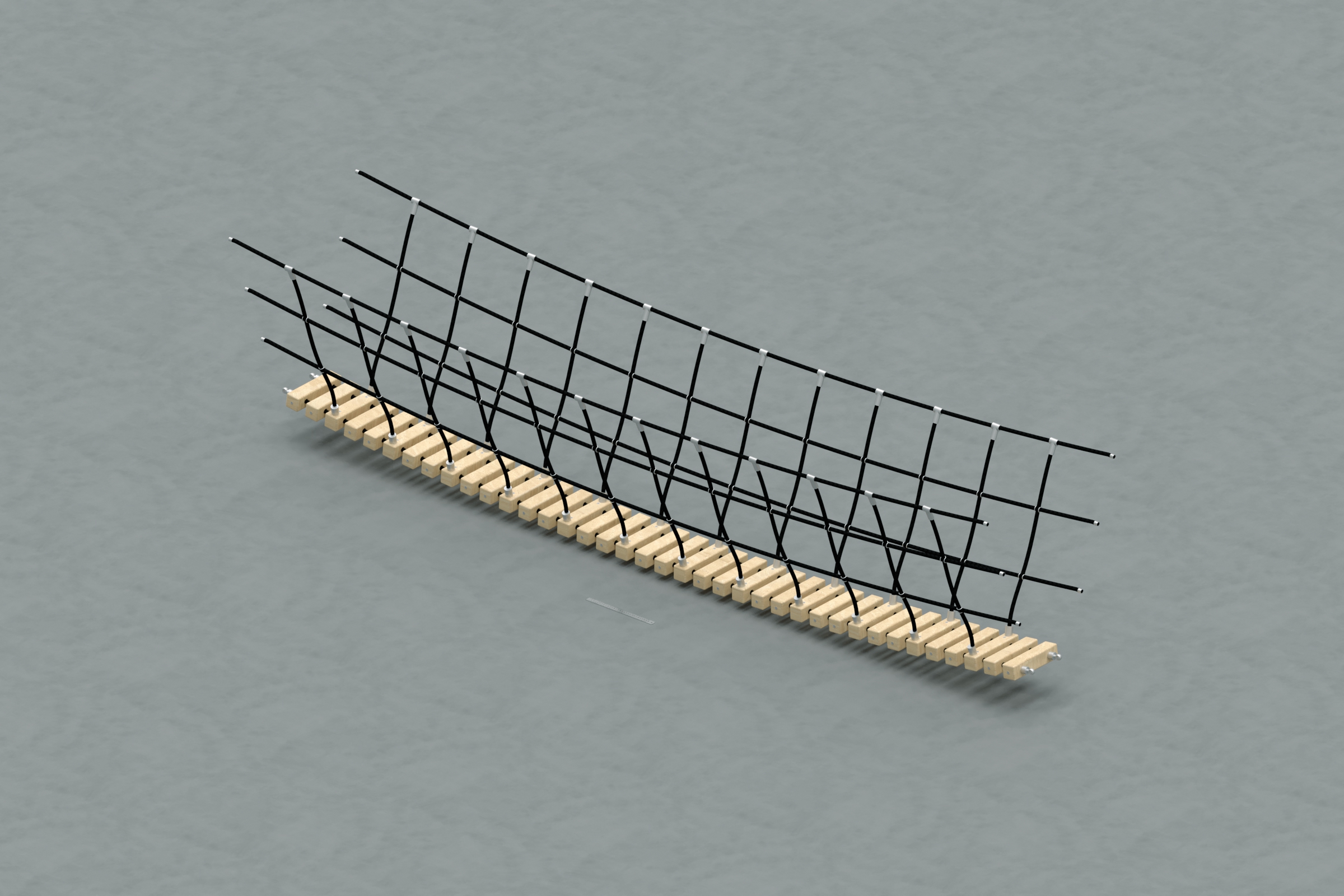

Footbridge l= 4.0m h=0.750m, Hercules rope Ø16/black incl. timbers

Item no.: 6200159

- +

1

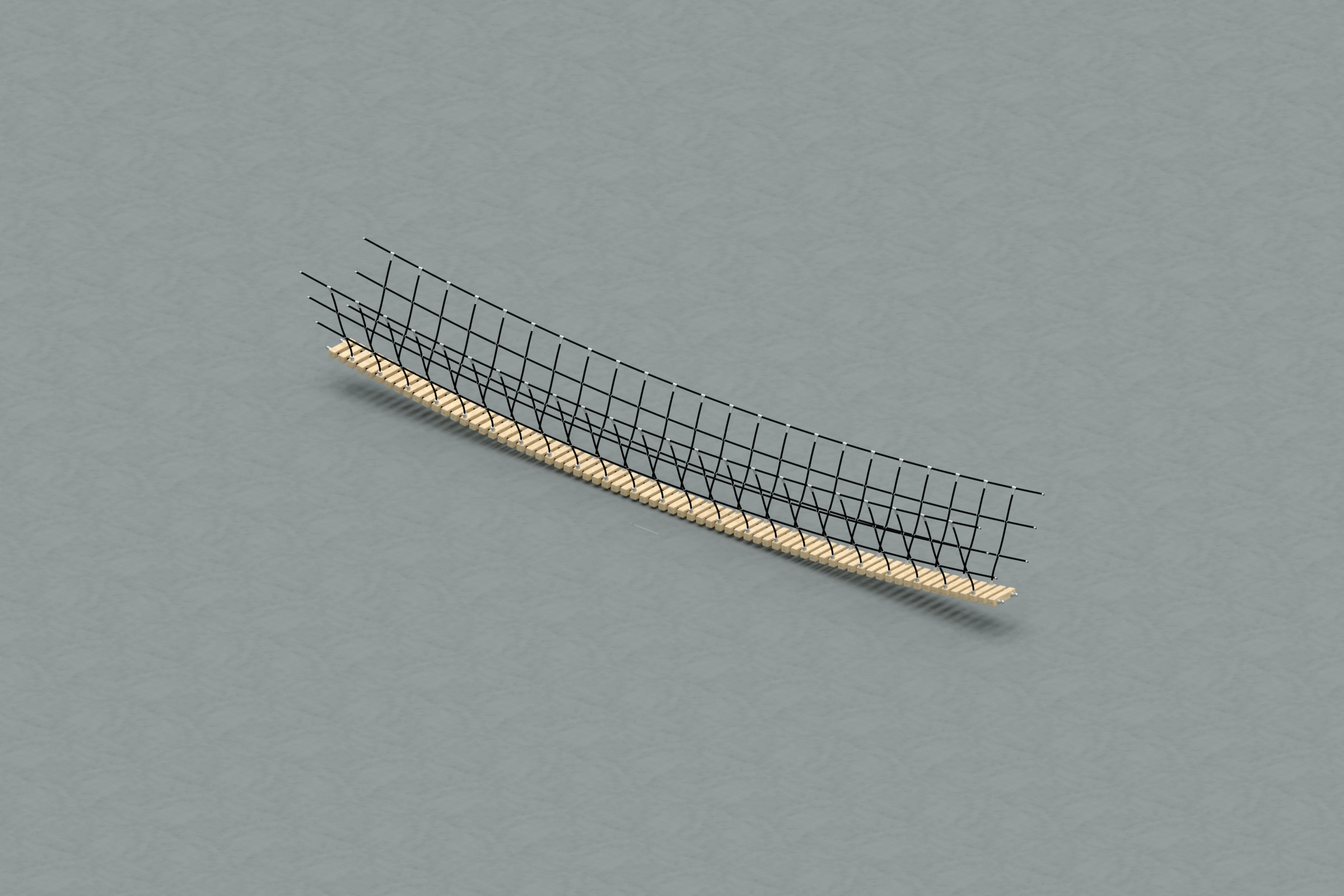

Footbridge l= 7.0m h=0.750m, Hercules rope Ø16/black incl. timbers

Item no.: 6200166

- +

1

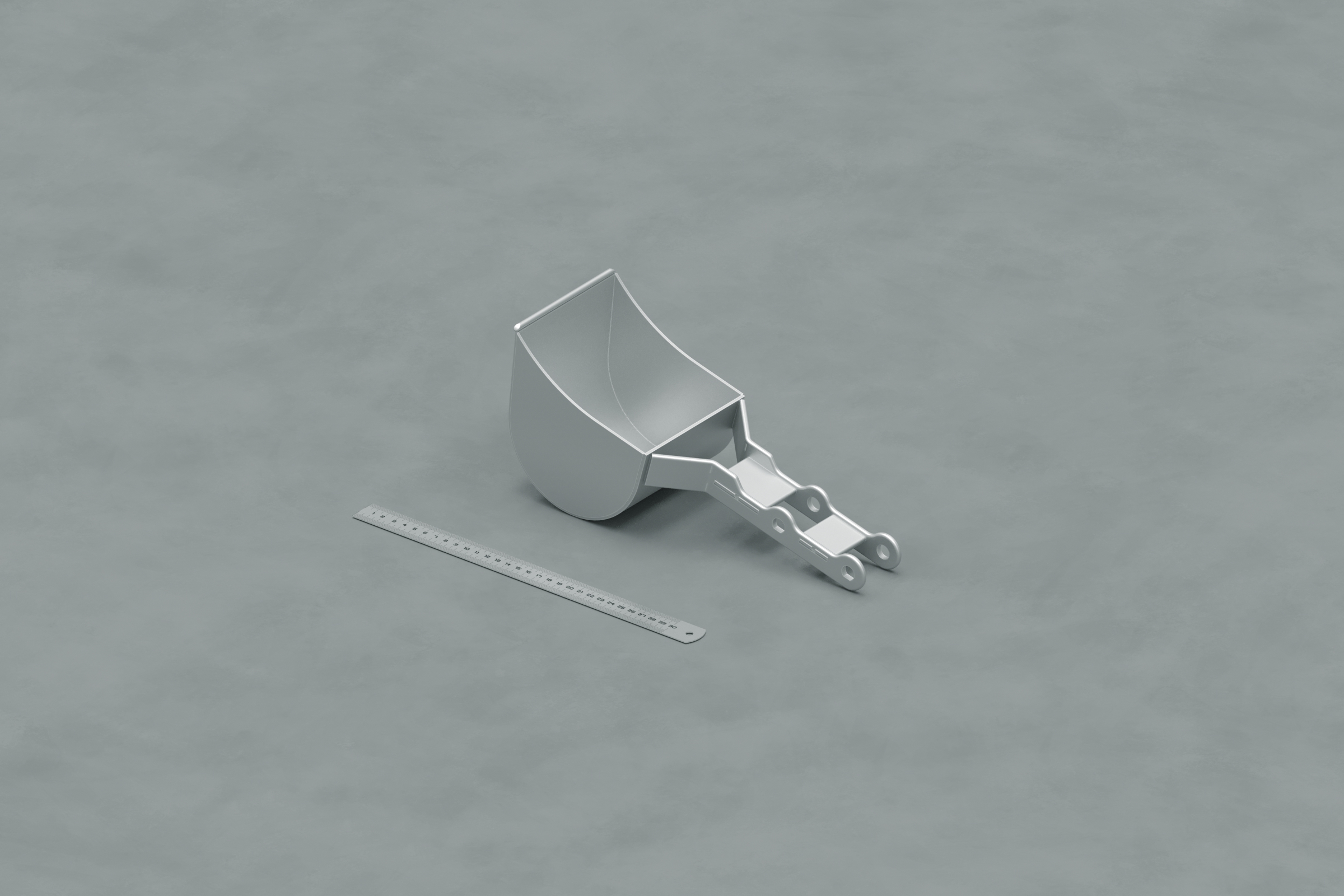

Excavator bucket (with moulded connection for the axles), without fastening material

Art.: 1040274 | This excavator bucket can be mounted on all versions of the K&K excavators.

- +

1

Fastening set for sand chain

Item no.: 6260032

- +

1

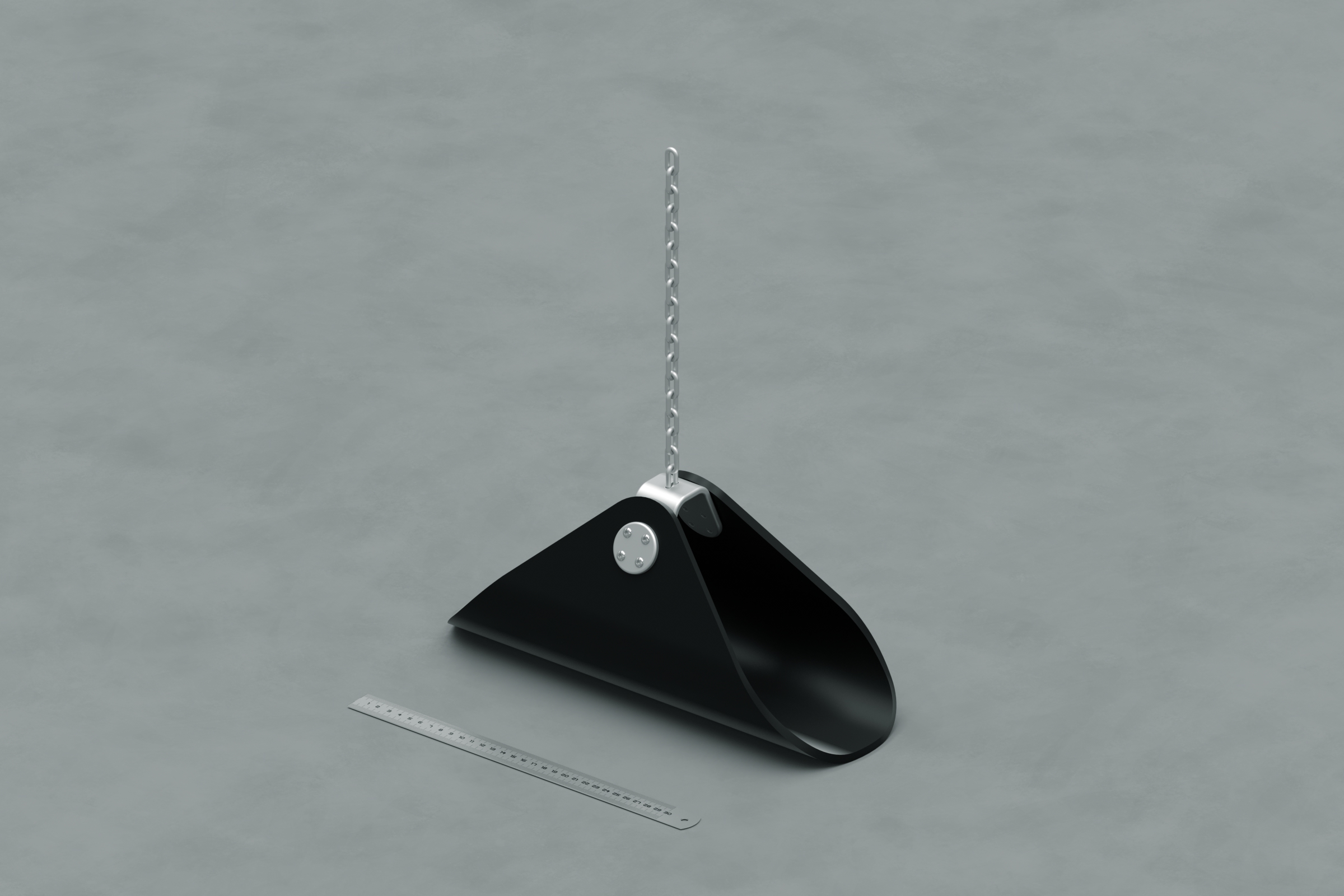

Rubber container Sand lift with chain 4 mm, chain length depending on appliance

Art.: 6260005 | The article number of the play equipment is absolutely necessary to determine the chain length.

- +

1

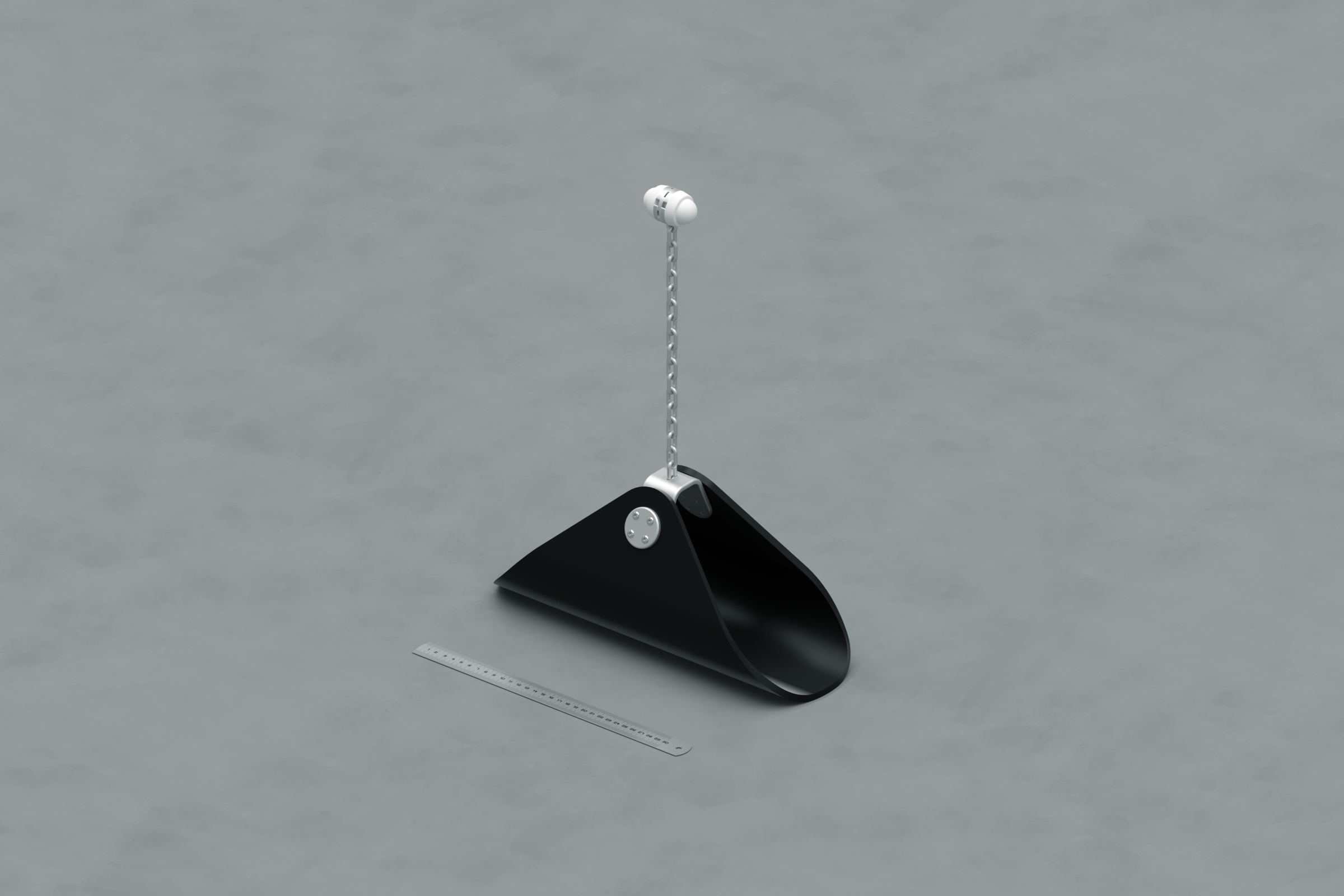

Rubber container Sand hoist with chain 4 mm, chain length 300 mm / incl. chain lock

Item no.: 6260151

- +

1

Rubber container for sand transport trolley with 4 mm chain, chain length 900 mm (for sand transport trolley traverse)

Item no.: 6260002

- +

1

Chain cross guide plate for sand winding POM, 128x42x8 POM black

Item no.: 2300104

- +

1

Suspension chain basket swing (2.00m) (Brügger), without chain adapter (one side)

Art.: 1060552 | 2 chain suspensions are required for one basket swing

- +

1

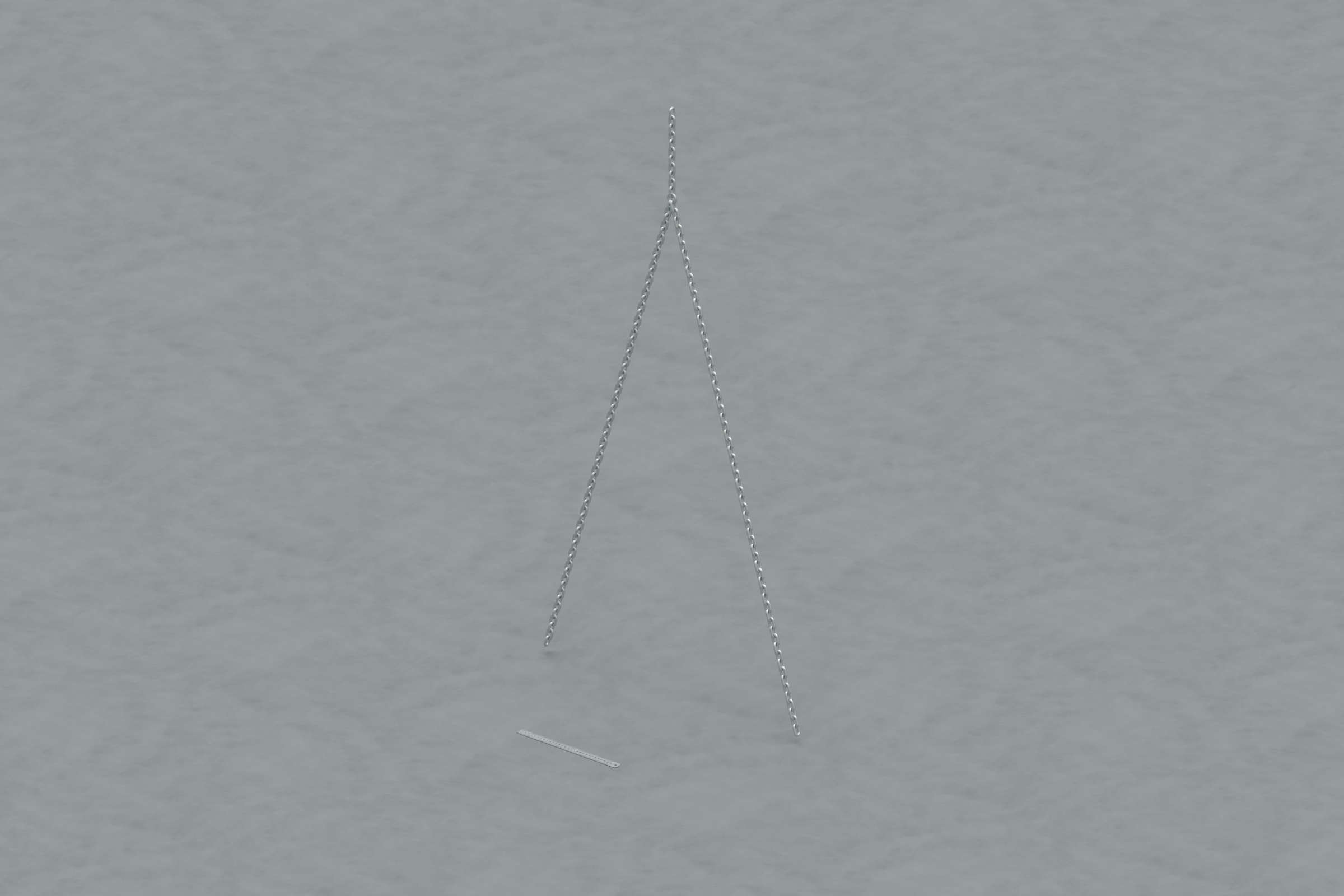

Suspension chain basket swing (2.50m) (Brügger), without chain adapter (one side)

Art.: 1060510 | 2 chain suspensions are required for one basket swing

- +

1

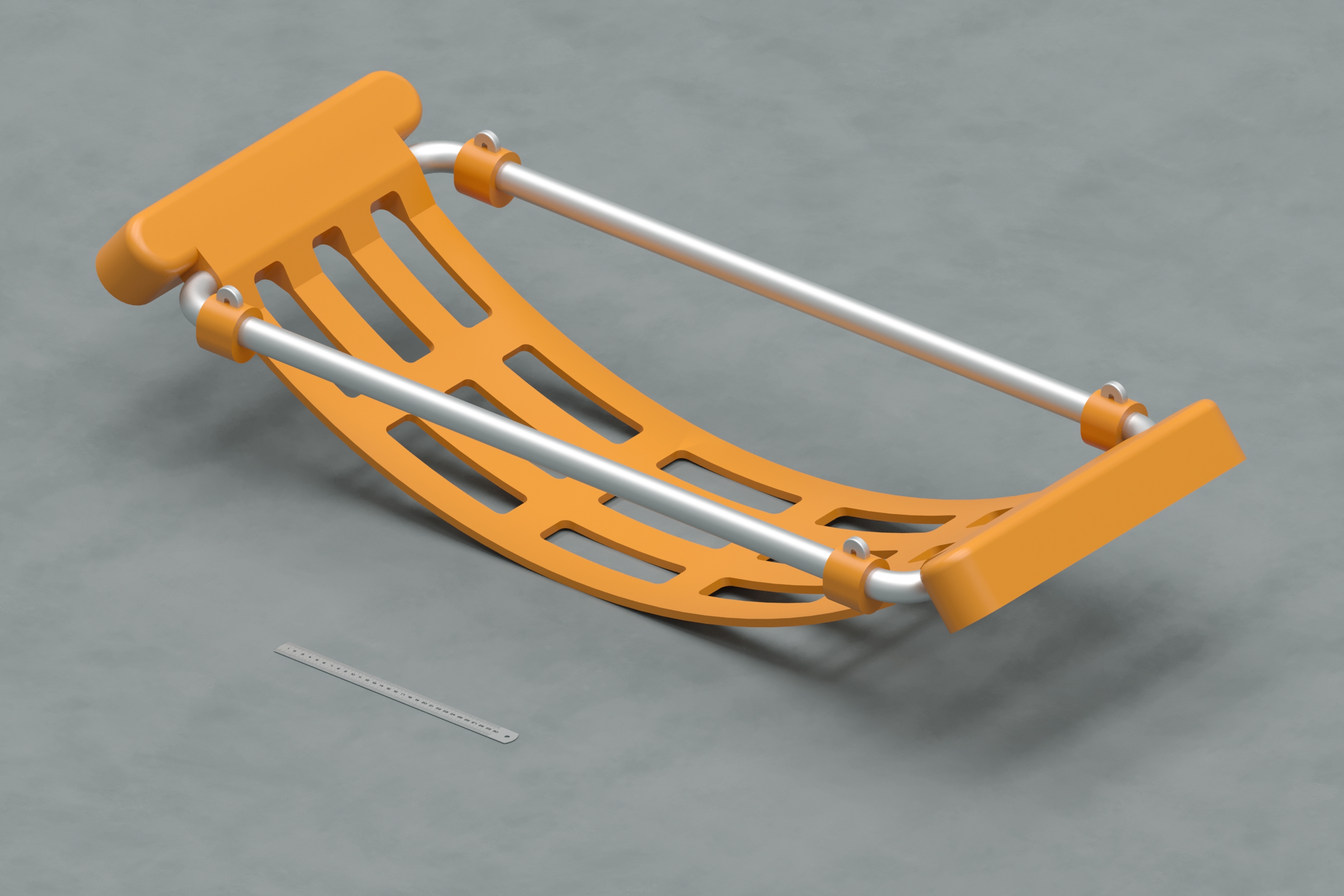

Boat seat (inclusion), without chain suspension

Item no.: 015840 | Handicapped-accessible swing seat in boat shape made of rubber Weight: 13 kg Length: 124.5 cm Width: 50 cm Height: 31 cm - Cradle-shaped swing seat, tested in accordance with EN 1176, parts 1 and 2 - All-round frame made of stainless steel tube, rubber seat surface - 4 connections for 7 mm stainless steel chain

- +

1

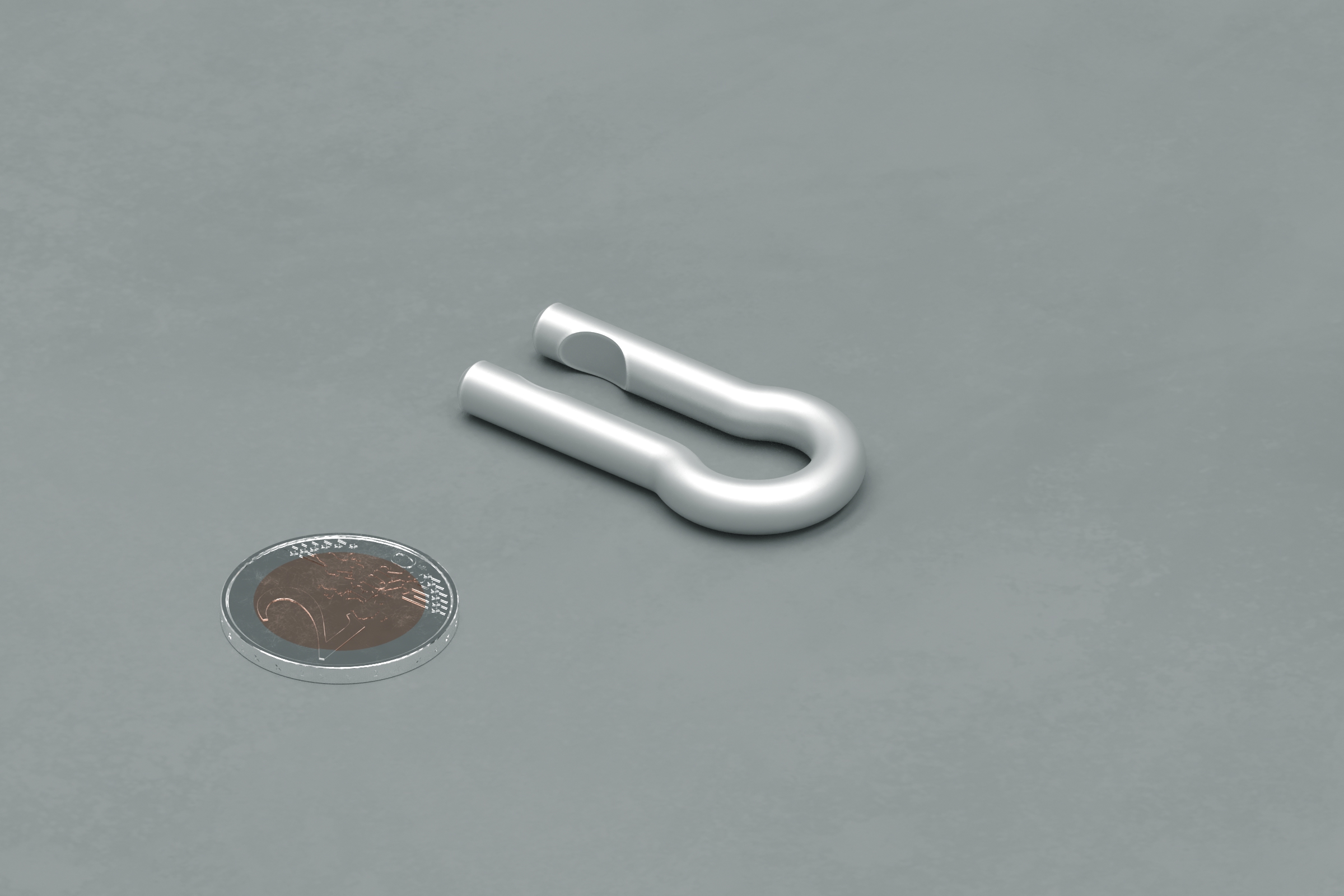

Stainless steel U-bracket Ø 6 mm 1.4301 standard drilled

Item no.: 1060100

- +

1

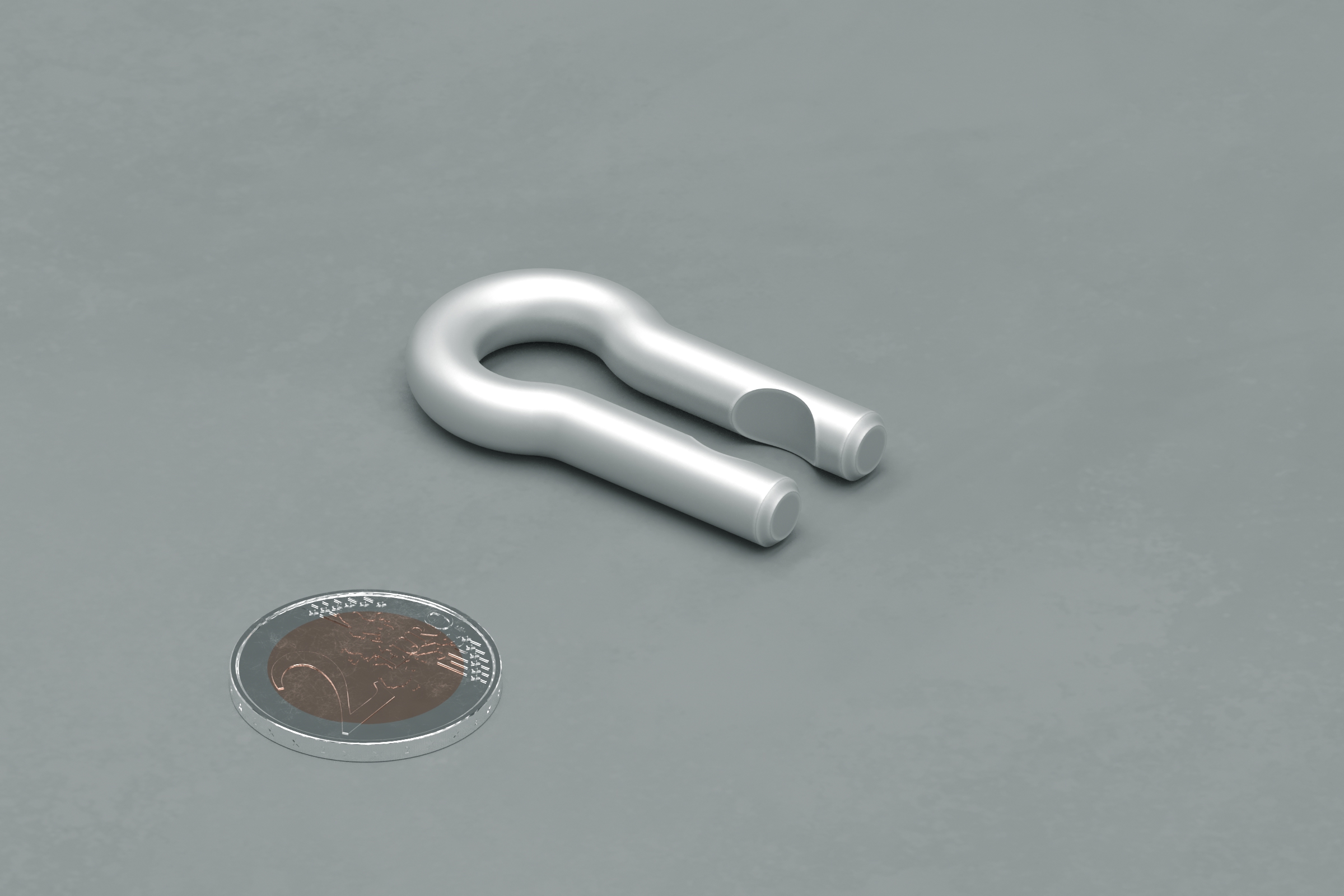

Stainless steel U-bracket Ø 7mm 1.4571 standard drilled

Item no.: 1060693

- +

1

Single-point swing platform, incl. chains

Art.: 1060713 | Large round rubber single-point swing seat Ø 100 cm, shock-absorbing, with shape-stabilising polyethylene core plate stabilising polyethylene core plate and trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm.

- +

1

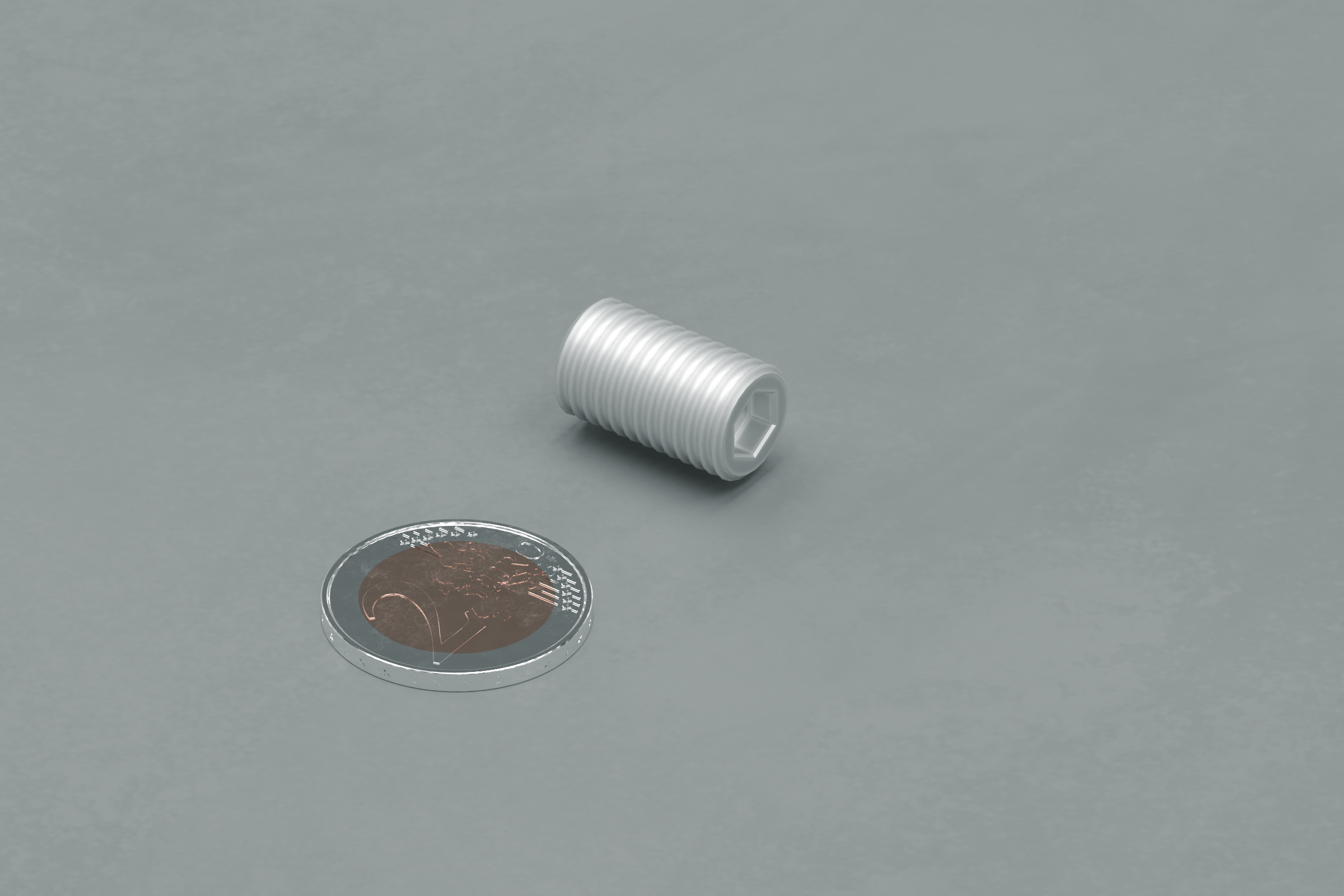

Grub screw M 12 x 20 DIN913 A2, ISO 4026

Item no.: 3440003

- +

1

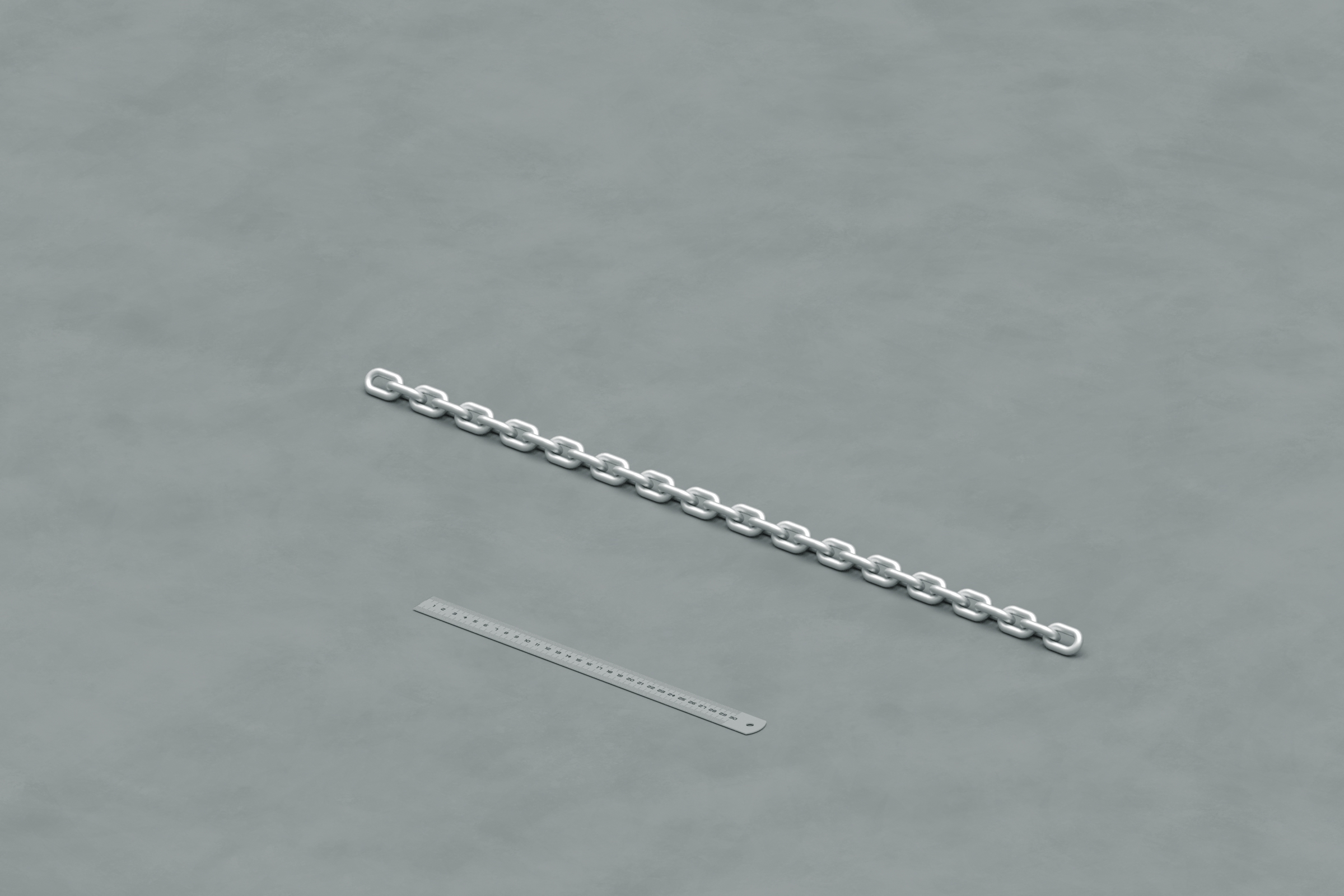

Chain Ø 7.0 mm 1.4310

Item no.: 015753 Fine-link stainless steel standard chain, material no. 1.4310, DIN 766-2, e.g. for easy suspension of pendulum or swing seats on special chain adapters. suspension of pendulum or swing seats on special chain adapters. Please specify the required length.

- +

1

Chain suspension for toddler seat, universal up to mounting height 2.50 m

Art.: 1060265 | 2 pieces of chain suspension 7mm are required for a toddler seat.

- +

1

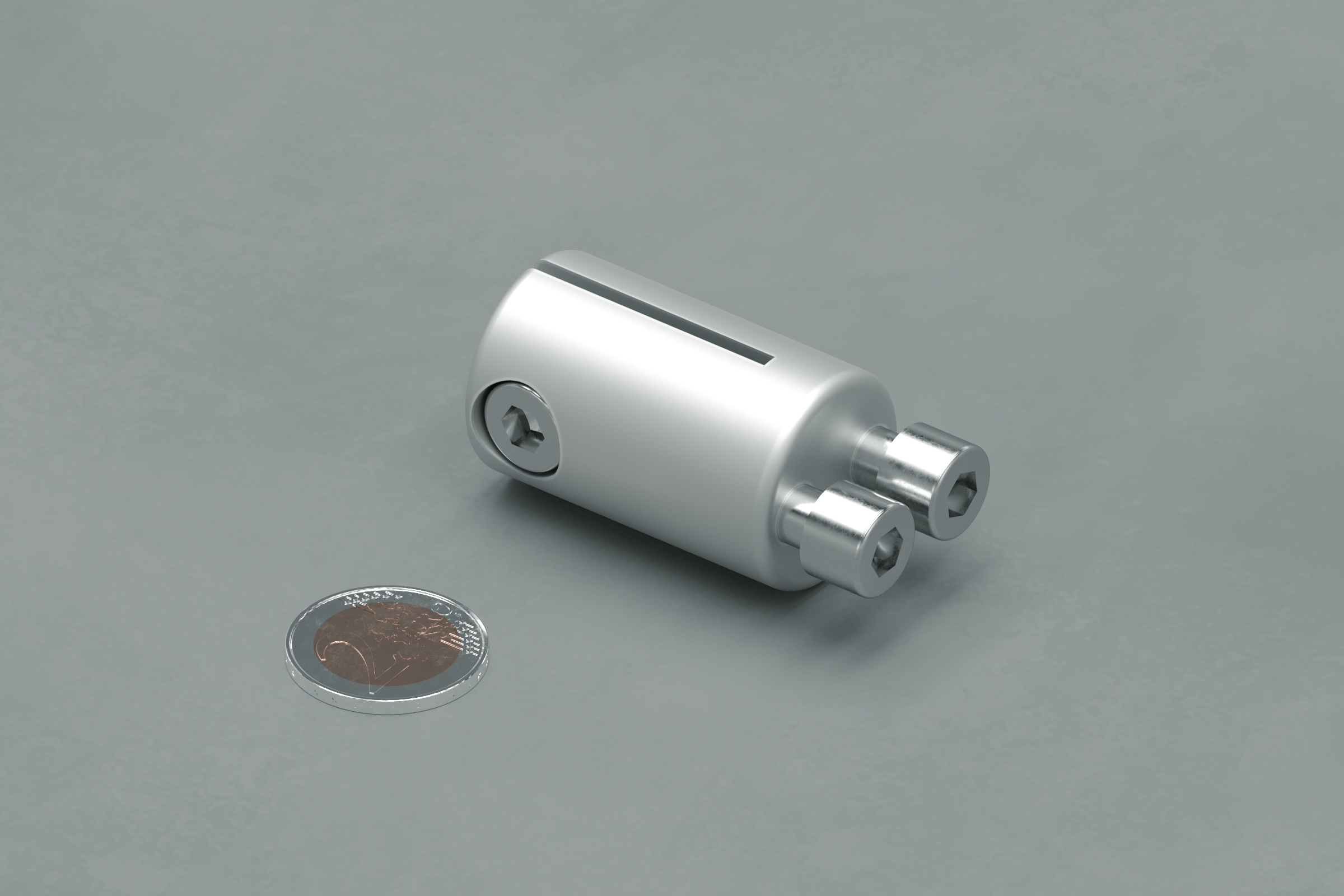

Chain adapter with clamp incl. screws

Item no.: 1060284

- +

1

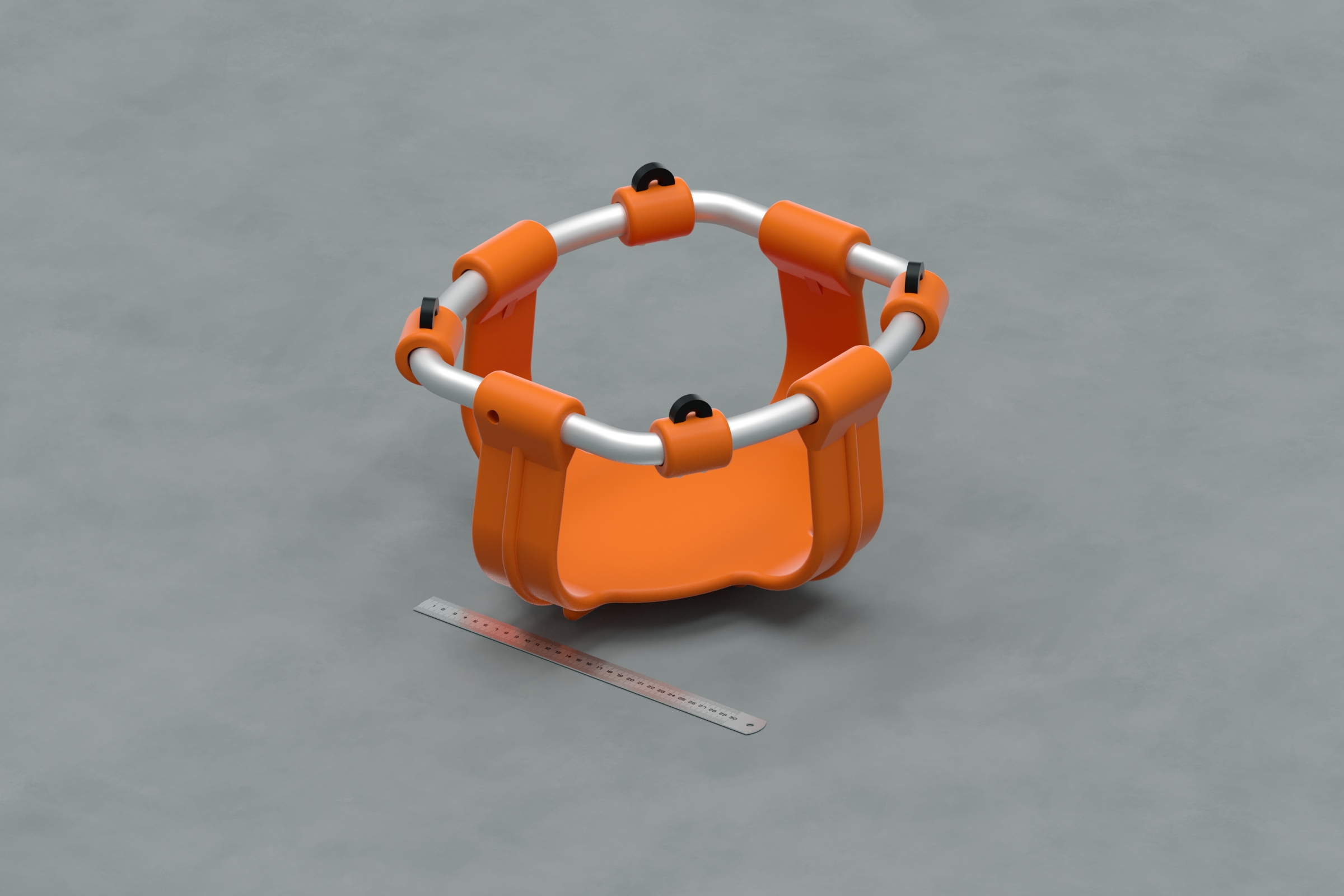

Infant seat without chain suspension

Item no.: 015818 | Weight: 4 kg, Length: 39 cm, width: 36 cm, Height: 22 cm - Shell-shaped swing seat, tested according to EN1176, parts 1 and 2 - All-round upper frame made of stainless steel tube, rubber seat with dimensionally stable stainless steel insert - 4 connections for 7 mm stainless steel chain

- +

1

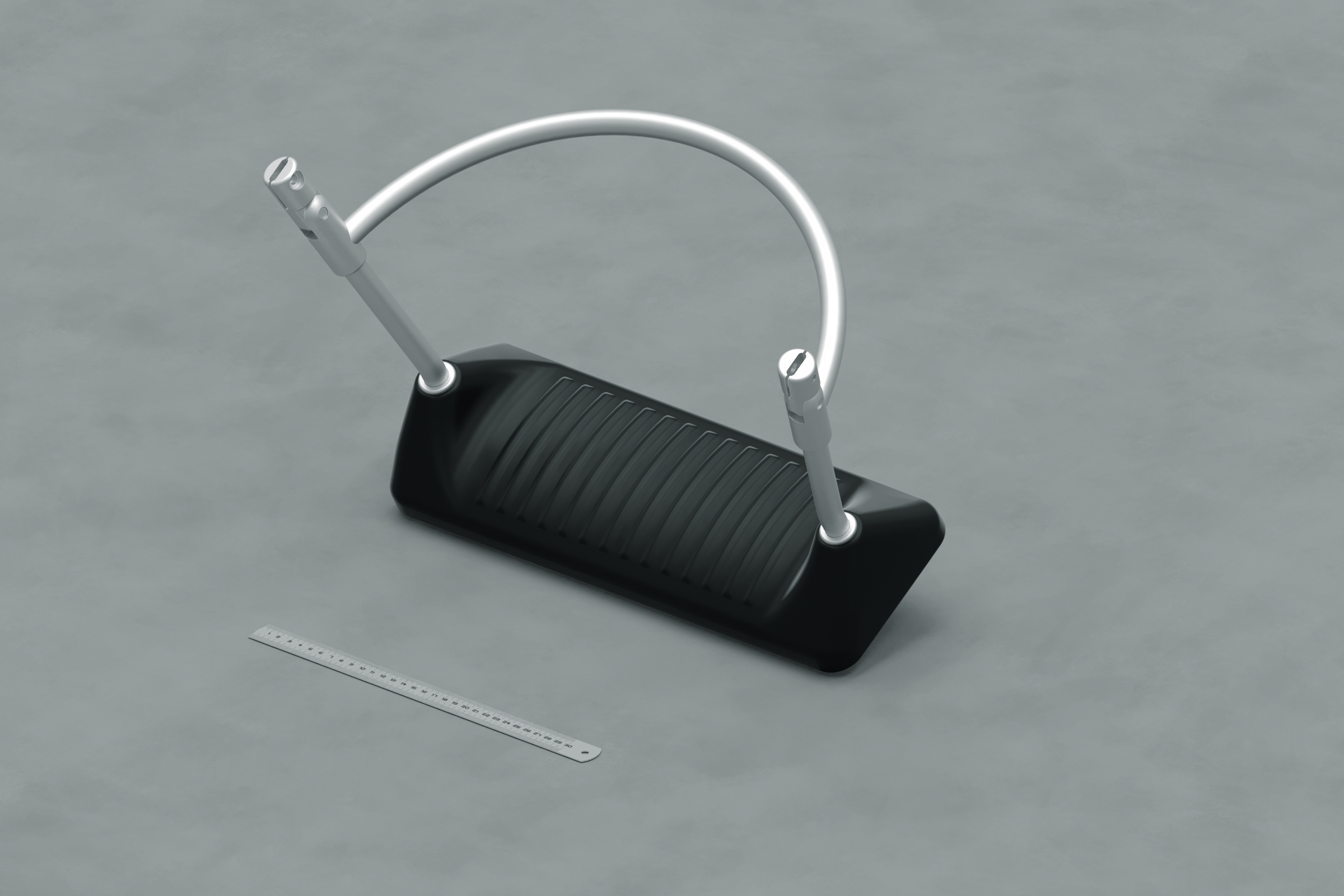

Contact swing seat (hinge/stainless steel tube)

Art.: 1060409 | Black safety swing seat with anti-jump device and integrated chain adapters on slide-mounted joints.

- +

1

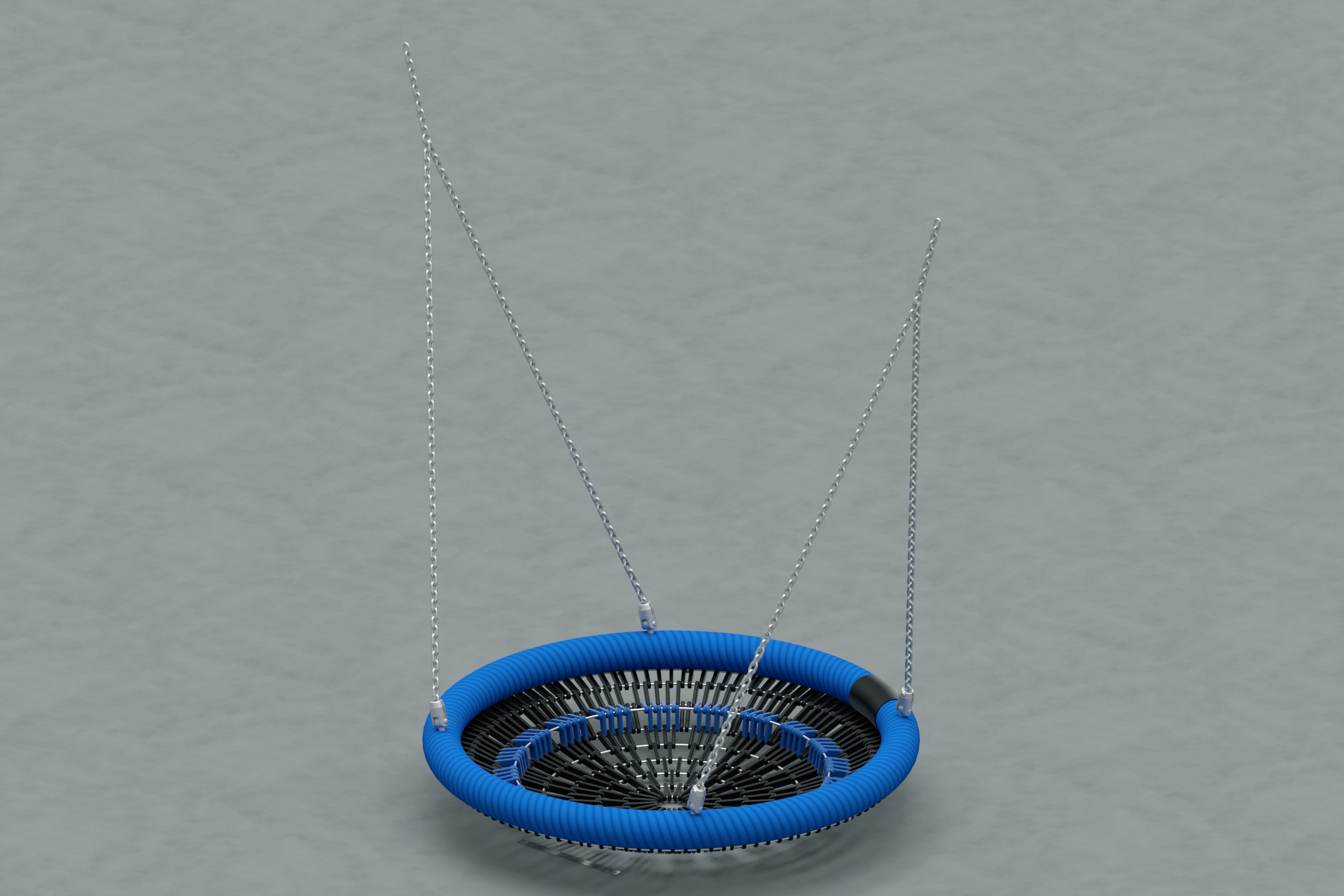

Basket swing hanger large kmpl./ Brügger basket, incl. chains and adapter / AH 2.50m

Art.: 1060520 | Swing basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 1.20 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel cable. The TÜV-tested maximum acceleration is 50 g. The limit value according to DIN EN 1176-2 is 120 g. According to TÜV testing, the surface pressure is 79.6 N/cm², the limit value is 90N/cm². With stainless steel clamping adapter and trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm.

- +

1

ImageBasket swing hanger small kmpl./ Brügger basket, incl. chains and adapter / AH 2.00m

Art.: 1060555 | Swing basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 0.95 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel cable. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. According to the TÜV test, the surface pressure is 79.6 N/cm², the limit value is 90N/cm². Chain attachment with stainless steel clamping adapter. Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels with ball bearings to prevent the chains from knotting.

- +

1

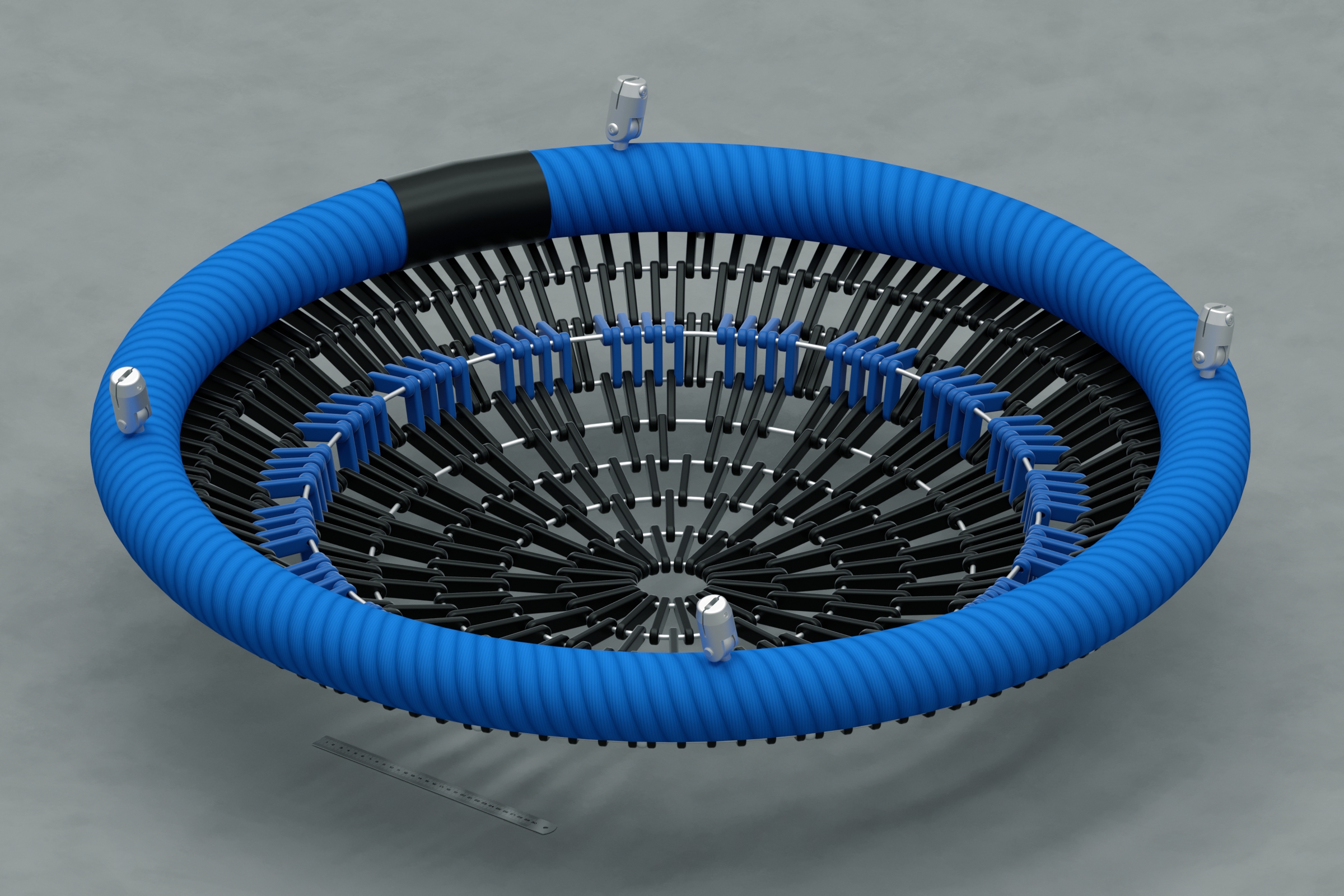

Basket swing basket, large, assembled / Brugger basket, incl. adapter (without chains)

Art.: 1060547 | Swinging basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 1.20 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel cable. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. According to the TÜV test, the surface pressure is 79.6 N/cm², the limit value is 90N/cm². With stainless steel clamping adapter for chains Ø 7mm.

- +

1

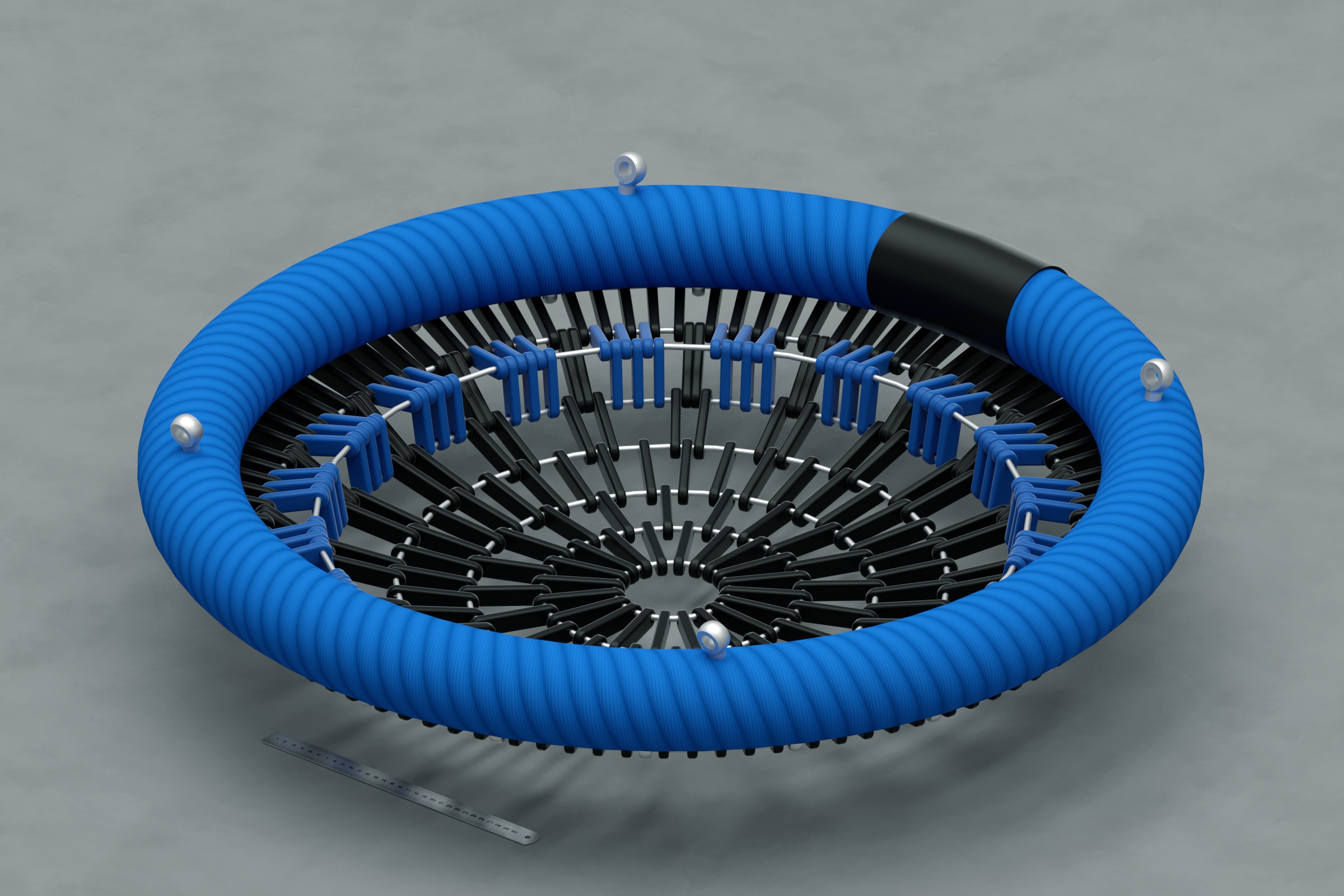

Basket swing basket small kmpl. mounted / Brügger basket, incl. adapter (without chains)

Art.: 1060556 | Swing basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 0.95 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel cable. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. According to the TÜV test, the surface pressure is 79.6 N/cm², the limit value is 90N/cm². With stainless steel clamping adapter for chains Ø 7mm.

- +

1

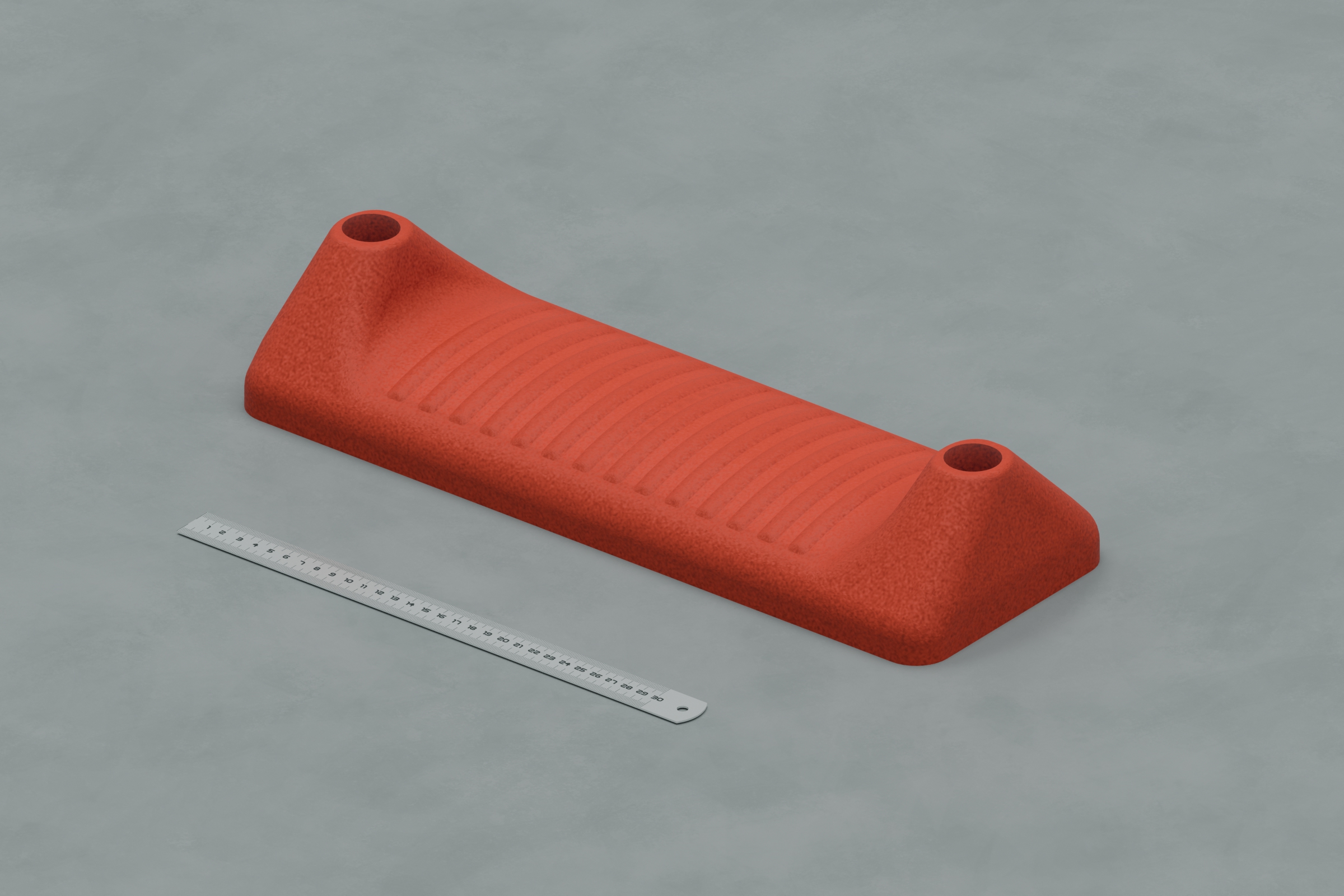

Swing seat (red) without chain adapter

Item no.: 015804 | Rubber swing seat with dimensionally stable aluminium insert, shock-absorbing and safe, gap-free single-point chain suspension. Greater abrasion resistance due to profiled seat surface.

- +

1

Swing seat (blue) without chain adapter

Item no.: 015804 | Rubber swing seat with dimensionally stable aluminium insert, shock-absorbing and safe, gap-free single-point chain suspension. Greater abrasion resistance due to profiled seat surface.

- +

1

Swing seat (black) without chain adapter

Item no.: 015804 | Rubber swing seat with dimensionally stable aluminium insert, shock-absorbing and safe, gap-free single-point chain suspension. Greater abrasion resistance due to profiled seat surface.

- +

1

Swing seat (green) without chain adapter

Item no.: 015804 | Rubber swing seat with dimensionally stable aluminium insert, shock-absorbing and safe, gap-free single-point chain suspension. Greater abrasion resistance due to profiled seat surface.

- +

1

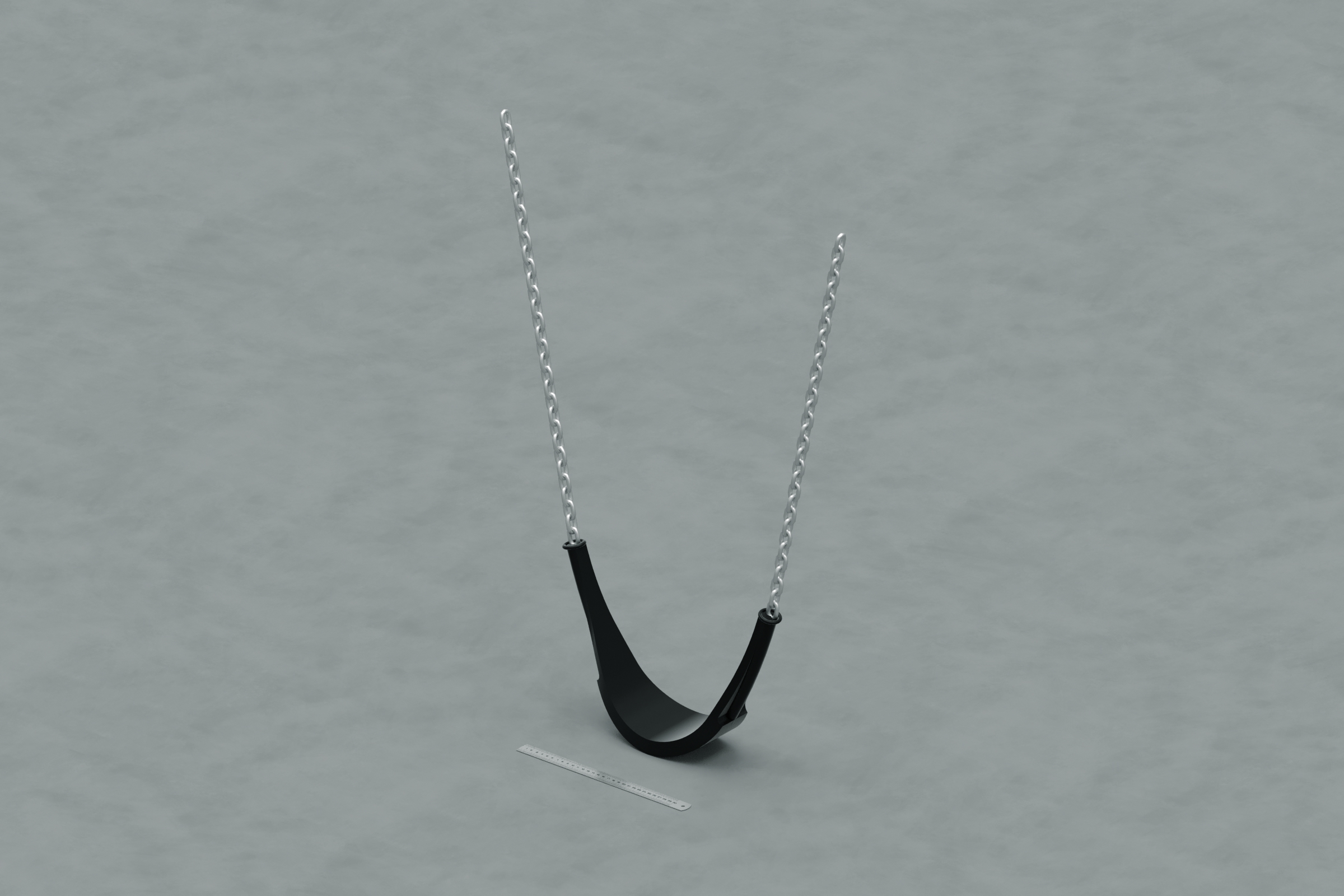

Swing seat mini swing for 0-40140-000/0-40160-000/1

Art.: 3590002 | Trapezoidal safety belt seat made of rubber, incl. chains for mounting height max. 1.60 m.

- +

1

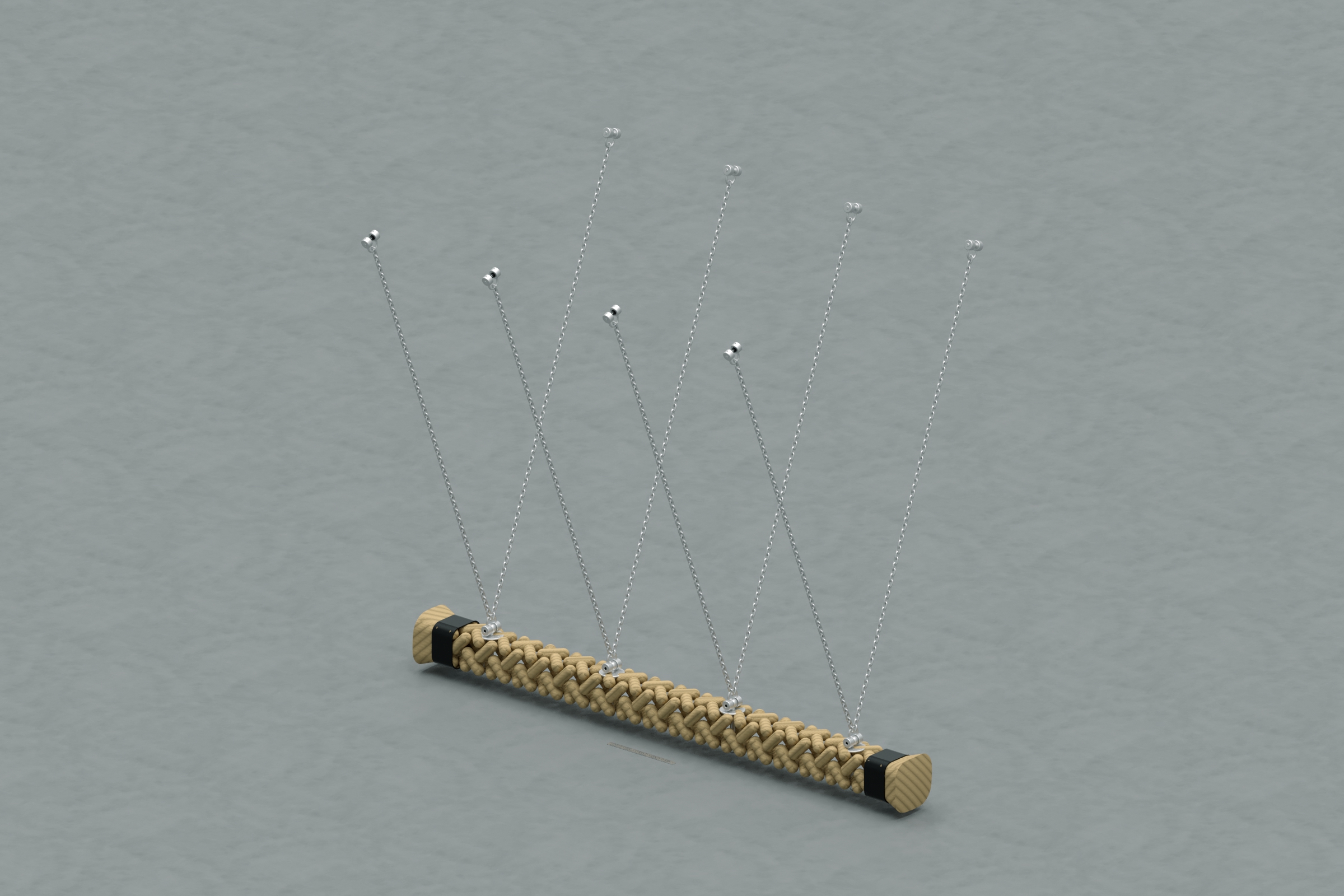

Viking swing hanger 2.50 m, complete incl. chains, bushes, adjusting rings

Art.: 1060885 | This pre-assembled swing light includes all fastening material for attaching to the existing side rails - Rope lights: Square mesh, approx. Ø 160 mm, approx. 22250 mm long made of PP rope.

- +

1

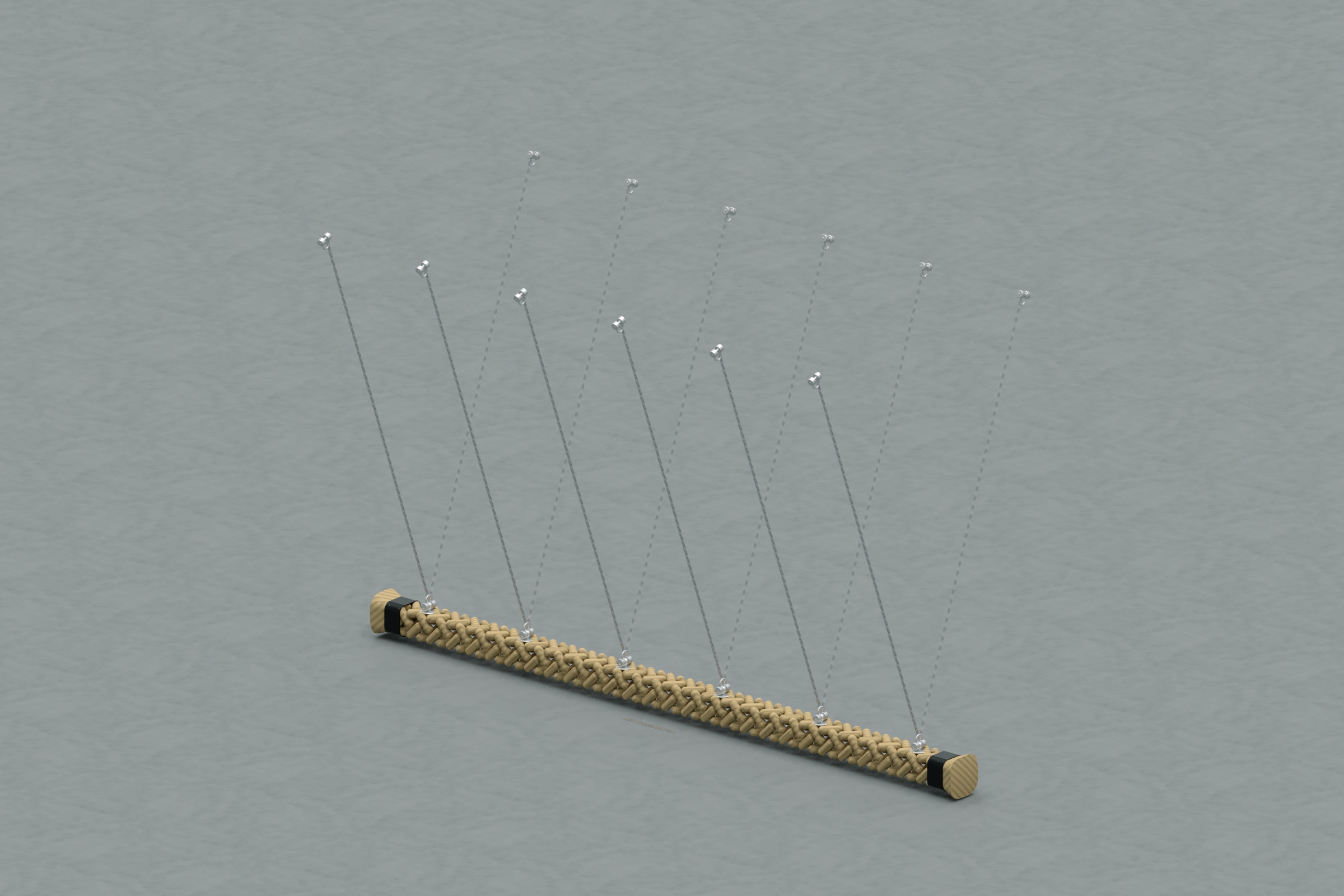

Viking swing hanger 3.00 m, complete incl. chains, bushes, adjusting rings

Art.: 1060813 | This pre-assembled swing light includes all fastening material for attaching to the existing side rails. existing side rails. -Rope lamps: Square mesh, approx. Ø 160 mm, approx. 3700 mm long made of PP rope.

- +

1

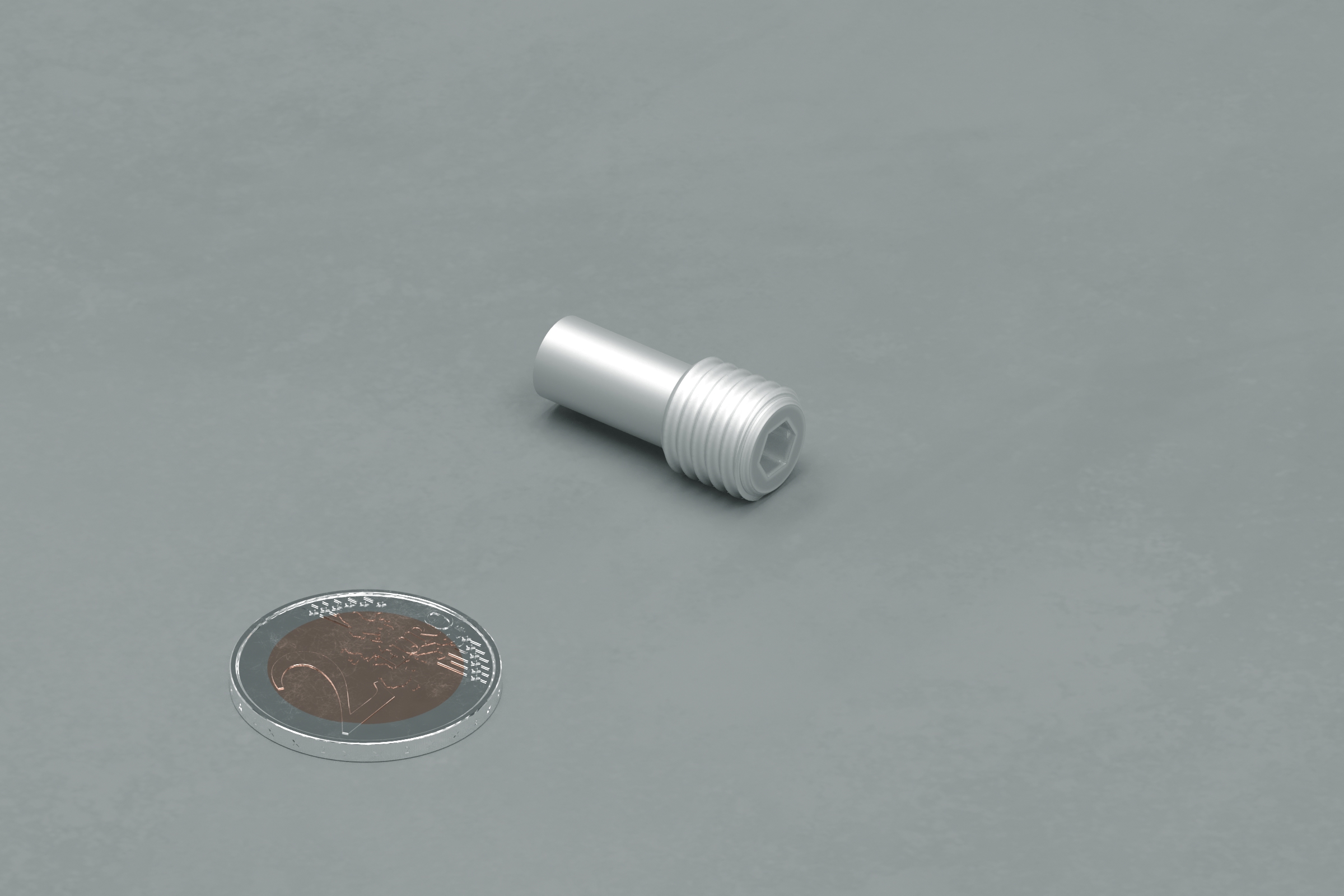

M10 pivot bolt, with 8 mm pivot, for chain adapter

Item no.: 2030051

- +

1

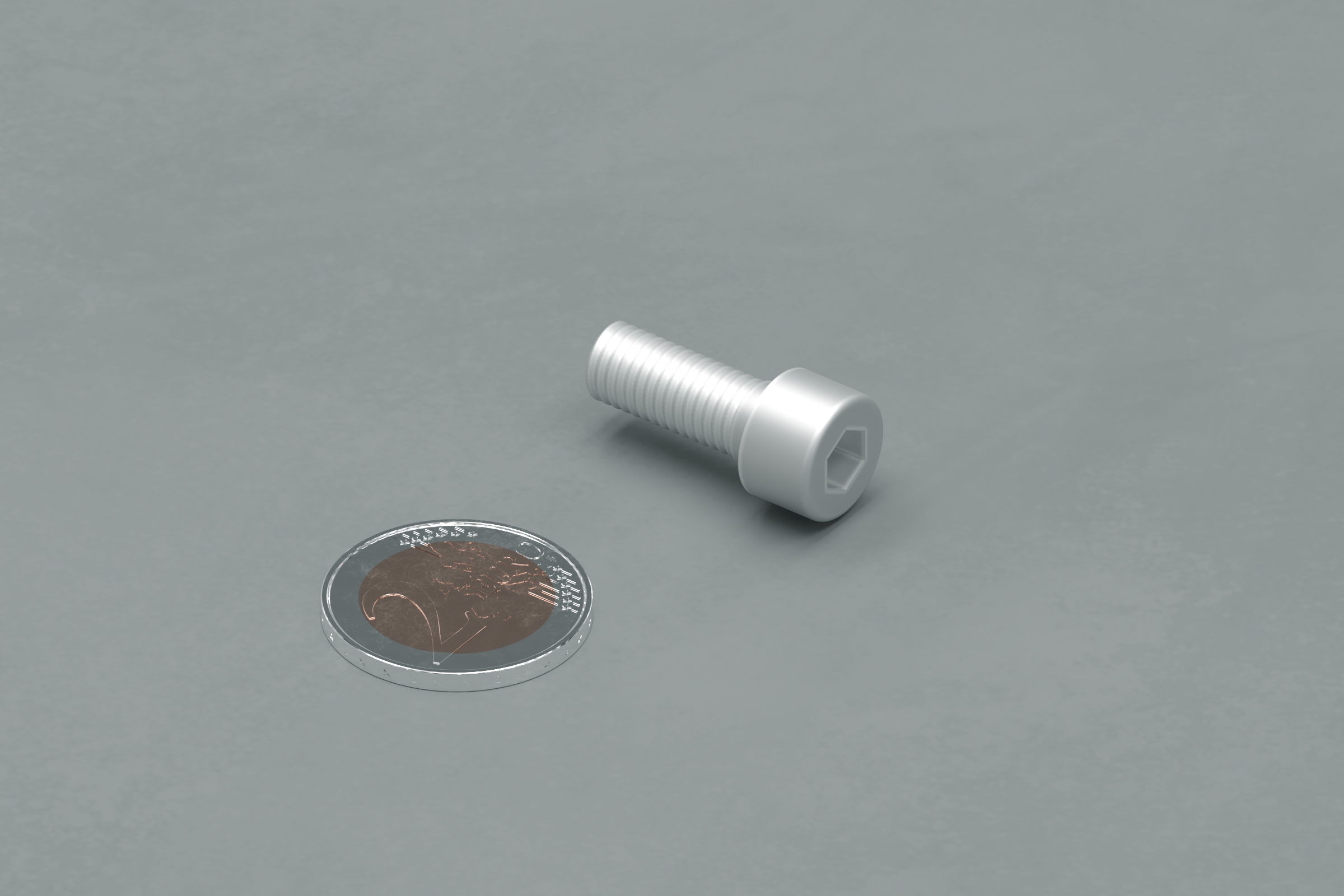

Cheese head screw M8x 20 DIN912 A2

Item no.: 3400536

- +

1

Stop plate for cable car, polyamide natural PA6 145x36.5x15

Item no.: 2300059

- +

1

Support plate for cable car, 144x72x2.5 1.4301 trowelled

Item no.: 2002415

- +

1

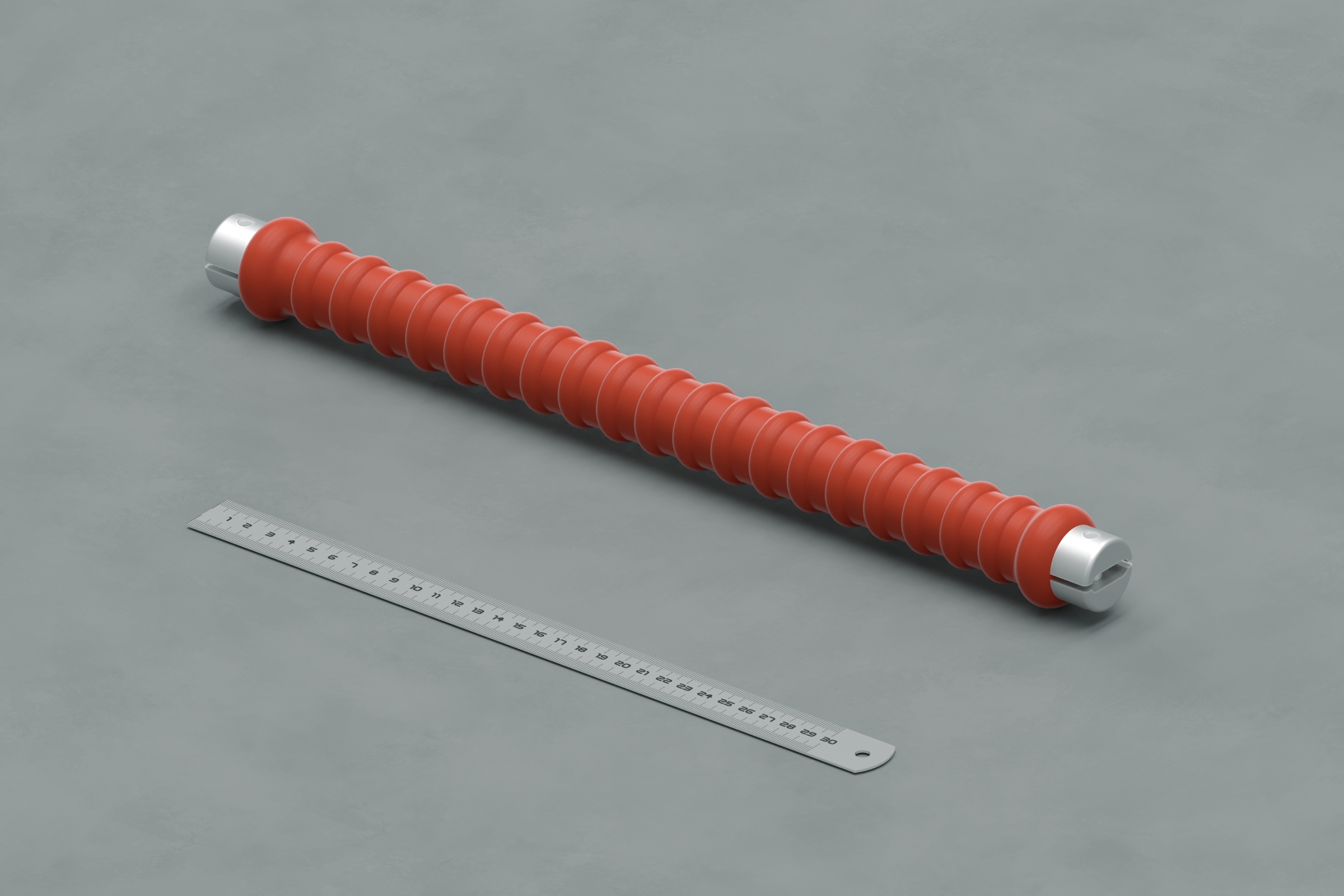

Handle (removable) Ropeways, pendulum scales, both sides Chain adapter with clamping / without chain

Item no.: 015986

- +

1

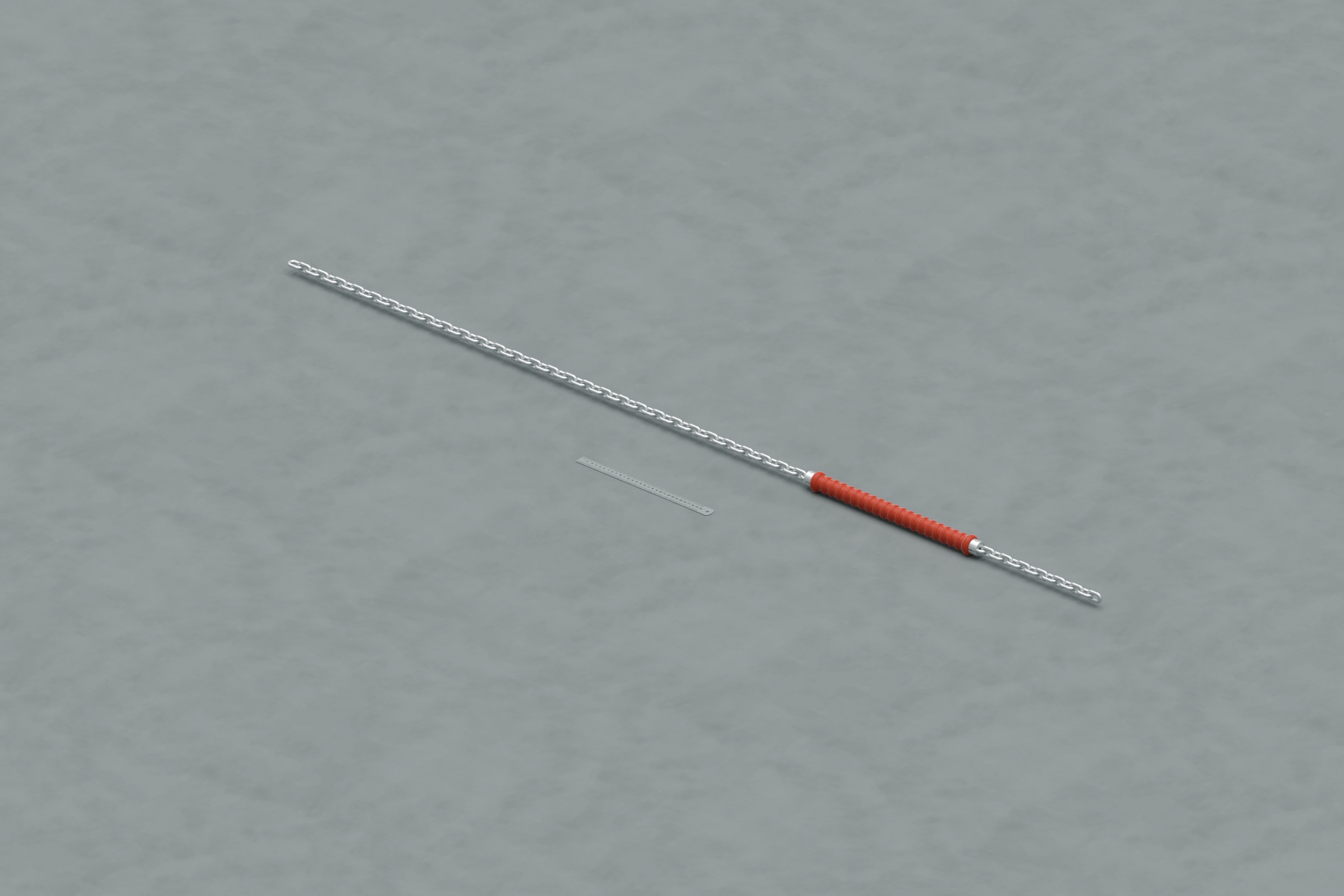

Handle chain (2.00 m) for ropeways, with detachable handle, incl. chain

Art.: 015987 | Fine-link stainless steel standard chain with detachable handle for easy suspension of pendulum or swing seat on special chain adapter. Total length: 2.00 m. Adjust the exact length by shortening the chain.

- +

1

Universal joint for pendulum seat

Art.: 1080155 | Universal joint to minimise wear at the chain adapter-chain connection point.

- +

1

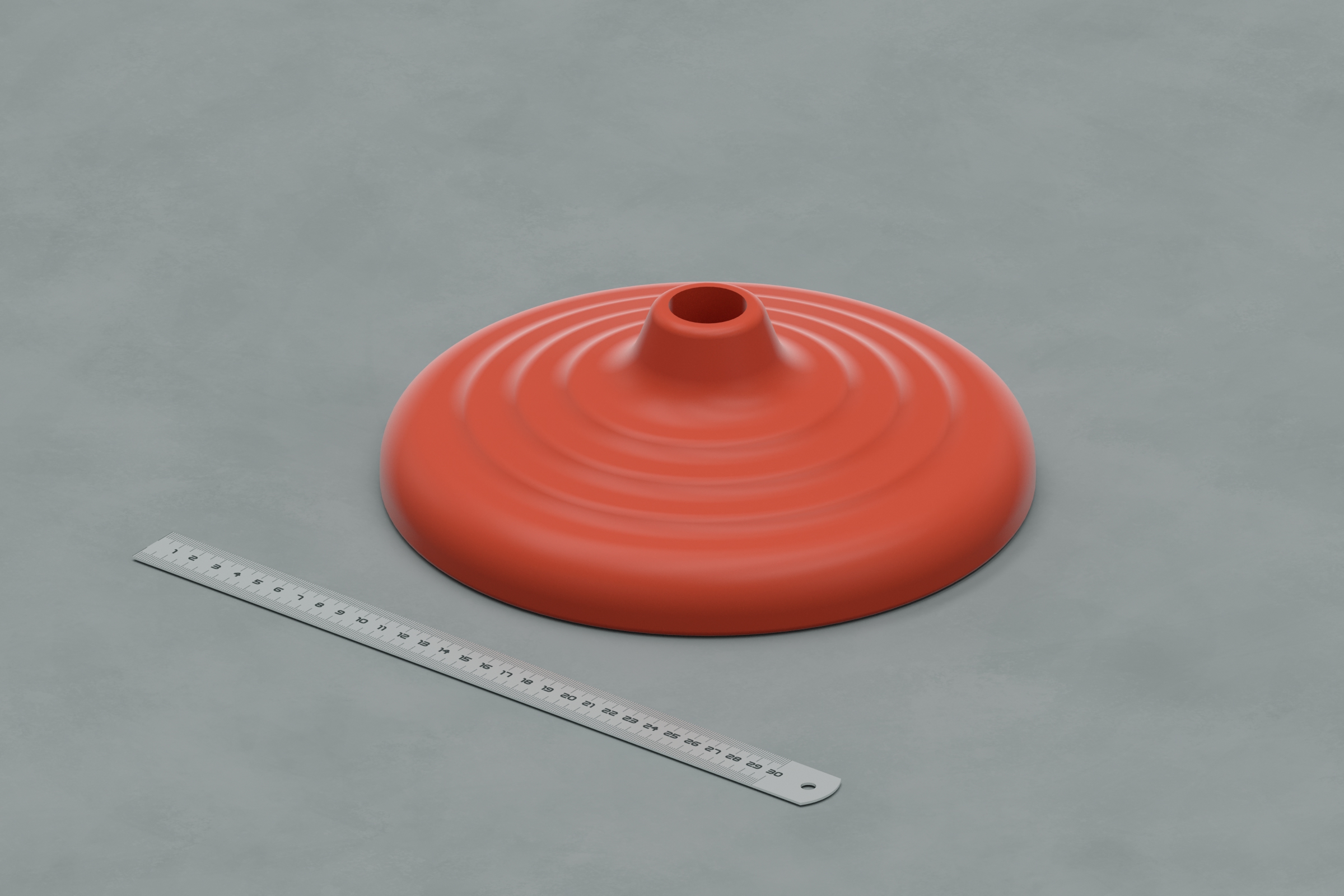

Pendulum seat (red), without chain adapter/cross joint

Art.: 015821 | Pendulum seat made of rubber with dimensionally stable metal insert, shock-absorbing edge design and safe, gap-free single-point chain suspension.

- +

1

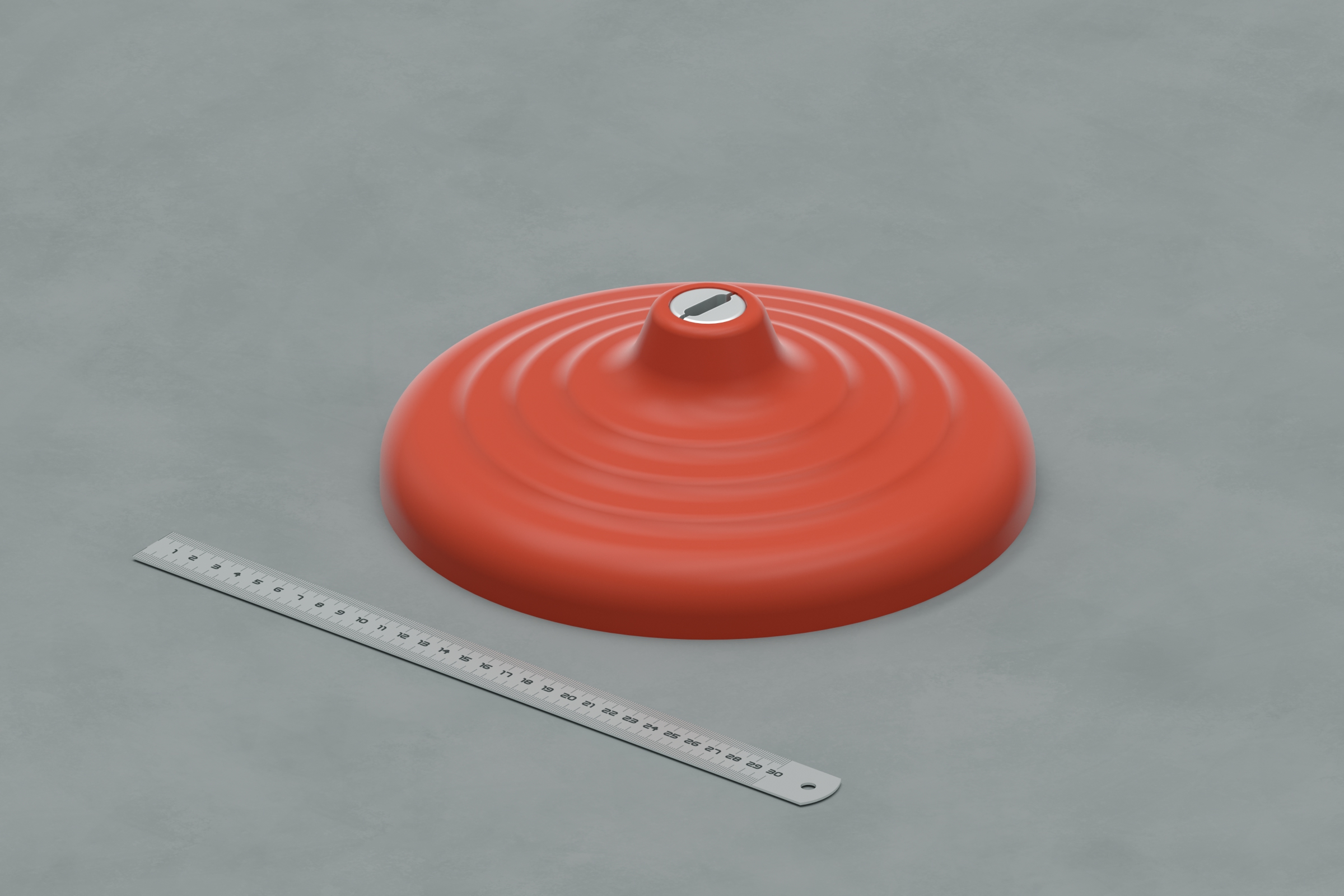

Pendulum seat (red) with special chain adapter

Art.: 015823 | Pendulum seat made of rubber with dimensionally stable metal insert, shock-absorbing edge design and safe, gap-free single-point chain suspension. Additionally with special chain adapter for easy chain suspension.

- +

1

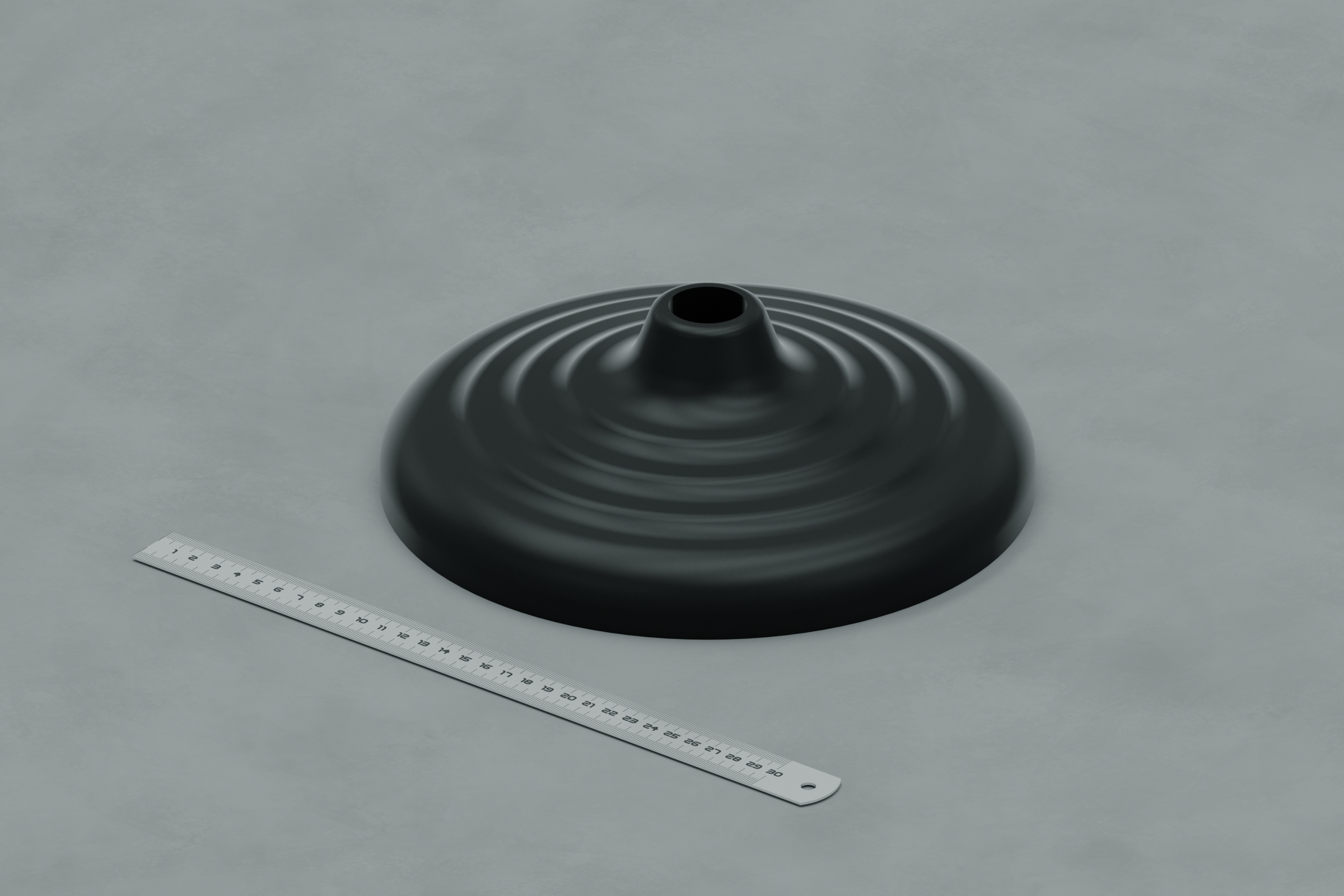

Swivel seat (black), without chain adapter/cross joint

Art.: 015820 | Pendulum seat (Sutcliffe-Kaiser/Kühne) made of rubber with dimensionally stable metal insert, shock-absorbing edge design edge and secure, gapless single-point chain suspension; dog-bite-resistant thanks to impregnation with citronella oil, which is harmless to humans

- +

1

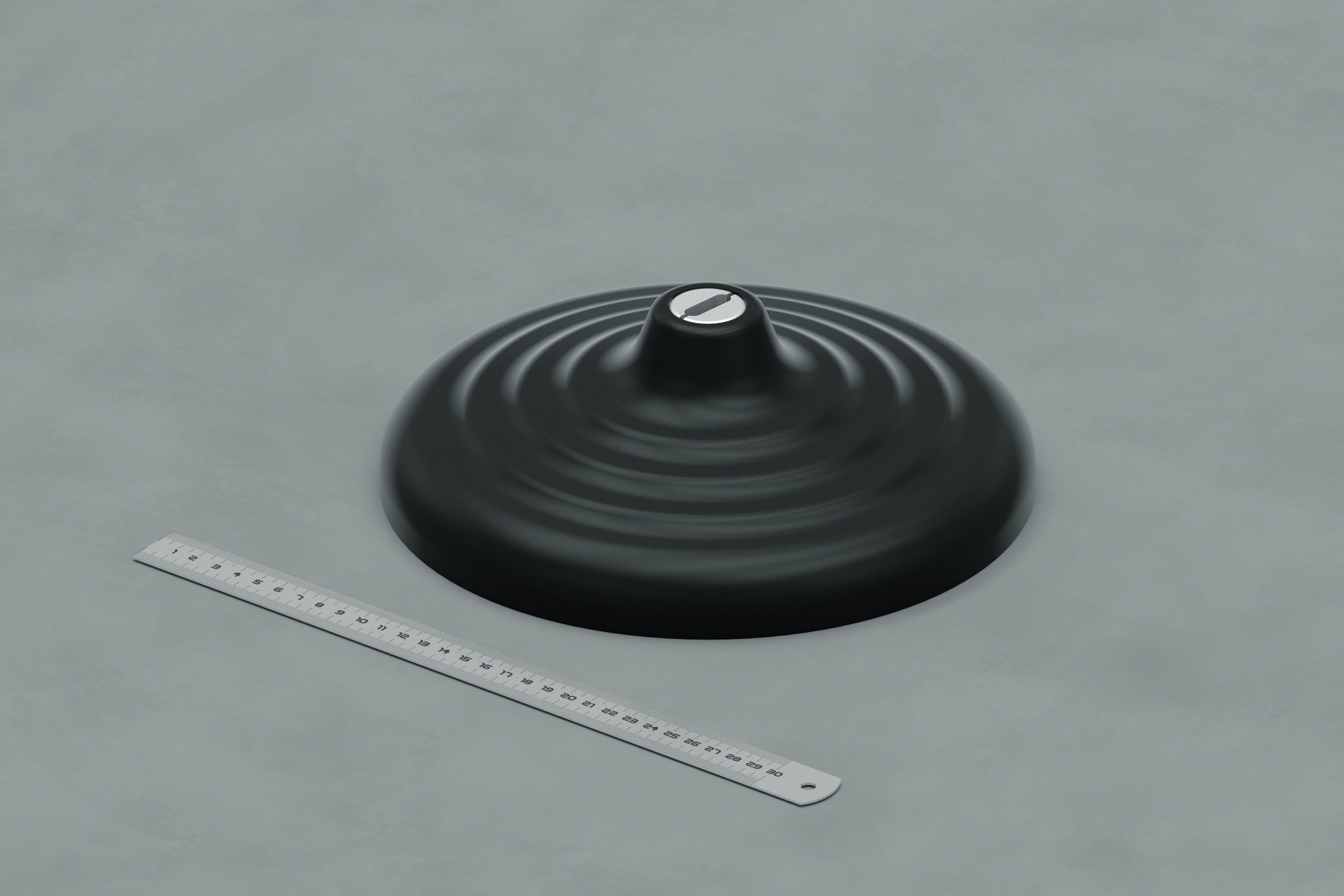

Swivel seat (black) with special chain adapter

Art.: 015822 | Pendulum seat (Sutcliffe-Kaiser/Kühne) made of rubber with dimensionally stable metal insert, shock-absorbing edge design and secure, gapless single-point chain suspension; dog-bite-resistant thanks to impregnation with citronella oil, which is harmless to humans, also with special chain adapter for easy chain suspension.

- +

1

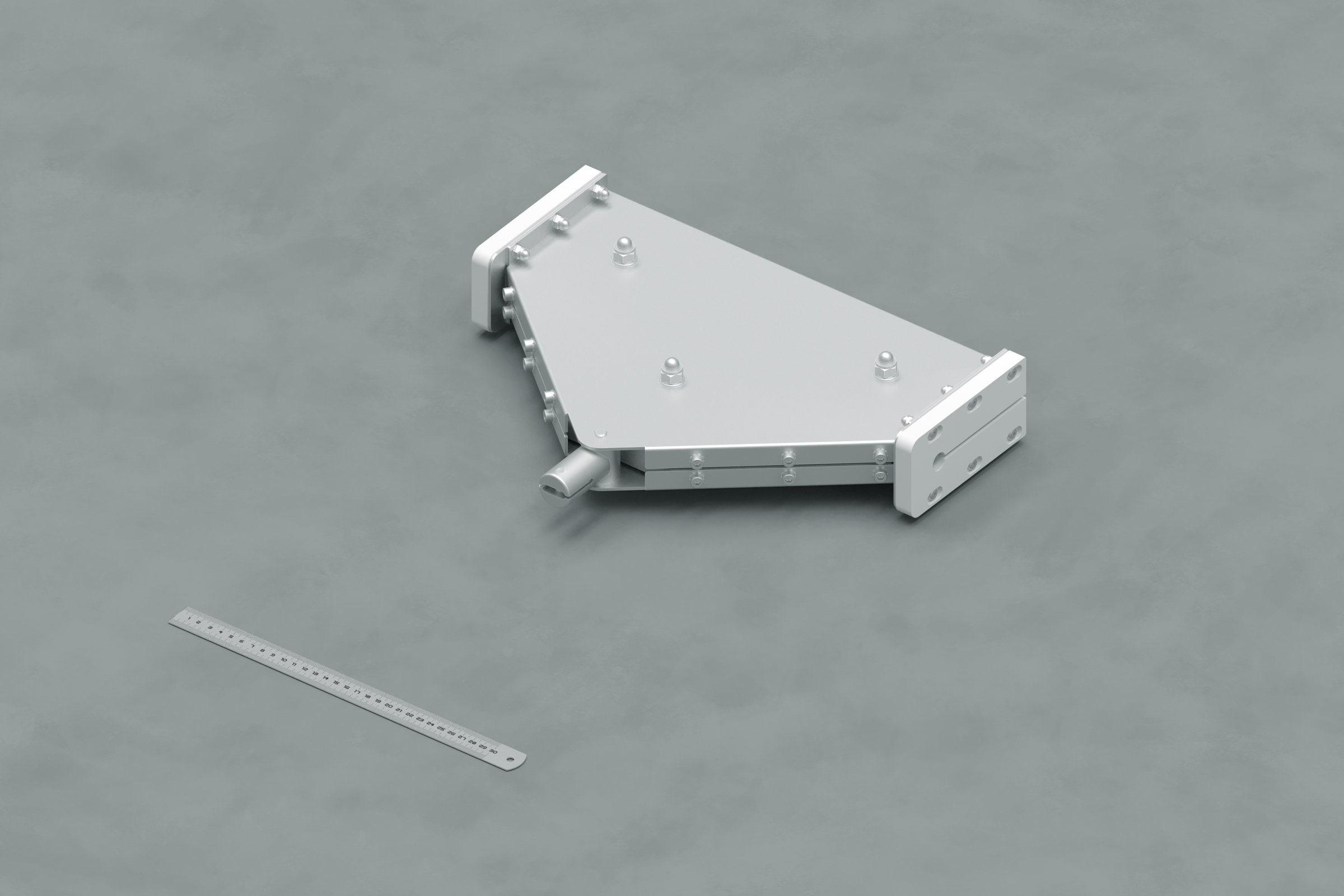

Cable car

Art.: 015650 | Closed stainless steel housing with 3 smooth-running, dirt-protected polyamide rope pulleys with roller bearings polyamide rope pulleys. Large stop surface for ropeway stoppers. Chain attachment to special chain adapters with plain bearing joint.

- +

1

Stopper end station

Art.: 1080161 | 2 x spring holder for stopper, 1 x spring for ropeway end station 1 x rubber buffer holder with rubber buffer 2 x cheese head screw M6x50 DIN912 galvanised.

- +

1

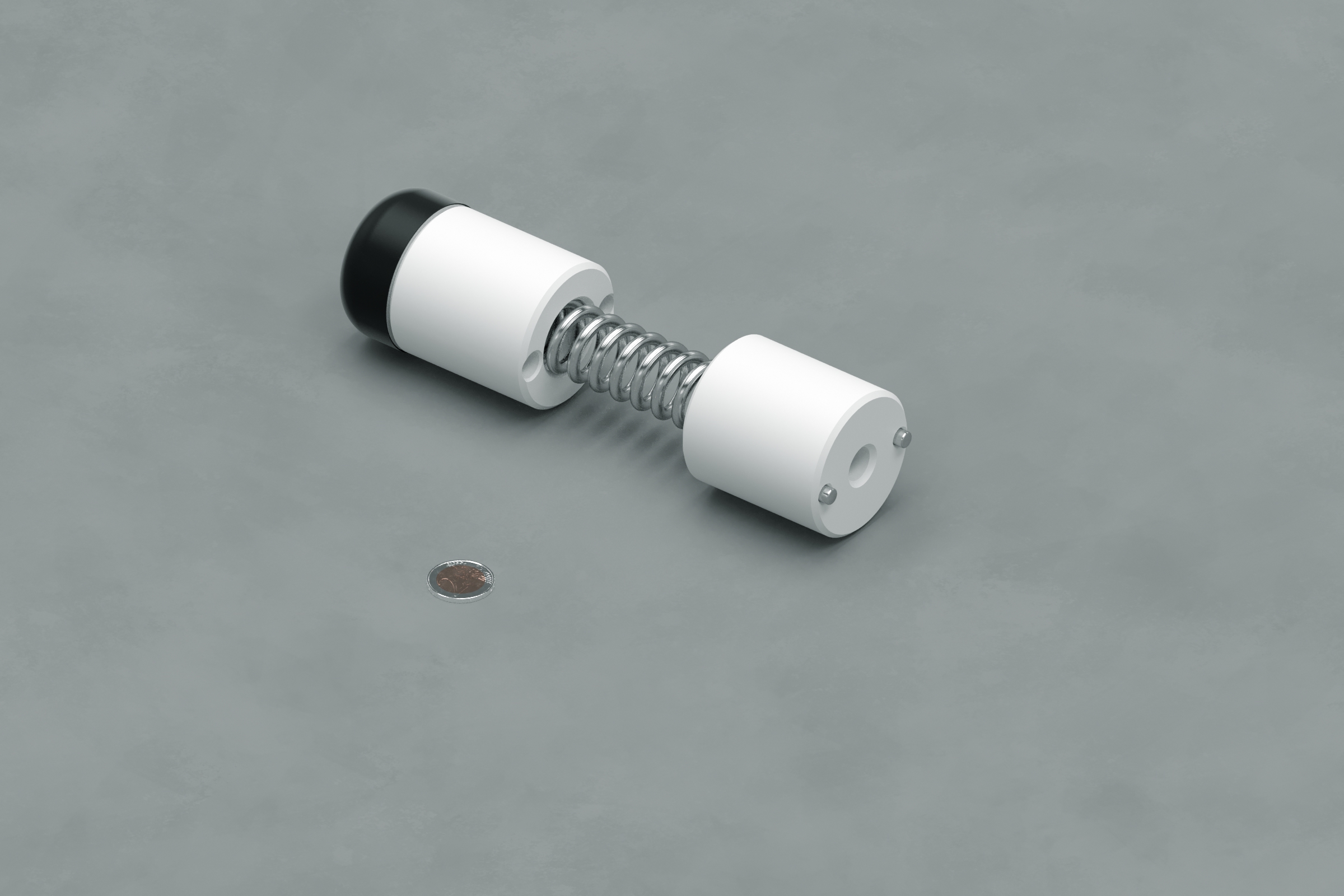

Stopper start station

Art.: 1080160 | 2 x spring holder for stopper, 1 x spring for cable car start station 1 x rubber buffer holder with rubber buffer 2 x cheese head screw M6x50 DIN912 galvanised.

- +

1

Jumping plate for bouncing plate / PAG wood, incl. pre-assembled spring guide discs

Art.: 1100174 | Board made of highly compressed synthetic resin moulded wood (PAGHOLZ), highly wear-resistant, weather and temperature and temperature-resistant, UV-stable, non-slip surface thanks to milled grooves, 20 mm thick.

- +

1

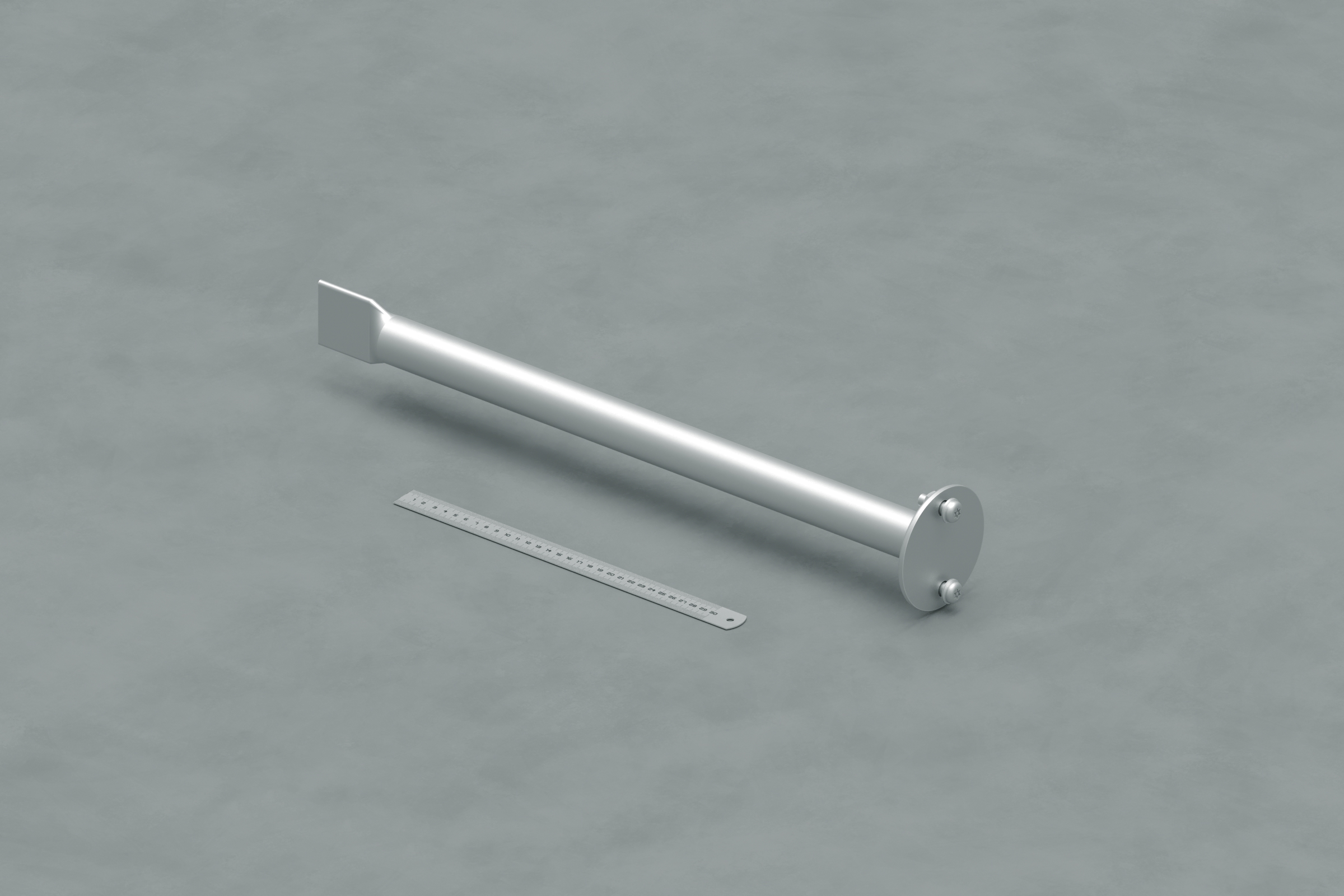

Foundation anchor for benches & tables/L = 600 mm

Item no.: 1140052

- +

1

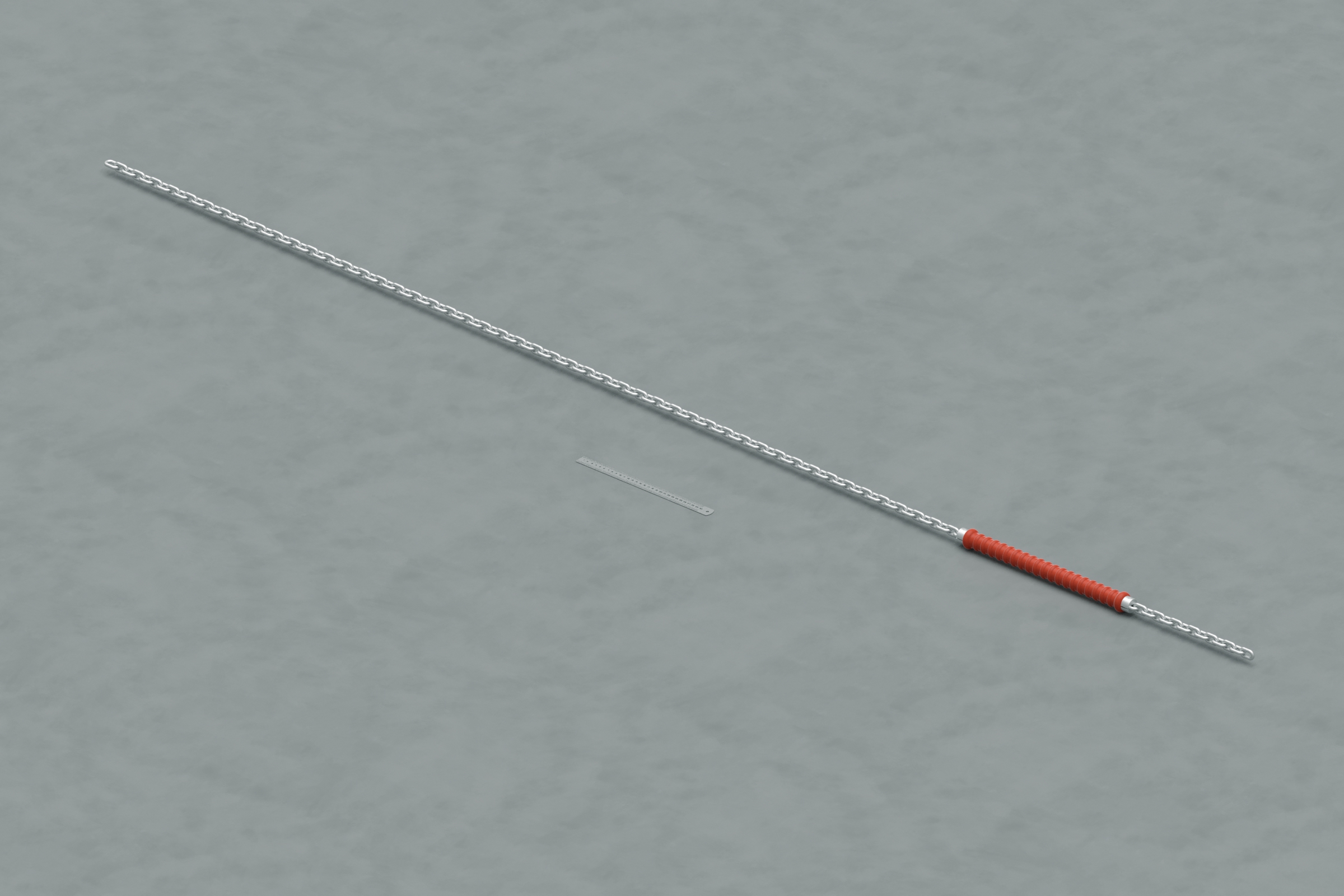

Handle chain (3.00 m), with detachable handle

Art.: 015992 | Fine-link stainless steel standard chain with detachable handle for easy easy suspension of pendulum or swing seat on special chain adapter. Total length: 3.00 m. Adjust the exact length by shortening the chain.

- +

1

Handle chain pendulum scale (short)

Art.: 015990 | Fine-link stainless steel standard chain with detachable handle for easy suspension of pendulum or swing seat on special chain adapter.

- +

1

Handle chain pendulum scale (long)

Art.: 015991 | Fine-link stainless steel standard chain with detachable handle for easy suspension of pendulum or swing seat on special chain adapter.

- +

1

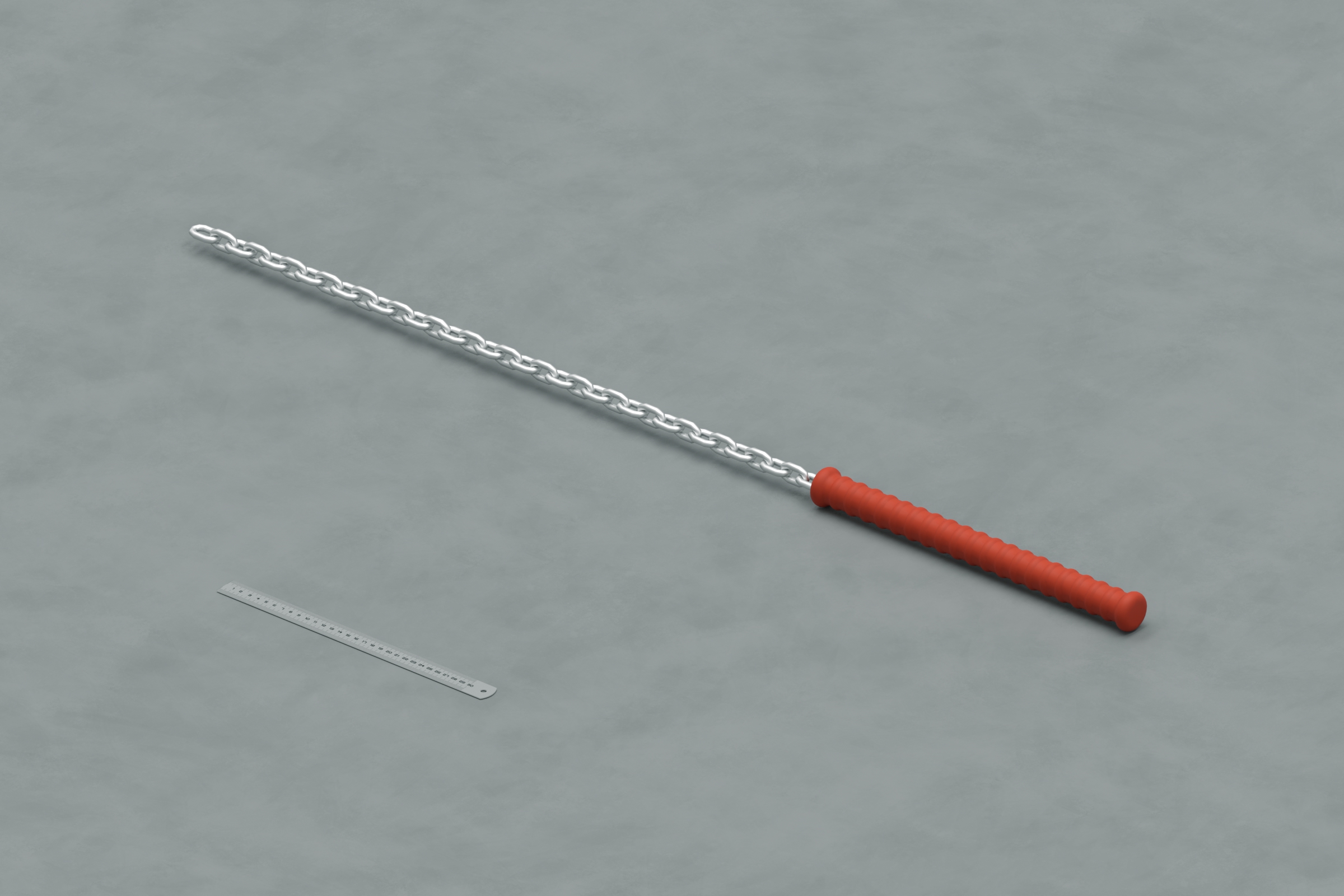

Handle chain round run 0-44520-001 and replacement mini cableway

Art.: 015988 | Stainless steel chain with thermally moulded, flexible rubber handle .

- +

1

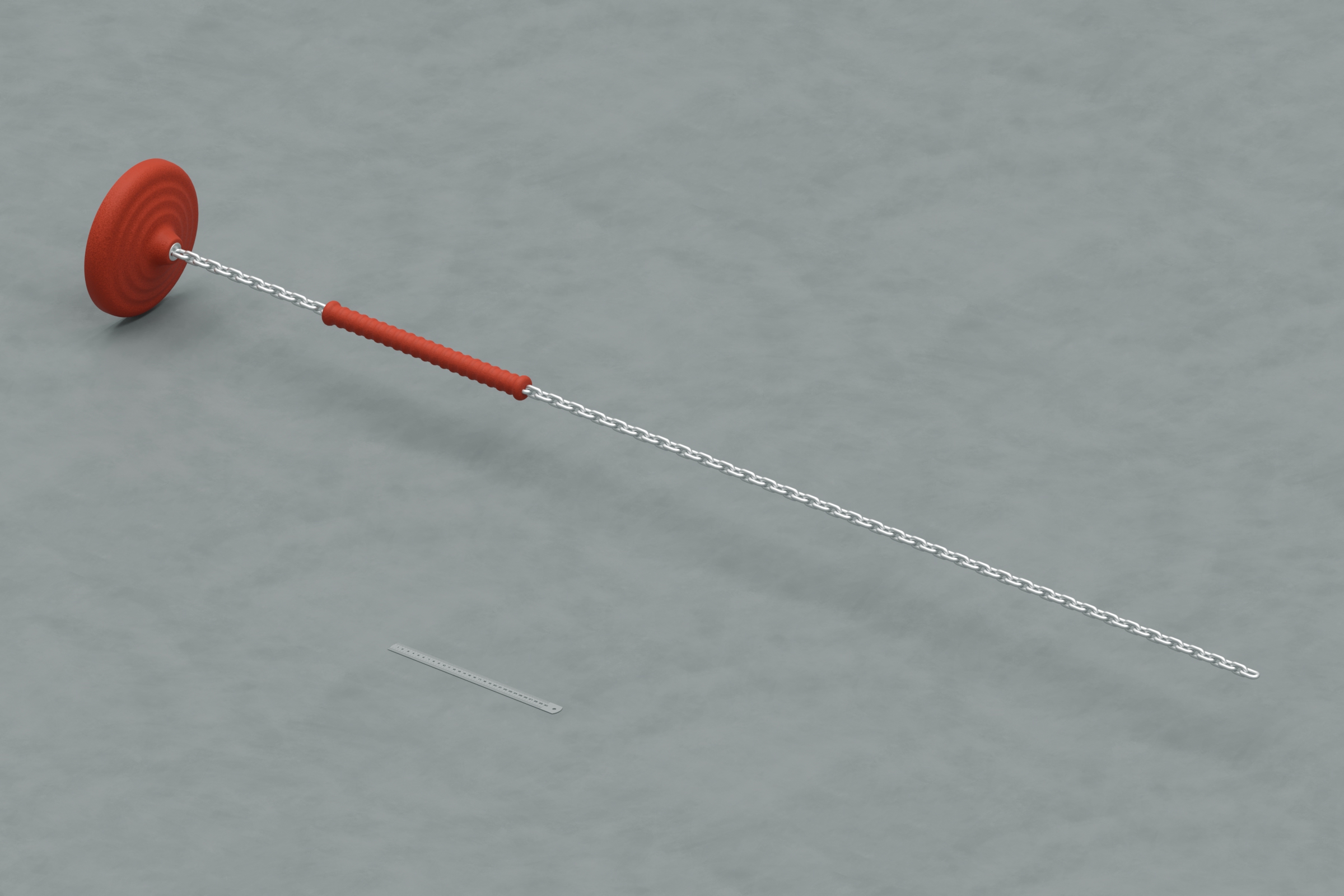

Handle chain concentricity 0-44522-000/1

Art.: 015989 | Fine-link stainless steel standard chain with detachable handle for easy suspension of pendulum or swing seat on special chain adapter.

- +

1

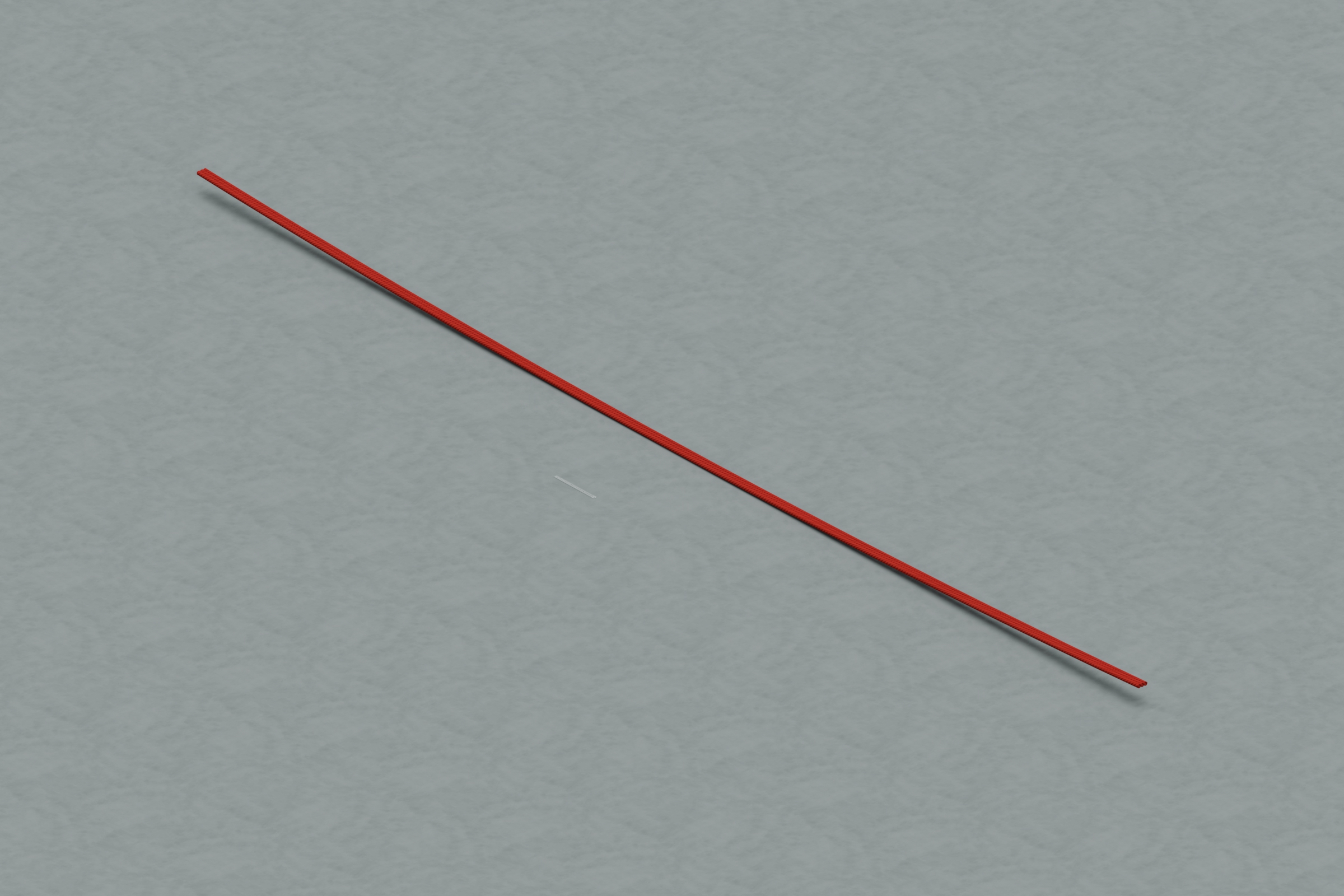

Triple balancing rope 0-52130-001/0-52150-000, 3-ply/Ø 22 mm/7.4m/red suspension tape

Art.: 3510000 | Floating belt made of three firmly connected Hercules cables running side by side, approx. 90 mm wide

- +

1

Hanging pin for Kids Tramp

Item no.: 3150114

- +

1

Mitred corner panel left for Safe E97501 grey Kidstramp 1.50 and 2.00 m

Item no.: 3590074 | Single fall protection panel (grey), corner section left, seen from inside, 30 mm thick (with rounded edges), version from approx. 07.2015

- +

1

Mitred corner panel right for Safe E97501 grey Kidstramp 1.50 and 2.00 m

Item no.: 3590073 | Single fall protection panel (grey), corner section right, seen from inside, 30 mm thick (with rounded edges), for Kidstramp 200 x 200 cm (K&K item no. 0-46710-000), version from approx. 07.2015

- +

1

Fall protection panel centre section without mitre for Safe E97501 grey Kidstramp 2.00 x 2.00 m

Item no.: 3590072 | Single fall protection panel (grey), 50 x 28.5 cm, 30 mm thick (with rounded edges), for Kidstramp 200 x 200 cm (K&K item no. 0-46710-000), version from approx. 07.2015

- +

1

Fall protection tile system Safe E97001 grey (8 tiles, incl. adhesive) Kidstramp 1.50 x 1.50 m

Item no.: 3590067 | Consisting of 8 fall protection panels (grey), 30 mm thick (with rounded edges) incl. 2 adhesive cartridges, for Kidstramp 150 x 150 cm (K&K item no. 0-46700-000), version from approx. 07.2015

- +

1

Safe E97001 red fall protection tile system (8 tiles, incl. adhesive) Kidstramp 1.50 x 1.50 m

Item no.: 3590068 | Consisting of 8 fall protection panels (red), 30 mm thick (with rounded edges) incl. 2 adhesive cartridges, for Kidstramp 150 x 150 cm (K&K item no. 0-46700-000), version from approx. 07.2015

- +

1

Adhesive for fall protection slab system, 310 ml cartridge

Art.: 3590071 | Special adhesive for replacement safety tiles of the EUROTRAMP safety tile system.

- +

1

Assembly tool for Kids-Tramp

Item no.: 3150052

- +

1

Jumping mat 1.07 x 1.07 m for 0-46700-000 and H-46715-000, made of wire-reinforced webbing tape

Item no.: 3590055

- +

1

Jumping mat 1.56 x 1.56 m for 0-46710-000 made of wire-reinforced webbing tape

Item no.: 3590056

- +

1

Steel spring for ground trampoline 0-46700/10-000, Ø 20 x 145 mm, hot-dip galvanised

Item no.: 3150109

- +

1

Fine filter for water pump and water tap

Art.: 3990039 | MHF ¾" - 1¼" mV external thread, fine filter for cleaning the water of suspended particles, dirt particles etc. to prevent contamination of the diaphragm valves and corrosion damage, thereby preventing malfunctions. Installation and connection should be carried out by a specialised installation company.

- +

1

Flange pipe for water pump/water tapping point

Art.: 1040065 | Flange pipe for screwing onto K&K water pump or water tapping point. For setting in concrete below the playing level.

- +

1

Foot bearing water spiral / mounted, screwable (for bearing tube Ø 76.1 mm)

Item no.: 1040317

- +

1

Rubber disc (nose valve), Ø 48 x Ø22 x 5

Item no.: 3300039

- +

1

Head bearing water spiral / crank drive mounted

Item no.: 1040318

- +

1

Leather sleeve pump piston, Ø 79.5 x Ø 53 x 20 mm (ready to fit)

Art.: 1040551 | Leather sleeve for mounting on the pump piston of the water pump.

- +

1

Pump head for stainless steel pump with handwheel, eccentric adjustable/centre axis

Item no.: 1040543

- +

1

Pump head for stainless steel pump with swivel, adjustable eccentric/centre axis

Item no.: 1040413

- +

1

Wintering plate incl. fastening material for water pump 33130

Item no.: 1040124 | Stainless steel round seal for closing the pump column remaining after removal of the pump head (swivel/head/connecting rod/piston). connecting rod/piston). Incl. fastening material and special spanner.

- +

1

Wintering plate incl. fastening material for water tap 33119

Part no.: 1040201 | Complete upper part for the K&K water pump incl. piston, connecting rod and lever; pump head with handwheel and bearing.

- +

1

Vacuum valve 1 1/4'' for valve combination 0-33190-000/0-33195-000

Item no.: 1040765

- +

1

Parabolic spring KP 55 Shore A (for beam rocker), Ø75 x 89mm, external thread M12 x 25mm on one side

Item no.: 3300002

- +

1

Oscillating metal stop buffer, Ø80 x 60mm / M12x12 mm internal thread on one side

Item no.: 3300075
