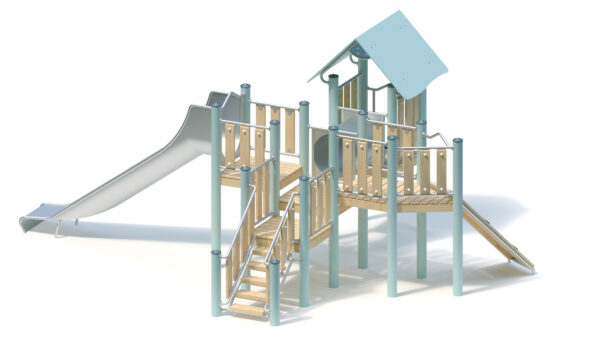

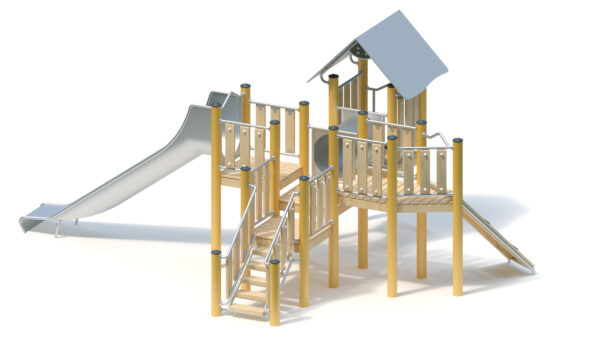

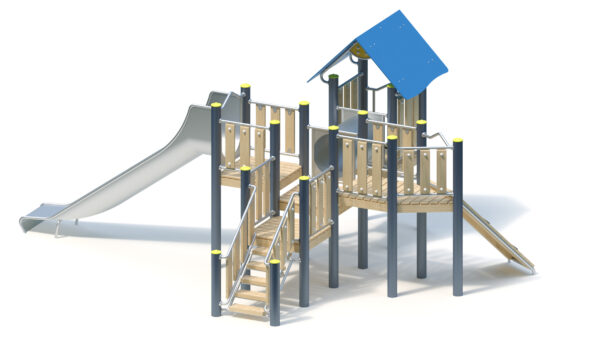

The 3D model is for spatial reference only. The colours may not match the selected variant.
Play structure

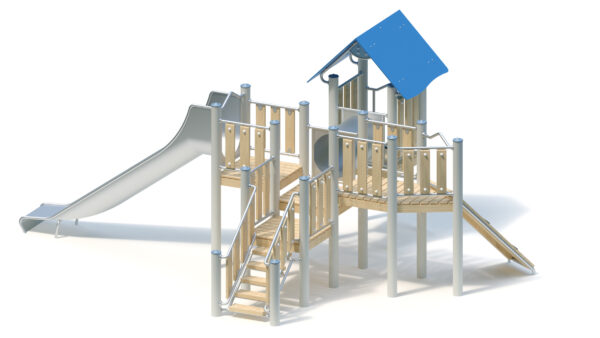

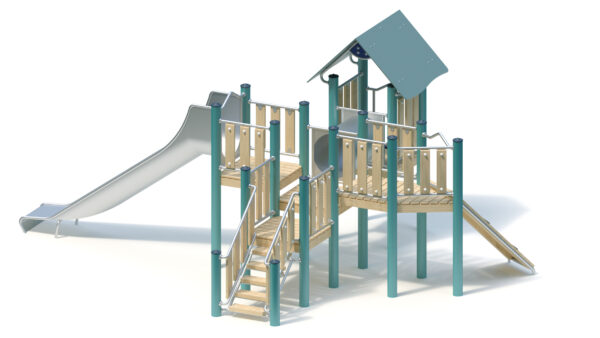

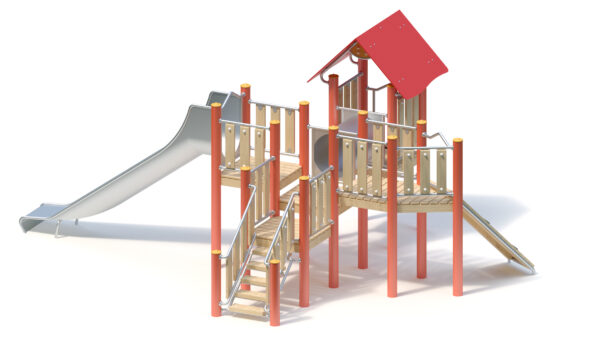

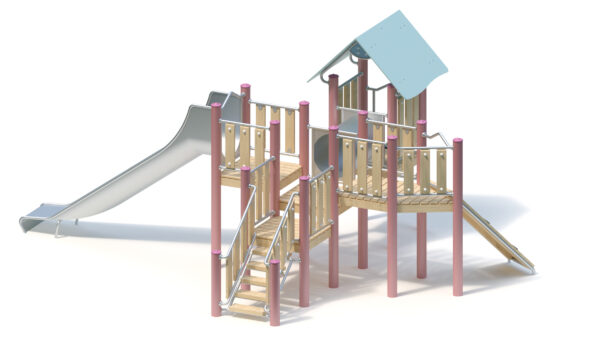

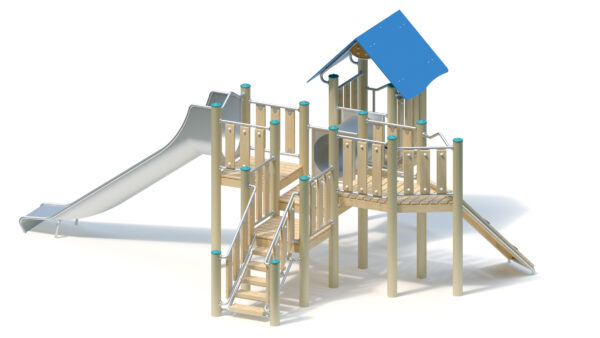

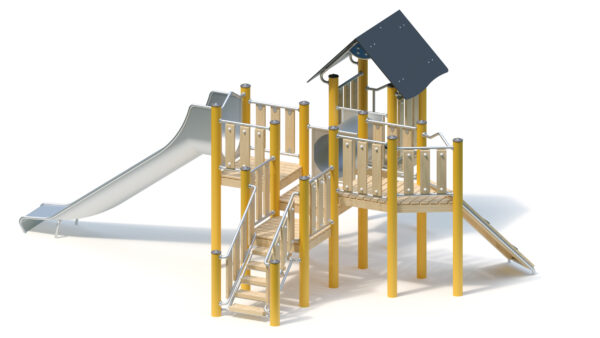

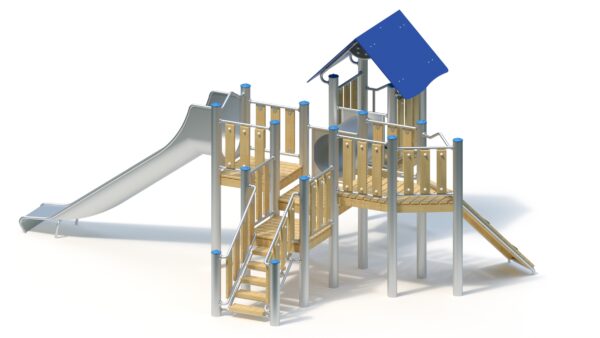

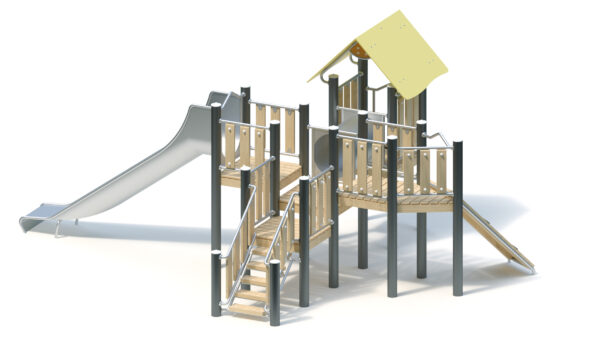

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 15 people |
| Activities ? | Physical activity, Slide |
Technical data
| Minimum space length ? | 9,85 m |
|---|---|
| Minimum space width ? | 7,30 m |
| Minimum space height ? | 2,75 m |
| Equipment length ? | 6,35 m |
| Equipment width ? | 4,30 m |
| Equipment height ? | 2,75 m |
| Free-fall height ? | 1,70 m |
| Platform heights | - |
| Total weight ? | 935.00 kg |
| Heaviest single part ? | 85.00 kg |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 17 x (0.4 m x 0.4 m x 0.4 m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

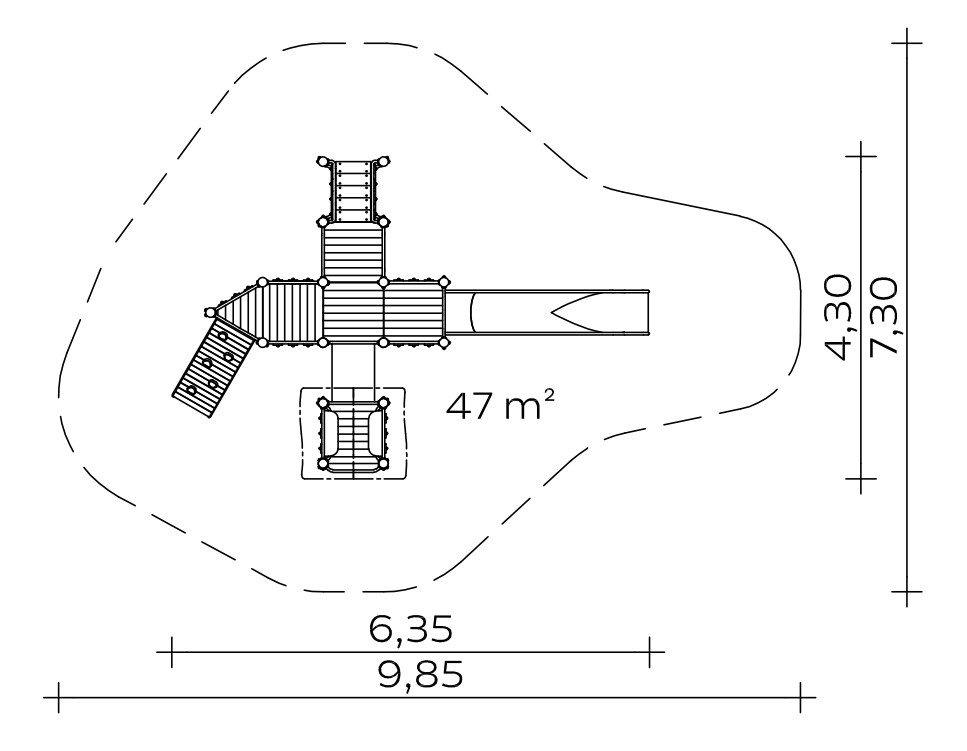

Total height: 2.75 m
Floor area: 4.30 x 6.35 m
Minimum space: 7.30 x 9.85 m (47 m²)
Platform heights: 0.80/1.00/1.20 m
Slide seat height: 1.30 m
Weight: 85 kg heaviest individual part
935 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Pitch height of the steps 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 mm
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
17 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.28 m³
Assembly time
2 fitters 10 hours each
(without foundation)
Free fall height
1,70 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021629503
