Bridge combination
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 10 persons |
| Activities ? | Balance, Physical activity |
Technical data
| Device length ? | 7,38 m |
|---|---|
| Device width ? | 0,93 m |
| Device height ? | 2,23 m |
| Free fall height ? | 1,40 m |
| Platform heights | - |
| Total weight ? | 405.00 kg |
| Heaviest single item ? | 80.00 kg |
| Minimum room length ? | 10,38 m |
| Minimum room width ? | 3,93 m |
| Minimum room height ? | 2,23 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

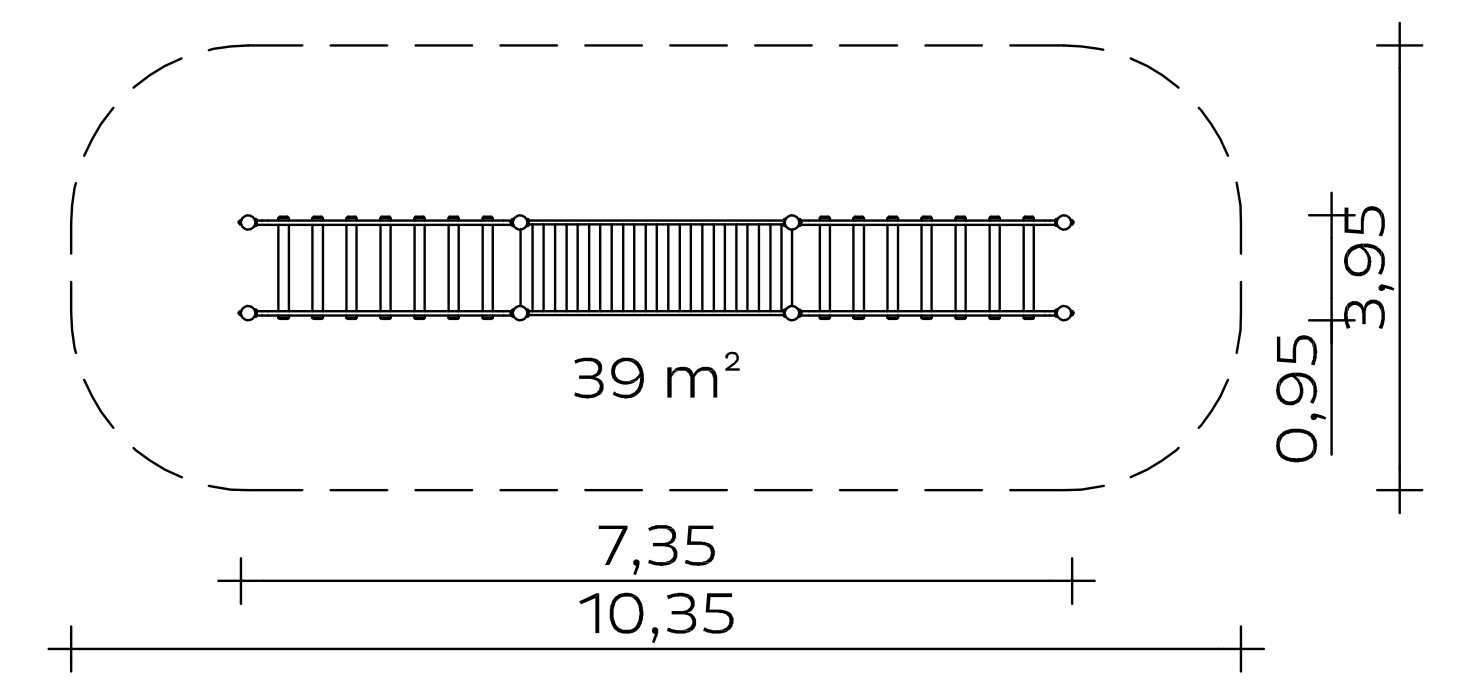

Floor area: 0.95 x 7.35 m
Minimum space: 3.95 x 10.35 m (39 m²)
Total height: 2.25 m
Platform height: 1.40 m
Weight: 80 kg heaviest individual part
405 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm.
- Wobbly steps on tandem crossbeam, walkway posts made of robinia Ø 10 cm. Fine-linked stainless steel railing chains.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
1,40 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 028142500
