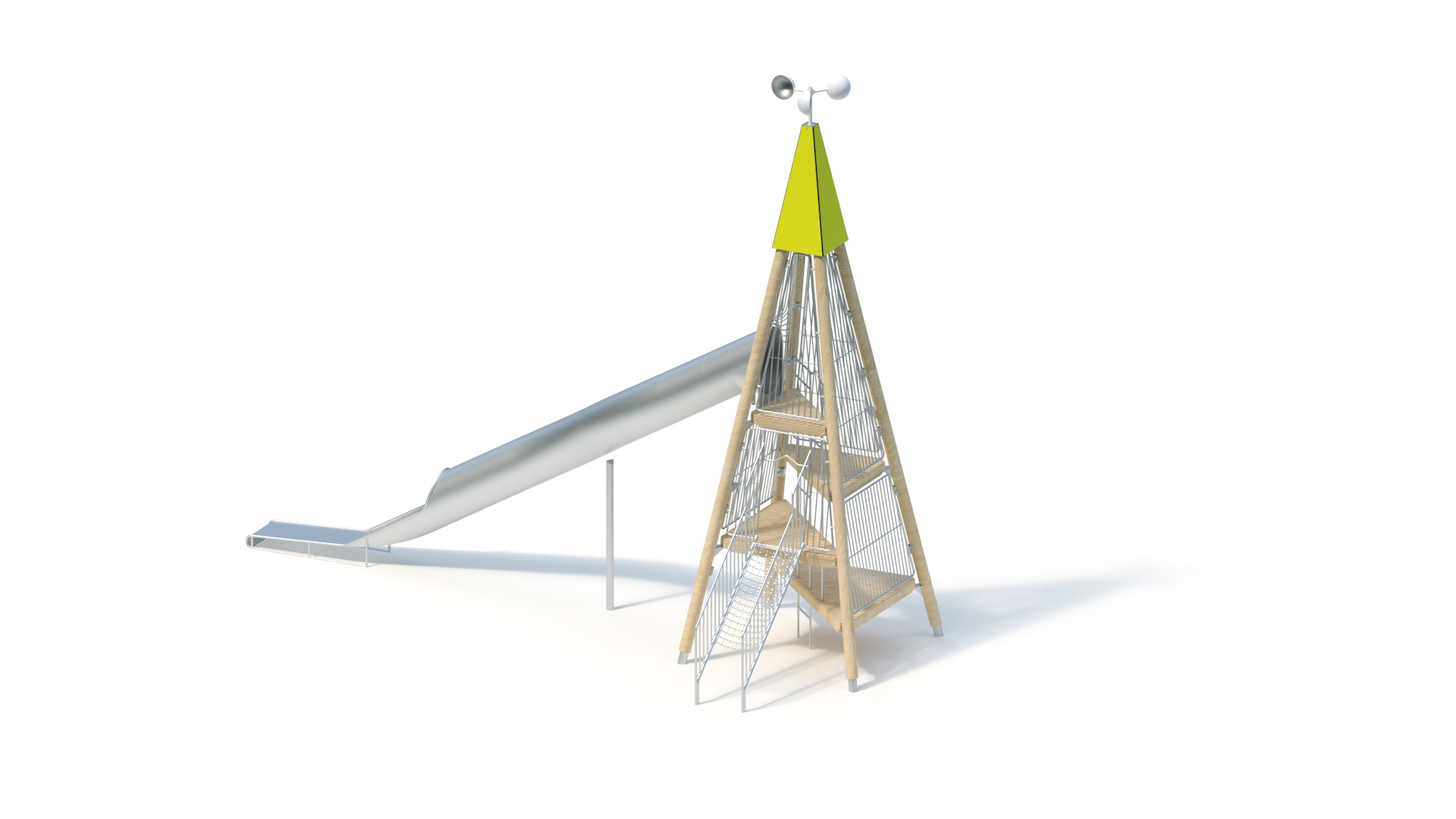

Dalben tower (8,50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | - |
| Number of users ? | 21 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 7,85 m |
|---|---|
| Minimum space width ? | 15,20 m |
| Minimum space height ? | 8,50 m |
| Equipment length ? | 4,75 m |
| Equipment width ? | 11,70 m |
| Equipment height ? | 8,50 m |
| Free-fall height ? | 2,00 m |
| Platform heights | - |
| Total weight ? | 0.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 18,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (1m x 1m x 0.5m) Quantity: 3 (1m x 0.4m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.6m) Quantity: 2 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
K&K dolphin tower system consisting of:
Dalben tower (8.50) with chain net ascent (2.00 m) and tunnel slide (4.00 m);
Tower bonnet red / similar to RAL 2002 with wind rotor 3-fold
Technical data
Floor area: approx. 4.75 x 11.70 m
Minimum space: approx. 7.85 x 15.20 m
Height: 8.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 m
Slide attachment height: 4.00 m
Seat height: 4.10 m
Slide inclination: 30°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Support post
Glued laminated larch Ø 200 mm with triple wood preservative coating, on hot-dip galvanised steel legs
Platform floors
Triangular wooden platforms, laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections on the uprights
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.
The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High-pressure laminate 15 mm, colour red / similar to RAL 2002
Tower top
Wind rotor 3-fold
Ascent to platform height 2.00 m
- Chain mesh access with stainless steel tube balustrade
K&K tunnel slide 30°, Ah 4.00 m
Slide segments made of stainless steel, particularly quiet due to tubular shape, welded to form a one-piece tunnel slide, consisting of the following elements:
- 16100 K&K tunnel slide single seat
- 16110090 K&K tunnel slide straight,
Length 0.90 m
- 16160 K&K tunnel slide curve, 6 pcs,
Turning 30° right
- 16170 K&K tunnel slide curve, 6 pcs,
Turning 30° left
- 16110070 K&K tunnel slide straight,
Length 0.70 m
- 16180 K&K tunnel slide outlet
Incl. K&K tunnel slide support post, support post made of stainless steel tube Ø 120 x 3 mm, stainless steel fastening flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Assembly time
2 fitters 18 hours each, plus lifting gear
(without foundation)
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.60 x 0.60 x 0.60 m
2 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 2.77 m³
Free fall height
2,00 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 912085001
This Kaiser & Kühne product enables:
