Arch bridge
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 4 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 2,55 m |
|---|---|
| Device width ? | 0,95 m |
| Device height ? | 0,50 m |
| Free fall height ? | 0,50 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single item ? | 70.00 kg |
| Minimum room length ? | 5,55 m |
| Minimum room width ? | 3,95 m |
| Minimum room height ? | 0,50 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

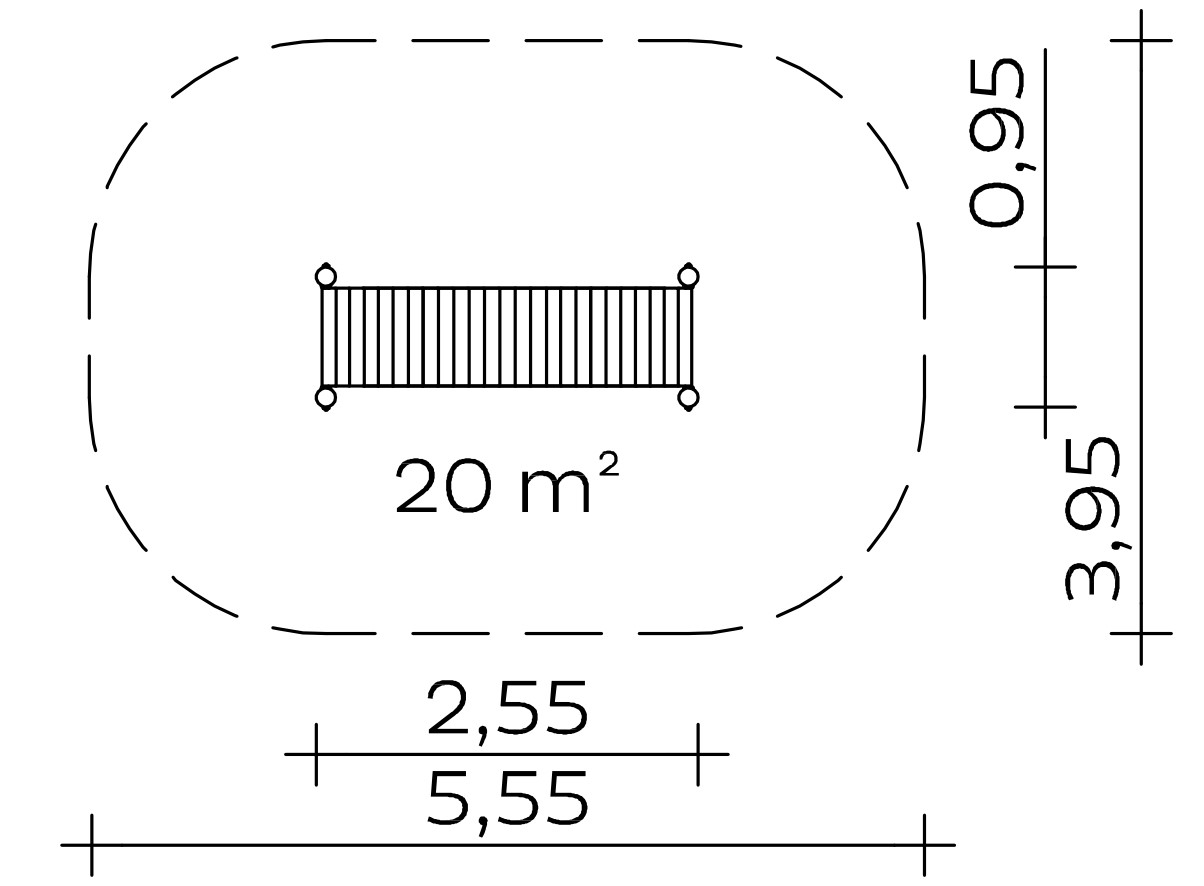

Base area: 0.95 x 2.55 m
Minimum space: 3.95 x 5.55 m (20 m²)
Height: 0.50 m
Weight: 70 kg heaviest individual part
100 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable post caps made of stainless steel (metallic). Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Arched bridge made of robinia wood
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,50 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 028055500
This Kaiser & Kühne product enables:
