Technical data

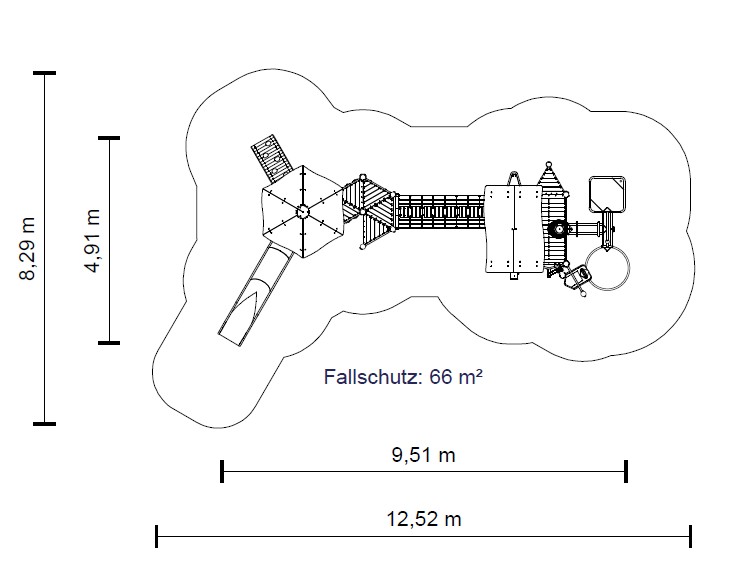

Floor area: 4.91 x 9.51 m
Minimum room size: 8.29 x 12.52 m
Total height: 3.58 m
Platform heights: 0.20/0.40/0.60/0.80/1.00/1.20 m
Slide seat height: 1.30 m

Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Stainless steel tubular base for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level. Post flush with the platform is sealed with a welded-on stainless steel round cap.

Platform floor
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panel balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening Ø 260 mm with polycarbonate pane
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– Counter made from highly weather-resistant HPL laminate, 20 mm
- Awning made of highly weather-resistant HPL laminate, 15 mm
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Pouring pipe wall made of HPL laminate with sand pouring pipe including shut-off damper
- Sand slide made of stainless steel tube with HPL laminate panel
- Step channel with rubber sand wheel with fabric insert
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel cover
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Water pump with handwheel Article no. 0-33131-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with handwheel must be removed, e.g. during the frost period.
Cover („winterisation plate“) for the remaining pump base is supplied.

Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.

Water trough (0,80)
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled outlet. Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.

Distribution channel, item no. 0-33493-000
Weight: 35 kg in total
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness: min. 2 mm / pipe Ø 38 mm, with elevation and water channel with edge protection pipe Ø 38 x 2 mm.

Water table (0.25), art. no. 0-33440-000
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 2 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring. Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Mud plate (0.25), item no. 0-33450-000
Base area: Ø 1.04 m
Total height: 0.33 m
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring. Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
16 pcs. 0.40 x 0.40 x 0.40 m
4 units 0.40 x 0.40 x 0.60 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
2 pcs. 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m

Assembly time
2 fitters, 18 hours each
(without foundations), plus lifting gear

Free fall height
1,30 m

Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities / manual activities

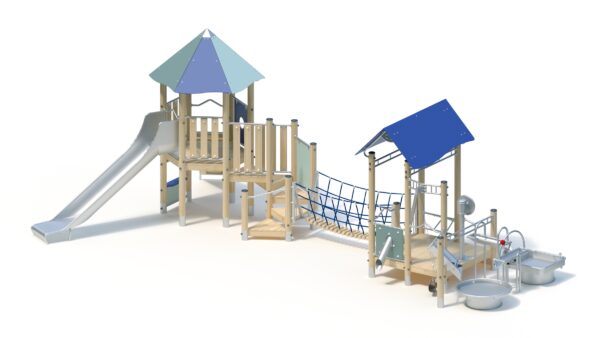

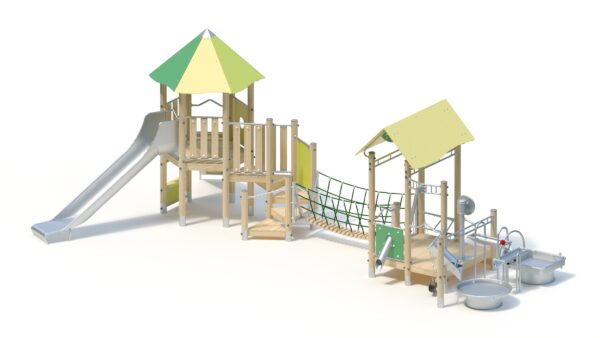

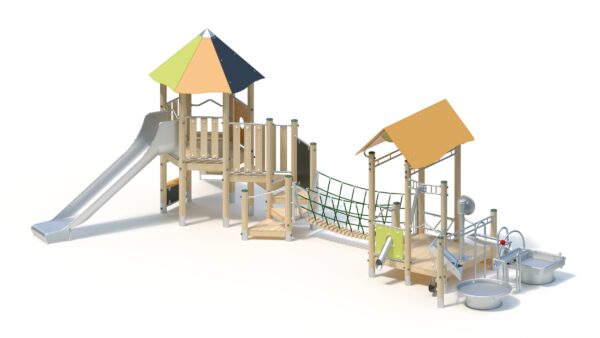

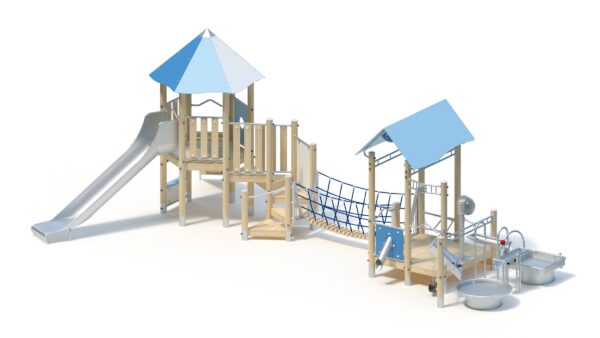

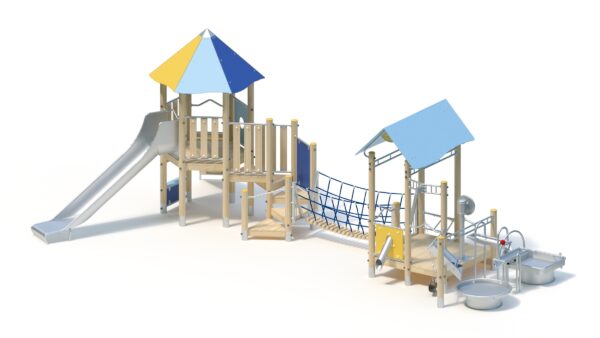

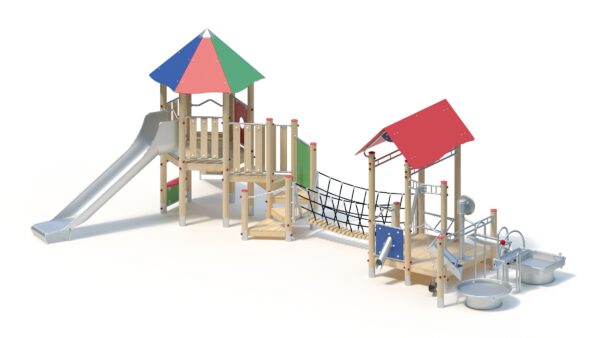

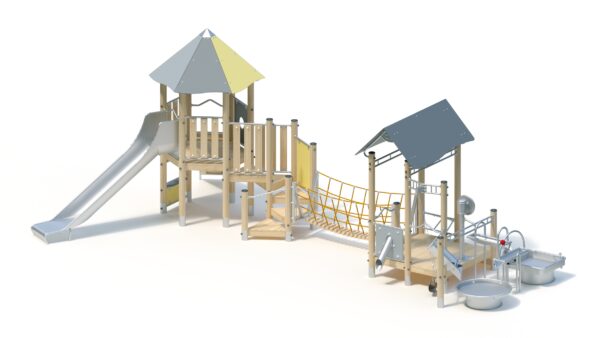

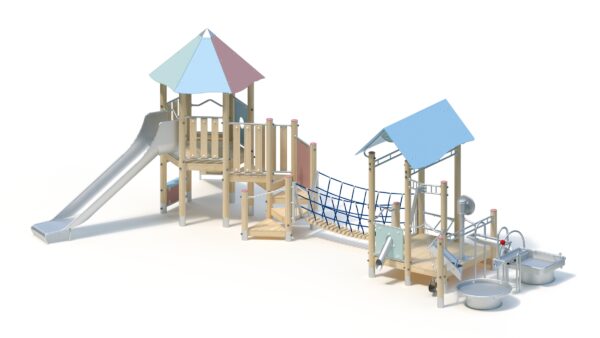

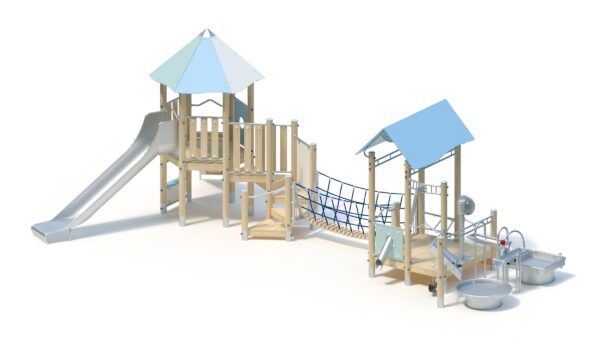

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L721637031
