Dalben tower (8,50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 21 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 15,20 m |
|---|---|
| Minimum space width ? | 7,75 m |
| Minimum space height ? | 9,40 m |
| Equipment length ? | 11,70 m |
| Equipment width ? | 4,75 m |
| Equipment height ? | 9,40 m |
| Free-fall height ? | 2,00 m |
| Platform heights | - |
| Total weight ? | 1600.00 kg |
| Heaviest single part ? | 240.00 kg |
Assembly & Foundations
| Assembly time ? | 16,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 4 (1m x 1m x 0.5m) Quantity: 3 (1m x 0.4m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.6m) Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1x (1m x 0.4m x 0.5m) |
Product Downloads
Product description

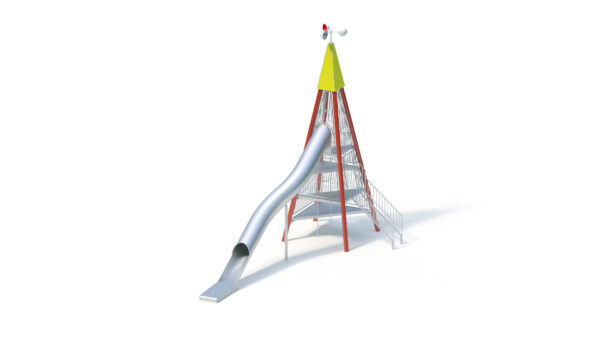

Dalbentur system consisting of:
Dalben tower (8.50) with chain net ascent (2.00 m) and tunnel slide (4.00 m);
Tower bonnet red / similar to RAL 2002 with wind rotor 3-fold
Technical data
Floor area: approx. 4.75 x 11.70 m
Minimum space: approx. 7.75 x 15.20 m
Height: 8.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 m
Slide attachment height: 4.00 m
Seat height: 4.10 m
Slide inclination: 30°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Support post
Steel Ø 193.7 x 4 mm, hot-dip galvanised
Platform floors
Triangular stainless steel pedestals, welded construction with tear plate covering, glass bead blasted, screw-on flange connections on the uprights.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High-pressure laminate 15 mm, colour red / similar to RAL 2002
Tower top
Wind rotor 3-fold
Ascent to platform height 2.00 m
- Chain net ascent
K&K tunnel slide 30°, Ah 4.00 m
Stainless steel slide segments are welded together to form a one-piece tunnel slide.
Course: Curve 30° right, 30° left
Including K&K tunnel slide support post, support post made of stainless steel tube Ø 120 x 3 mm, stainless steel fastening flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Assembly time
2 fitters 16 hours each, plus lifting gear
(without foundation)
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.60 x 0.60 x 0.60 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 1.00 x 0.40 x 0.50 m
Free fall height
2,00 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 910085039
This Kaiser & Kühne product enables:
