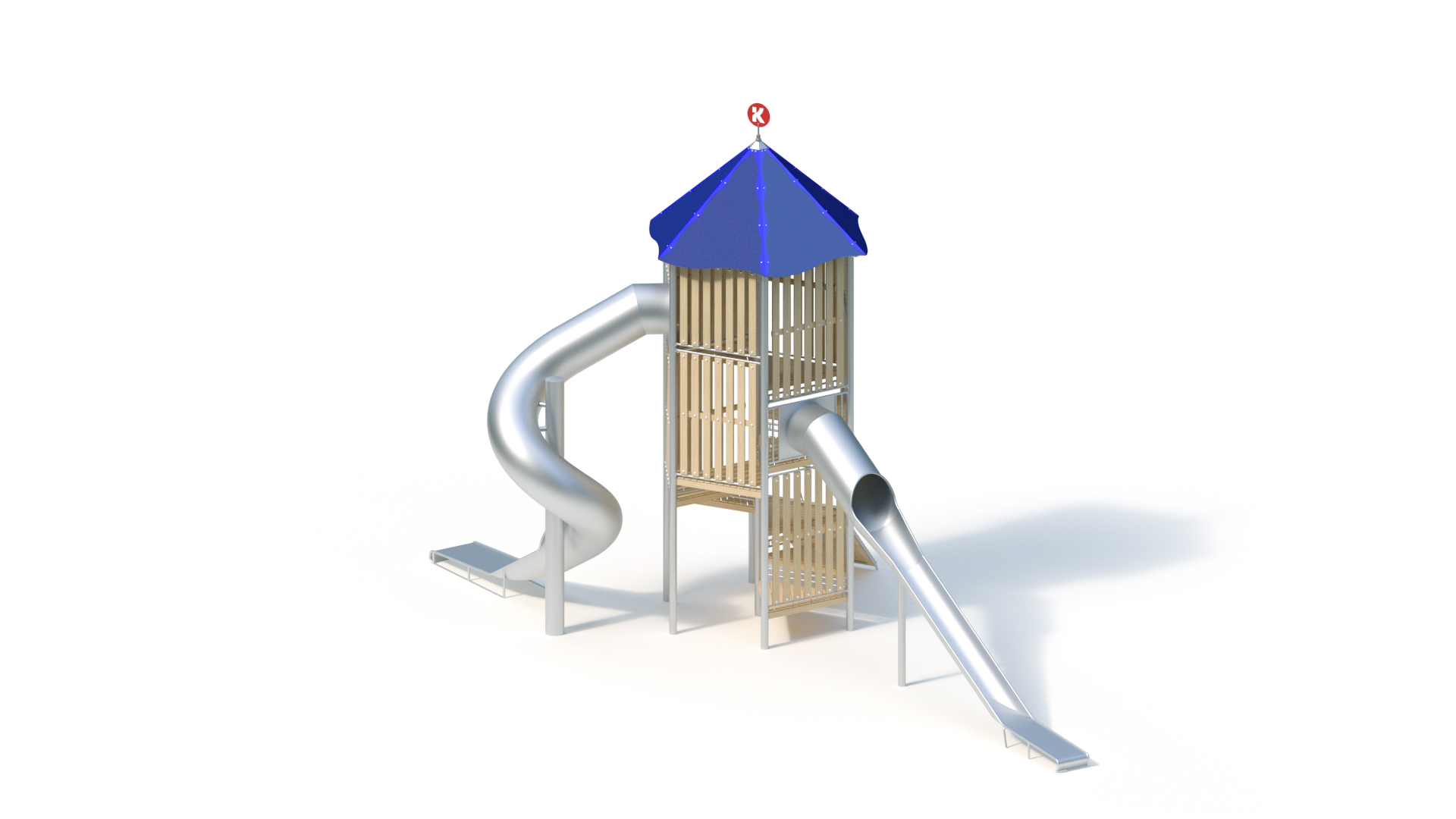

Play structure

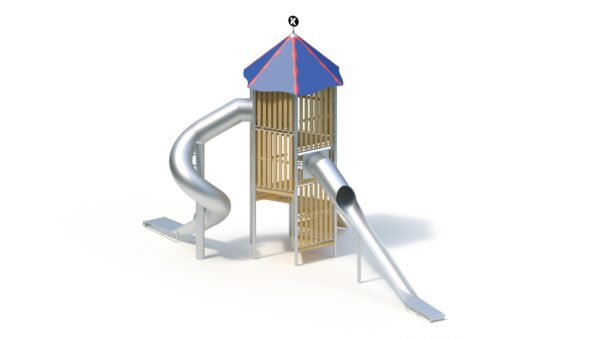

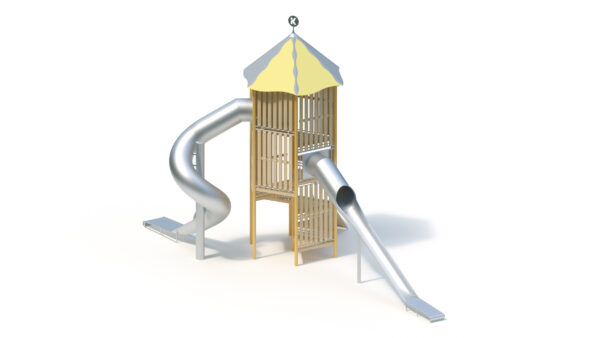

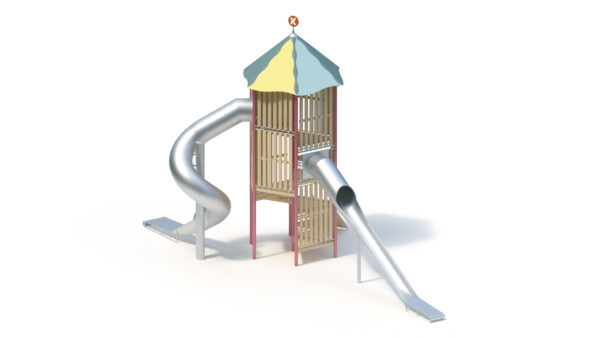

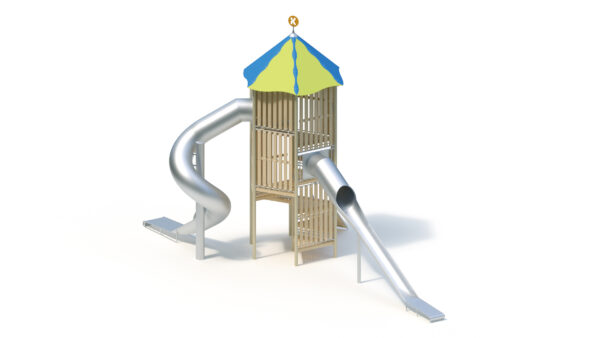

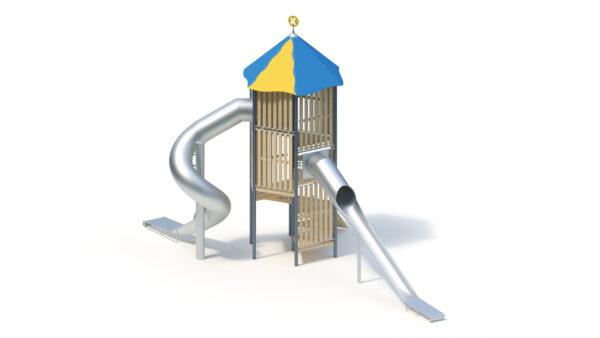

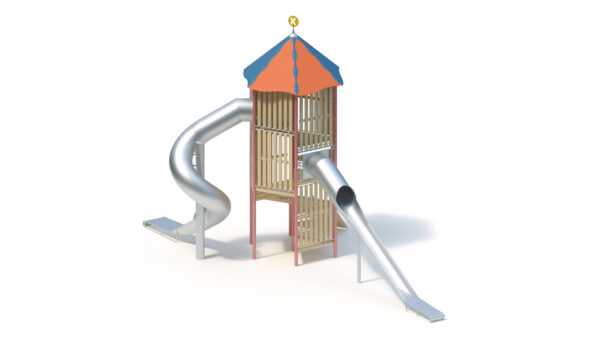

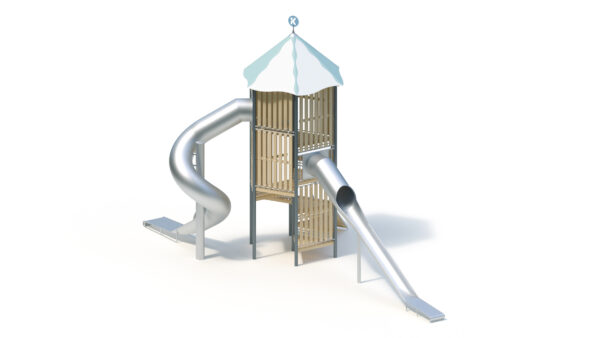

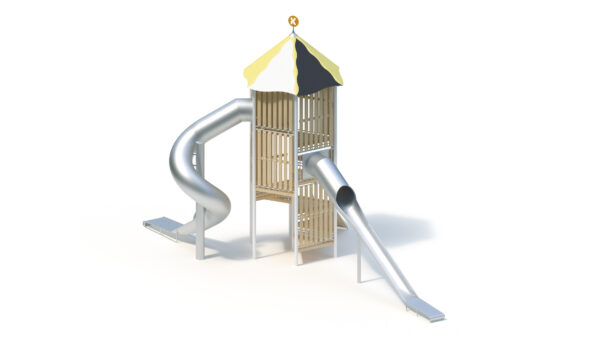

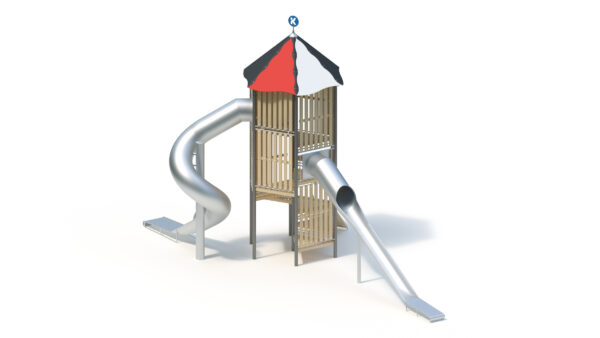

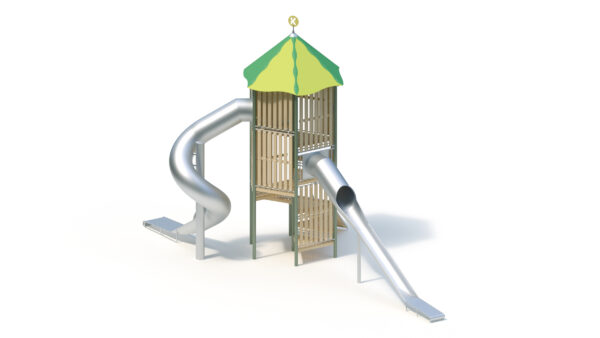

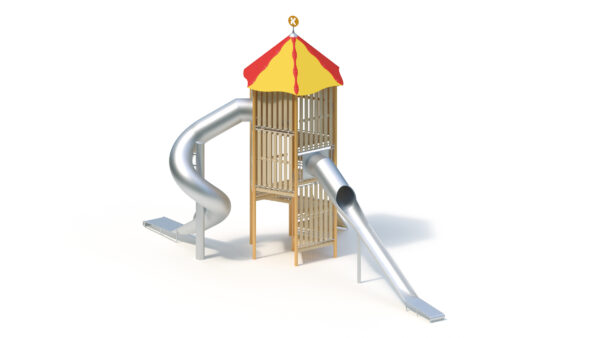

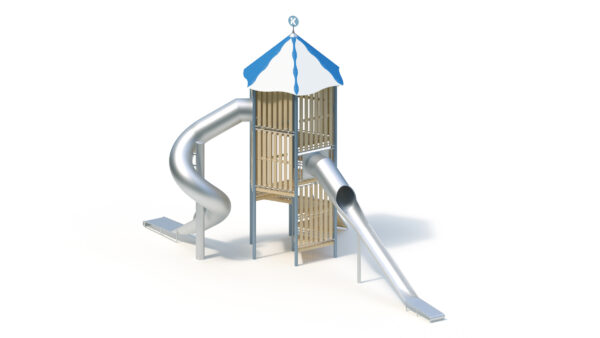

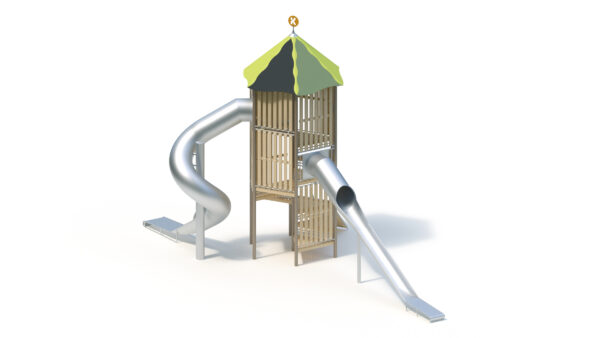

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 36 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 13,55 m |
|---|---|
| Device width ? | 6,95 m |
| Device height ? | 8,50 m |
| Free fall height ? | 2,00 m |
| Platform heights | - |
| Total weight ? | 3510.00 kg |
| Heaviest single item ? | 650.00 kg |
| Minimum room length ? | 17,55 m |
| Minimum room width ? | 9,45 m |
| Minimum room height ? | 8,50 m |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 4 persons |
| Lifting gear required | Yes |
| Foundations | 100x040x040 |
Product Downloads
Product description
Technical data
Total height: 8.50 m

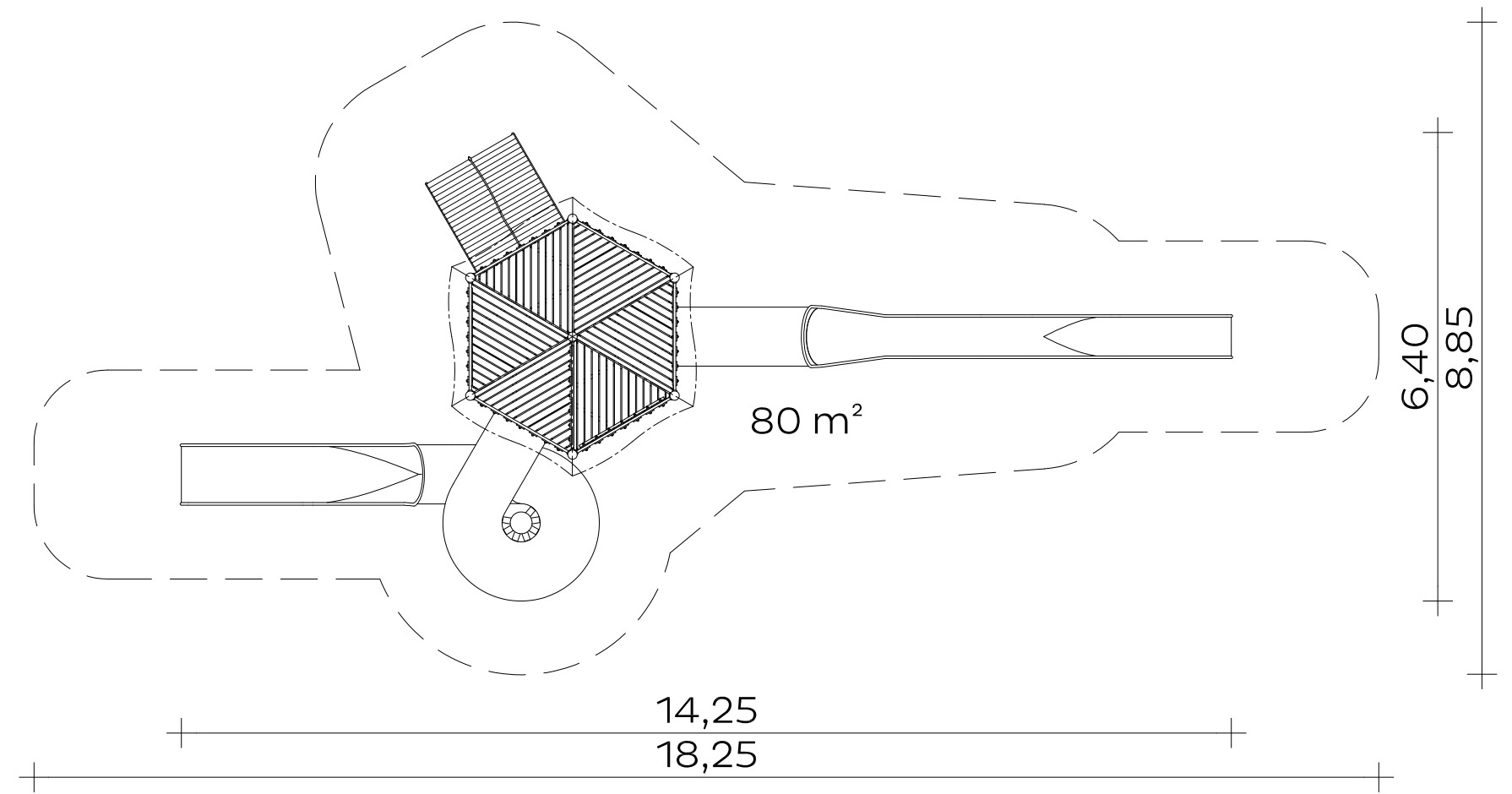

Floor area: 6.95 x 13.55 m
Minimum space: 9.45 x 17.55 m (80 m²)
Platform heights: 0.60 to 4.60 m
Weight: 650 kg heaviest individual part
3510 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Herkules climbing rope Ø 18 mm
- Tent roof, inclination 45°, made of highly weather-resistant coloured HPL laminate, 13 mm, with wind chimes. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, including edge cover made of stainless steel (colour powder-coated)
Tunnel spiral slide (4.60)
Slide attachment height: 4.60 m
Seat height: 4.70 m
Slide inclination: 30°/38°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded for transport reasons to form a three-part slide coiled around a centre pylon, including corresponding connecting flanges to facilitate assembly on site.
Slide course: Turn 300° left
Tunnel slide (3.00)
Slide attachment height: 3.00 m
Seat height: 3.10 m
Slide inclination: 30°
Slide width: 0.60/0.80 m
Sliding plate thickness: 2.5 mm
Slide segments made of stainless steel, particularly quiet due to tunnel or trough shape, welded to form a one-piece slide, including stainless steel support posts Ø 120 mm, stainless steel fastening flange
Slide course: straight
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.75 x 0.75 x 0.60 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.80 x 0.80 x 1.00 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 4.11 m³
Assembly time
4 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
2,00 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 025350500
