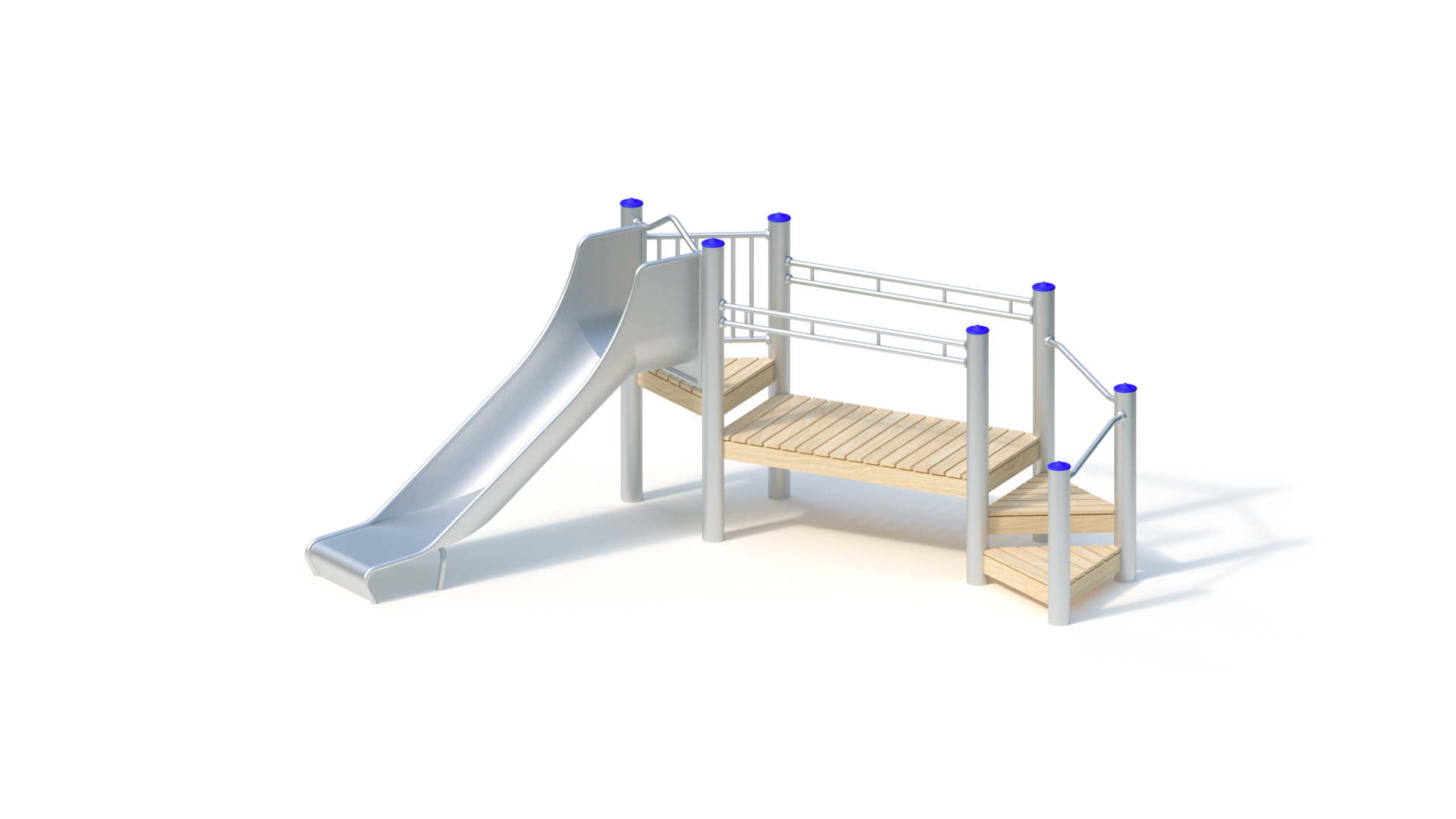

Platform combination
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 7 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 4,05 m |
|---|---|
| Device width ? | 2,70 m |
| Device height ? | 1,75 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 75.00 kg |
| Minimum room length ? | 7,20 m |
| Minimum room width ? | 6,30 m |
| Minimum room height ? | 2,40 m |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

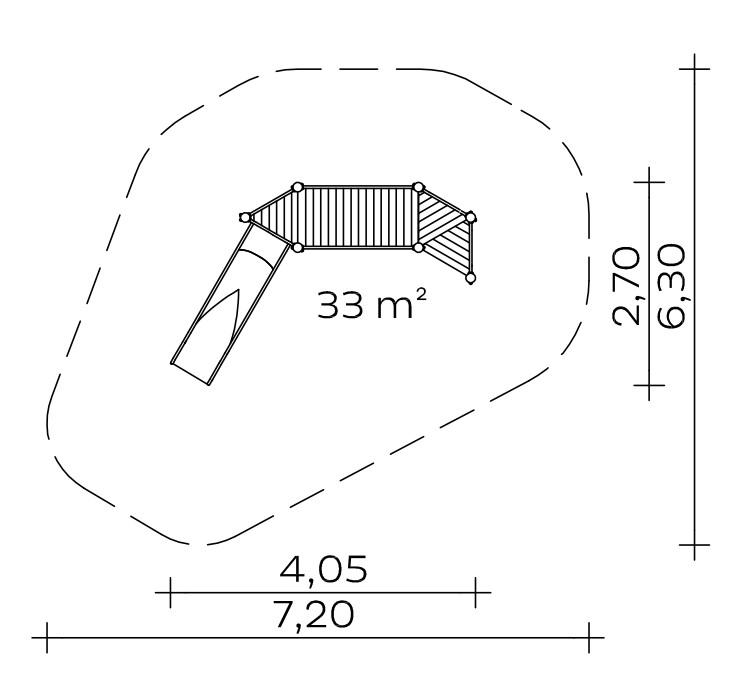

Floor area: 2.70 x 4.05 m
Minimum space: 6.30 x 7.20 m (33 m²)
Total height: 1.75 m
Platform height: 0.20/0.40/0.60/0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Weight: 70 kg heaviest individual part
310 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm, for stepped platform floors
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.57 m³
Assembly time
2 fitters 3.5 hours each
(without foundation)
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021114501
