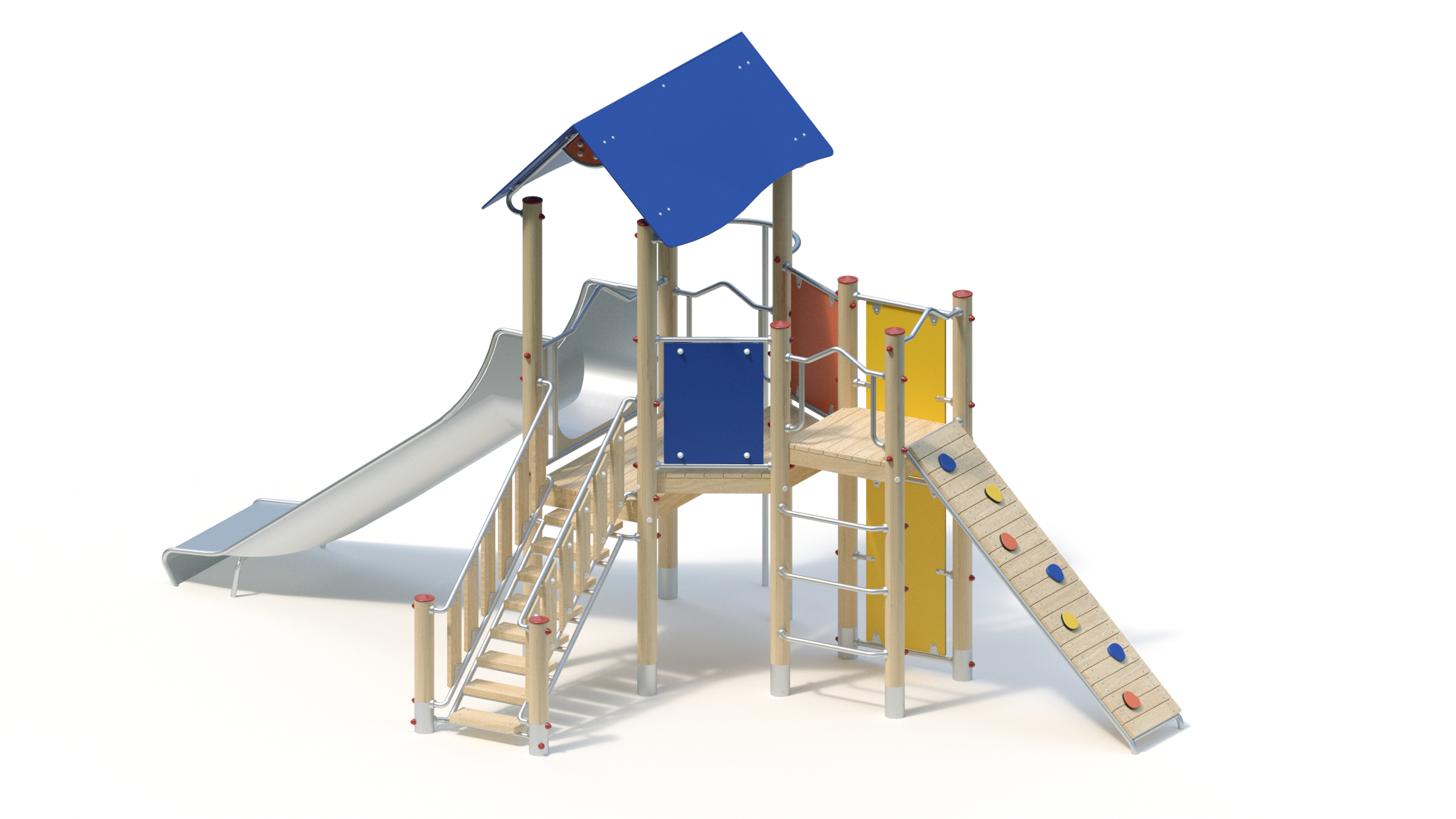

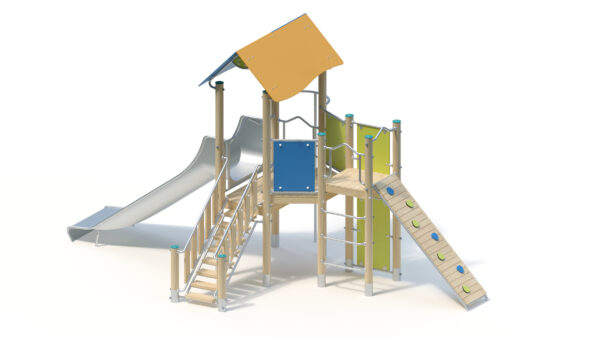

Play structure

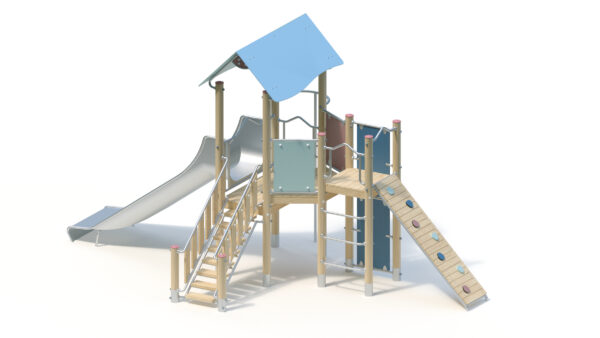

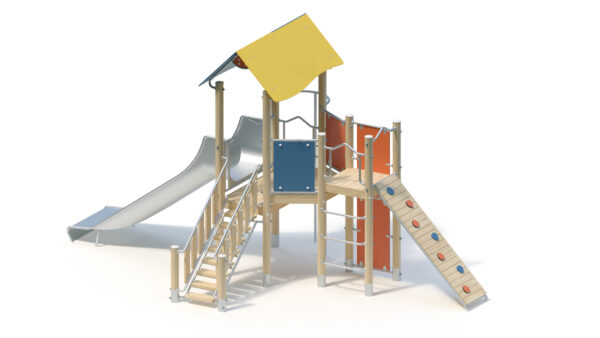

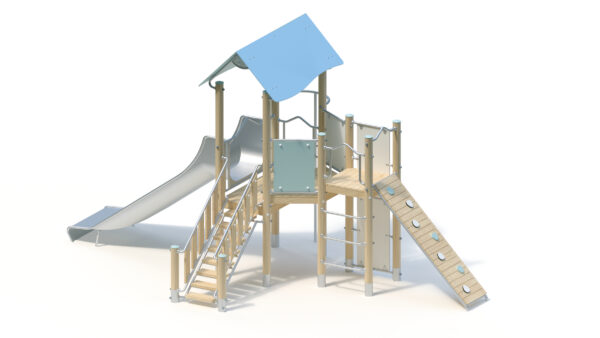

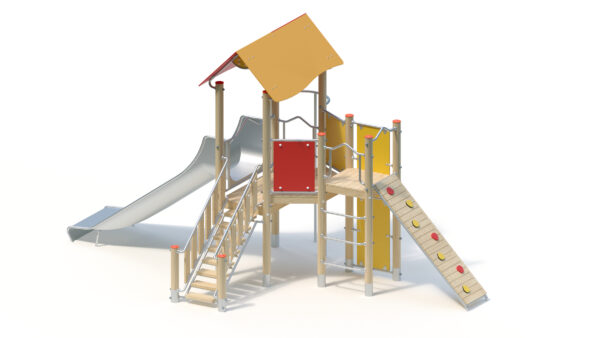

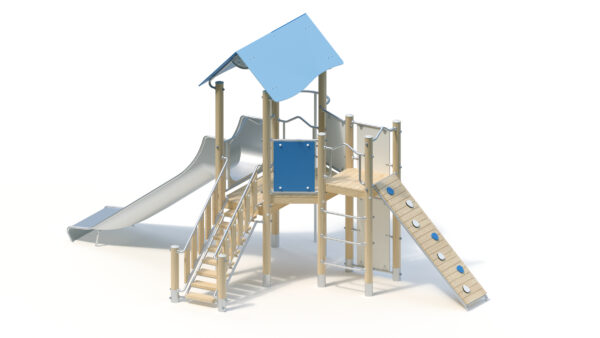

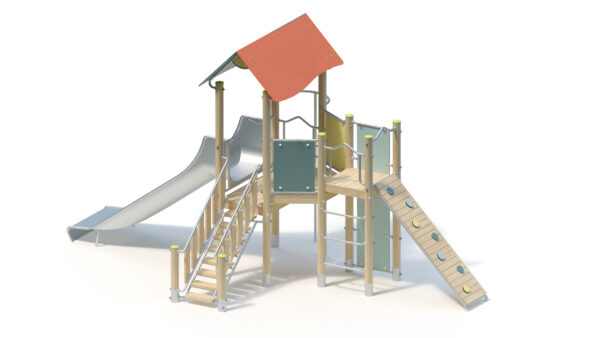

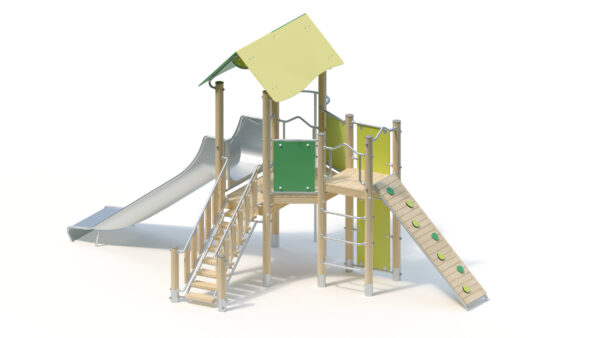

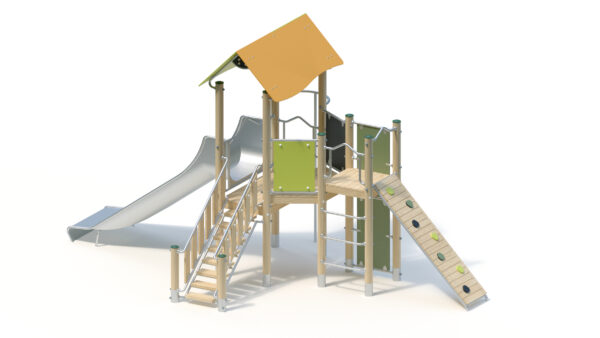

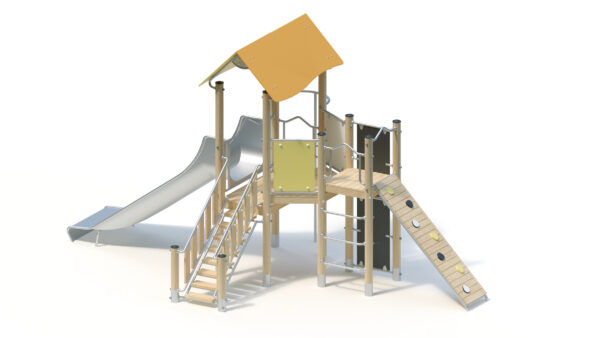

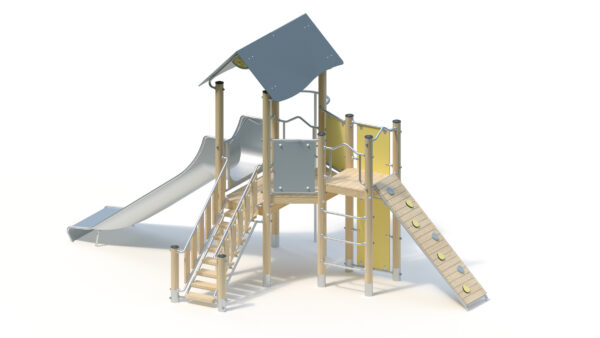

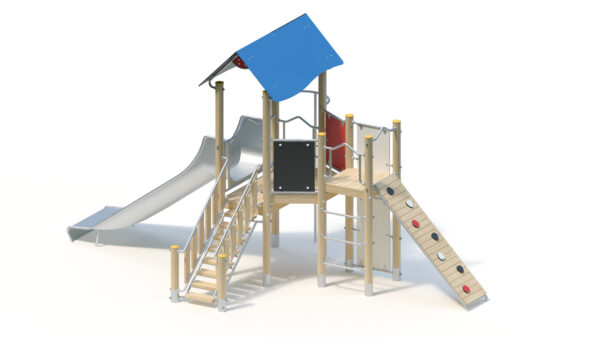

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 25 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 10,16 m |
|---|---|
| Minimum space width ? | 6.43 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 6.61 m |
| Equipment width ? | 3.44 m |
| Equipment height ? | 3,550.00 m |
| Free-fall height ? | 2,32 m |
| Platform heights | - |
| Total weight ? | 800.00 kg |
| Heaviest single part ? | 120.00 kg |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 10 (0.4m x 0.4m x 0.4m) Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 1x (1.25m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.61 m
Floor area: 3.44 x 6.65 m

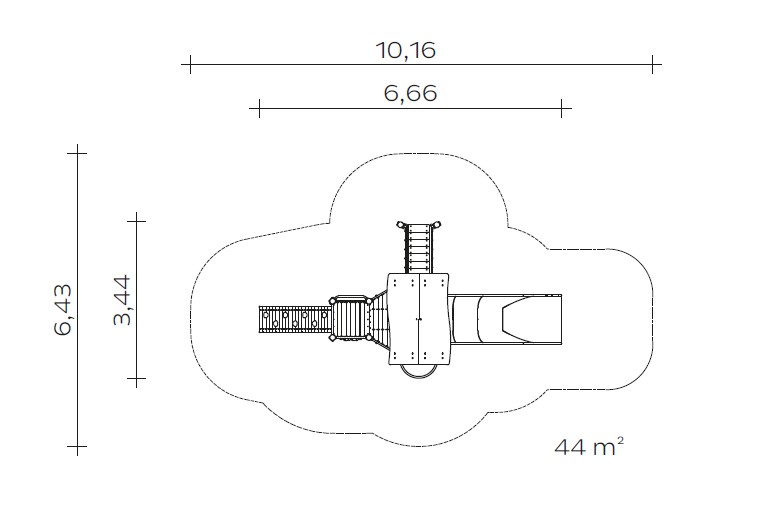

Impact area: 6.43 x 10.16 m
Platform heights: 1.20/1.40/1.60 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, with free climbing elements attached on one side
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
– Gable roof, pitch 45°, highly weather-resistant HPL laminate, 13 mm, fixed to a roof frame made of stainless steel tubing, Ø 33.7 x 2 mm
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
2,32 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: L721000332
