Dalben tower system (8.50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 21 persons |
| Activities ? | - |
Technical data
| Device length ? | 5,65 m |
|---|---|
| Device width ? | 9,55 m |
| Device height ? | 8,50 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 450.00 kg |
| Minimum room length ? | 9,25 m |
| Minimum room width ? | 13,25 m |
| Minimum room height ? | 8,50 m |
Assembly & Foundations
| Assembly time ? | 18,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 100x100x050 |
Product Downloads
Product description
Dalbentur system consisting of:

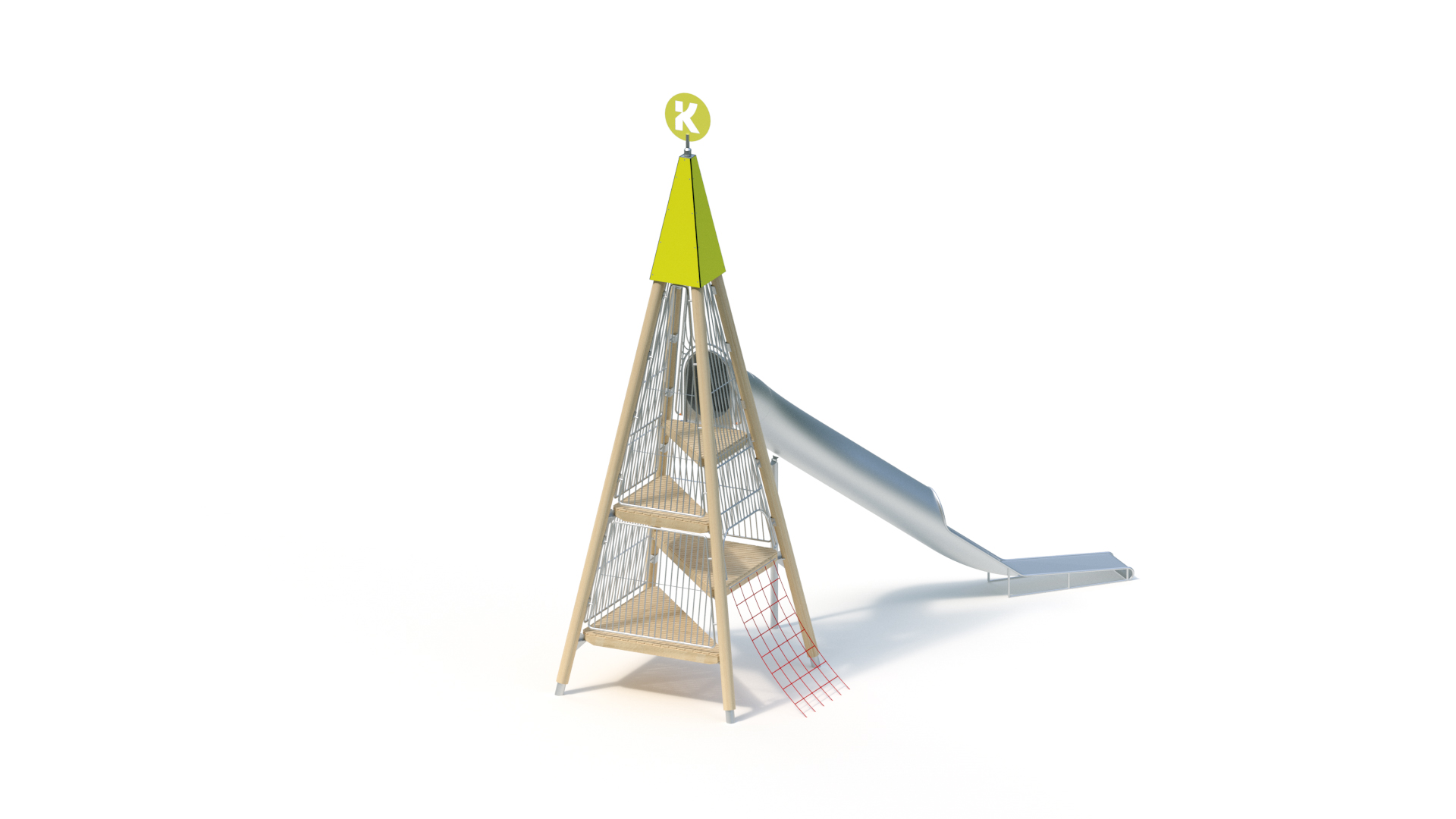

Dalben tower (8.50) with tunnel slide 30°/36° (4.00 m) and net ascent (2.00 m);
Coloured tower canopy, with wind chimes
Technical data

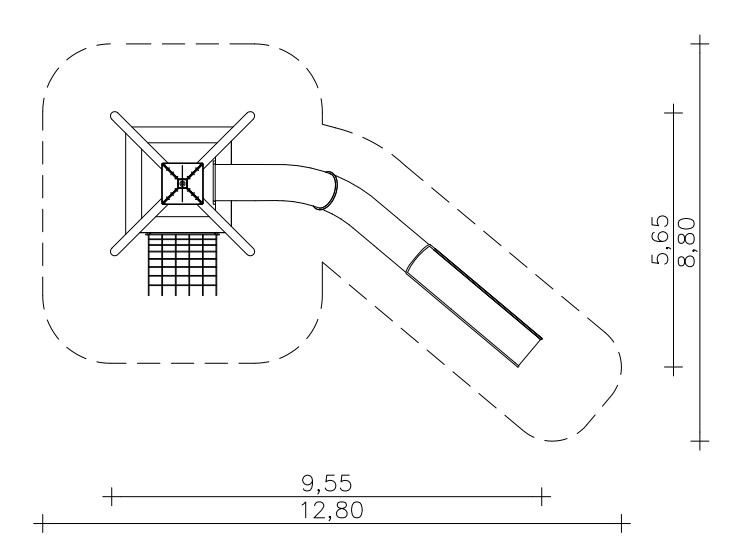

Floor area: 5.65 x 9.55 m
Minimum space: 9.25 x 13.25 m (64 m²)
Height: 8.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 / 4.00 m
Slide attachment height: 4.00 m
Seat height: 4.10 m
Slide inclination: 30°/36°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Weight: 450 kg heaviest individual part
2300 kg in total
Support post
Glued laminated larch Ø 20 cm with triple wood preservative coating, on hot-dip galvanised steel legs
Platform floors
Triangular wooden platforms, laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections on the uprights
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted
The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High-pressure laminate 15 mm, coloured
Tower top
Wind chimes, coloured
Net ascent
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)
Tunnel slide 30°/36°, Ah 4.00 m
Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded to form a one-piece tunnel slide, consisting of the following elements:
- 16100 Tunnel slide single seat
- 16130 Tunnel slide wave
- 16166 Tunnel slide curve, 8 pcs,
Turning 40°, right
- 16116085 Tunnel slide straight,
Length 0.85 m
- 16186 Tunnel slide outlet
Incl. slope slide support post for the curve area, stainless steel support post Ø 12 cm, stainless steel fastening flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Assembly time
2 fitters 18 hours each, plus lifting gear
(without foundation)
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 2.6 m³
Free fall height
2,00 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 912085005
This Kaiser & Kühne product enables:
