Play structure

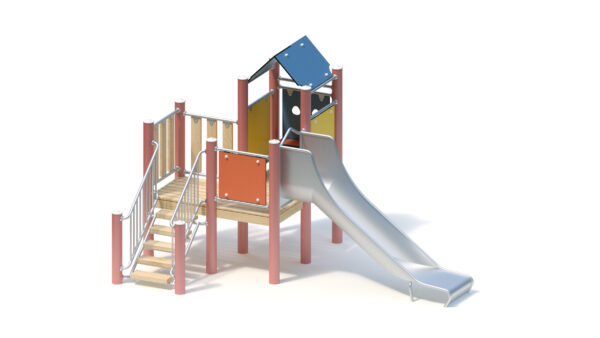

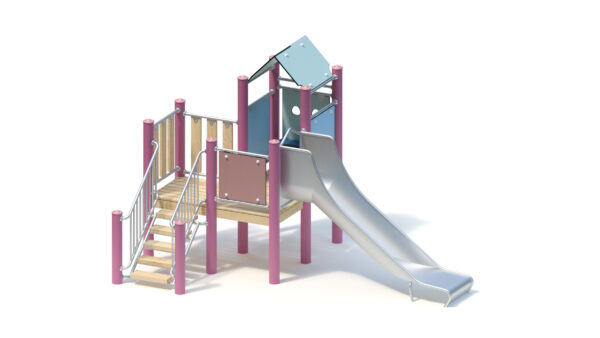

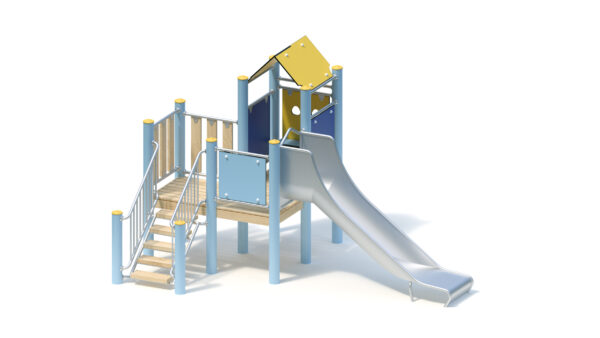

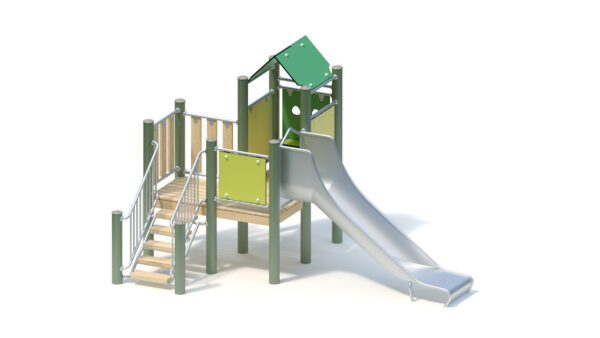

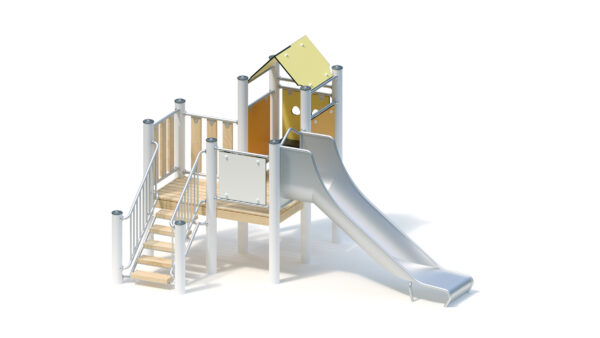

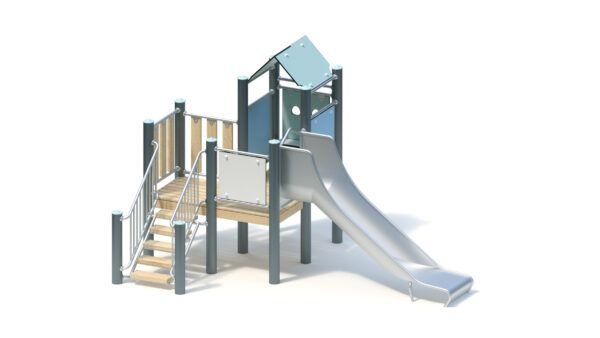

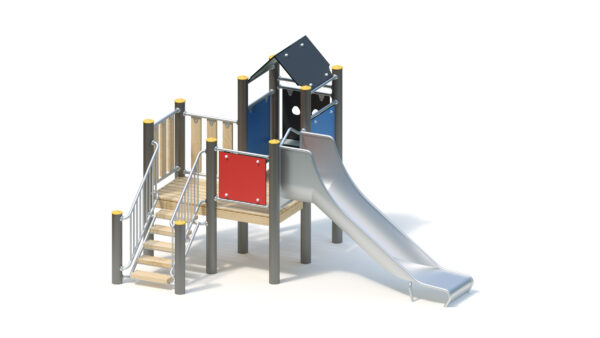

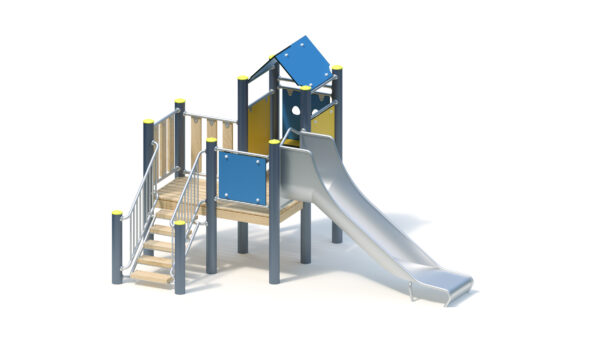

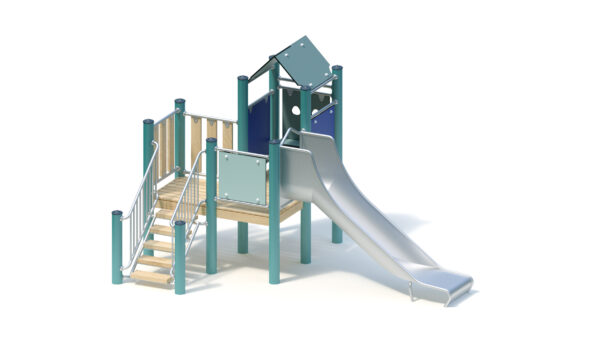

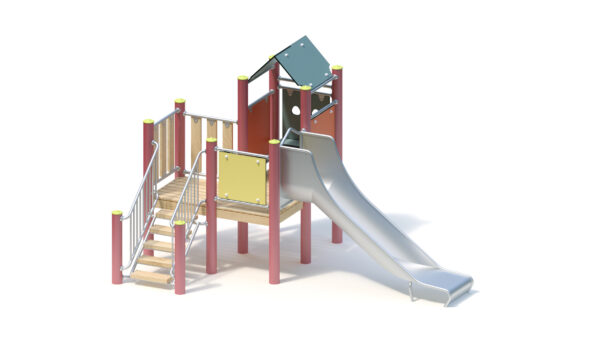

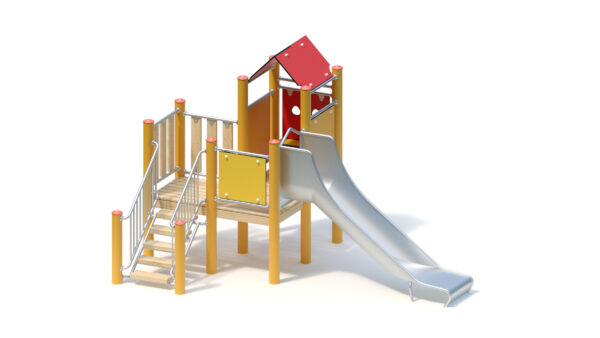

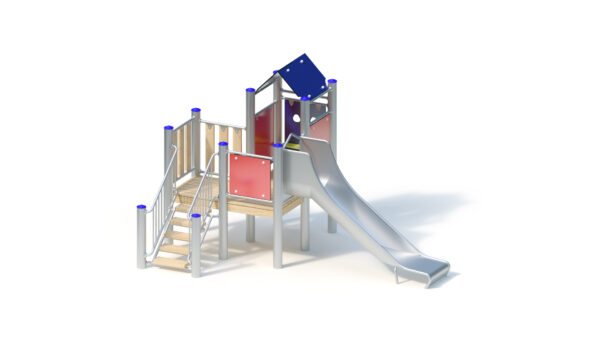

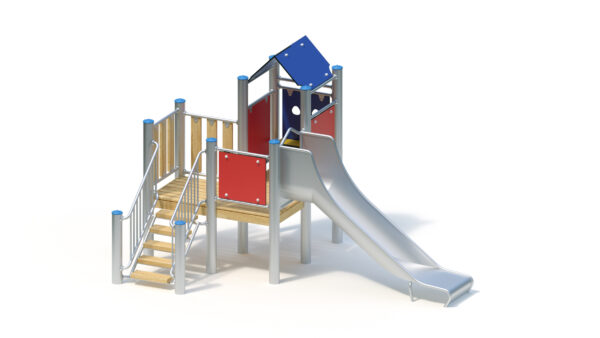

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 7,40 m |
|---|---|
| Mindestraumbreite ? | 5,55 m |
| Mindestraumhöhe ? | 2,45 m |
| Gerätelänge ? | 3,90 m |
| Gerätebreite ? | 2,55 m |
| Gerätehöhe ? | 2,45 m |
| Freie Fallhöhe ? | 1,15 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 495.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 10 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

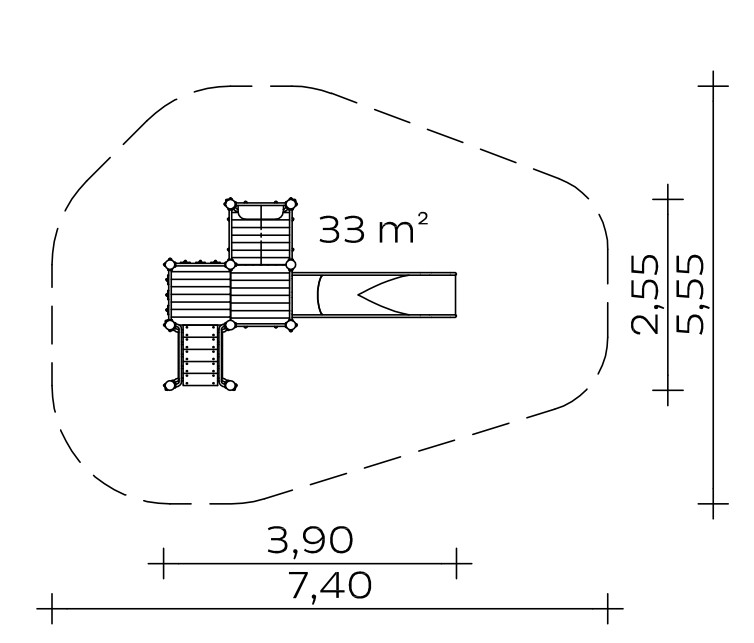

Floor area: 2.55 x 3.90 m
Minimum space: 5.55 x 7.40 m (33 m²)
Total height: 2.45 m
Platform height: 0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Weight: 70 kg heaviest individual part
495 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade (3 holes) made of weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Add-on staircase with steps made of robinia 160 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Stair railing made of stainless steel tube, Ø 33.7 x 2 mm, torsion-resistant
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Stainless steel tube rung, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.76 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,15 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 021130502
