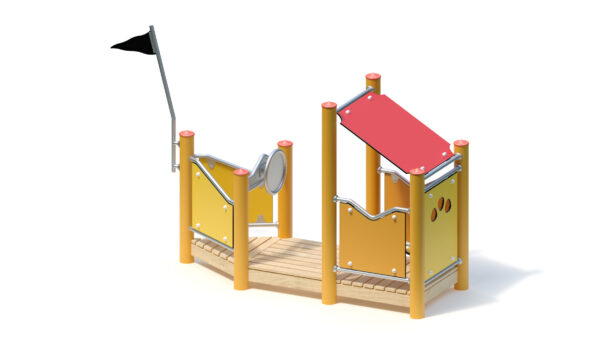

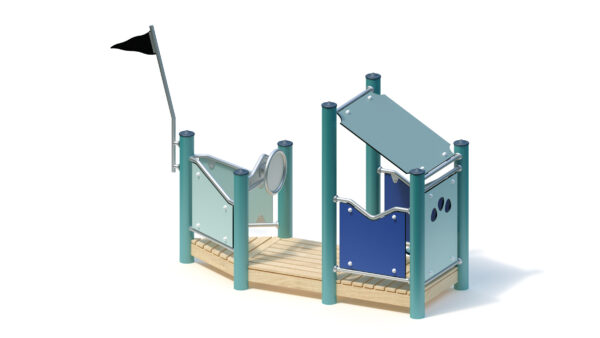

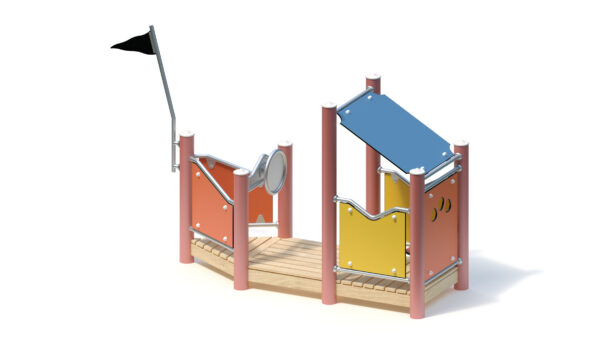

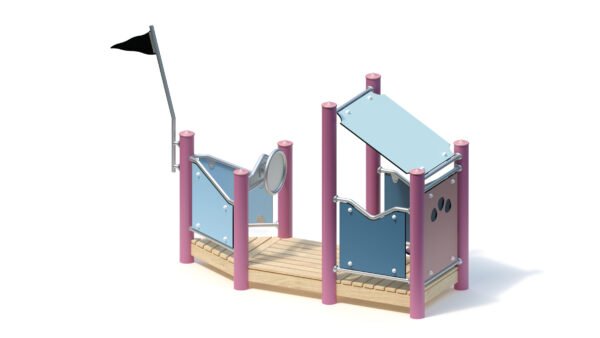

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Cutter
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity, Social activity |
Technical data
| Device length ? | 3,05 m |
|---|---|
| Device width ? | 0,95 m |
| Device height ? | 2,00 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 25.00 kg |
| Minimum room length ? | 5,70 m |
| Minimum room width ? | 3,95 m |
| Minimum room height ? | 2,00 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Floor area: 0.95 x 3.05 m
Minimum space: 3.95 x 5.70 m (19 m²)
Total height: 2.00 m
Platform height: 0.20 m
Weight: 25 kg heaviest individual part
275 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Pitched roof, pitch 30°, made of highly weather-resistant HPL laminate, 13 mm, attached to stainless steel roof frame Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 13 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Swivelling steering wheel with latching mechanism
- Rubber bow vane with fabric inlay
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.40 m
Concrete volume: 0.45 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,50 m
Suitable for
Children from 2 years,
public playgrounds etc.,
social / movement activities.
Item number: 020282500
