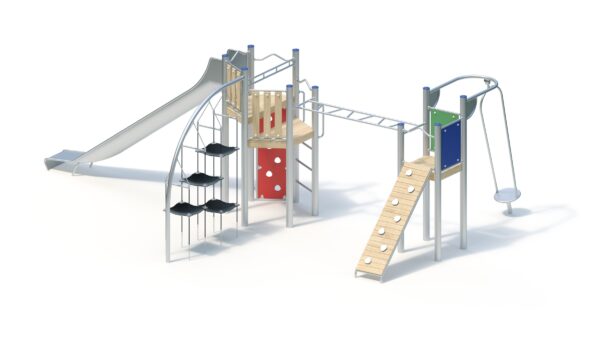

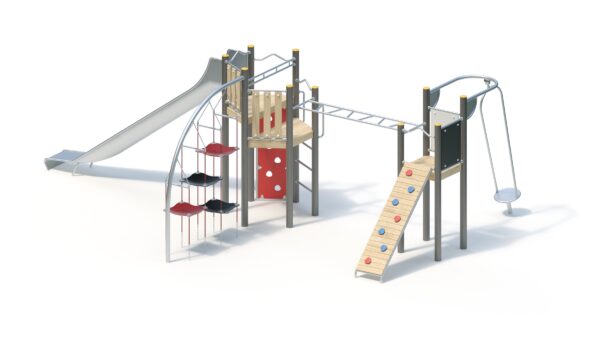

Play structure

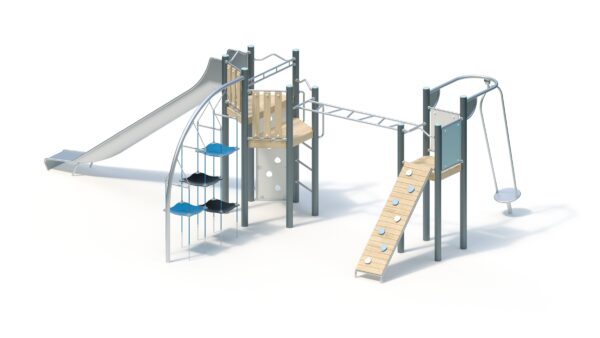

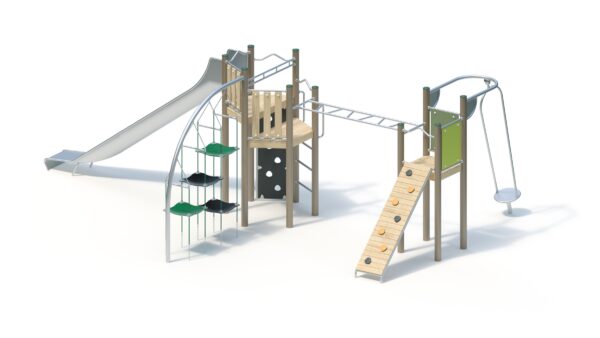

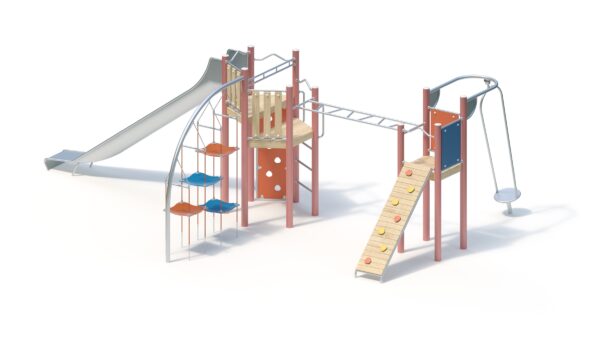

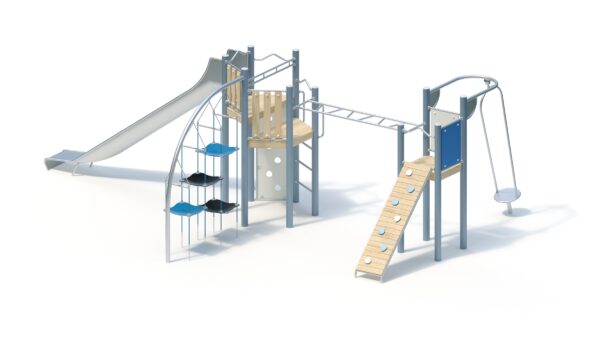

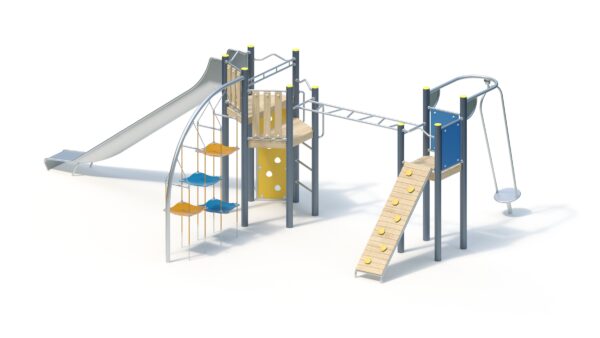

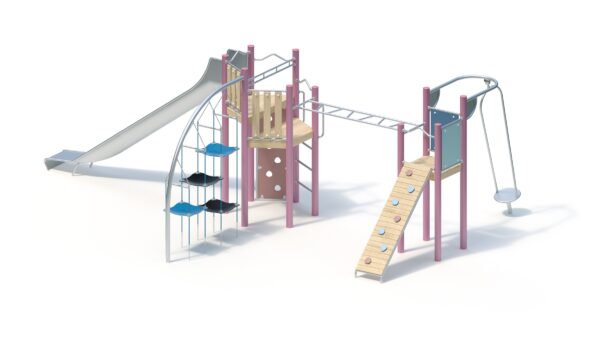

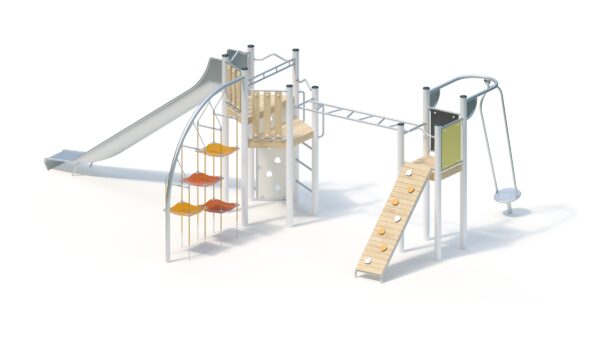

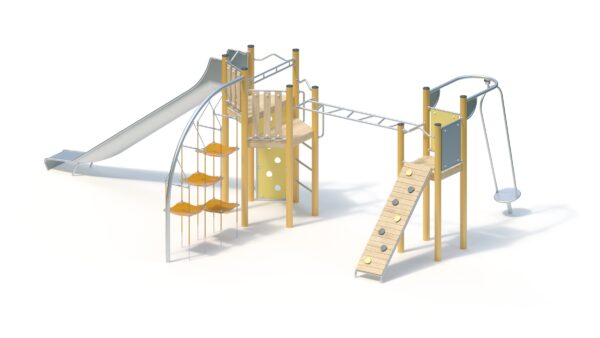

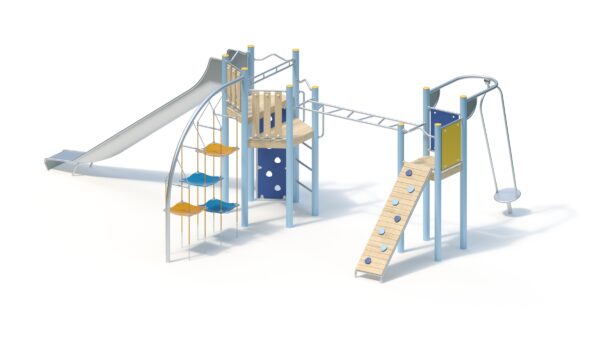

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 15 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 8,74 m |
|---|---|
| Minimum space width ? | 12,98 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 5,85 m |
| Equipment width ? | 8,64 m |
| Equipment height ? | 2,98 m |
| Free-fall height ? | 2.84m |
| Platform heights | - |
| Total weight ? | 898.00 kg |
| Heaviest single part ? | 112.00 kg |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 10 (0.4m x 0.4m x 0.4m) Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.5m x 0.5m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.5m) Quantity: 1x (1.25m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.98 m
Floor area: 5.85 x 8.64 m

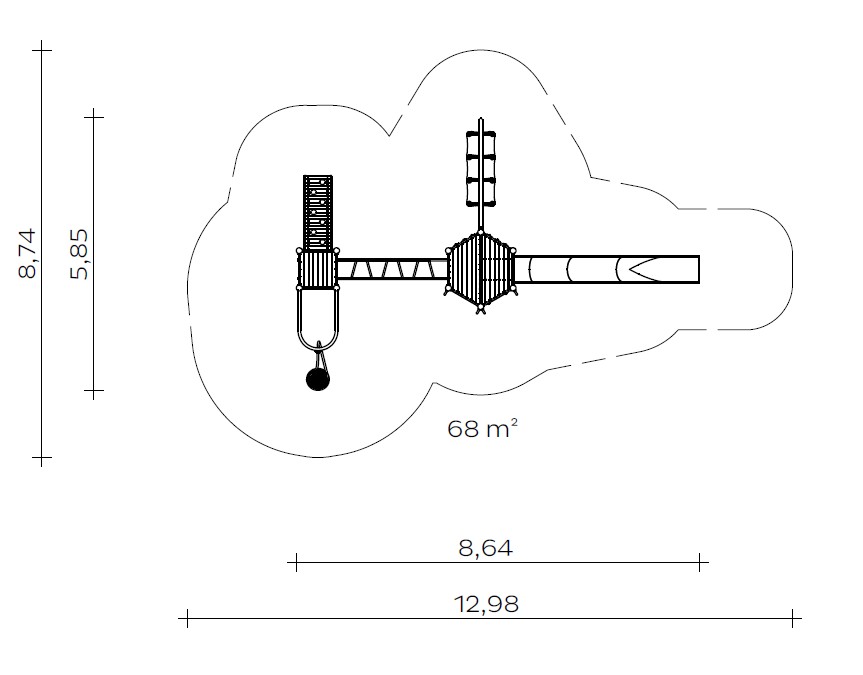

Impact area: 8.74 x 12.98 m (68 m²)
Platform height: 1.60/2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps, connection of the modular add-on parts to the posts using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements
Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Panel balustrade made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Horizontal hanging ladder, made of stainless steel tube, 38 x 2.5/33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings.
– Flying Carpet with stainless steel curved tube elements (Ø 76.1 x 3.6 mm), polypropylene rope net with galvanised steel core Ø 16 mm, 8 mm rubber mats and stainless steel chain fixings Ø 7 mm attached to a base tube Ø 38 x 2 mm.
– Big Hurricane with stainless steel pipe bend, Ø 60.3 x 3 mm; welded, twisted construction made from stainless steel tubing, with a rotating base made from profiled stainless steel sheet; roller bearings secured against tampering and protected against dirt; Foundation anchors made of hot-dip galvanised steel
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations
10 pieces 0.40 x 0.40 x 0.40 m
2 pieces 0.30 x 0.30 x 0.40 m
1 piece 0.50 x 0.50 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
1 piece 0.40 x 1.25 x 0.40 m
Assembly time
2 fitters 8 hours each, plus lifting gear
(without foundation)
Free fall height
2.84m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 822530007
This Kaiser & Kühne product enables:
