Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

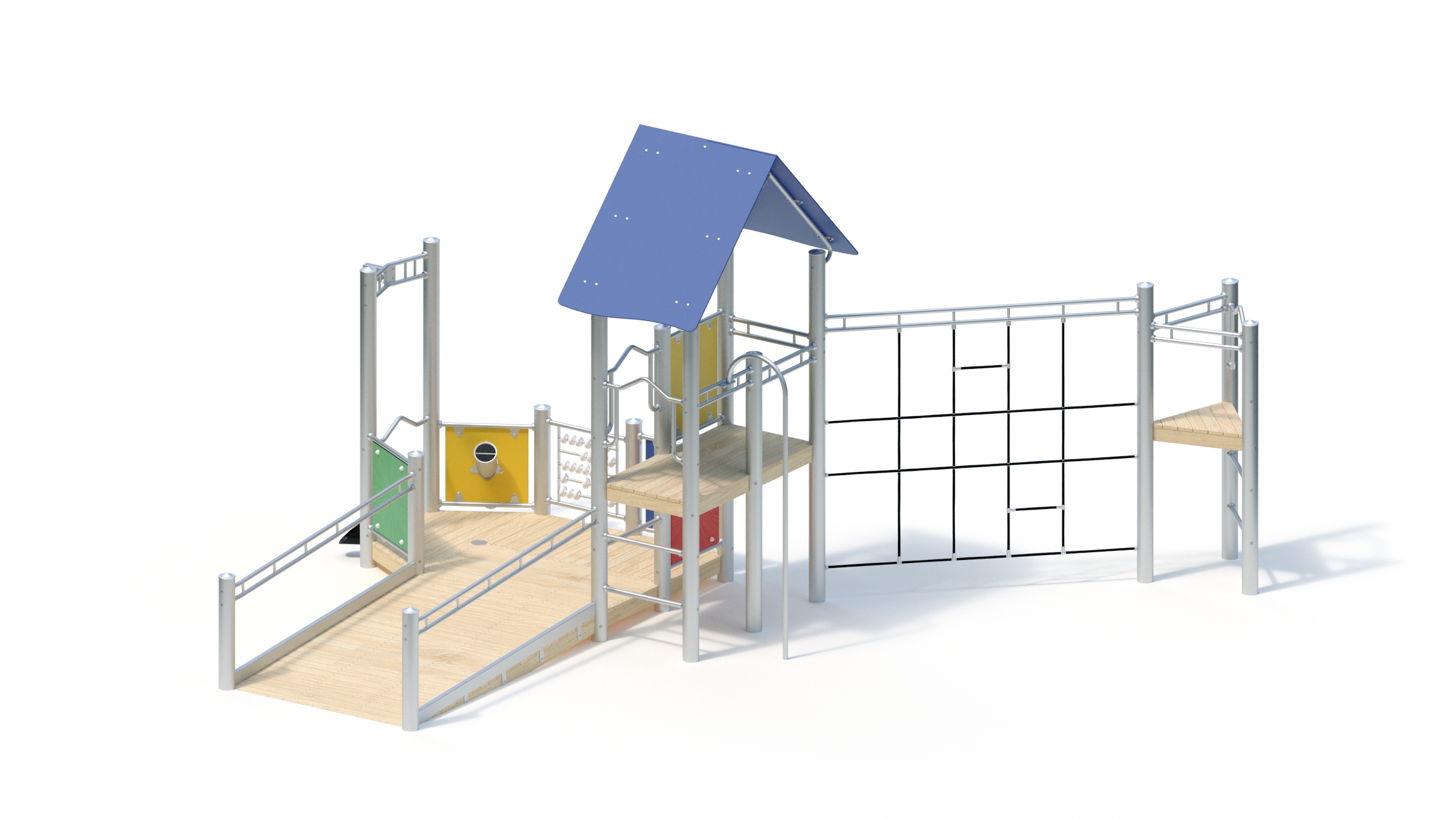

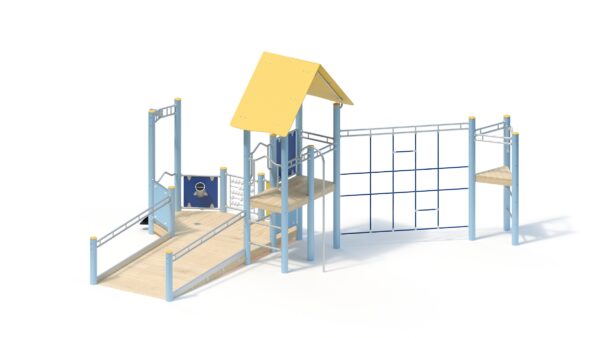

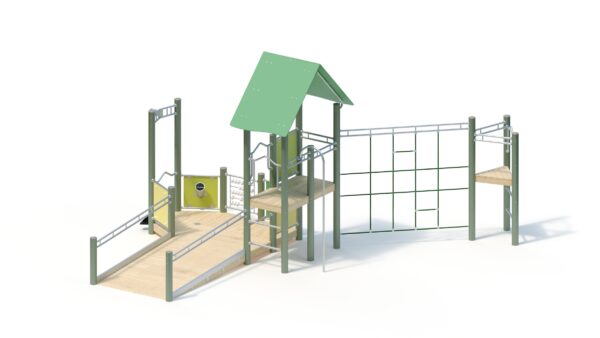

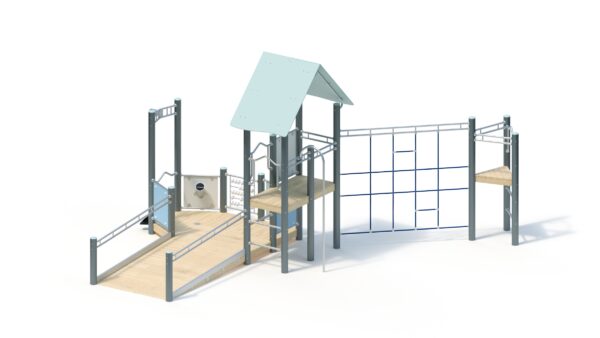

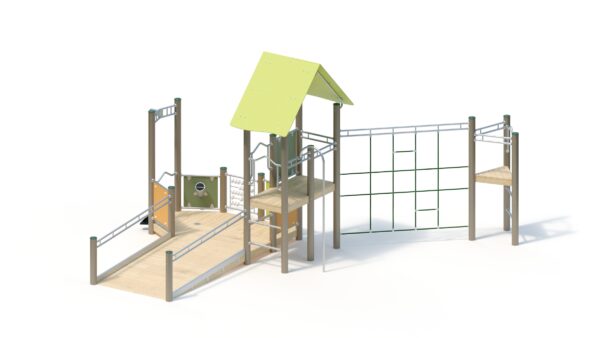

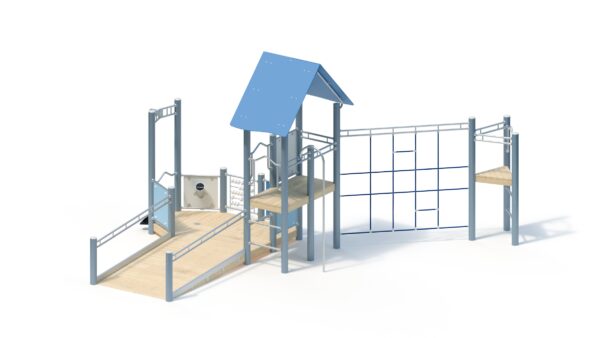

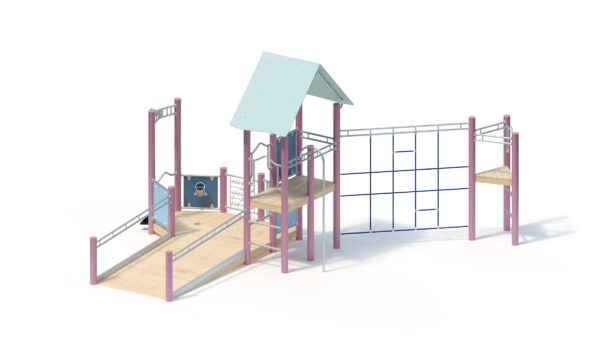

Play structure

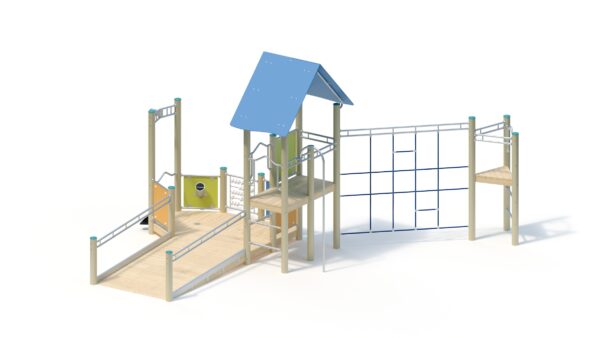

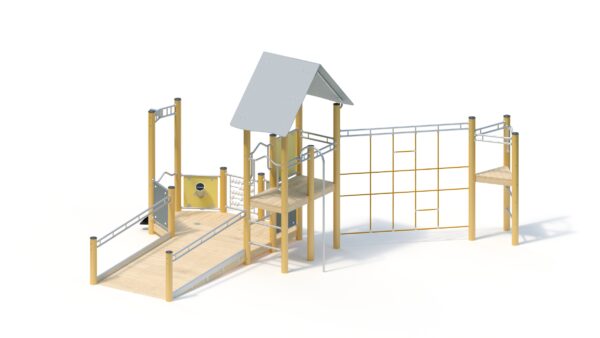

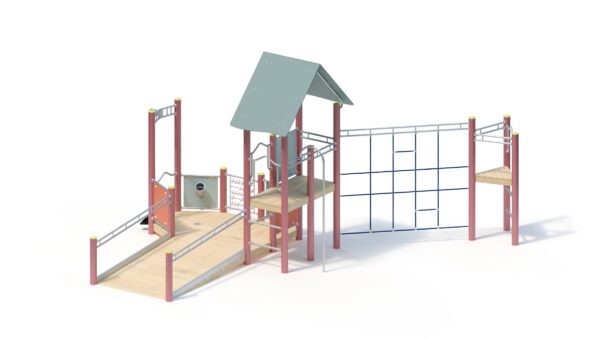

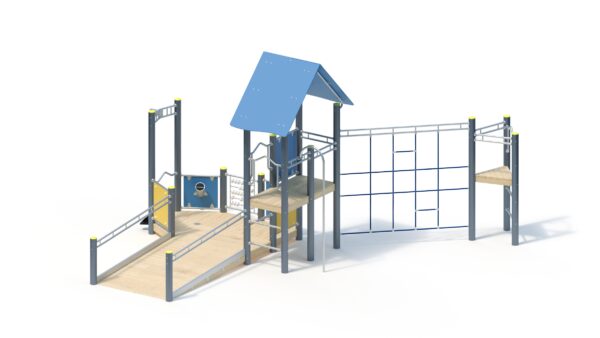

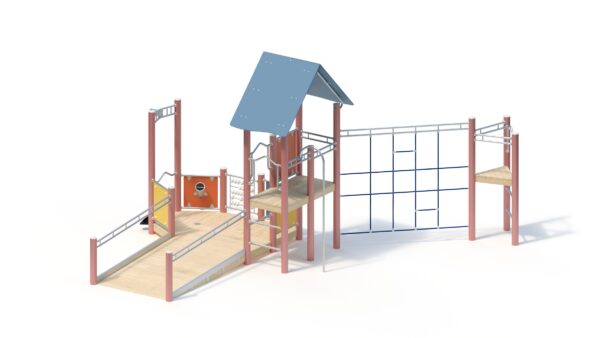

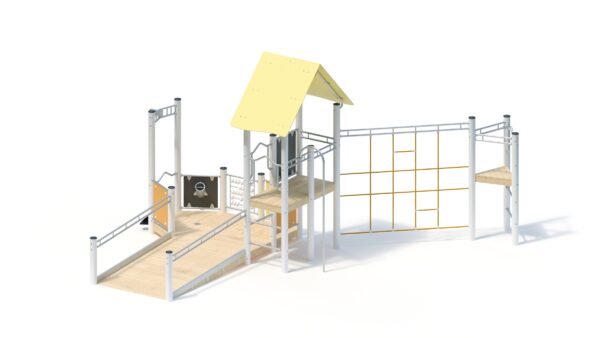

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 25 Personen |
| Aktivitäten ? | Physical activity, Manual activity |
Technical data
| Mindestraumlänge ? | 8,93 m |
|---|---|
| Mindestraumbreite ? | 9,59 m |
| Mindestraumhöhe ? | 3,66 m |
| Gerätelänge ? | 5,94 m |
| Gerätebreite ? | 6,59 m |
| Gerätehöhe ? | 3,66 m |
| Freie Fallhöhe ? | 2,17 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 816.00 kg |
| Schwerstes Einzelteil ? | 130.00 kg |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.3m x 0.3m x 0.4m) Quantity: 17 x (0.4 m x 0.4 m x 0.4 m) |
Product Downloads
Product description
Technical data

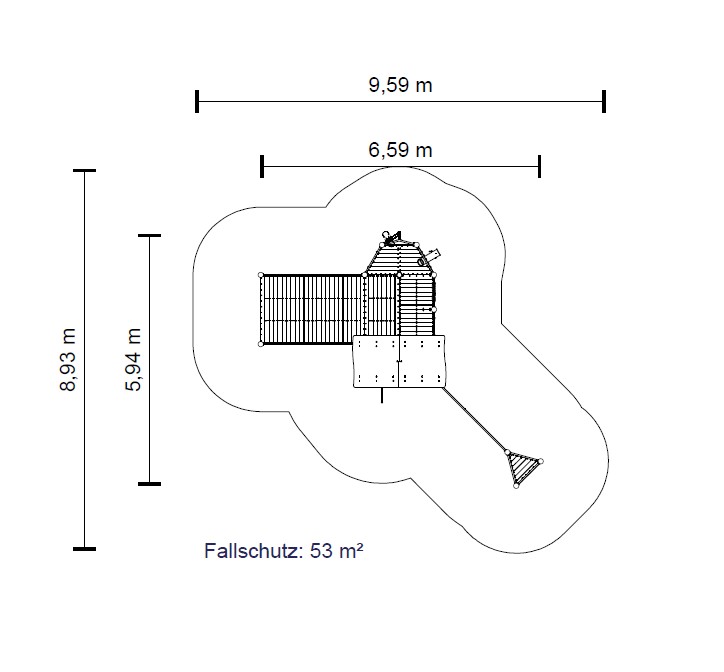

Total height: 3.66 m
Floor area: 5.94 x 6.59 m
Minimum space: 8.93 x 9.59 m
Platform heights: 0.20/1.20 m
Support post
Support post made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps (turquoise blue/RAL 5018). The upright flush with the platform is sealed with a welded-on stainless steel round cap. The modular add-on parts are connected to the uprights using solid, fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Platform ramp with handrails and stainless steel wheel deflectors
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Slide rule with elements made of polyamide or PVC, Ø 80 mm, on axles made of welded stainless steel tube, Ø 20 mm
- Pouring pipe wall made of HPL laminate with sand pouring pipe including shut-off damper
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Gable roof, pitch 45°, highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
17 units 0.40 x 0.40 x 0.40 m
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
2,17 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Movement activities, manual activities
Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.
Item number: 821000188
