The 3D model is for spatial reference only. The colours may not match the selected variant.

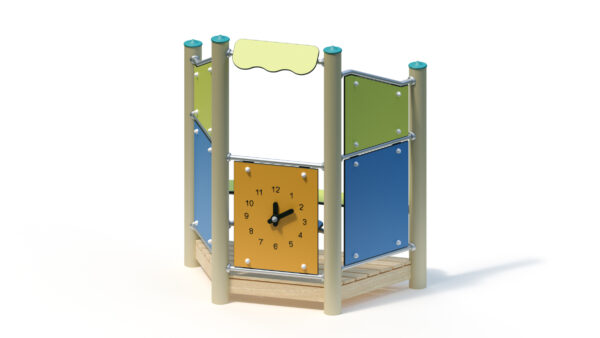

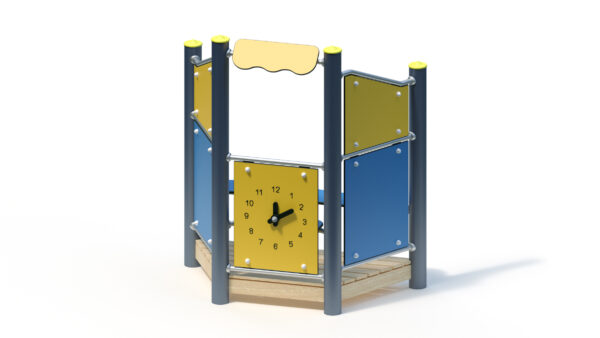

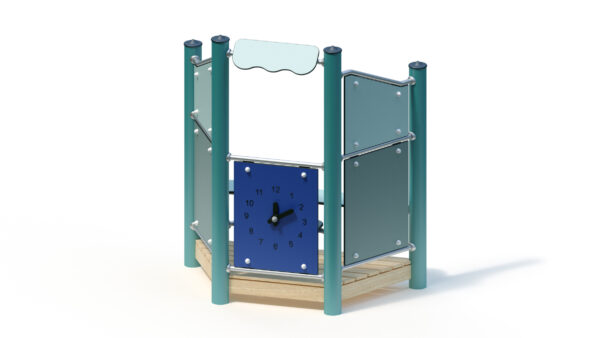

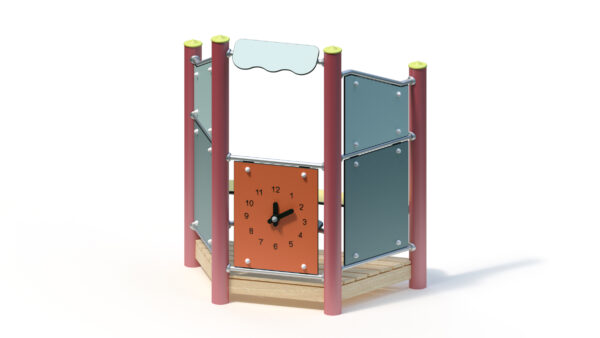

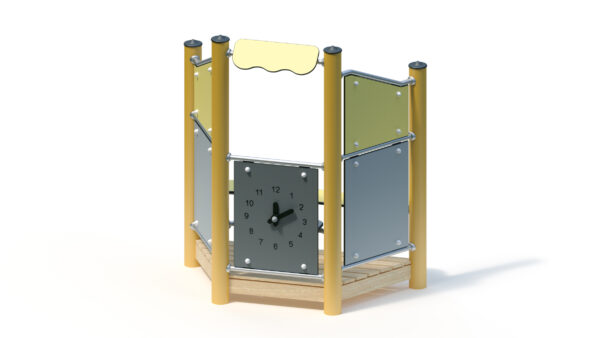

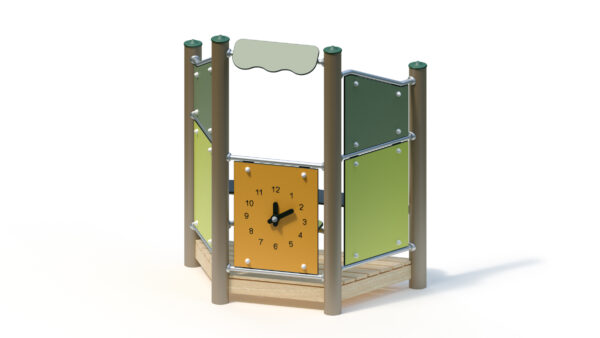

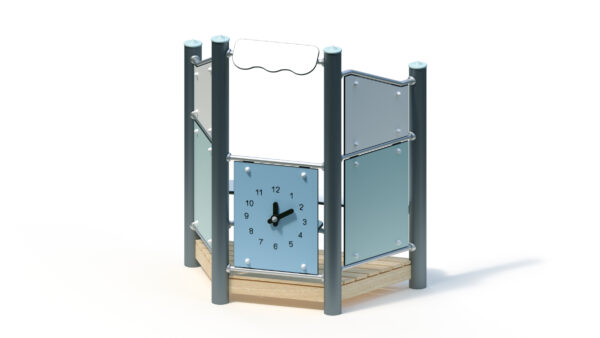

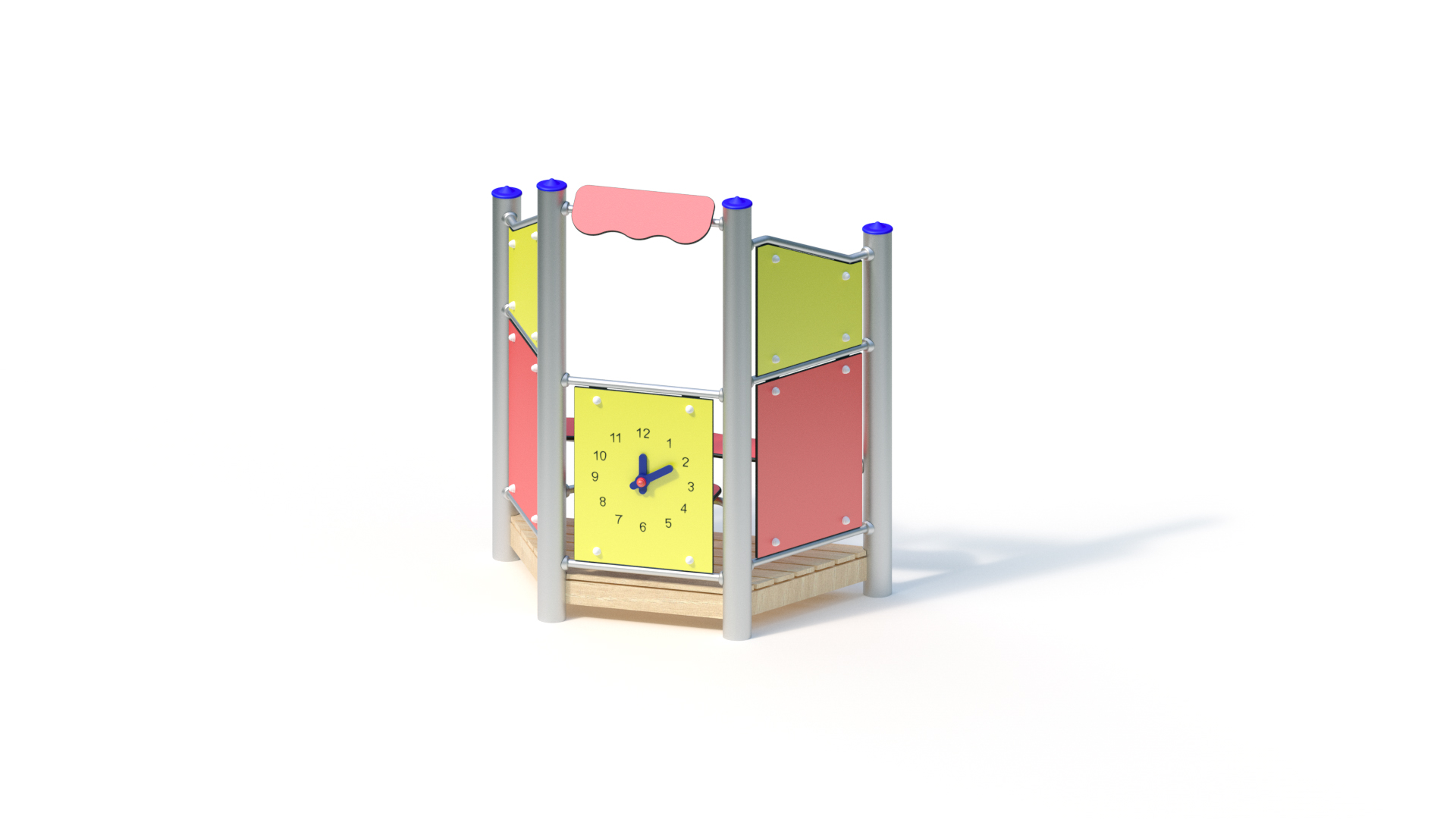

Glove puppet theatre

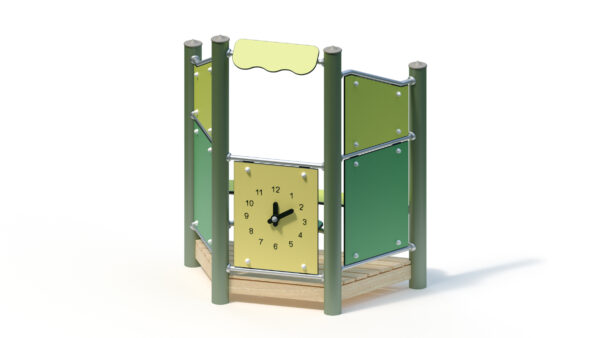

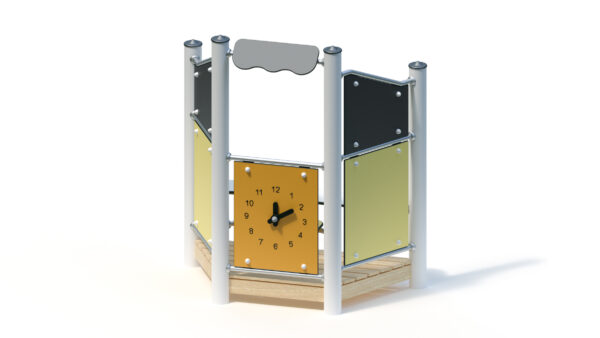

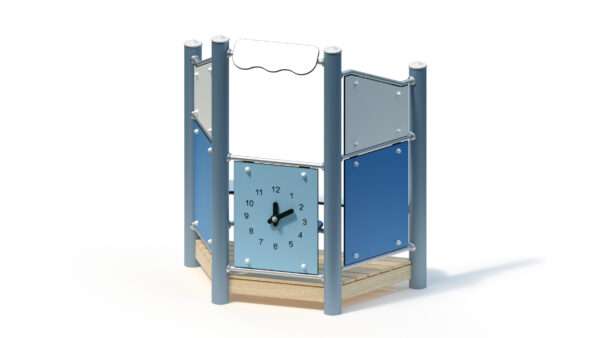

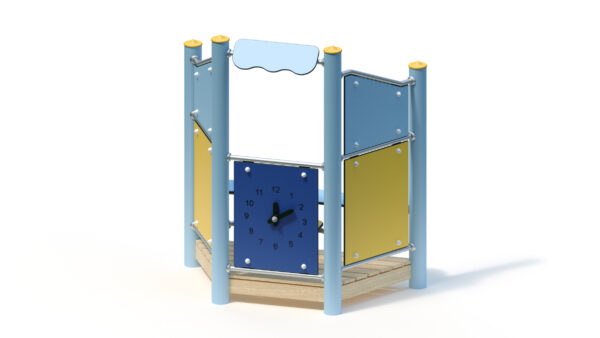

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 7 People |
| Activities ? | Manual activity, Social activity |
Technical data
| Minimum space length ? | 4,75 m |
|---|---|
| Minimum space width ? | 4,00 m |
| Minimum space height ? | 1,95 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 1,00 m |
| Equipment height ? | 1,95 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 215.00 kg |
| Heaviest single part ? | 45.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 1.95 m
Base area: 1.00 x 1.75 m

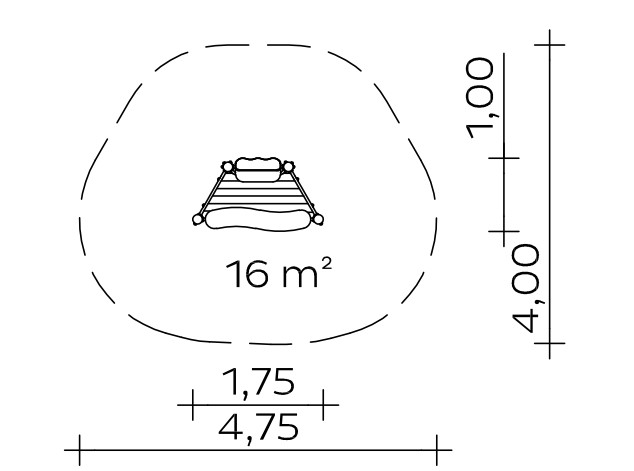

Minimum space: 4.00 x 4.75 m (16 m²)
Platform height: 0.20 m
Seat height: 0.40 m
Weight: 45 kg heaviest individual part
215 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (yellow). Fastened between stainless steel tubes Ø 33.7×2 mm Clock hands made of blue HPL laminate for manually setting the time
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (red), fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (yellow), fastened between stainless steel tubes Ø 33.7 x 2 mm
- Bench, wave-shaped, made of coloured, highly weather-resistant HPL laminate (yellow), 20 mm
- Table/awning: made of coloured, highly weather-resistant HPL laminate 15 mm
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
All age groups,
public playgrounds etc.
Item number: 062150500
