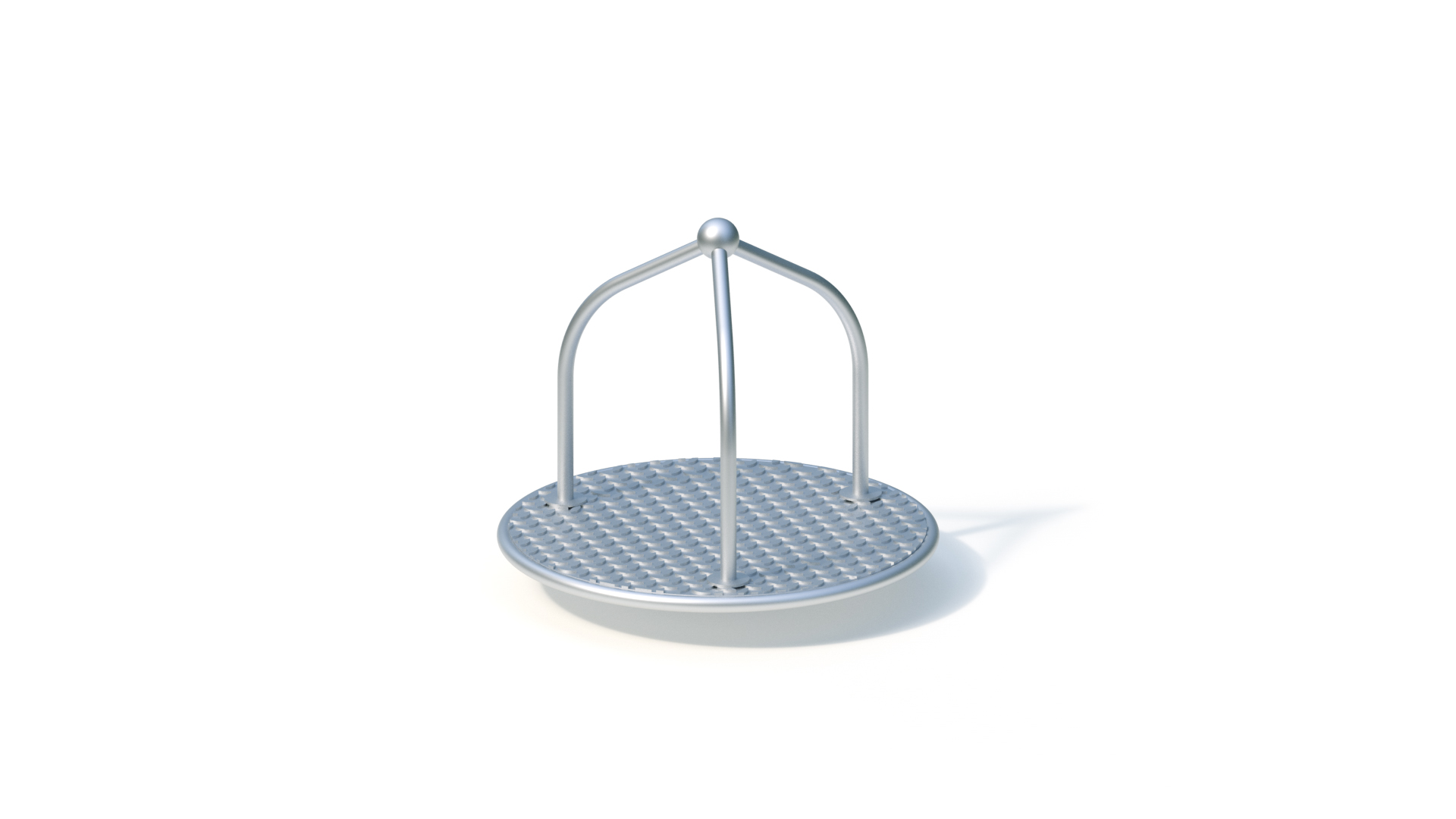

Roundabout (1,00)
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 5,05 m |
|---|---|
| Mindestraumbreite ? | 5,05 m |
| Mindestraumhöhe ? | 0,91 m |
| Gerätelänge ? | 1,05 m |
| Gerätebreite ? | 1,05 m |
| Gerätehöhe ? | 0,91 m |
| Freie Fallhöhe ? | 0,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 115.00 kg |
| Schwerstes Einzelteil ? | 100.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (0.5m x 0.5m x 0.3m) |
Product Downloads
Product description
Technical data
Base area: Ø 1.05 m

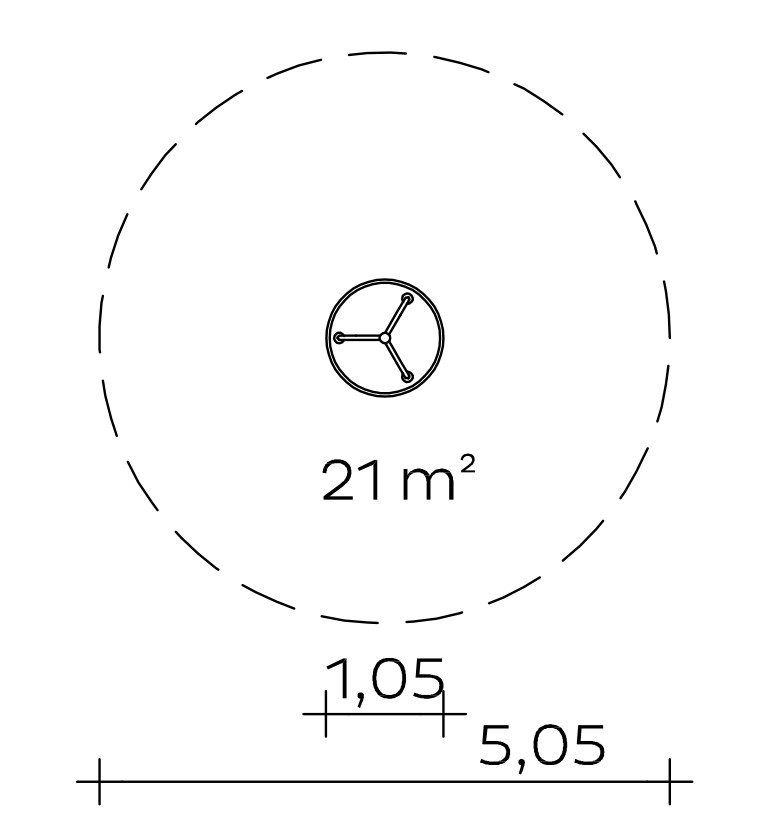

Minimum space: Ø 5.05 m (21 m²)
Total height: 0.91 m
Weight: 100 kg heaviest individual part
115 kg in total
Rotating base and superstructure: profiled stainless steel sheet/stainless steel
Anti-friction bearing: protected against interference and dirt
Anchoring with flange ring
Foundation (on site)
1 piece 0.50 x 0.50 x 0.30 m
Concrete quantity: 0.08 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,20 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children aged 3 and over,
public playgrounds etc.
Movement activities.
Item number: 043220001
