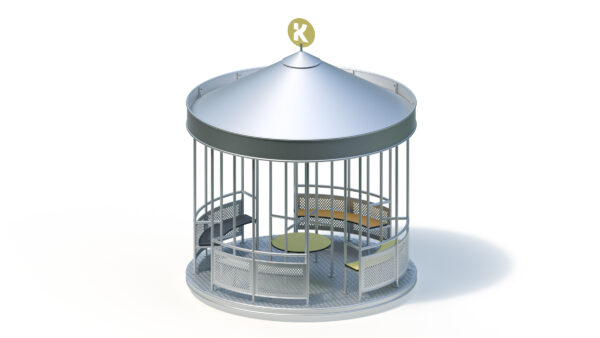

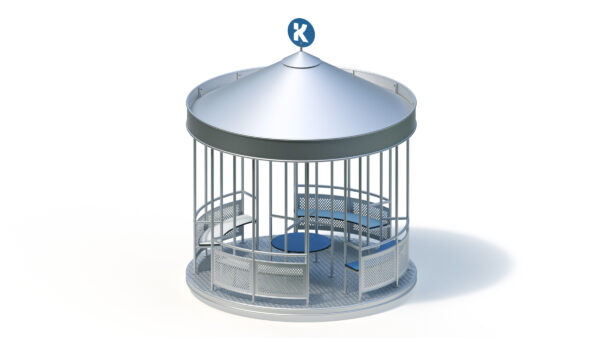

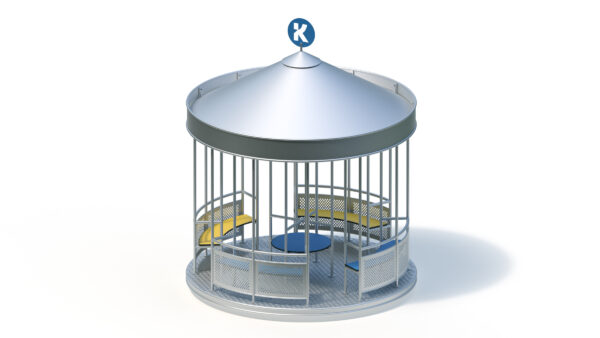

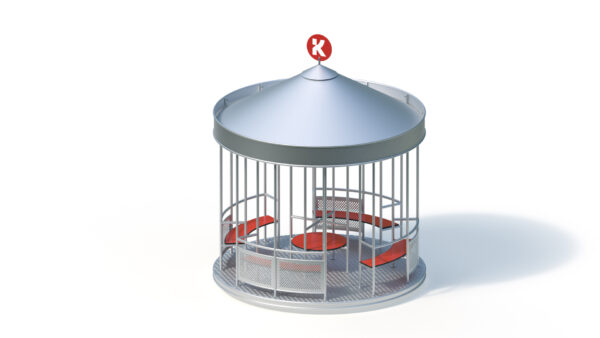

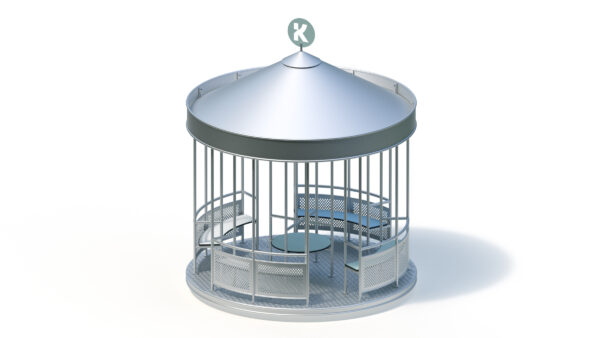

Maxi carousel (3,00 m)
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 23 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 7,05 m |
|---|---|
| Mindestraumbreite ? | 7,05 m |
| Mindestraumhöhe ? | 3,75 m |
| Gerätelänge ? | 3,05 m |
| Gerätebreite ? | 3,05 m |
| Gerätehöhe ? | 3,75 m |
| Freie Fallhöhe ? | 0,65 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1140.00 kg |
| Schwerstes Einzelteil ? | 450.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 3 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 1 (1.1m x 1.1m x 0.8m) |
Product Downloads
Product description
Technical data

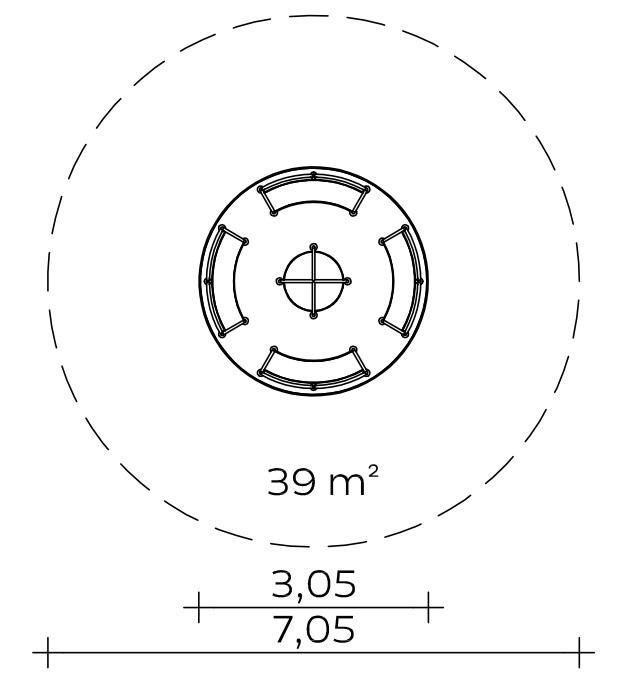

Base area: Ø 3.05 m
Minimum space: Ø 7.05 m (39 m²)
Total height: 3.75 m
Weight: 450 kg heaviest individual part
1140 kg in total
Rotating base and superstructure: profiled stainless steel sheet / stainless steel / high-pressure laminate 20 mm.
Side parapets made of 2.5 mm perforated stainless steel sheet.
Roof: Stainless steel sheet 0.75 mm/1.5 mm
Anti-friction bearing: protected against dirt and interference.
Carousel anchoring takes place via a flange ring to be set in concrete separately.
Foundation (on site)
1 piece 1.10 x 1.10 x 0.80 m
Concrete volume: 0.97 m³
Assembly time
3 fitters 3 hours each
(without foundations) + lifting gear
Free fall height
0,65 m
Please note
The impact surface around the play equipment must have an appropriate level of shock absorption that is at least equal to the free fall height, but always at least 600 mm (see EN 1176-5).
Suitable for
Children aged 3 and over,
public playgrounds etc.
Movement activities.
Please note:
We will send you the foundation ring for this unit in advance so that you can carry out the foundation work in good time and ensure that the foundation is set before the bearing and disc are installed.
A steel transport device is required for the safe transport of the 3.05 m diameter carousel disc.
We will invoice this device at a price of 986 euros when the order is placed; once the device has been returned, the amount will be credited back immediately so that you will not incur any additional costs. If the device is returned to the delivering lorry, there are no costs for the return transport of the device; however, if you prefer a later return, you will have to bear the costs for the return transport by freight amounting to approx. 100-120 euros.
Item number: 043500000
