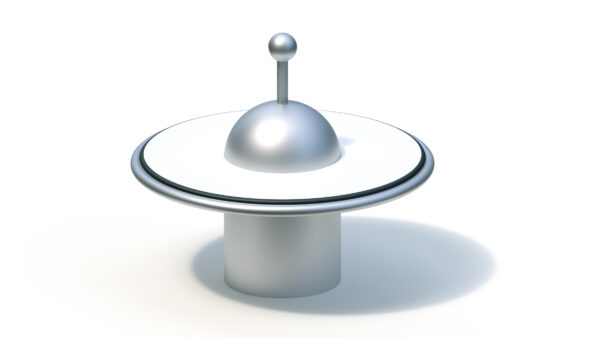

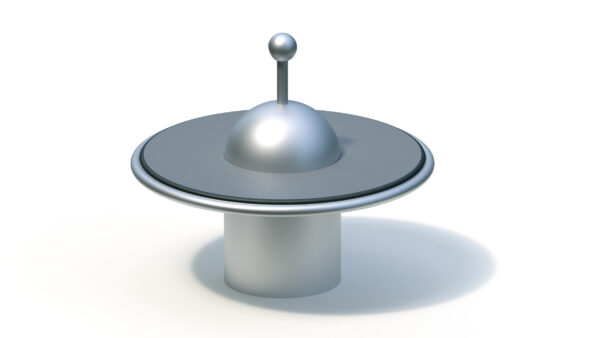

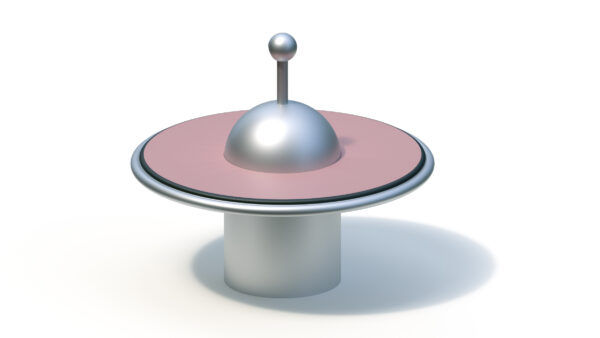

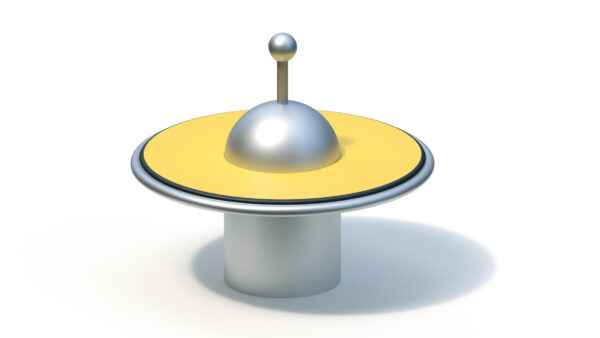

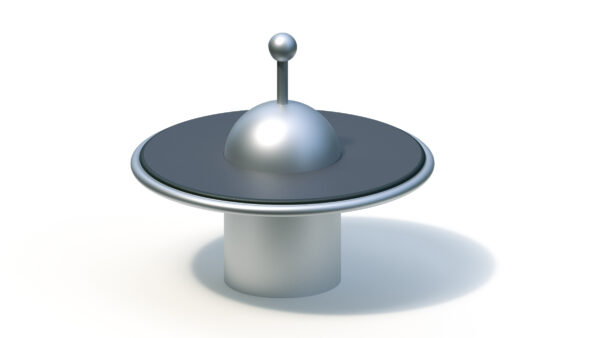

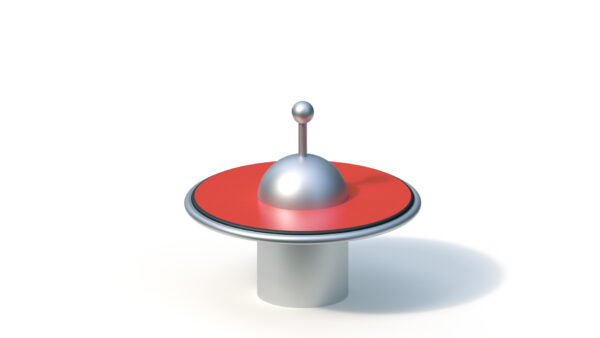

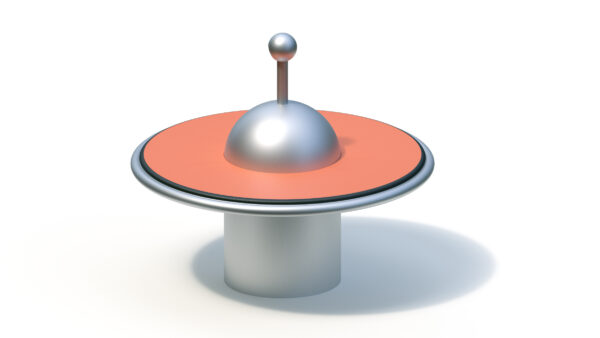

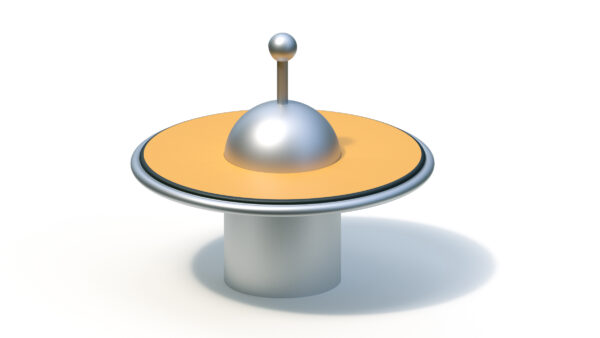

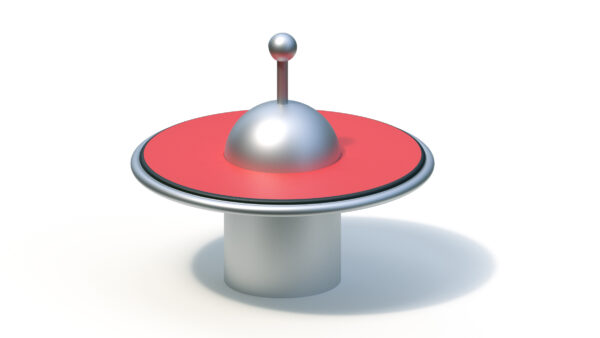

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Roundabout (1,00)
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 4 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 1,05 m |
|---|---|
| Device width ? | 1,05 m |
| Device height ? | 0,90 m |
| Free fall height ? | 0,50 m |
| Platform heights | - |
| Total weight ? | 135.00 kg |
| Heaviest single item ? | 63.00 kg |
| Minimum room length ? | 5,05 m |
| Minimum room width ? | 5,05 m |
| Minimum room height ? | 0,90 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required ? | - |
| Foundations | 060x060x050 |
Product Downloads
Product description
Technical data
Base area: Ø 1.05 m
Minimum space: Ø 5.05 m (21 m²)
Total height: 0.90 m
Weight: 63 kg heaviest individual part
135 kg total
Rotating base and superstructure: stainless steel/high-pressure laminate 15 mm.
Anti-friction bearing: protected against dirt and interference.
Foundation (on site)
1 piece 0.60 x 0.60 x 0.50 m
Concrete volume: 0.18 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,50 m
Please note
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
Suitable for
Children from 3 years,
public playgrounds etc.
Movement activities.
Item number: 043240001
