Cable ferry
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | supervised playgrounds |
| Number of users ? | 4 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 2,20 m |
|---|---|
| Device width ? | 1,40 m |
| Device height ? | 1,25 m |
| Free fall height ? | 0,30 m |
| Platform heights | - |
| Total weight ? | 210.00 kg |
| Heaviest single item ? | 0.00 kg |
| Minimum room length ? | 2,20 m |
| Minimum room width ? | 1,40 m |
| Minimum room height ? | 1,25 m |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 persons |
| Lifting gear required | - |
| Foundations | - |
Product Downloads
Product description
Technical data

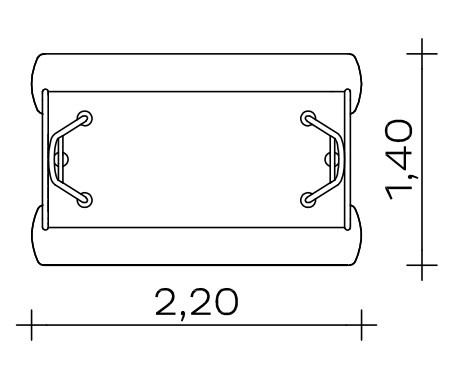

Base area: 1.40 x 2.20 m
Height: 1.25 m
Weight: 210 kg in total
- Floating body, welded stainless steel construction
- Platform made of profiled stainless steel sheet, dished base Ø 400 x 90 x 4 mm
- Retaining bracket, stainless steel tube can be unscrewed 38 x 2 mm
- Load capacity: approx. 200 kg
Assembly time
is delivered in one piece
Free fall height
0,30 m
Suitable for
Children from 5 years
Movement activities.
Please note the following information:
1. a water depth of at least 0.60 m is required for problem-free operation (use by several children or adults without touching the bottom, etc.). Attention is drawn to the duty of supervision for small children or particularly vulnerable persons.
2. when using the cable ferry outside Germany, the national regulations applicable in the respective country regarding water and water depths in public playgrounds or amusement parks must be observed.
3 In order to ensure sufficient rope tension and thus low sag of the ferry rope, the maximum permissible length of the ferry rope is 30.00 metres.
Item number: 042500001
This Kaiser & Kühne product enables:
