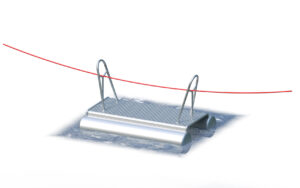

Cable ferry
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | - |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 2,75 m |
|---|---|
| Mindestraumbreite ? | 1,90 m |
| Mindestraumhöhe ? | 1,35 m |
| Gerätelänge ? | 2,75 m |
| Gerätebreite ? | 1,90 m |
| Gerätehöhe ? | 1,35 m |
| Freie Fallhöhe ? | 0,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 370.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | - |
Product Downloads
Product description
Technical data
Floor area: 2.75 x 1.90 m
Height: 1.35 m
– Float, welded stainless steel construction, material 1.4301
– Platform, profiled wooden decking made from Accoya grooved/trapezoidal profiles, 142 x 25 x 3000 mm
– Handrail/cable guide, stainless steel tube Ø 38 x 2/30 x 2 mm
Payload: 400 kg maximum
Assembly time
is delivered in one piece
Free fall height
0,30 m
Suitable for
Children from 5 years
Movement activities.
Please note the following information:
1. a water depth of at least 0.60 m is required for problem-free operation (use by several children or adults without touching the bottom, etc.). Attention is drawn to the duty of supervision for small children or particularly vulnerable persons.
2. when using the cable ferry outside Germany, the national regulations applicable in the respective country regarding water and water depths in public playgrounds or amusement parks must be observed.
3 In order to ensure sufficient rope tension and thus low sag of the ferry rope, the maximum permissible length of the ferry rope is 30.00 metres.
Item number: 042505000
