Cable ride (20,00 m) with ramp
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 22,50 m |
|---|---|
| Device width ? | 3,65 m |
| Device height ? | 3,90 m |
| Free fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 900.00 kg |
| Heaviest single item ? | 165.00 kg |
| Minimum room length ? | 24,25 m |
| Minimum room width ? | 5,70 m |
| Minimum room height ? | 3,90 m |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 080x080x080 |
Product Downloads
Product description
Technical data

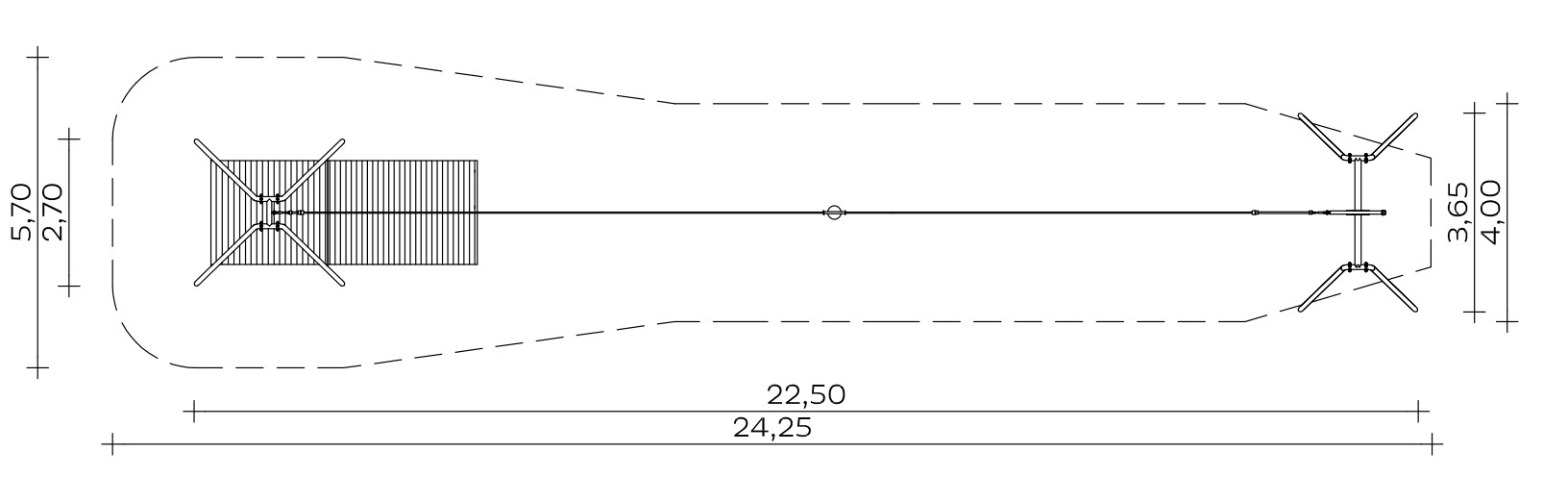

Floor area: 3.65 x 22.50 m
Minimum space: 5.70 x 24.25 m (105 m²)
Cable car length: 20.00 m
Start station height: approx. 3.90 m (above play level)
End station height: approx. 3.05 m (above play level)
Weight: 165 kg heaviest individual part
900 kg in total
- Cable car girder made of steel, hot-dip galvanised, powder-coated, colour of choice
- Cableway support made of hot-dip galvanised steel tube Ø 88.9 x 5.6 mm
- Cable fastening with one-sided tensioning device for easy, linear cable tensioning using a self-locking trapezoidal threaded rod
- Ropeway platform combination consisting of start ramp, 1.90 m x 2.90 m, inclined at approx. 20° from play level zero to h = 1.00 m, and start platform, 1.90 x 2.30 m, h = 1.00 m; both with steel substructure and squared timber decking made of robinia (required hill modelling in the area of the impact surface of the start station approx. 0.45 m above play level to limit the free fall height to max. 0.55 m)
- Strand compacted suspension rope Ø 10 mm made of galvanised steel wire. 35 x 7 in rotation-free design (16 outer strands, 19 inner strands). Incl. damping stops.
- Ropeway trolley made of stainless steel sheet with 3 polyamide rollers on roller bearings.
When selecting the suspension cable construction, particular attention was paid to minimising the noise generated by the Kaiser & Kühne cable car running on the cable.
- Stainless steel chain with thermally moulded, flexible rubber handle and safety pendulum seat
- Universal joint to minimise wear at the chain adapter-chain connection point
For the launch station, hill modelling must be carried out in the area of the launch ramp/launch platform in accordance with the installation instructions. This must ensure that, in relation to the launch ramp/launch platform, the maximum free fall height at any point does not exceed 0.55 m to the impact surface.
The cableway rope including the cableway trolley, pendulum seat and handle chain is delivered after the cableway has been assembled and the most accurate possible measurements have been taken (a description of how to take the measurements is enclosed with the delivery).
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
Foundations (client-provided)
4 units 0.80 x 0.80 x 0.80 m
4 pcs. 1.00 x 1.00 x 0.80 m
(Reinforcement mesh cage is supplied)
3 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 5.44 m³
Assembly time
2 fitters 5 hours each
(without foundations) + lifting gear
Free fall height
1,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 042223000
This Kaiser & Kühne product enables:
