Products
Cable ride (50,00 m)
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 6 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 52,00 m |
|---|---|
| Device width ? | 3,85 m |
| Device height ? | 2,70 m |
| Free fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 1100.00 kg |
| Heaviest single item ? | 130.00 kg |
| Minimum room length ? | 53,10 m |
| Minimum room width ? | 4,00 m |
| Minimum room height ? | 2,70 m |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 100x100x100 |
Product Downloads
Product description
Technical data

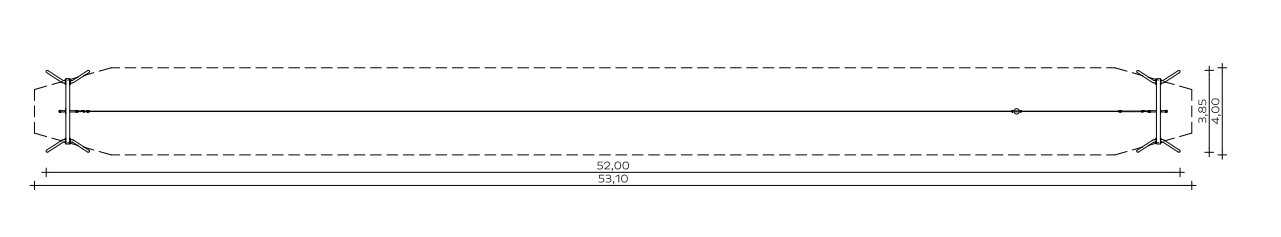

Floor area: 3.85 x 52.00 m
Minimum space: 4.00 x 53.10 m (206 m²)
Cable car length: 50.00 m
Start station height: 2.70 m (without hill)
End station height: 2.70 m (without hill)
Weight: 130 kg heaviest individual part
1100 kg in total
- Cable car girder made of hot-dip galvanised steel.
- Cableway support made of hot-dip galvanised tubular steel, with dowel disc fastening Ø 240 mm.
- Cable fastening with tensioning device for easy, linear cable tensioning using a self-locking trapezoidal threaded rod.
- Strand compacted suspension rope Ø 10 mm made of galvanised steel wire. 35 x 7 in rotation-free design (16 outer strands, 19 inner strands). Incl. damping stops.
- Ropeway trolley made of stainless steel sheet with 3 polyamide rollers on roller bearings.
When selecting the suspension cable construction, particular attention was paid to minimising the noise generated by the Kaiser & Kühne cable car running on the cable.
- Stainless steel chain with thermally moulded, flexible rubber handle and safety pendulum seat.
- Universal joint to minimise wear at the chain adapter-chain connection point.
The hill modelling for the start station must be carried out after the cable car stations have been installed in accordance with the installation instructions. The cable tension required for the functionality of the cable car is only possible if the terrain is adapted according to our specifications.
The cableway rope including the cableway trolley, pendulum seat and handle chain is delivered after the cableway has been assembled and the most accurate possible measurements have been taken (a description of how to take the measurements is enclosed with the delivery).
Foundations (client-provided)
8 pcs. 1.00 x 1.00 x 1.00 m
Concrete volume: 8 m³
Assembly time
2 fitters 4 hours each
(without foundations) + lifting gear
Free fall height
1,00 m
Suitable for
Children from 5 years,
public playgrounds etc.,
Movement activities.
Item number: 042250000
This Kaiser & Kühne product enables:
