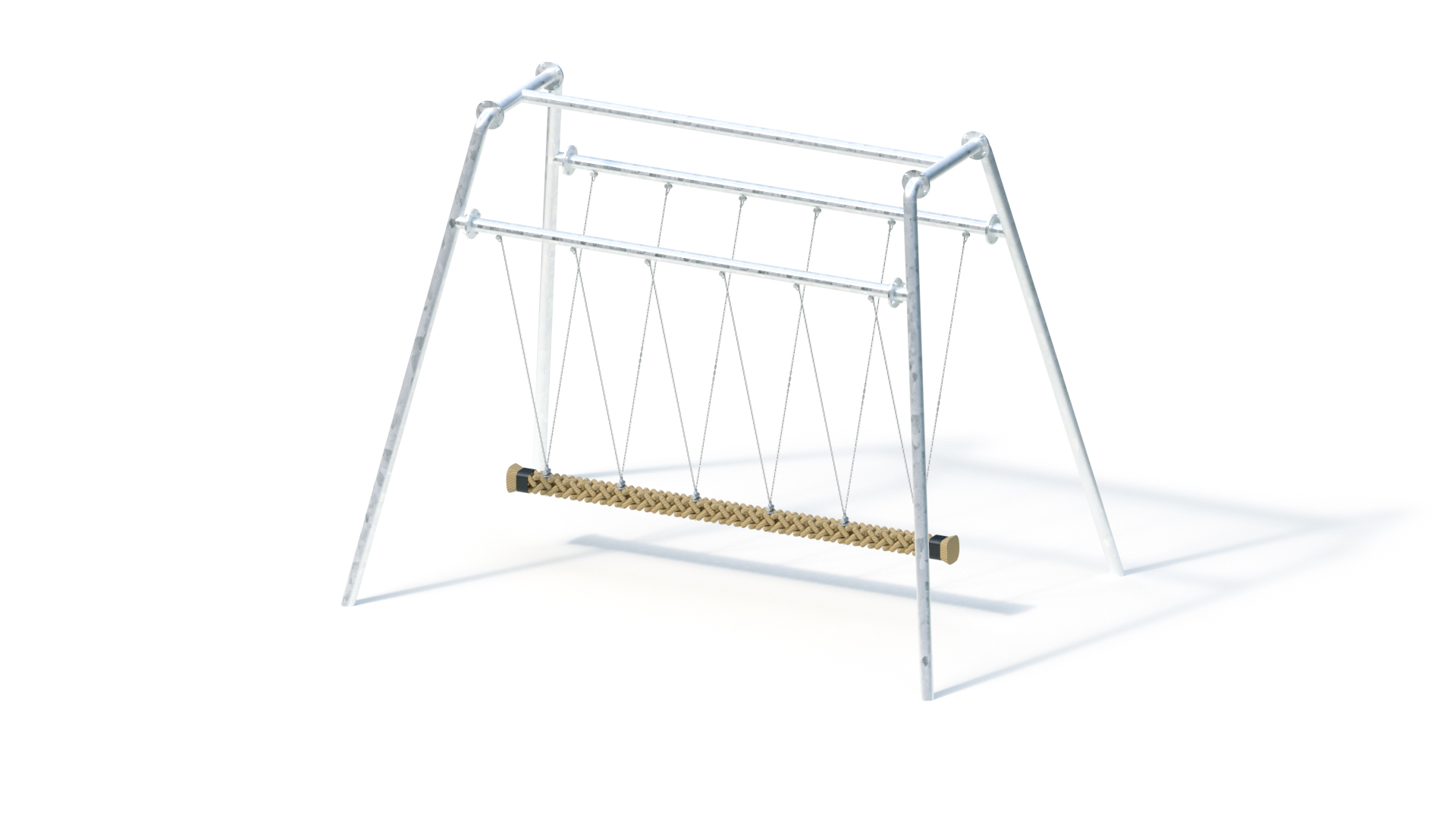

Viking swing (3,00)

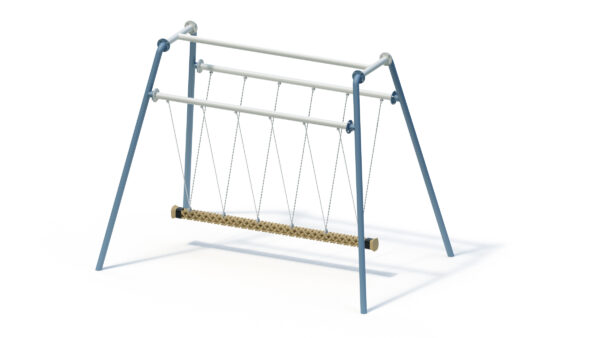

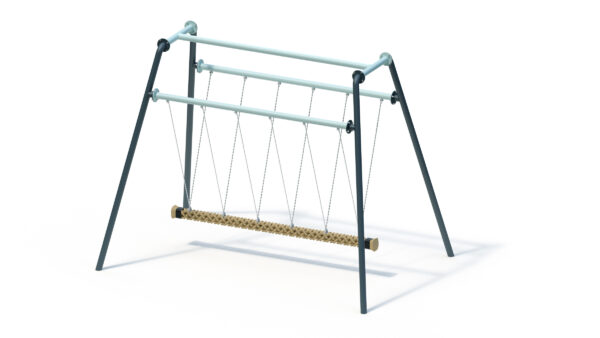

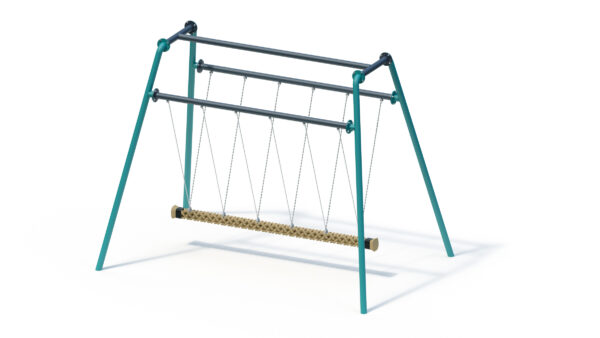

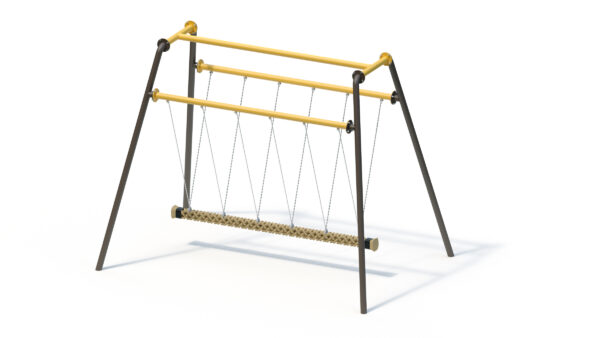

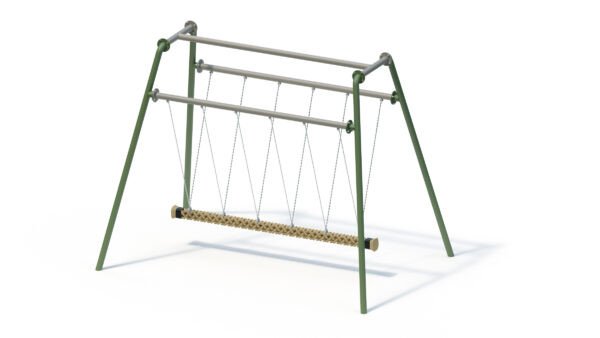

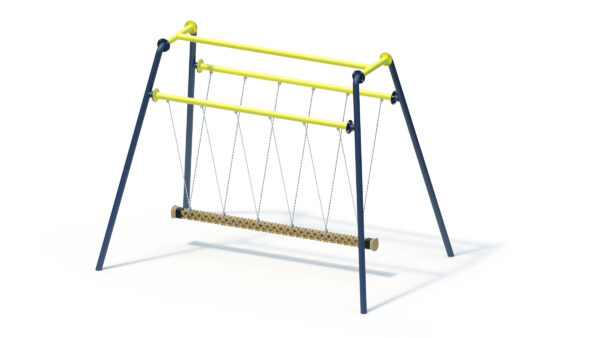

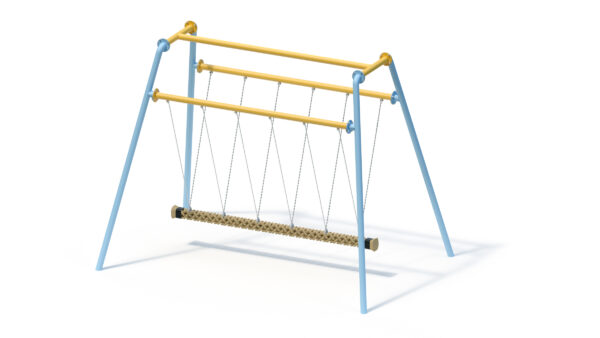

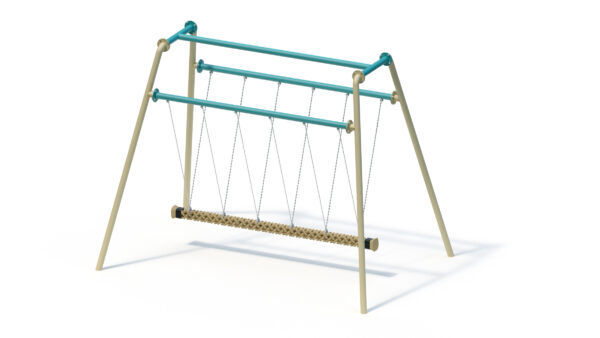

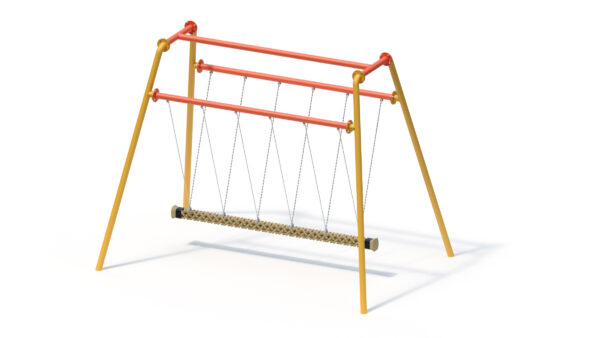

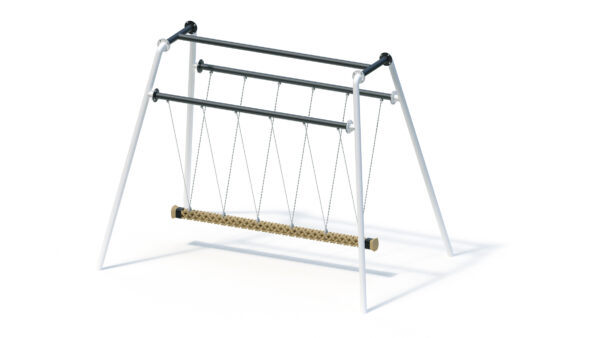

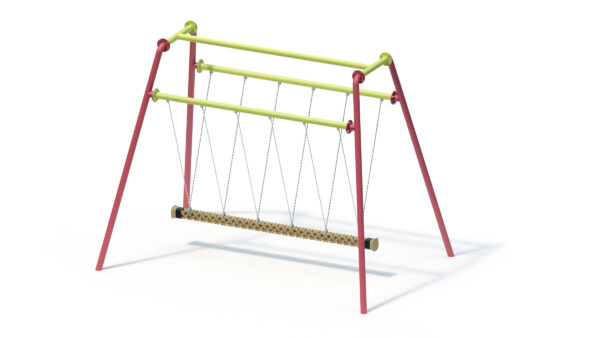

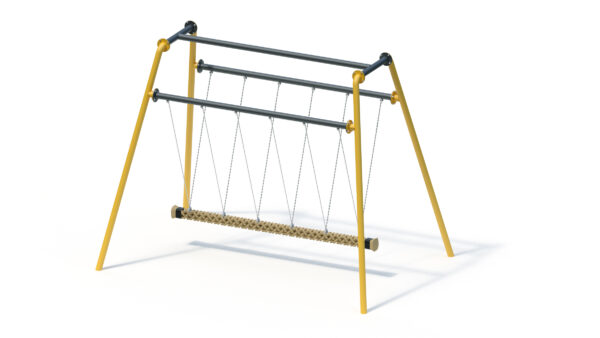

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 10 people |
| Activities ? | Physical activity, Swinging |
Technical data
| Minimum space length ? | 10,70 m |
|---|---|
| Minimum space width ? | 3,50 m |
| Minimum space height ? | 3,92 m |
| Equipment length ? | 5,20 m |
| Equipment width ? | 3,50 m |
| Equipment height ? | 3,92 m |
| Free-fall height ? | 1,80 m |
| Platform heights | - |
| Total weight ? | 675.00 kg |
| Heaviest single part ? | 190.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 4 (1.2m x 0.5m x 0.6m) |
Product Downloads
Product description
Technical data

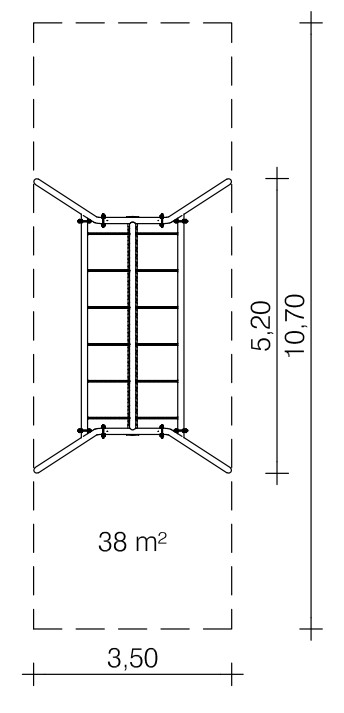

Floor area: 3.50 x 5.20 m
Minimum space: 3.50 x 10.70 m (38 m²)
Swing height: 3.00 m
Total height: 3.95 m
Weight: 190 kg heaviest individual part
675 kg in total
- Swing supports and swing beams made of hot-dip galvanised steel tubes Ø 108 mm, wall thickness 6.3 mm
- Swivel joints: plain bearing
- Rope lamps: square mesh, approx. Ø 160 mm, made of PP rope on stainless steel chains (7 mm)
Foundation (on site)
4 units 1.20 x 0.50 x 0.60 m
Concrete volume: 1.44 m³
Assembly time
3 fitters 3 hours each
(without foundations) plus crane
Free fall height
1,80 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040770001
This Kaiser & Kühne product enables:
