Fivefold Post swing (1,80)

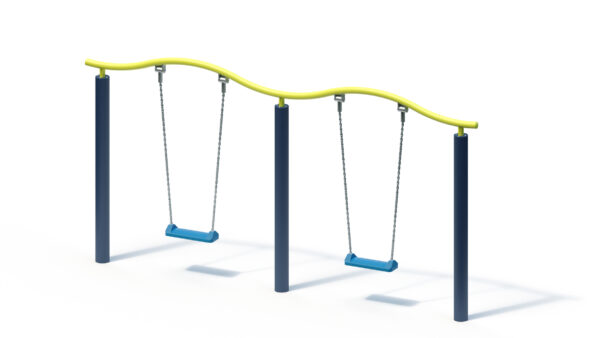

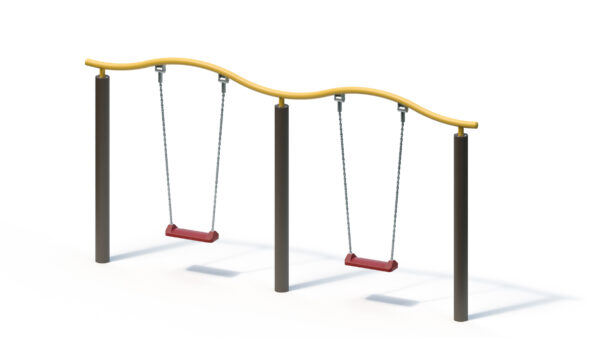

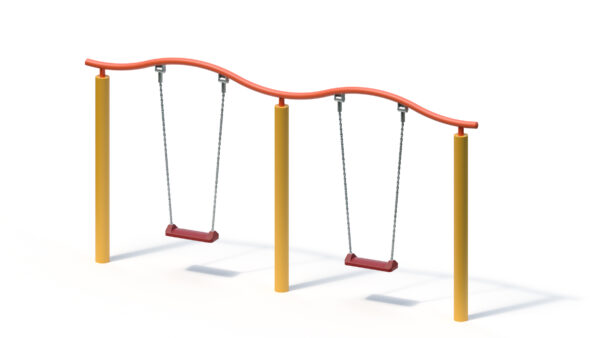

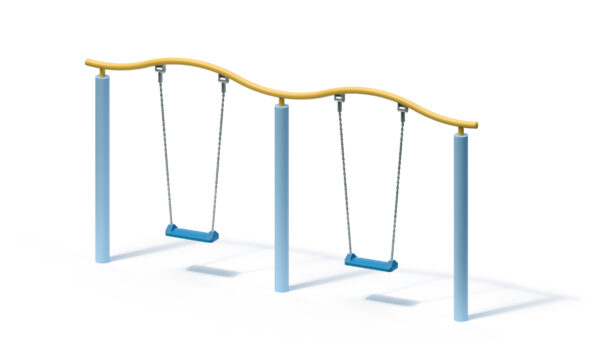

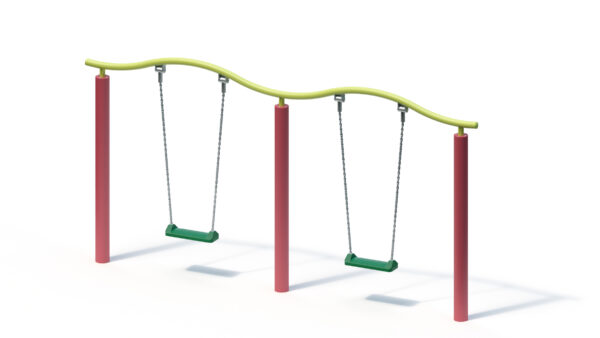

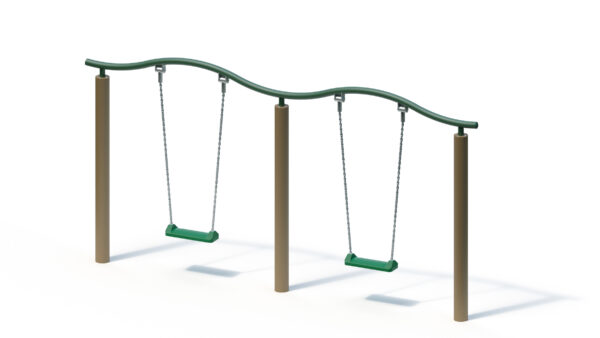

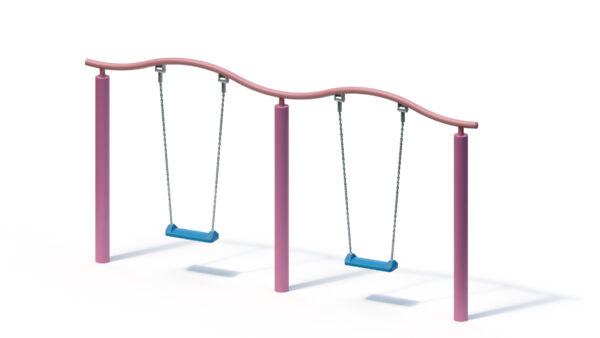

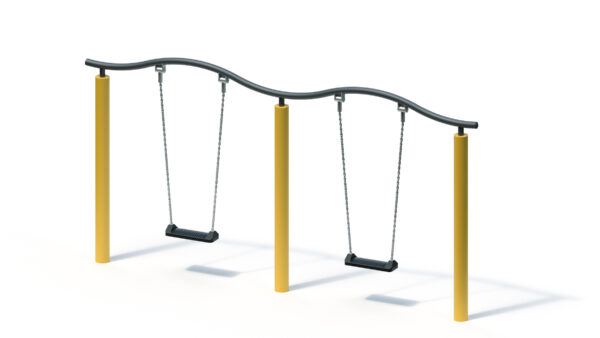

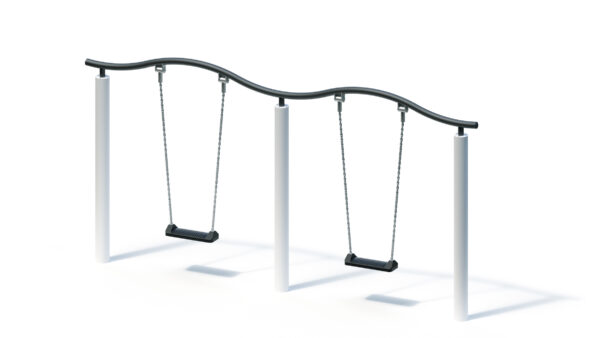

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 2 persons |
| Activities ? | Physical activity, Swinging |
Technical data
| Device length ? | 0,12 m |
|---|---|
| Device width ? | 3,75 m |
| Device height ? | 1,94 m |
| Free fall height ? | 1,10 m |
| Platform heights | - |
| Total weight ? | 125.00 kg |
| Heaviest single item ? | 25.00 kg |
| Minimum room length ? | 7,00 m |
| Minimum room width ? | 3,75 m |
| Minimum room height ? | 1,94 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 100x080x050 |
Product Downloads
Product description
Technical data

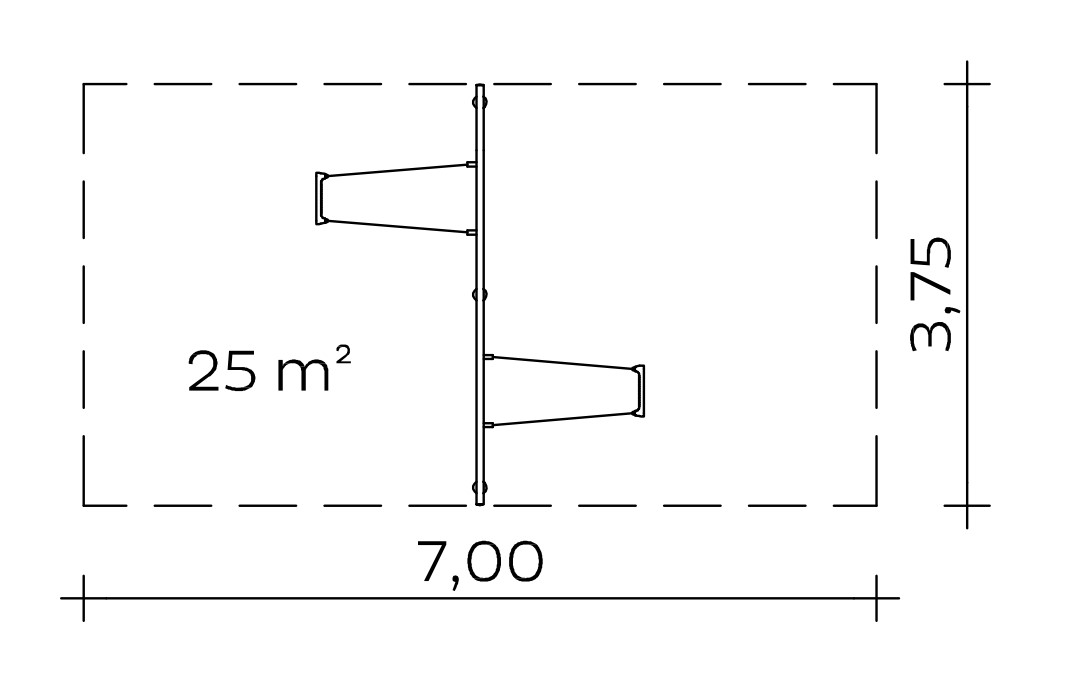

Minimum space: 3.75 x 7.00 m (25 m²)
Swing height: 1.80 m
Weight: 25 kg heaviest individual part
125 kg in total
- Stainless steel upright, Ø 120 mm
- Swing support made of stainless steel tube, Ø 60.3 x 3 mm
- Stainless steel swing axle with plain bearings, including swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
3 pcs. 1.00 x 0.80 x 0.50 m
Concrete volume: 1.20 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,10 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040206001
