Double swing (3,00) stainless steel

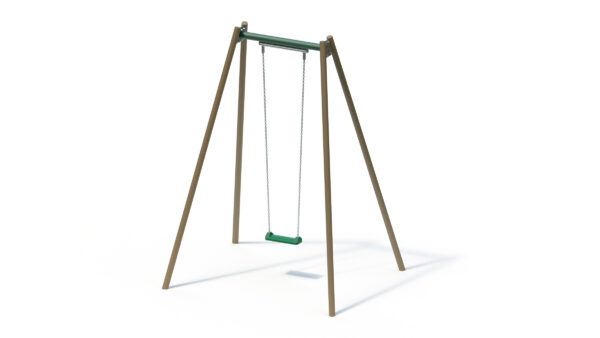

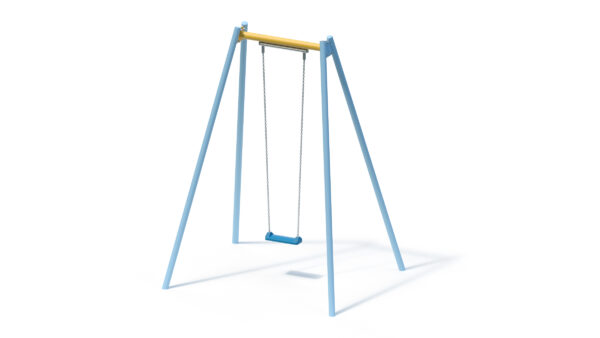

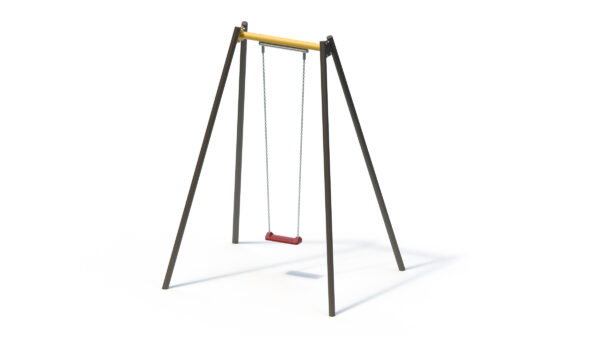

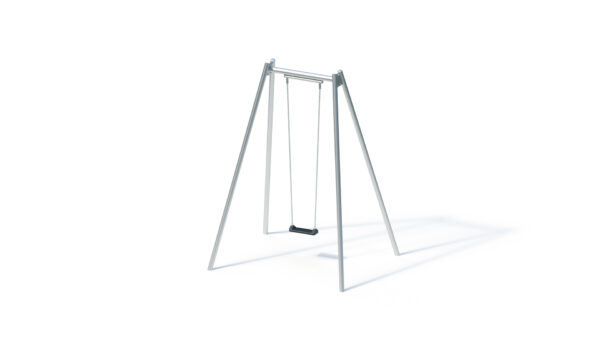

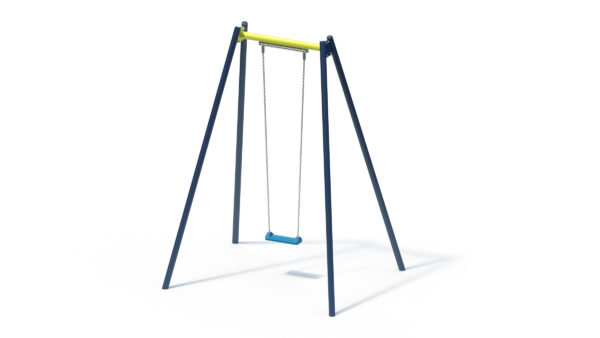

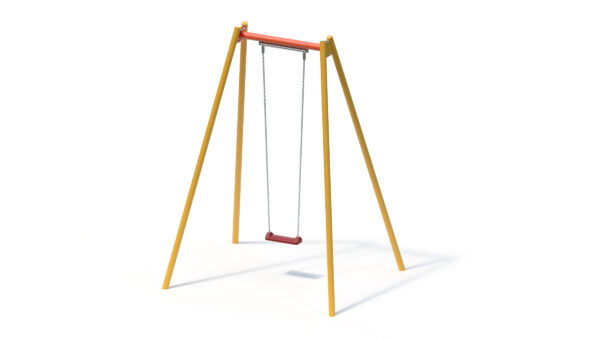

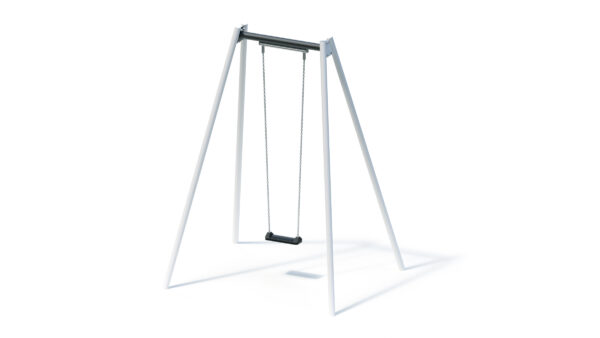

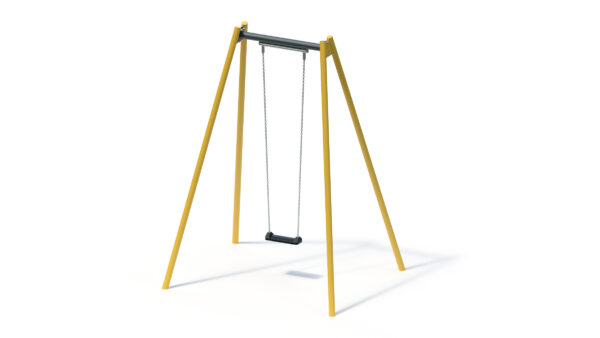

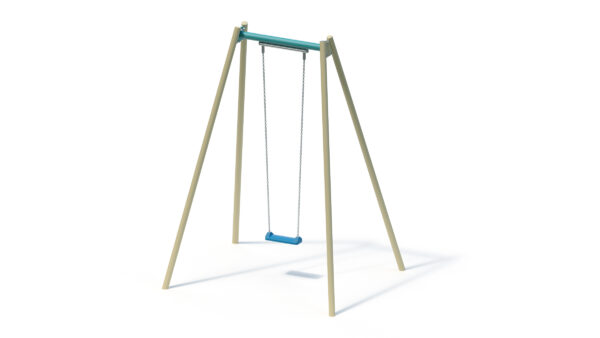

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 1 persons |
| Activities ? | - |
Technical data
| Device length ? | 2,05 m |
|---|---|
| Device width ? | 2,40 m |
| Device height ? | 3,21 m |
| Free fall height ? | 1,80 m |
| Platform heights | - |
| Total weight ? | 125.00 kg |
| Heaviest single item ? | 25.00 kg |
| Minimum room length ? | 8,80 m |
| Minimum room width ? | 2,40 m |
| Minimum room height ? | 3,21 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 080x060x060 |
Product Downloads
Product description
Technical data

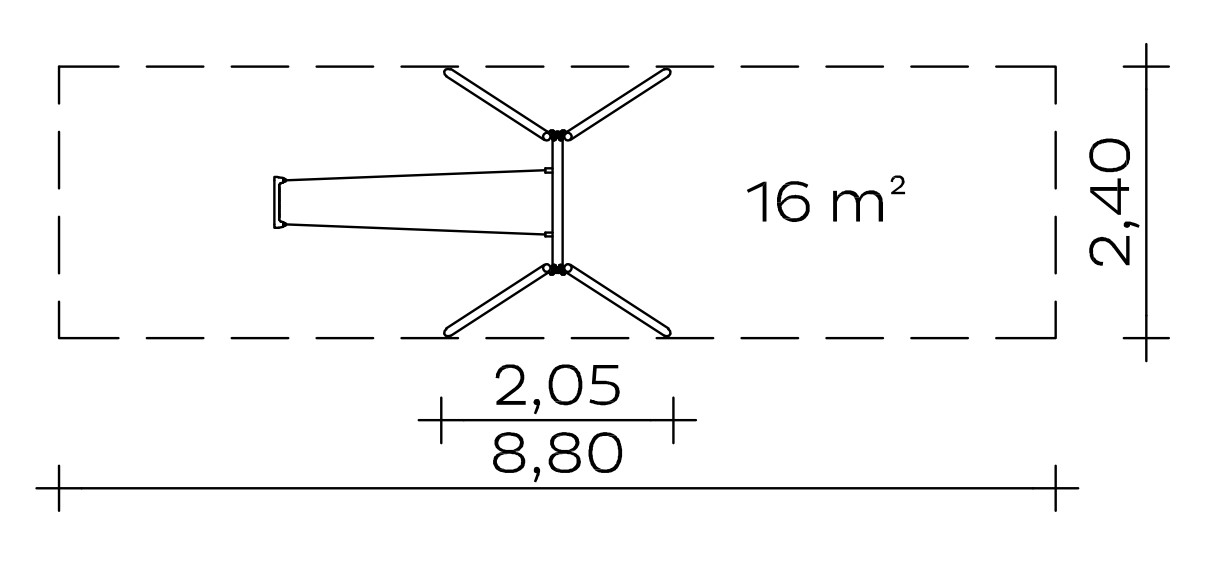

Floor area: 2.05 x 2.40 m
Minimum space: 8.80 x 2.40 m (16 m²)
Swing height: 3.00 m
Weight: 25 kg heaviest individual part
125 kg in total
- Swing supports made of stainless steel tube Ø 76.1 mm, wall thickness 2.9 mm; connection to swing support via connection plates
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.60 x 0.80 x 0.60 m
Concrete volume: 1.15 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,80 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 040354000
