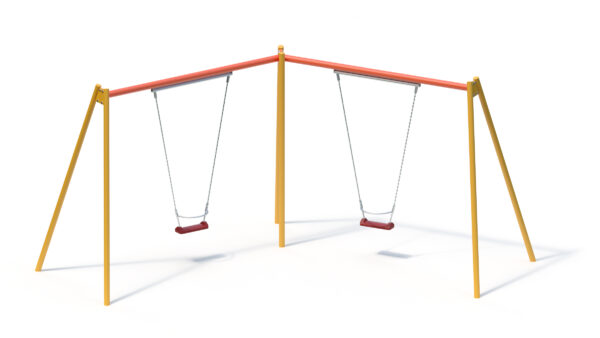

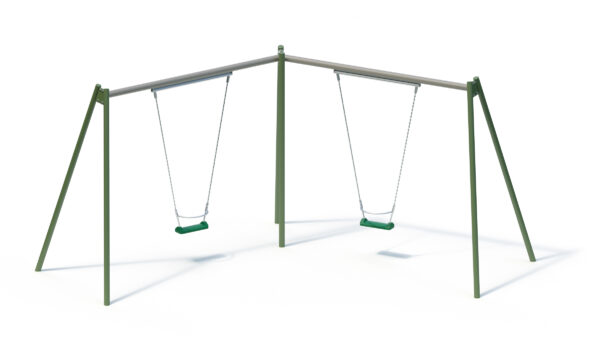

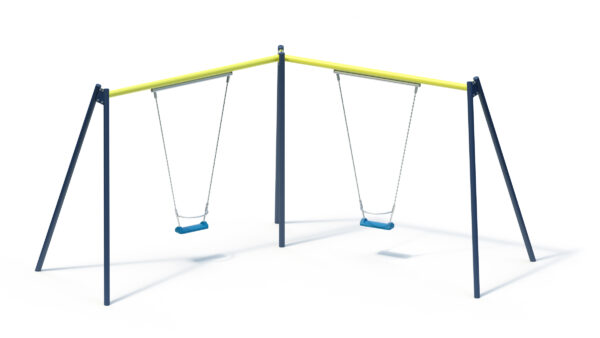

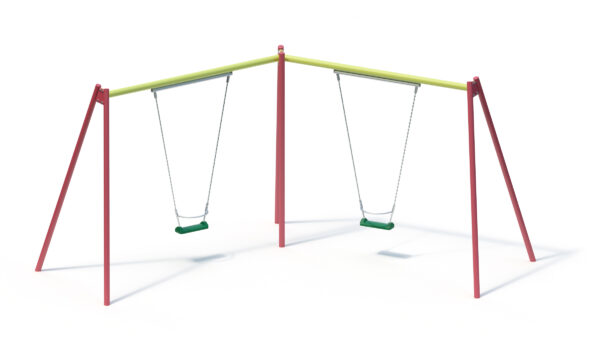

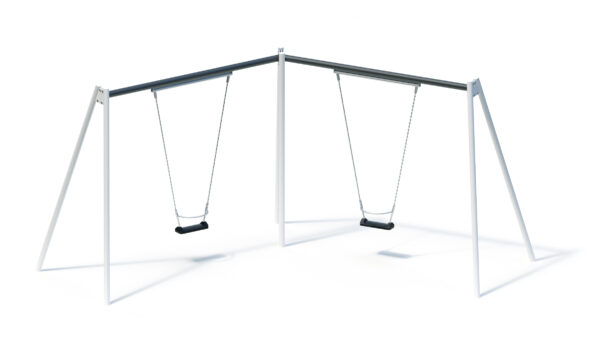

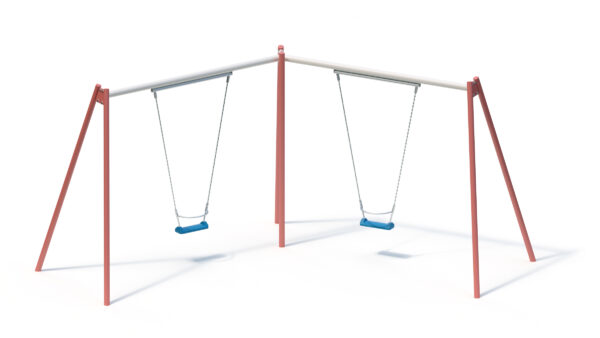

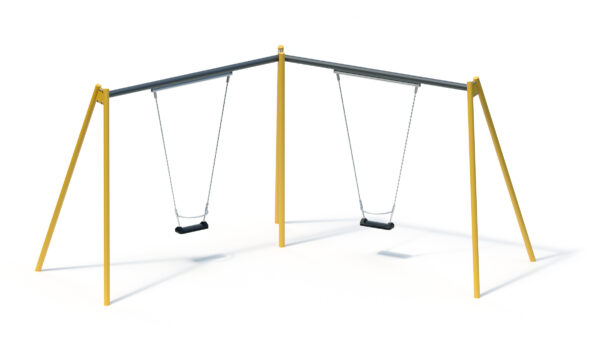

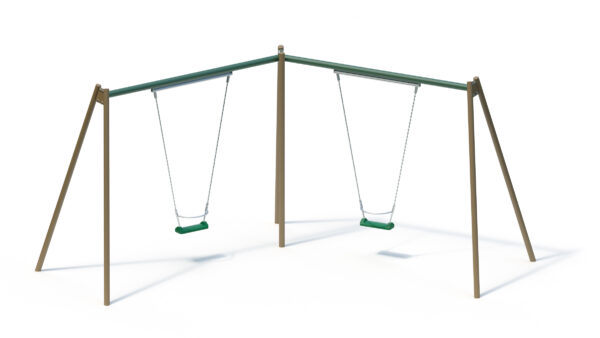

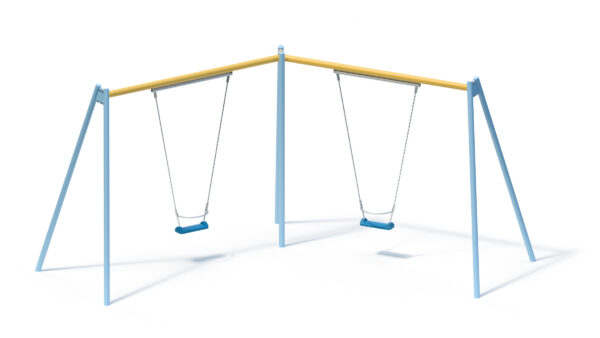

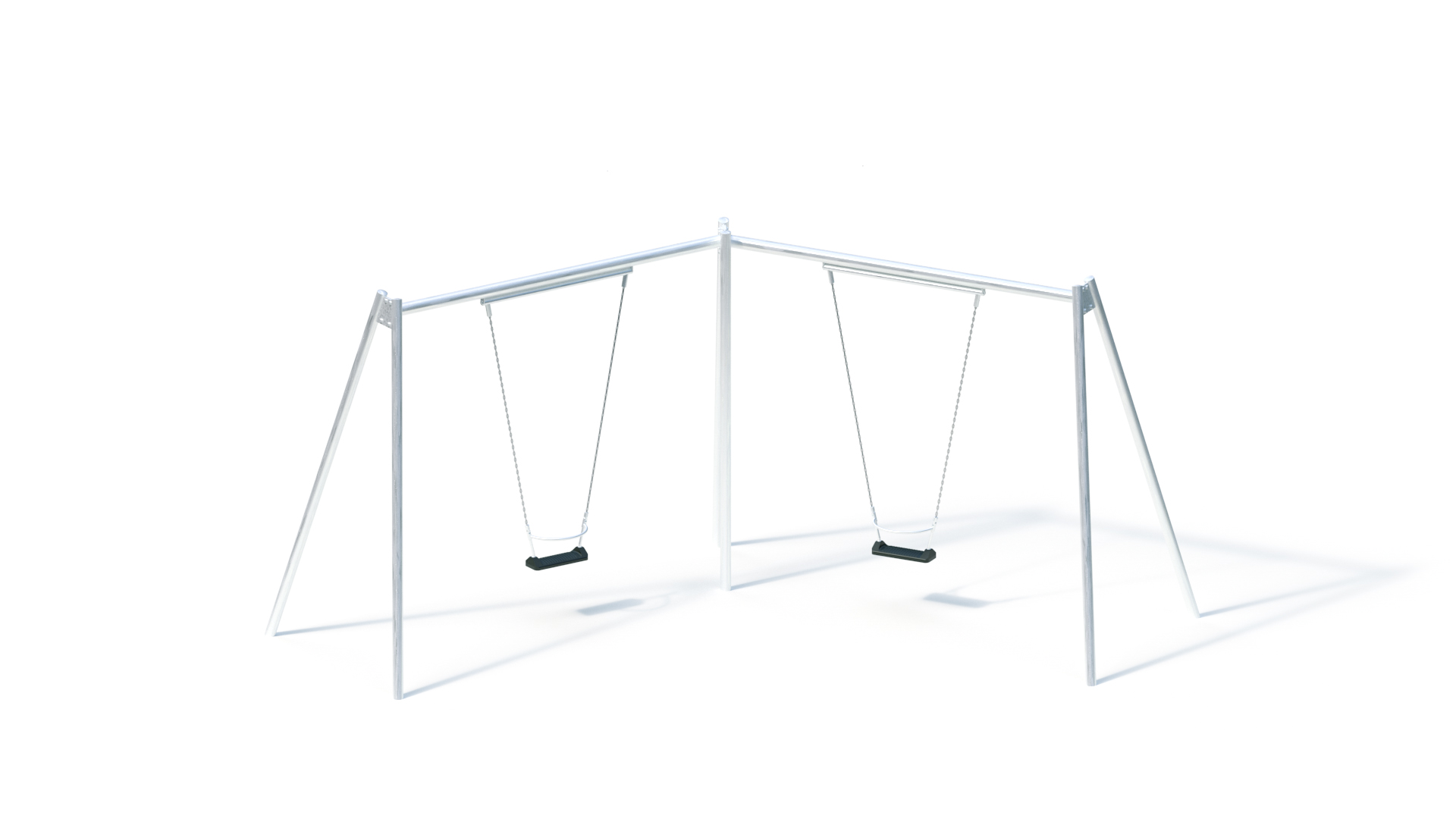

Standard contact swing (2.50) steel - galvanised
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Gerätelänge ? | 6,65 m |
|---|---|
| Gerätebreite ? | 3,25 m |
| Gerätehöhe ? | 2,71 m |
| Freie Fallhöhe ? | 1,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 210.00 kg |
| Schwerstes Einzelteil ? | 36.00 kg |
| Mindestraumlänge ? | 10,00 m |
| Mindestraumbreite ? | 8,30 m |
| Mindestraumhöhe ? | 2,71 m |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.7m x 0.5m x 0.5m) Quantity: 1 (1.6m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

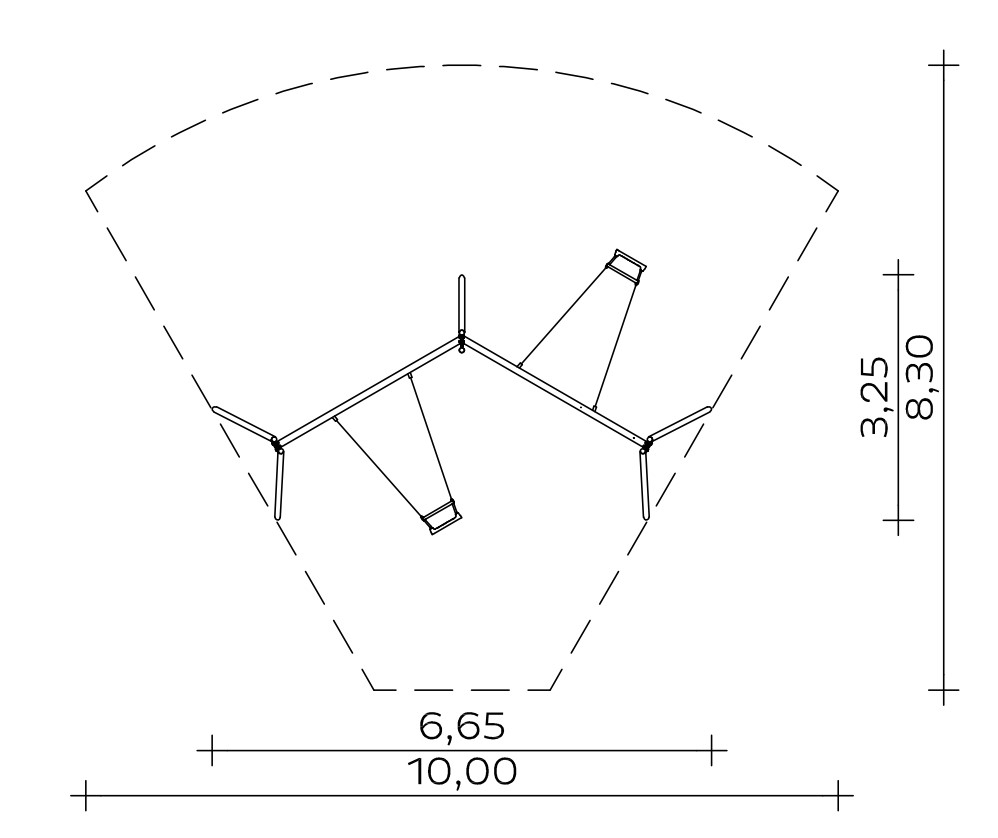

Floor area: 3.25 x 6.65 m
Minimum space: 8.30 x 10.00 m (25 m²)
Swing height: 2.50 m
Weight: 36 kg heaviest individual part
210 kg in total
- Swing supports made of steel, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanised; connection to swing support via connection plates
- Steel swing beam, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanised
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension Ø 7 mm with integrated, ball-bearing swivels to prevent the chains from knotting
- Safety swing seats made of rubber with dimensionally stable aluminium inlay with anti-jump device, integrated chain adapters on slide-mounted joints and gapless single-point suspension,
- Chain mount with stainless steel clamping adapter.
Foundations (client-provided)
4 units 0.50 x 0.70 x 0.50 m
1 piece 0.50 x 1.60 x 0.50 m
Concrete volume: 1.10 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
1,50 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 040552000
