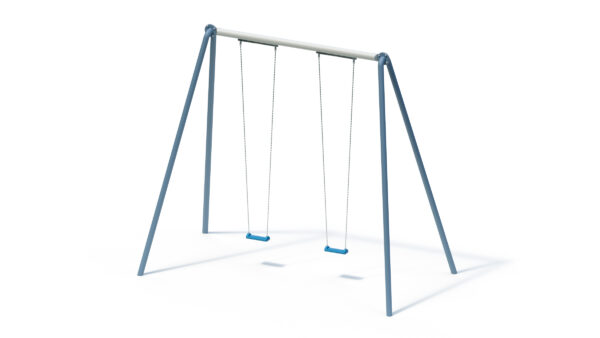

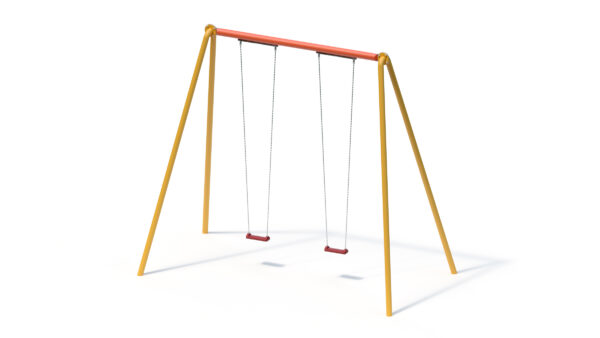

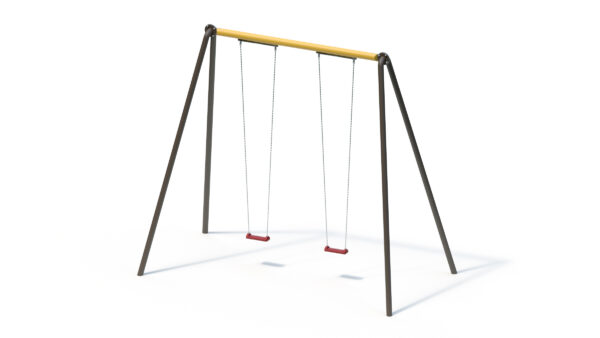

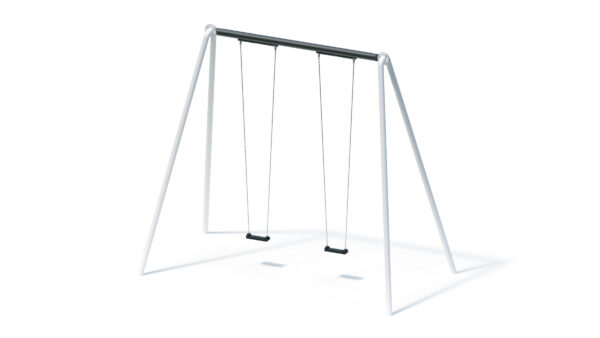

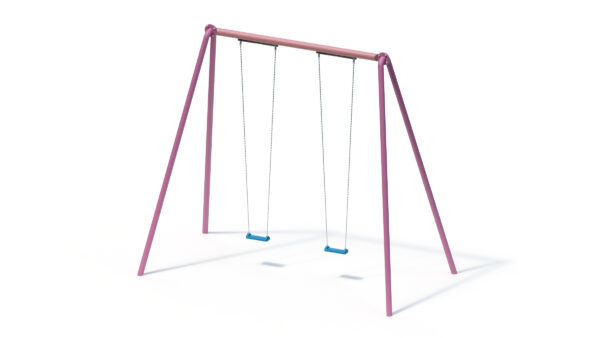

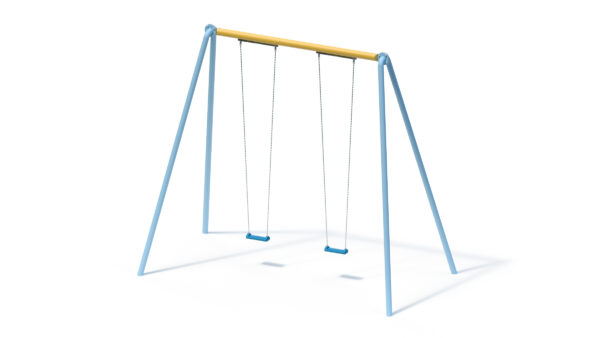

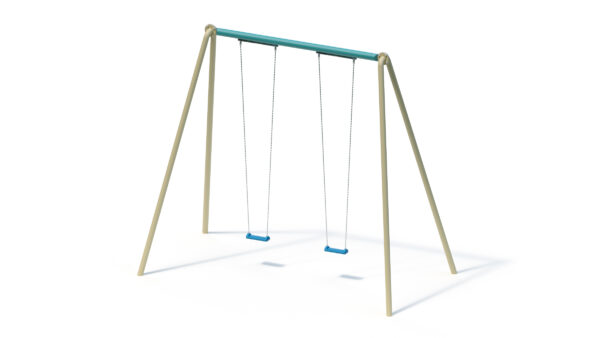

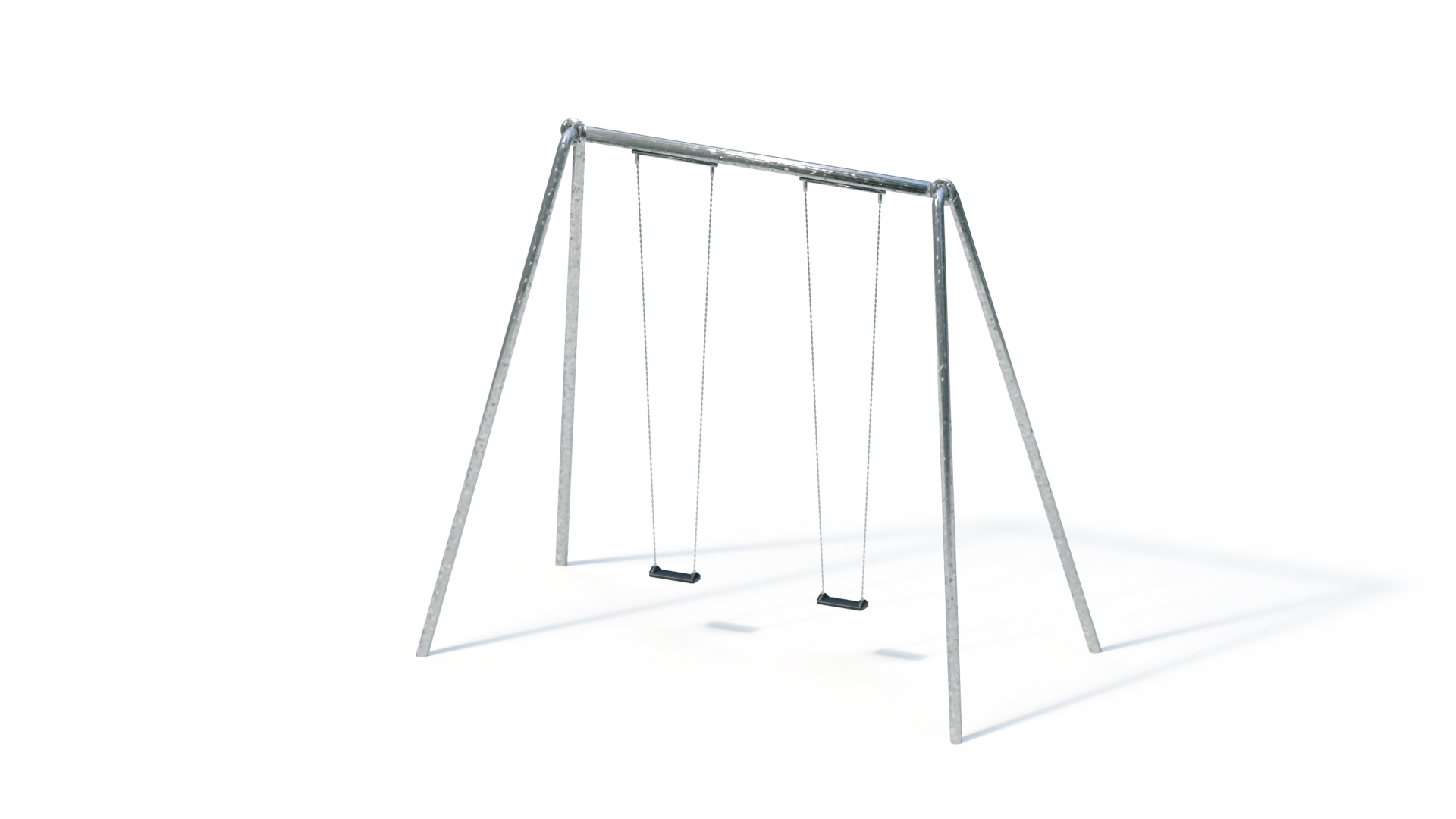

Double Maxi swing (4,50)

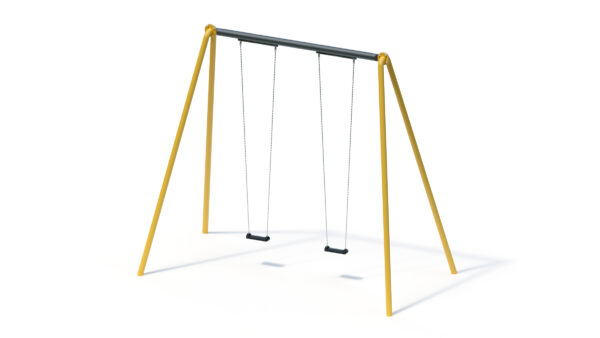

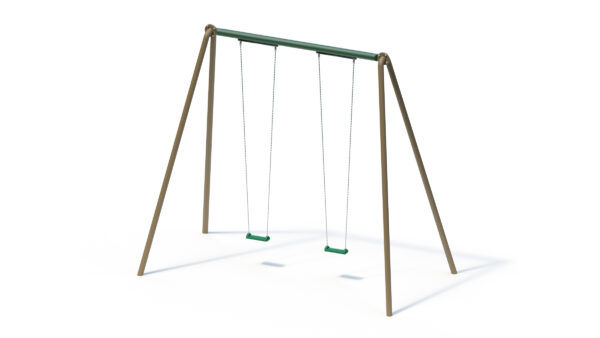

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Mindestraumlänge ? | 11,30 m |
|---|---|
| Mindestraumbreite ? | 5,35 m |
| Mindestraumhöhe ? | 4,72 m |
| Gerätelänge ? | 5,35 m |
| Gerätebreite ? | 2,85 m |
| Gerätehöhe ? | 2,71 m |
| Freie Fallhöhe ? | 2,60 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 535.00 kg |
| Schwerstes Einzelteil ? | 110.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 4 (0.8m x 0.8m x 0.6m) |
Product Downloads
Product description
Technical data

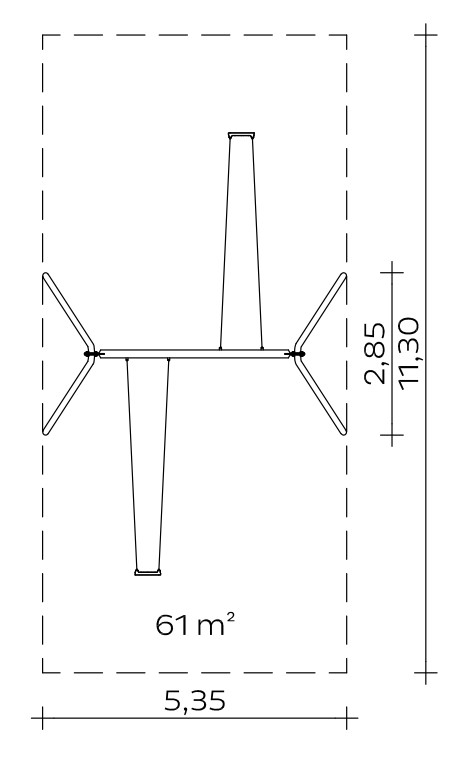

Floor area: 2.85 x 5.35 m
Minimum space: 5.35 x 11.30 m (61 m²)
Swing height: 4.50 m
Weight: 110 kg heaviest individual part
535 kg in total
- Swing supports made of hot-dip galvanised steel, Ø 108 mm, wall thickness 6.3 mm; connection to swing support via dowel plates
- Swing beam made of hot-dip galvanised steel, Ø 139.7 mm, wall thickness 6.3 mm;
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.80 x 0.80 x 0.60 m
Concrete volume: 1.54 m³
Assembly time
2 fitters 3 hours each, plus lifting gear
(without foundation)
Free fall height
2,60 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040453000
