The 3D model is for spatial reference only. The colours may not match the selected variant.

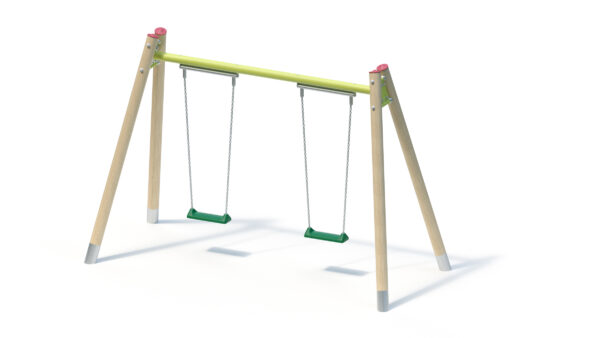

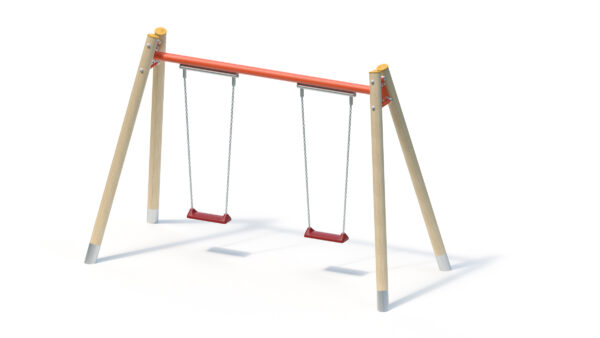

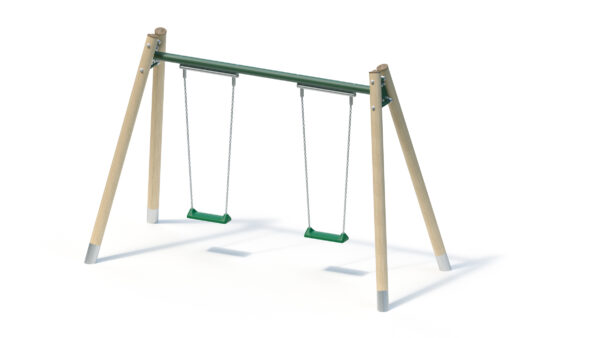

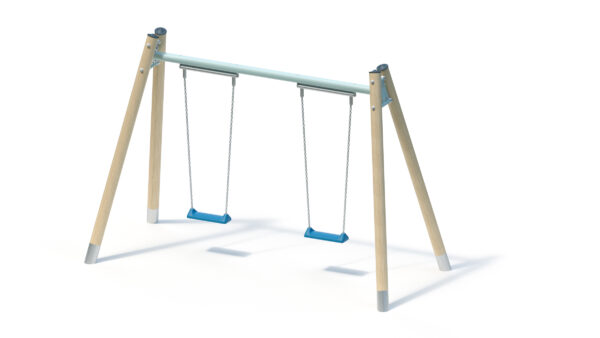

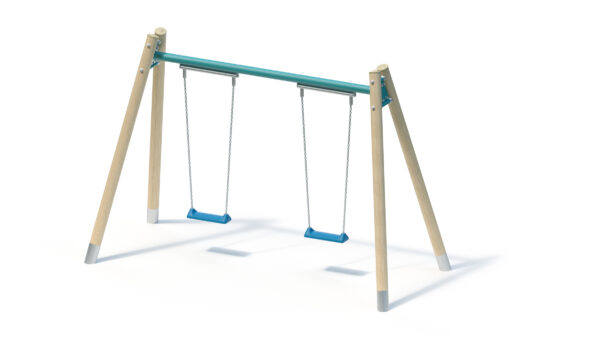

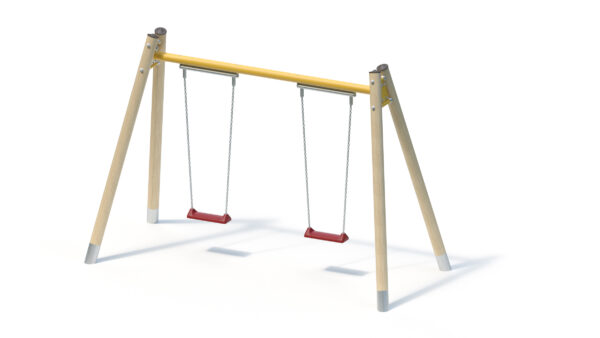

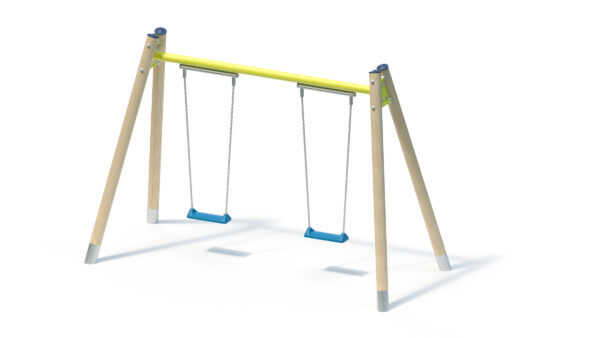

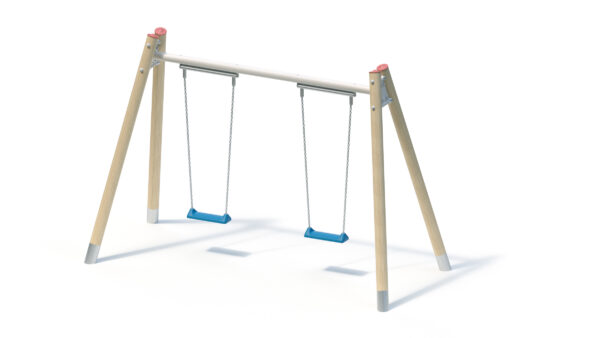

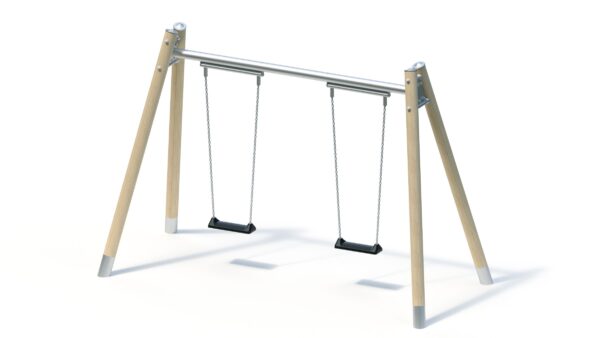

Standard swing KAROLAM® (2,00)
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 7,30 m |
|---|---|
| Minimum space width ? | 3,47 m |
| Minimum space height ? | 2,37 m |
| Equipment length ? | 1,50 m |
| Equipment width ? | 3,47 m |
| Equipment height ? | 2,37 m |
| Free-fall height ? | 1,25 m |
| Platform heights | - |
| Total weight ? | 120.00 kg |
| Heaviest single part ? | 36.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.65m x 0.65m x 0.4m) |
Product Downloads
Product description
#Technical data
Base area: 3.45 x 1.50 m
Minimum space: 3.45 x 7.30 m (23 m²)
Swing height: 2.00 m
Weight: 36 kg heaviest individual part
120 kg in total
- Swing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
- Swing support made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connection plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.60 x 0.60 x 0.47 m
Concrete volume: 0.7 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040236000
