Products

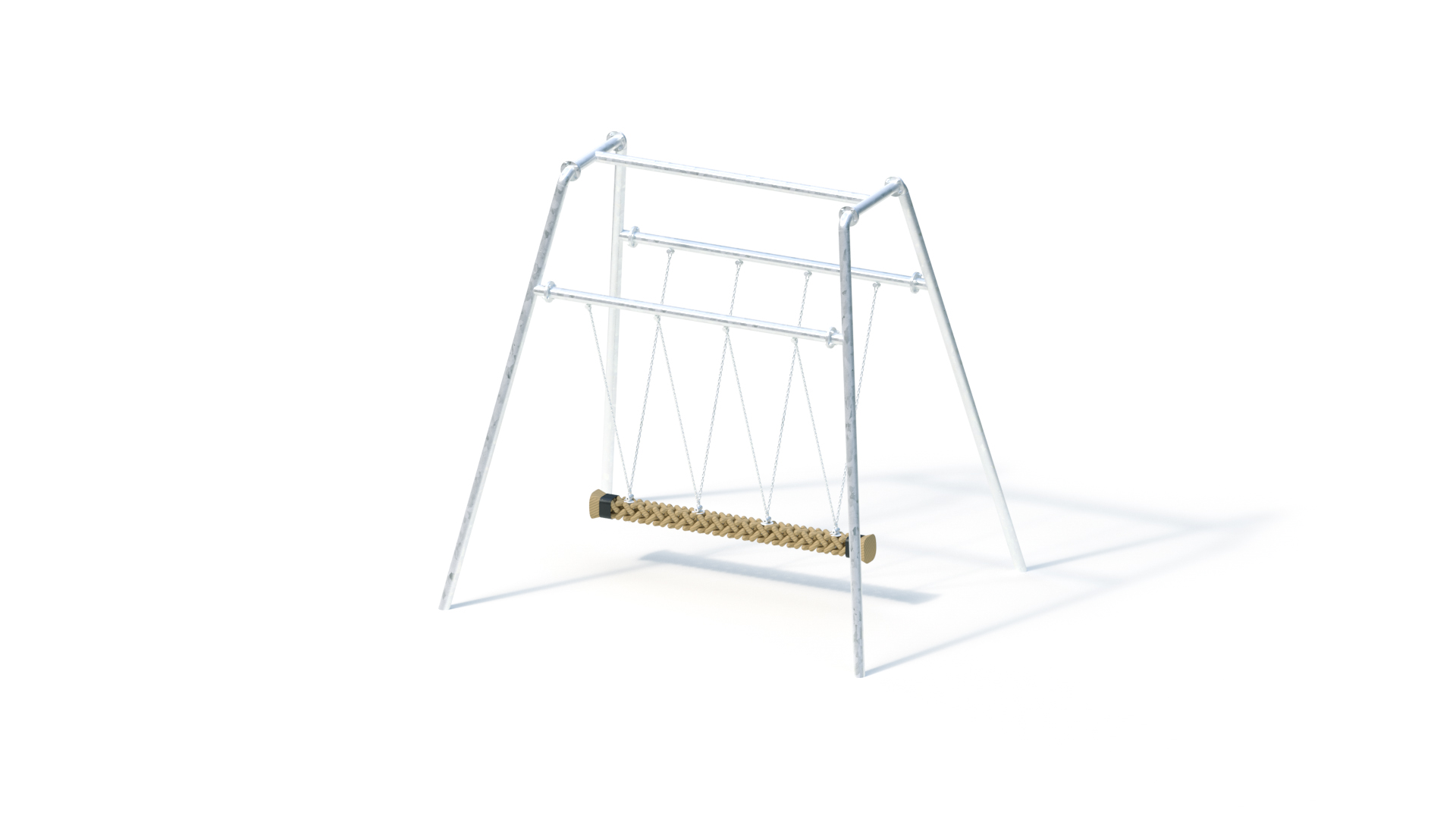

Viking swing (2,50)
Select variant:
Classic
Aloha
Beach
City

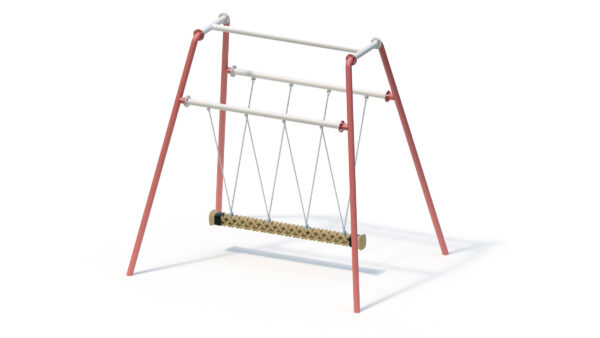

Coral

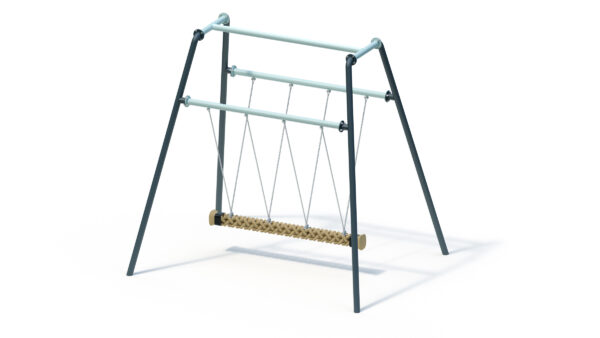

Ice Palace
Jungle
Mermaid

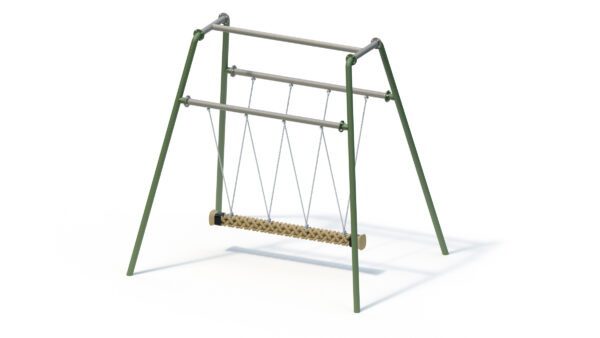

Climbing Rock midi
Ocean

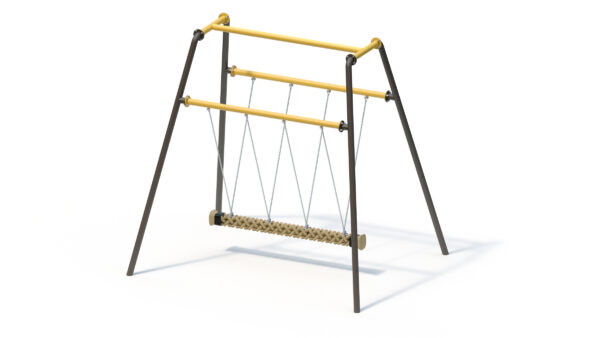

Pirate

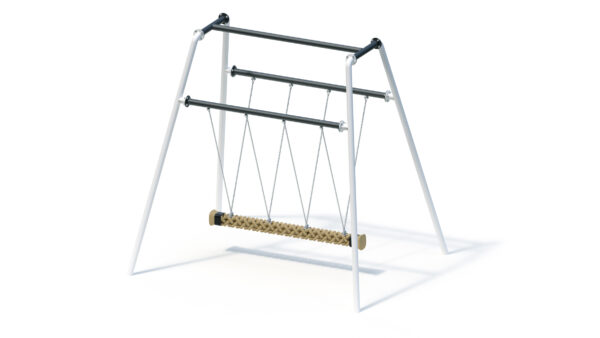

Safari
Sky

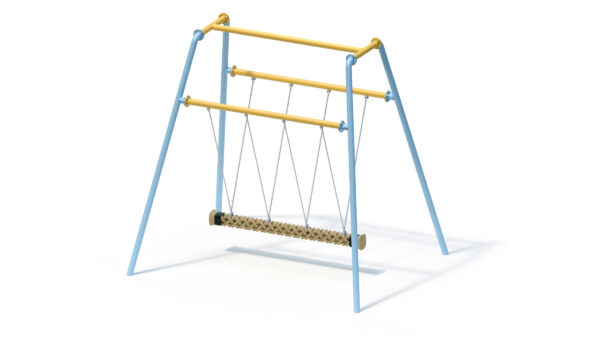

Sunny Day
Sun
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
The most important information
:
;
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 7 People |
| Activities ? | Physical activity, Swinging |
Technical data
:
;
| Minimum space length ? | 8,40 m |
|---|---|
| Minimum space width ? | 2,95 m |
| Minimum space height ? | 3,49 m |
| Equipment length ? | 3,75 m |
| Equipment width ? | 2,95 m |
| Equipment height ? | 3,49 m |
| Free-fall height ? | 1,60 m |
| Platform heights | - |
| Total weight ? | 369.00 kg |
| Heaviest single part ? | 105.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 4 (0.6m x 0.6m x 0.6m) |
Product Downloads
:
;
Product description
:
;
Technical data
Floor area: 2.95 x 3.75 m
Minimum space: 2.95 x 8.40 m (29 m²)
Swing height: 2.50 m
Weight: 105 kg heaviest individual part
369 kg in total
- Swing supports and swing beams made of hot-dip galvanised steel tubes Ø 88.9 mm, wall thickness 3.2 mm;
- Swivel joints: plain bearing
- Ropes: square mesh, approx. 160 mm made of PP rope on stainless steel chains (7 mm)
Foundation (on site)
4 units 0.60 x 0.60 x 0.60 m
Concrete volume: 0.86 m³
Assembly time
2 fitters 3 hours each
(without foundations) plus lifting gear
Free fall height
1,60 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040768000
This Kaiser & Kühne product enables:
