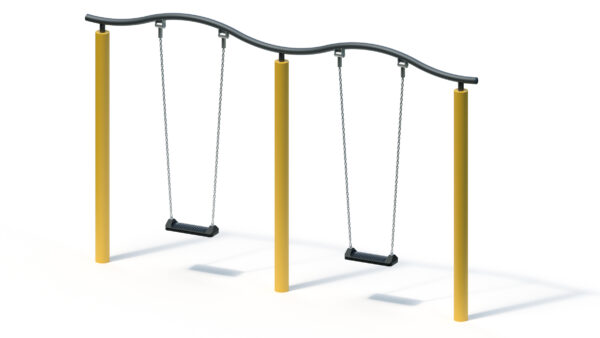

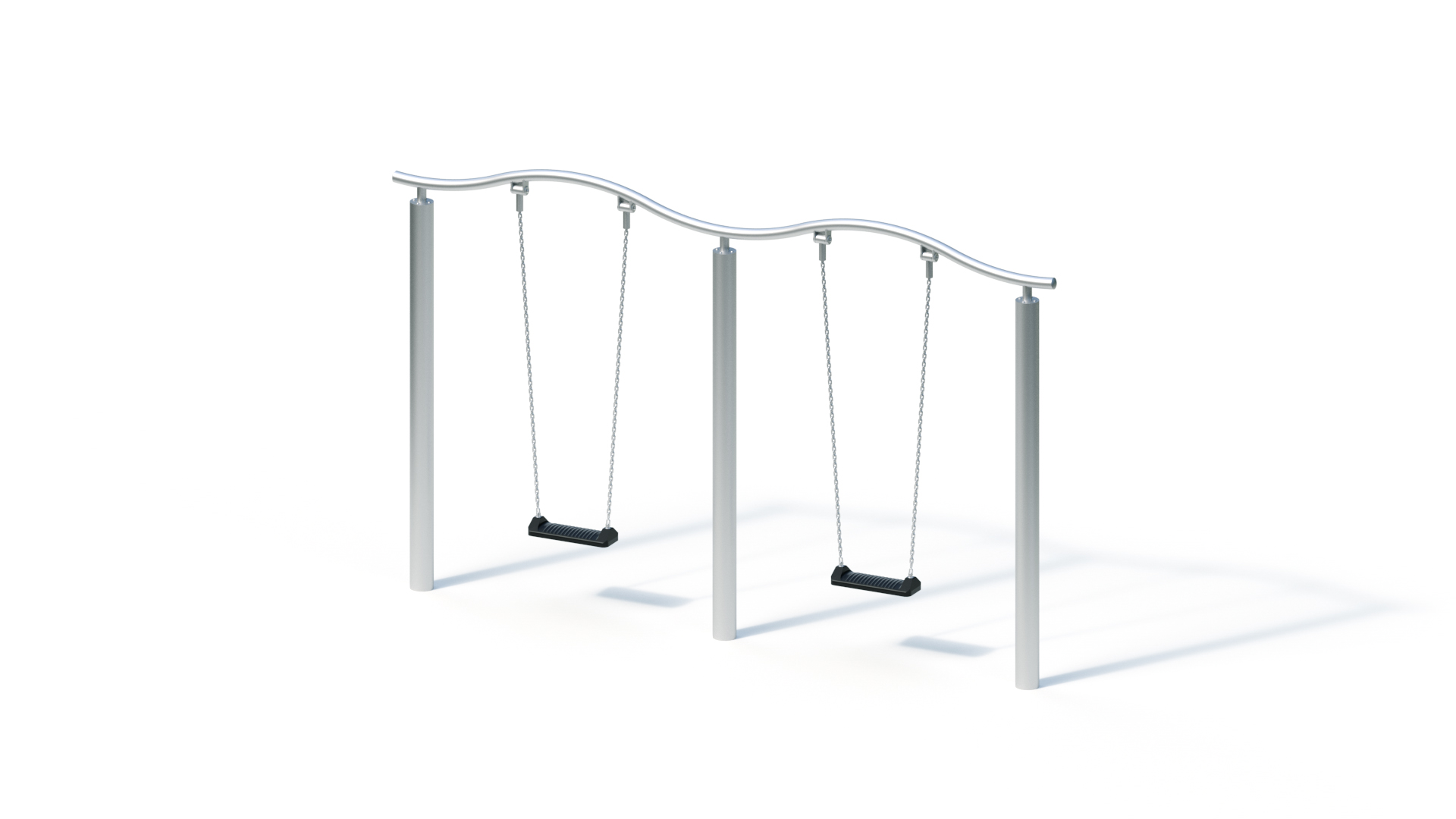

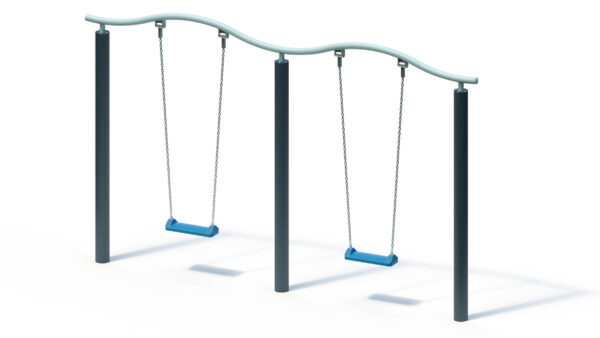

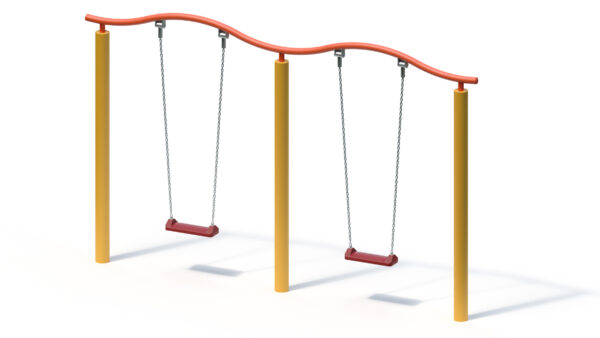

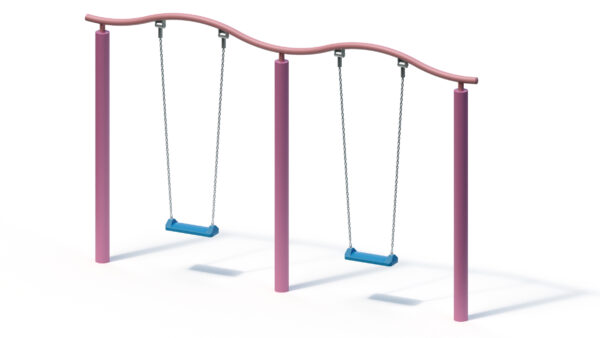

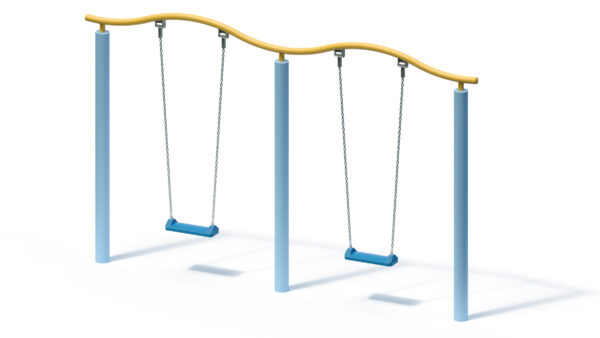

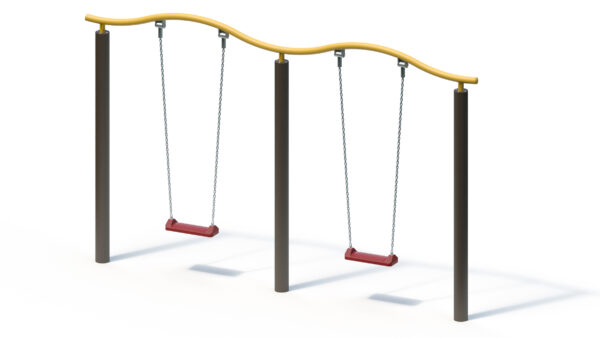

Fivefold Post swing (2,20)

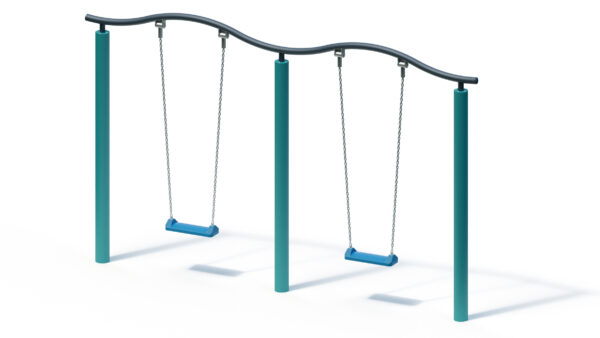

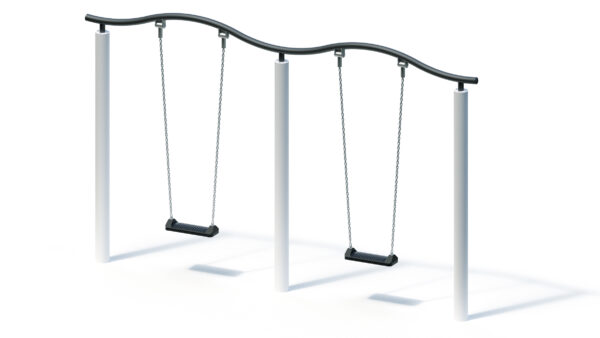

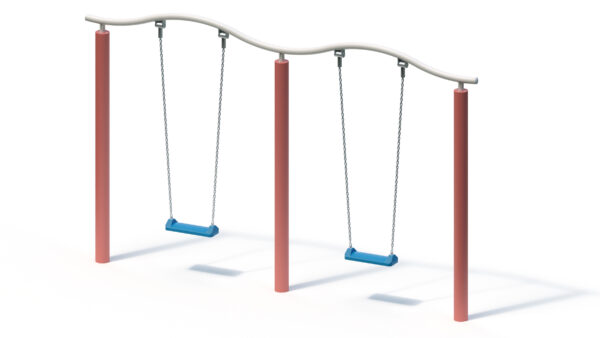

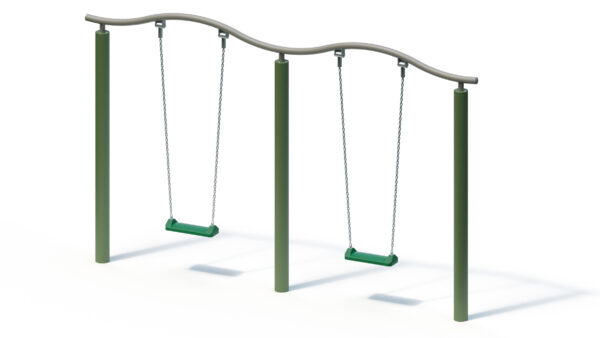

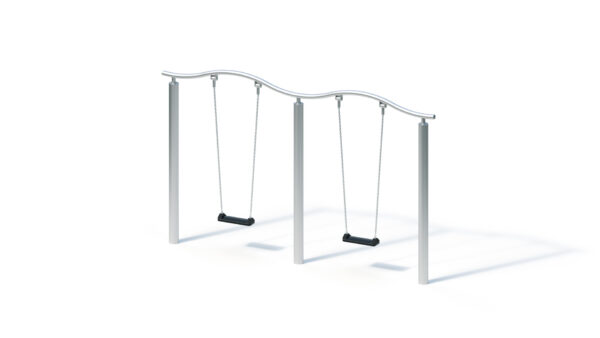

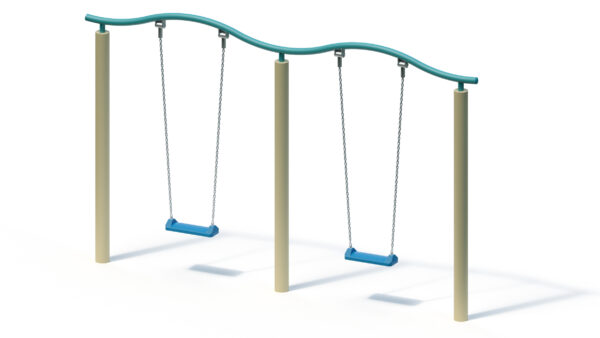

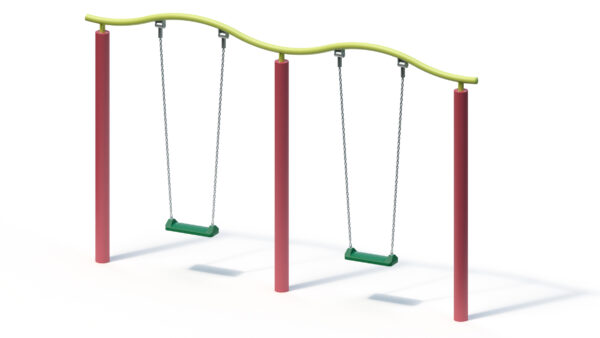

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Gerätelänge ? | 0,12 m |
|---|---|
| Gerätebreite ? | 3,75 m |
| Gerätehöhe ? | 2,34 m |
| Freie Fallhöhe ? | 1,35 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 165.00 kg |
| Schwerstes Einzelteil ? | 30.00 kg |
| Mindestraumlänge ? | 7,65 m |
| Mindestraumbreite ? | 3,75 m |
| Mindestraumhöhe ? | 2,34 m |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data

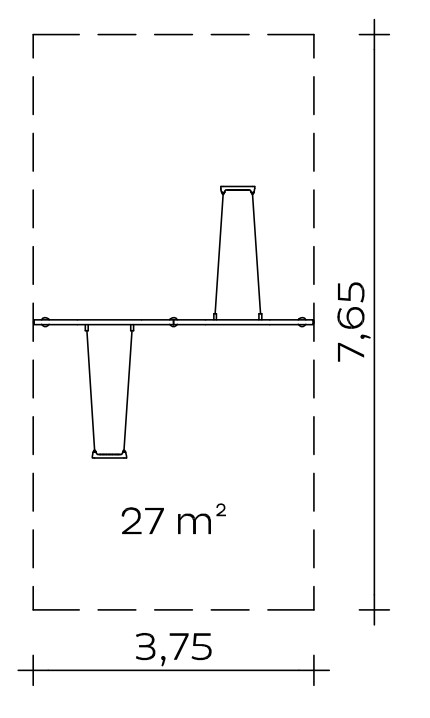

Minimum space: 3.75 x 7.65 m (27 m²)
Swing height: 2.20 m
Weight: 29 kg heaviest individual part
135 kg total
- Stainless steel upright, Ø 12 cm
- Swing support: stainless steel tube, Ø 60 mm
- Stainless steel swing axle with plain bearings, incl. swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
3 pcs. 1.00 x 0.80 x 0.50 m
Concrete volume: 1.20 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,35 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Movement activities.
Item number: 040224002
