Products

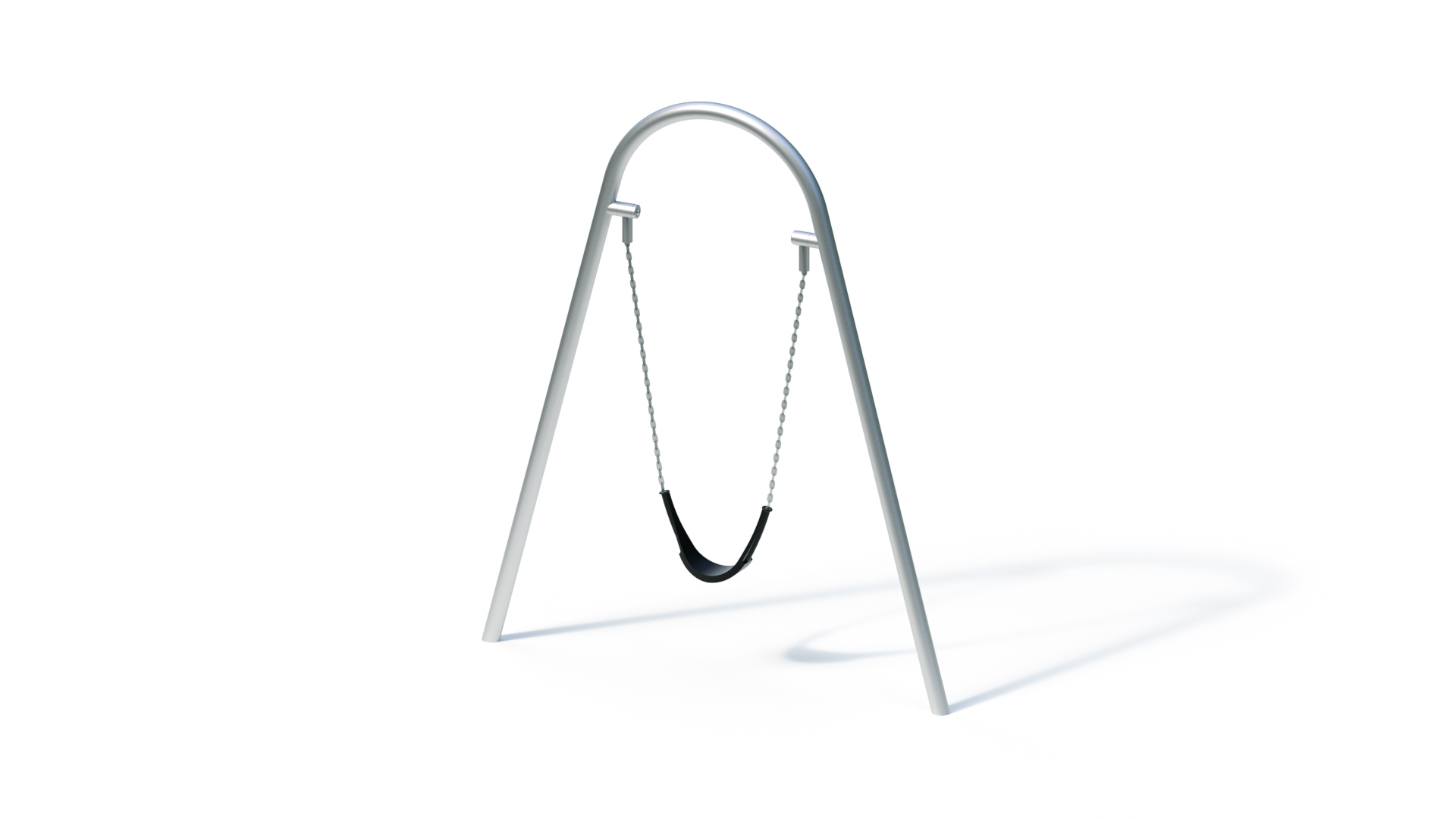

Mini swing (1,60)
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Physical activity, Swinging |
Technical data
:
;
| Minimum space length ? | 6,70 m |
|---|---|
| Minimum space width ? | 1,75 m |
| Minimum space height ? | 2,05 m |
| Equipment length ? | 0,00 m |
| Equipment width ? | 2,00 m |
| Equipment height ? | 2,05 m |
| Free-fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 40.00 kg |
| Heaviest single part ? | 35.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1m x 0.6m x 0.5m) |
Product Downloads
:
;
Product description
:
;
Technical data

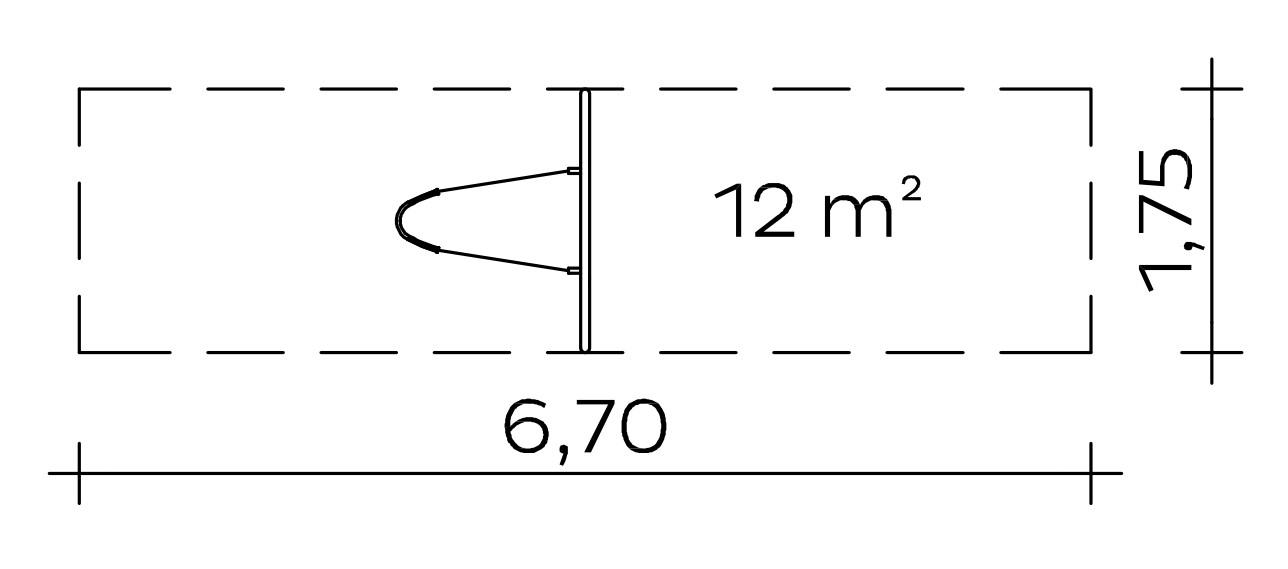

Minimum space: 1.75 x 6.70 m (12 m²)
Swing height: 1.60 m
Weight: 35 kg heaviest individual part
40 kg in total
- Swing frame made of stainless steel tube Ø 60.3 x 2.9 mm
- Stainless steel swing suspension with plain bearings, incl. swivel
- Trapezoidal rubber safety harness seat
- Chain suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
2 pcs. 0.60 x 1.00 x 0.50 m
Concrete volume: 0.6 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Free fall height
1,00 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040160001
This Kaiser & Kühne product enables:
