Effect disc
The most important information
:
;
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 2 Personen |
| Aktivitäten ? | - |
Technical data
:
;

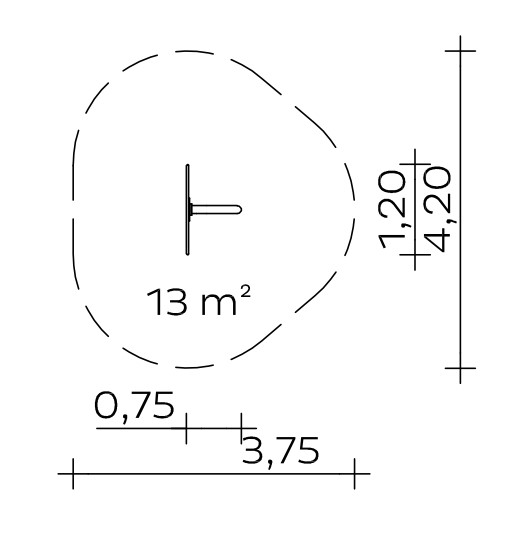

| Mindestraumlänge ? | 4,20 m |
|---|---|
| Mindestraumbreite ? | 3,75 m |
| Mindestraumhöhe ? | 2,20 m |
| Gerätelänge ? | 1,20 m |
| Gerätebreite ? | 0,75 m |
| Gerätehöhe ? | 2,20 m |
| Freie Fallhöhe ? | 0,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 130.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
Assembly & Foundations
:
;
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (0.9m x 0.7m x 0.6m) |
Product Downloads
:
;
Product description
:
;
Technical data
Base area: 0.75 x 1.20 m
Total height: 2.20 m
Discs Ø: 1.20 m
Weight: 130 kg in total
Support tube: hot-dip galvanised steel construction, additionally powder-coated, colour: yellow/RAL 1021.
Effect disc: High-pressure laminate 25 mm, milled crescent motif forms a three-dimensional cone and funnel when slowly rotated.
Roller bearing: non-engaging
Foundation (on site)
1 piece 0.90 x 0.70 x 0.60 m
Assembly time
2 fitters 1 hour each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
Item number: 037190000
