Abacus

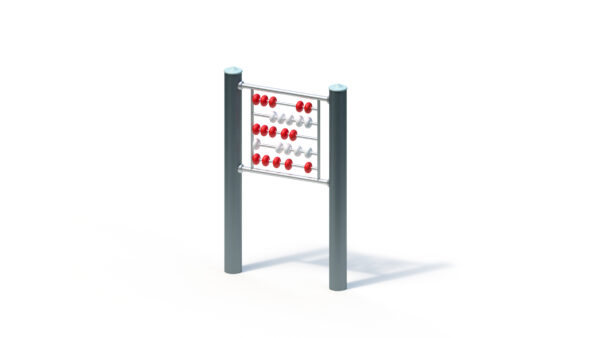

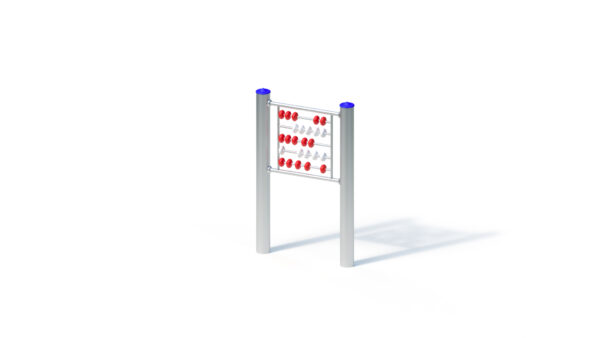

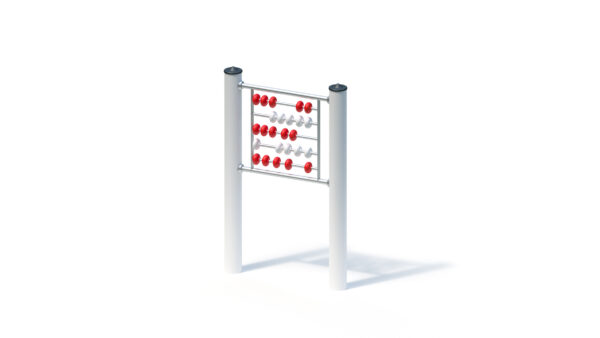

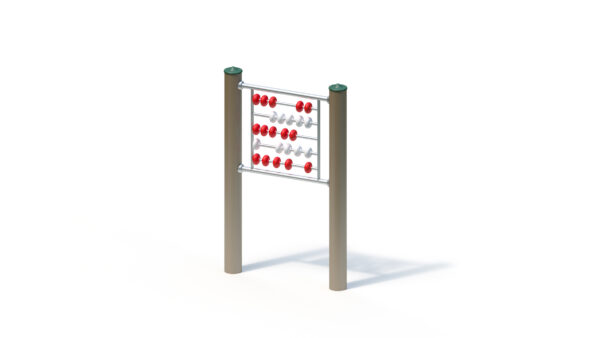

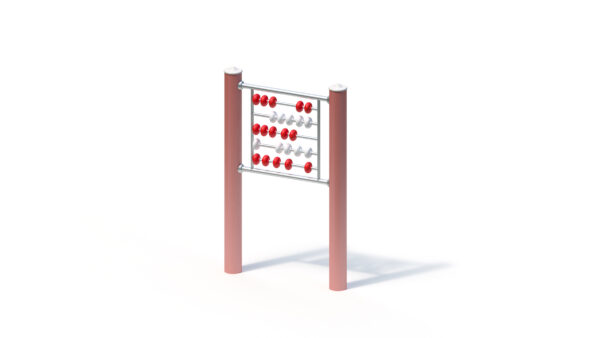

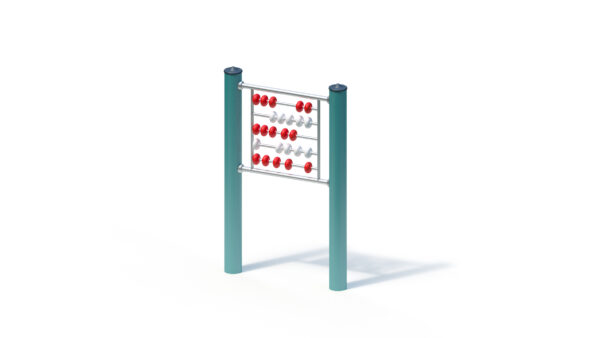

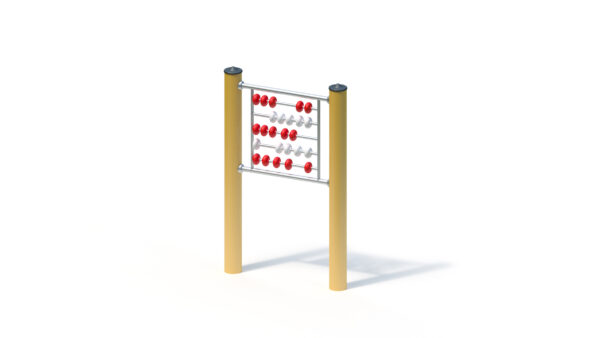

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | supervised playgrounds |
| Number of users ? | 3 people |
| Activities ? | Manual activity |
Technical data

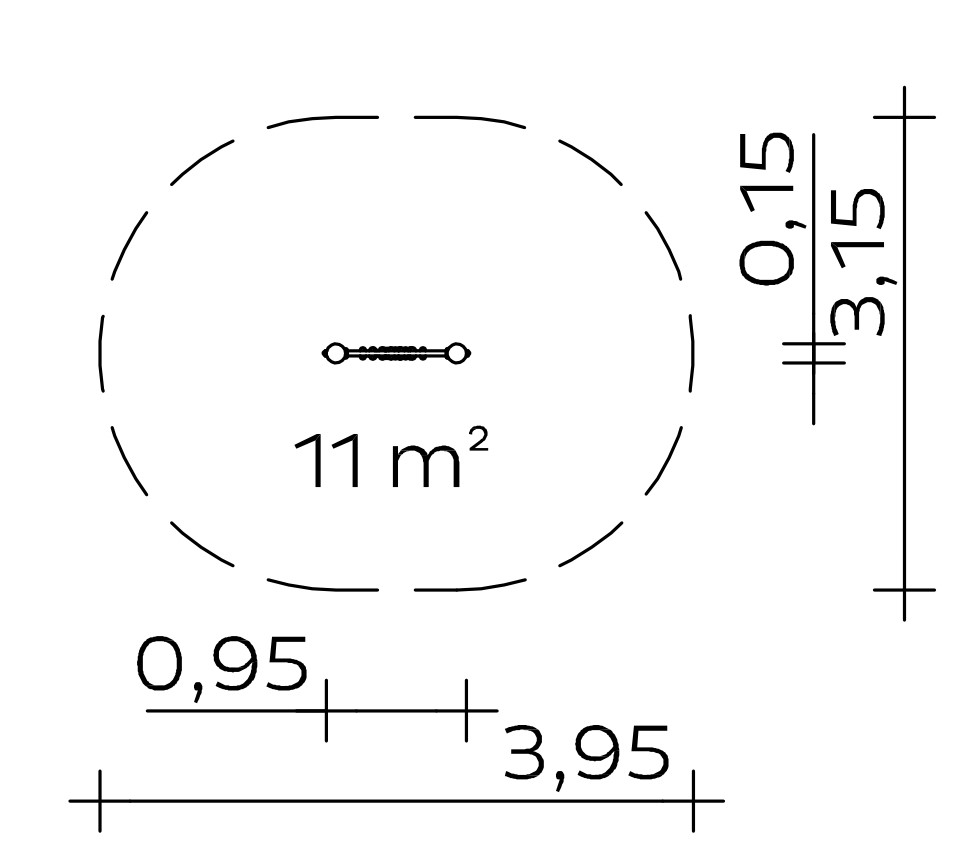

| Minimum space length ? | 3,95 m |
|---|---|
| Minimum space width ? | 3,15 m |
| Minimum space height ? | 1,50 m |
| Equipment length ? | 0,95 m |
| Equipment width ? | 0,15 m |
| Equipment height ? | 1,50 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 60.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data
Total height: 1.50 m
Base area: 0.15 x 0.95 m
Weight: 20 kg heaviest individual part
60 kg in total
Minimum space: 11 m²
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Slide rule: elements made of polyamide or PVC, Ø 80 mm
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.19 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Suitable for
all age groups,
supervised playgrounds
Manual activities
Item number: 037200500
