Dalbentur system consisting of:

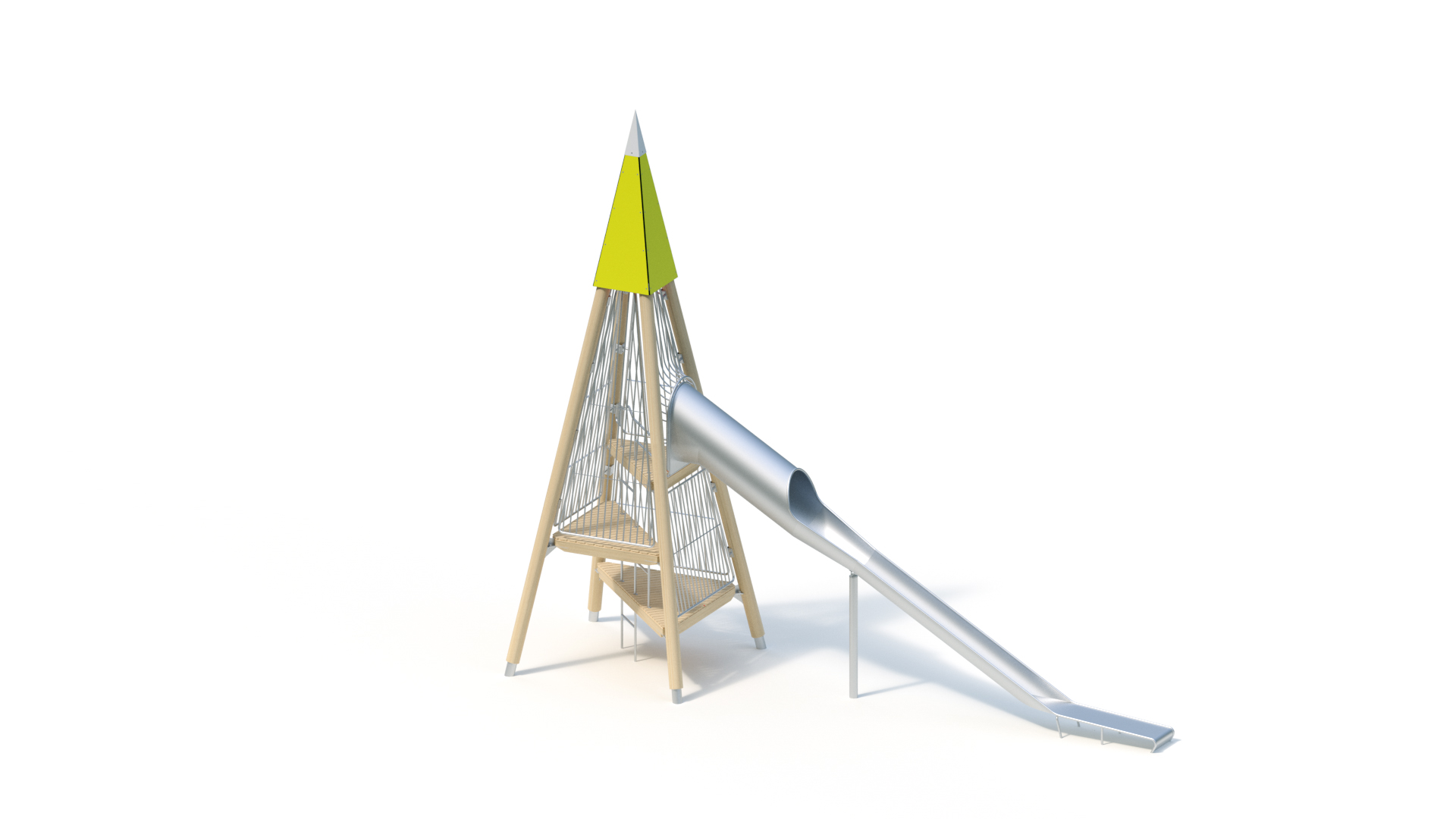

Dalben tower (7.50) with 30° tunnel slide (3.00 m)

Technical data
Floor area: 2.90 x 9.75 m
Minimum space: 5.90 x 13.25 m (55 m²)
Height: 7.50 m + tower top
Platform heights: 1.00 / 2.00 / 3.00 m
Mounting height: 3.00 m
Seat height: 3.10 m
Slide inclination: 30°
Slide width: 0.80/0.60 m
Sliding plate thickness: 2.5 mm
Weight: 320 kg heaviest individual part
1850 kg in total

Support post
Glued laminated larch Ø 20 cm with triple wood preservative coating, on hot-dip galvanised steel legs

Platform floors
Triangular wooden platforms, laminated larch beams, robinia 95 x 30 mm platform decking, screwable flange connections on the uprights
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.

The timbers used in this product are made of high-quality glued laminated timber from larch. In addition to our general terms and conditions, we grant a guarantee of 12 years, provided that the care and maintenance measures described in the maintenance instructions are observed.

Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights

Tower bonnet
High pressure laminate 13 mm

Tower top
End cover made of stainless steel sheet

Tunnel slope slide 30°, Ah 3.00 m
Slide segments made of stainless steel, particularly quiet due to tubular trough shape, welded to form a one-piece slide.
Course: straight

Incl. support post made of stainless steel tube Ø 120 x 3 mm, mounting flange made of stainless steel.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.

Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
1 piece 1.00 x 0.40 x 0.50 m
Concrete volume: 2.72 m³

Assembly time
2 fitters 14 hours each, plus lifting gear
(without foundation)

Free fall height
2,30 m

Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities

The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least σR,d = 150 kN/m² for four-pile dolphin towers or σR,d = 180 kN/m² for six-pile dolphin towers. In the case of deviating ground conditions and installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ≥0.85 kN/m²), technical modifications to the construction of the product may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.

Item number: 912075007
