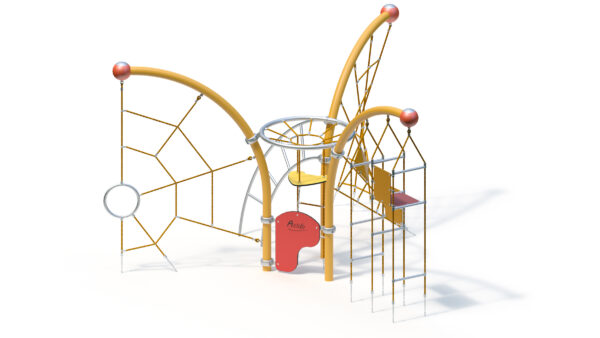

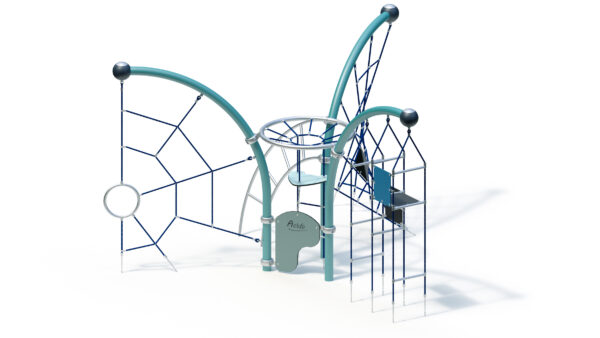

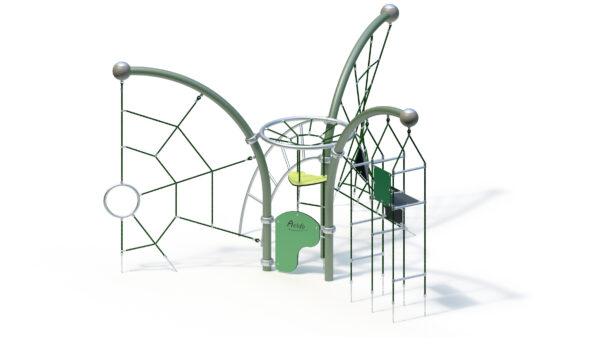

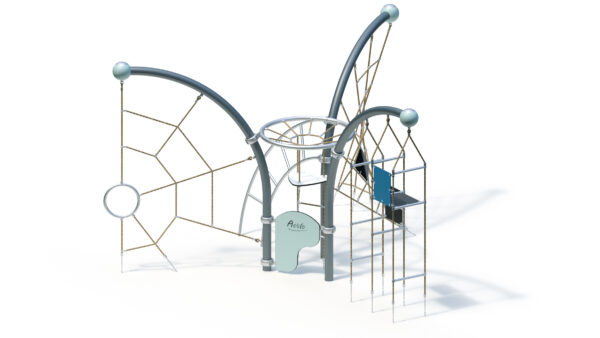

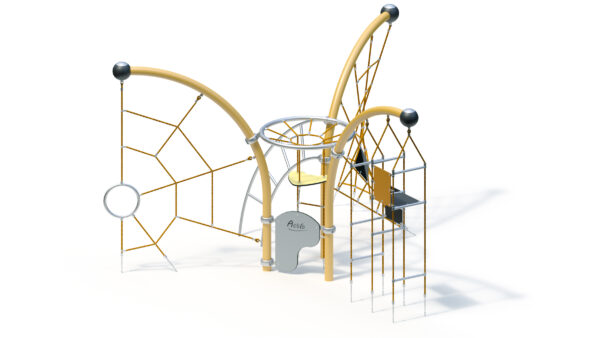

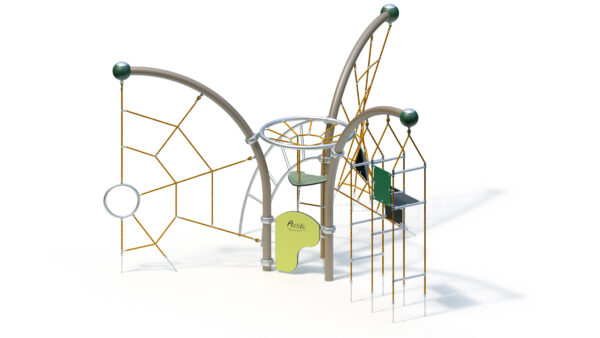

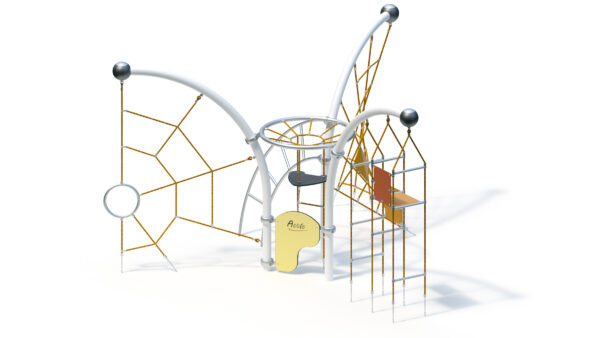

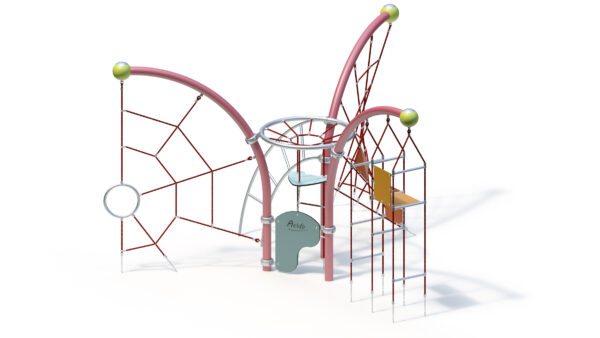

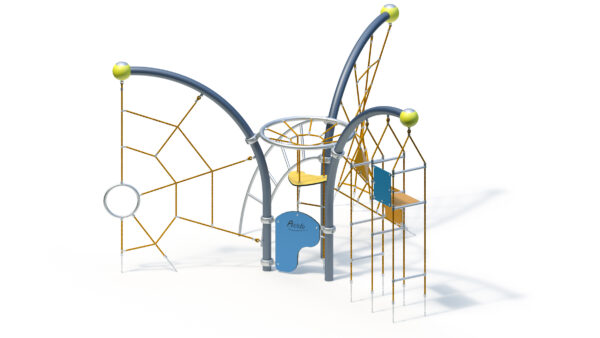

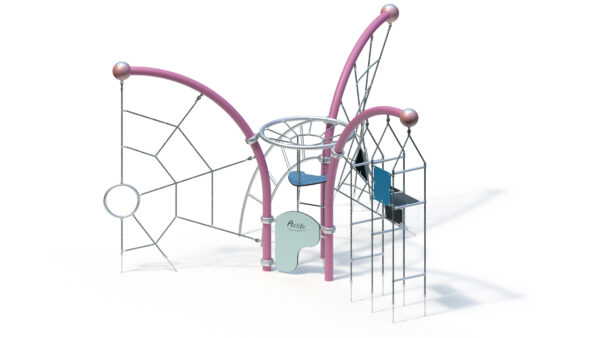

Technical data

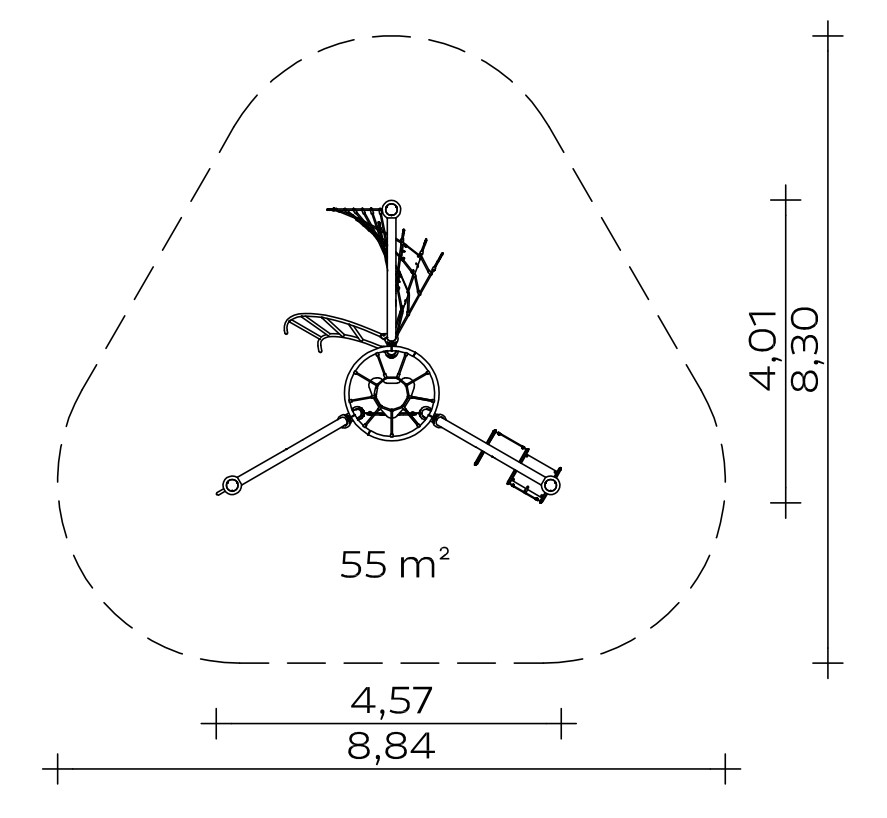

Equipment room: 4.57 x 4.01 x 2.93 m
Minimum space: 8.84 x 8.3 x 2.93 m
Impact area: 55 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
345 kg in total

Arc 90° Twister
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90° Climbing Cube
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90° Spider Net
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Twister
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connection elements in the cable mesh are made of aluminium
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced
- Rubber mat fastened with U-bracket (stainless steel)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm

Climbing Cube
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the top end, welded at the bottom with turnbuckle (M10)
- Connection to Arc 90° with shackle, Ø 10 mm

Spider Net
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connection elements in the cable mesh are made of aluminium
- Stainless steel tubular ring (Ø 450 x Ø 38 x 2) welded with 4x cable connection (Ø 48.3)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm

Actio shield
- Actio sign made from a highly weather-resistant HPL laminate, including „Actio“ labelling, 20 mm
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Climbing Basket
- Stainless steel tube ring (Ø 1200 x Ø 60.3 x 3) welded with 9x cable connection (Ø 48.3) and 3x mounting bracket ring for Actio posts.
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Base plate made of highly weather-resistant HPL laminate, 20 mm.
- Cross connections and T-connection elements in the cable mesh are made of aluminium

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved, spatially twisted conductors
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

Foundations (client-provided)
3x 1.30 x 0.50 x 0.50 m
1x 0.90 x 0.40 x 0.50 m
1x 0.60 x 0.60 x 0.50 m
1x 2.50 x 0.30 x 0.50 m
1x 1.20 x 0.70 x 0.50 m
Concrete volume: 2.2 m³

Assembly time
3 fitters 5 hours each.
(without foundation)

Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities

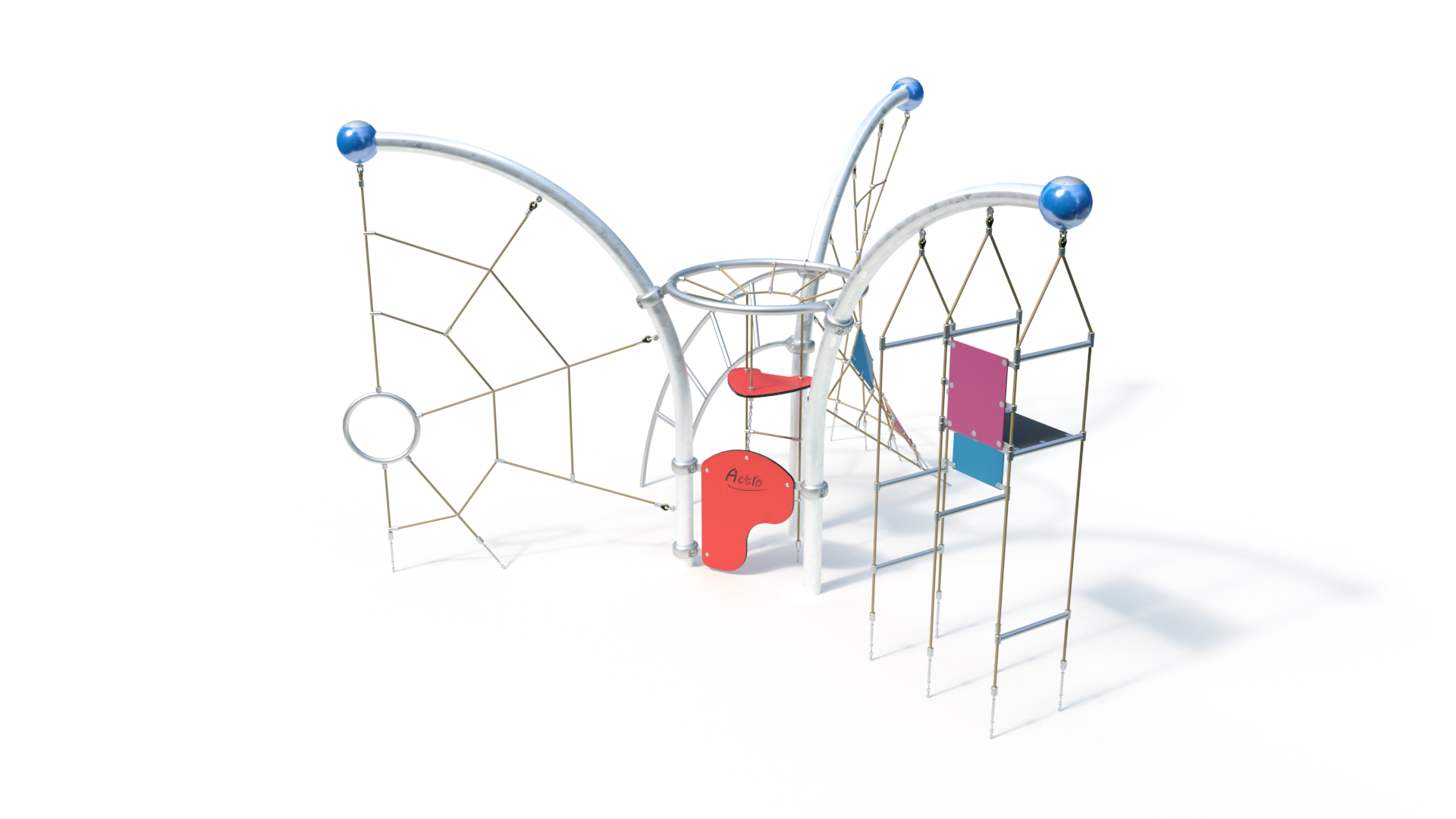

Item number: 027362000
