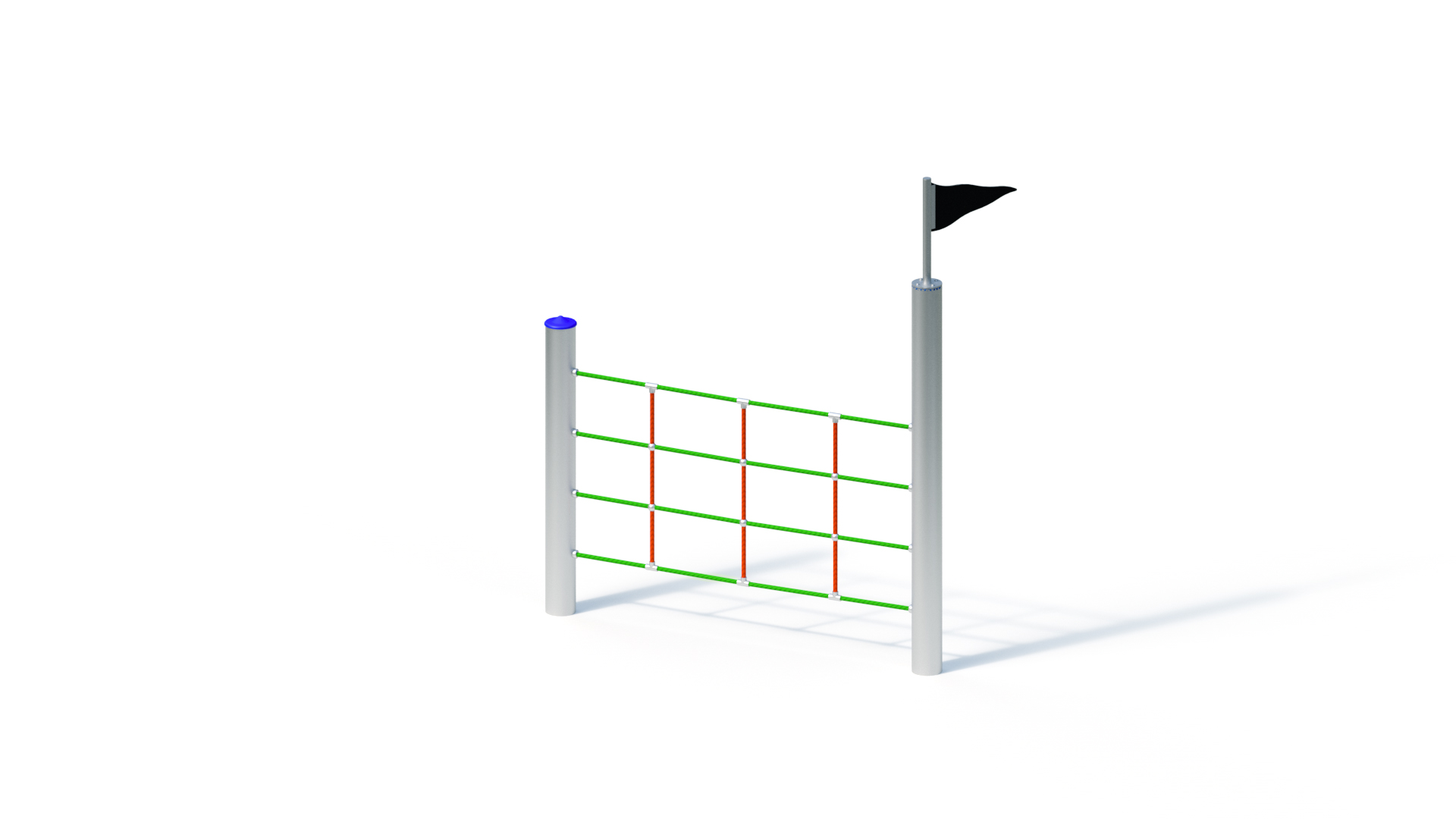

Climbing net

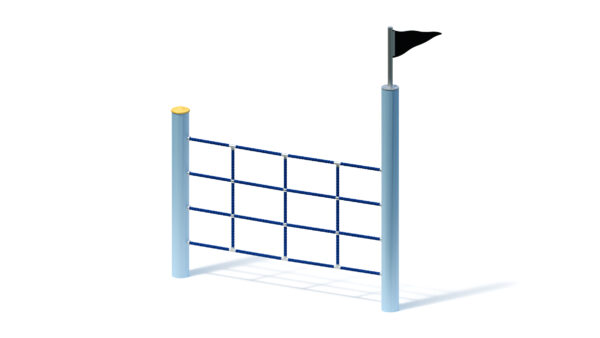

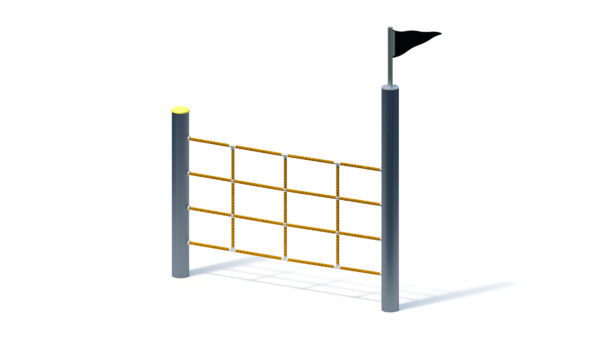

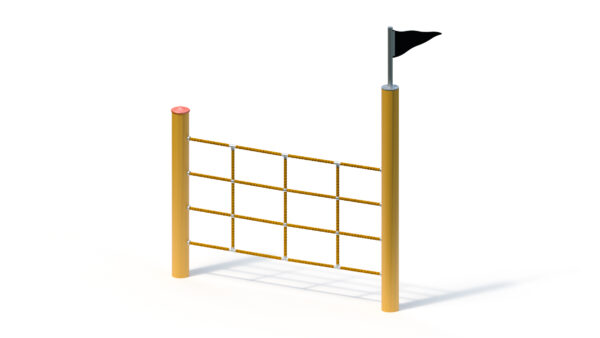

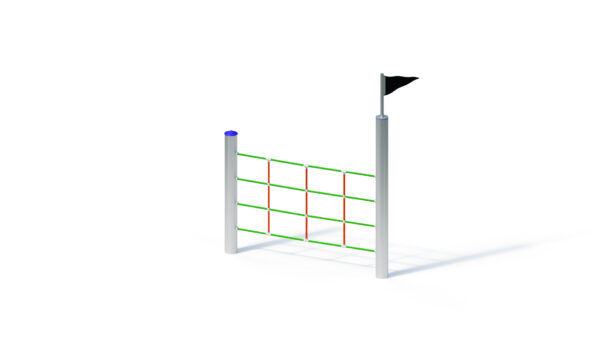

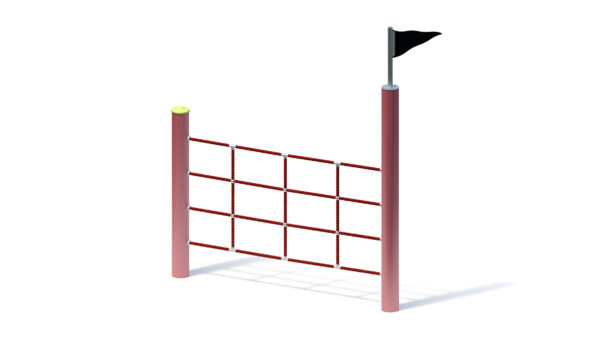

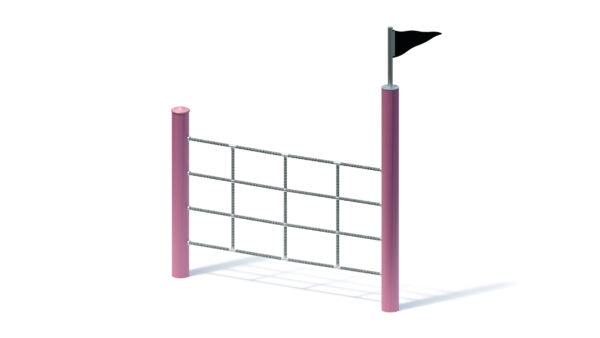

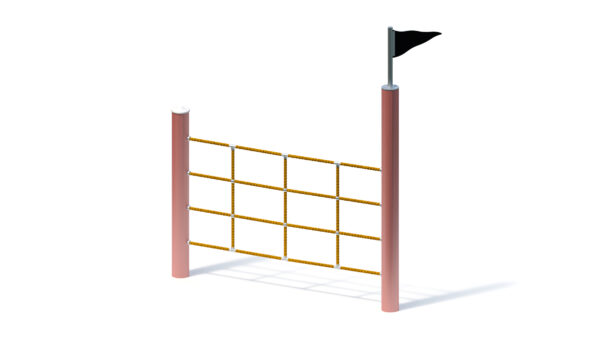

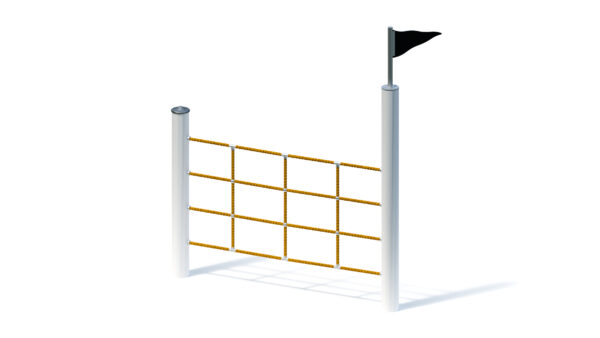

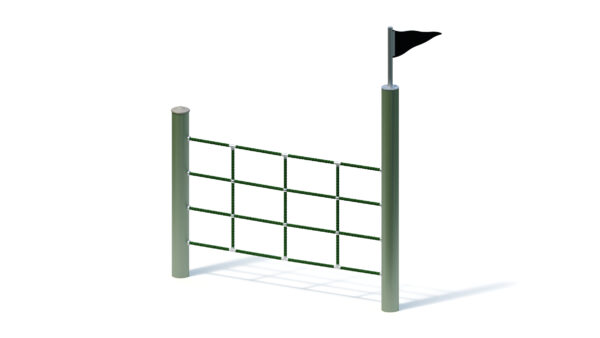

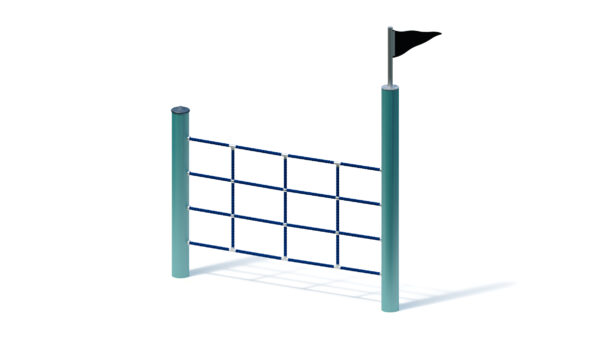

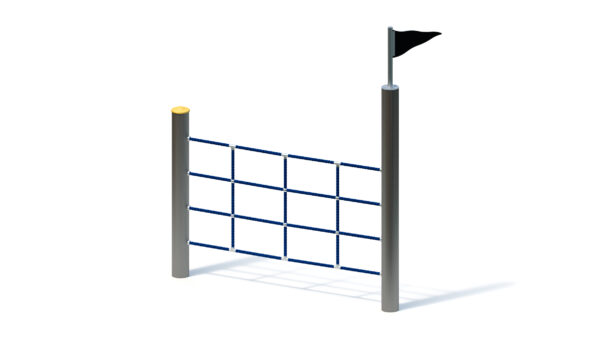

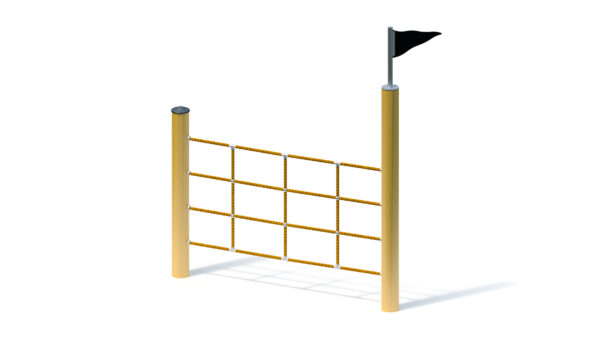

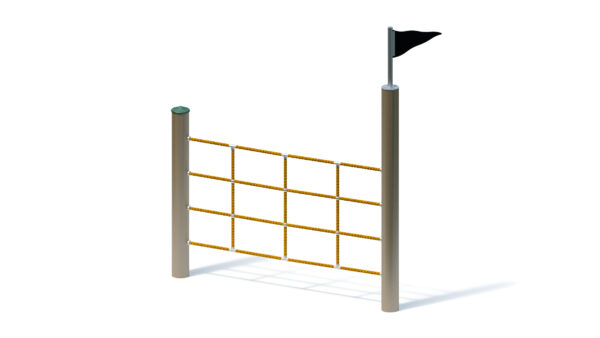

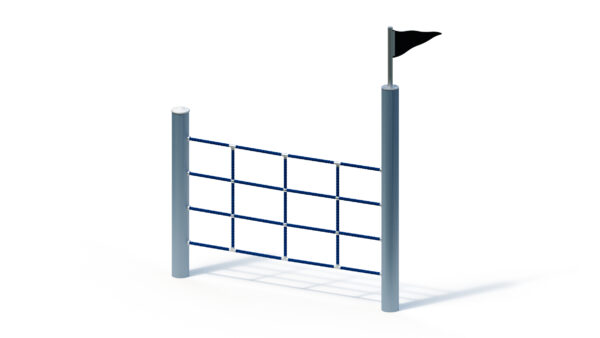

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 4,75 m |
|---|---|
| Minimum space width ? | 3,15 m |
| Minimum space height ? | 2,05 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 0,12 m |
| Equipment height ? | 2,05 m |
| Free-fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 55.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.5m x 0.5m x 0.6m) |
Product Downloads
Product description
Technical data
Base area: 0.12 x 1.75 m

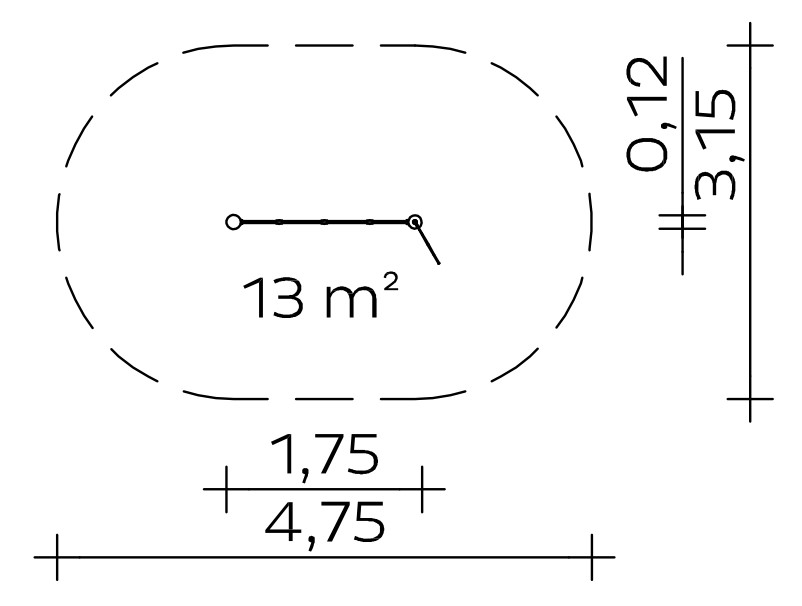

Minimum space: 3.15 x 4.75 m (13 m²)
Climbing net height: 1.00 m
Total height: 2.05 m
Weight: 25 kg heaviest individual part
55 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing net 0.75 x 1.60 m red/green, Ø 16 mm
- Rubber flag with fabric insert for attachment to the stand post
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.50 x 0.50 x 0.60 m
Concrete quantity: 0.30 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,00 m
Suitable for
Children aged 3 and over,
public playgrounds etc.
sporting activities.
Item number: 055110500
