Parallel bars (1,10)

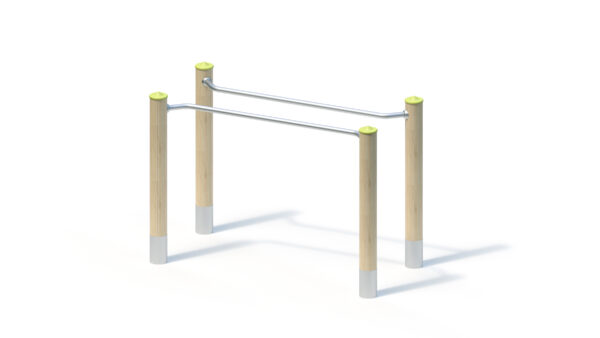

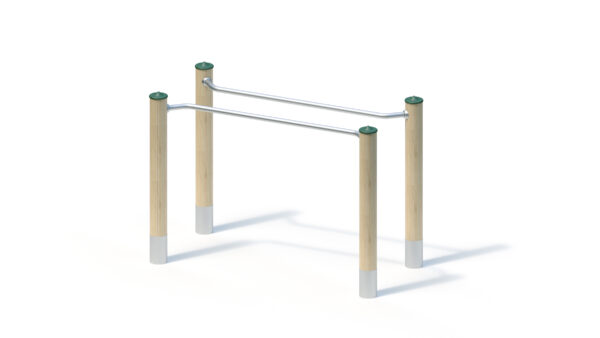

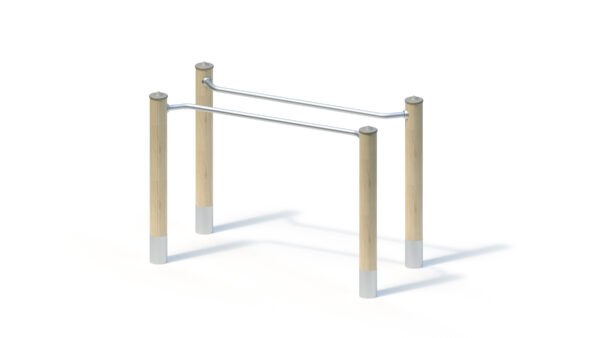

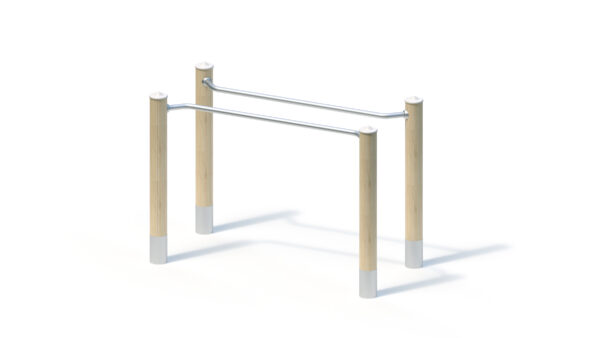

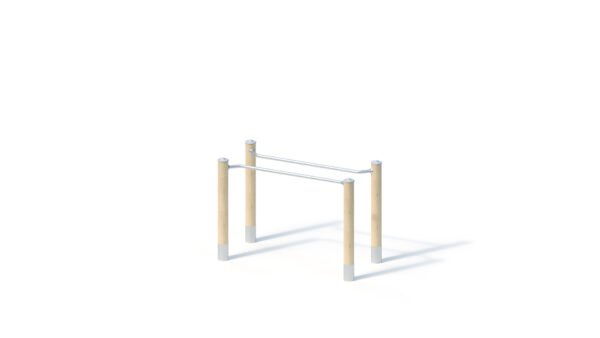

Select variant:
The most important information
| Age group ? | 8+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 1 person |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 4,75 m |
|---|---|
| Minimum space width ? | 3,85 m |
| Minimum space height ? | 1,25 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 0,85 m |
| Equipment height ? | 1,25 m |
| Free-fall height ? | 1,12 m |
| Platform heights | - |
| Total weight ? | 75.00 kg |
| Heaviest single part ? | 20.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

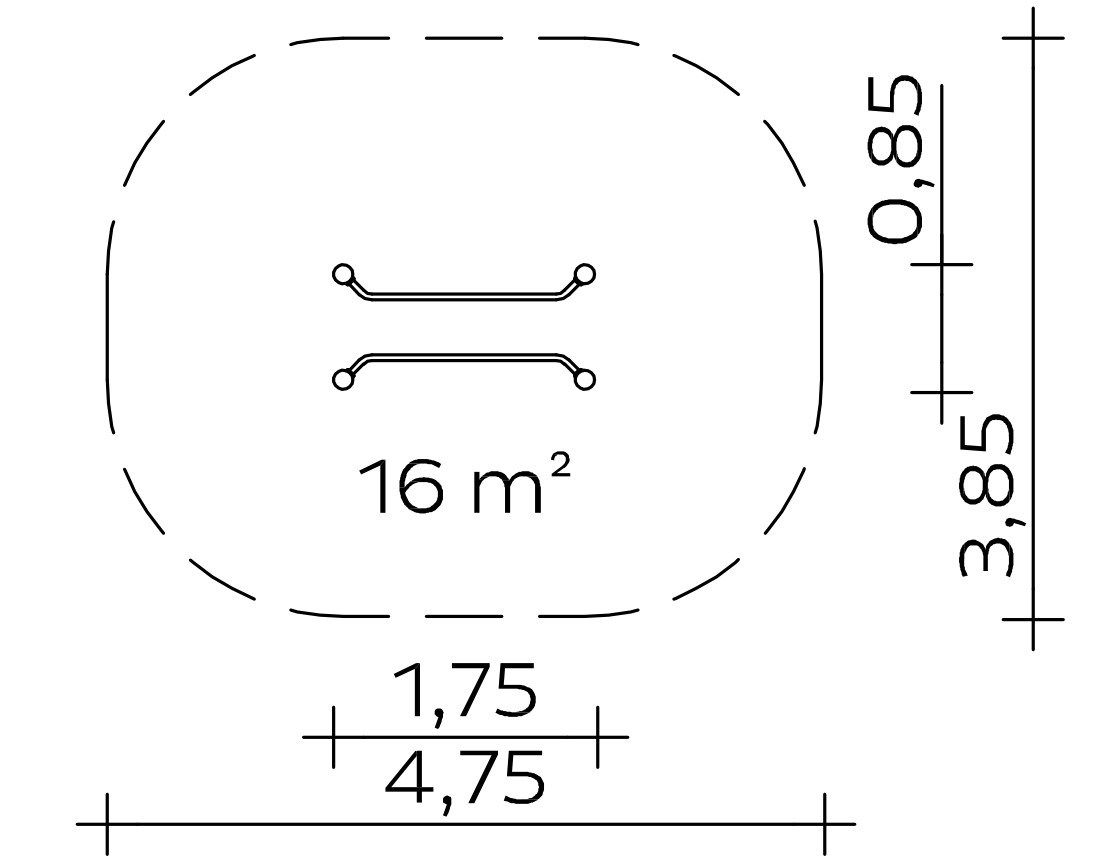

Base area: 1.75 x 0.85 m
Minimum space: 4.75 x 3.85 m (16 m²)
Total height: 1.25 m
Bar height: 1.10 m
Weight: 20 kg heaviest individual part
75 kg in total
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level
Attachments
Bar uprights made of stainless steel tube, Ø 38 x 2.5 mm, torsion-resistant.
Clear width between the bars: 0.36 m
Metal components: Stainless steel 1.4301
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.50 x 0.50 x 0.50 m
Concrete quantity: 0.50 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
1,12 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053164700
