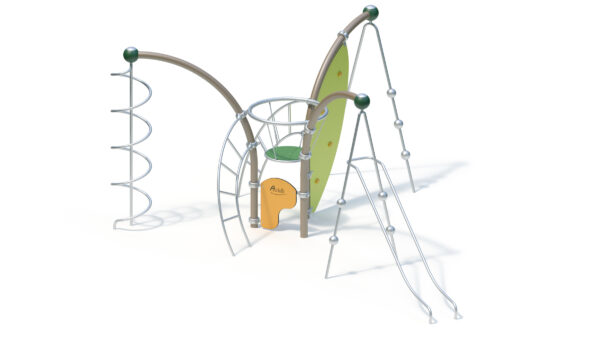

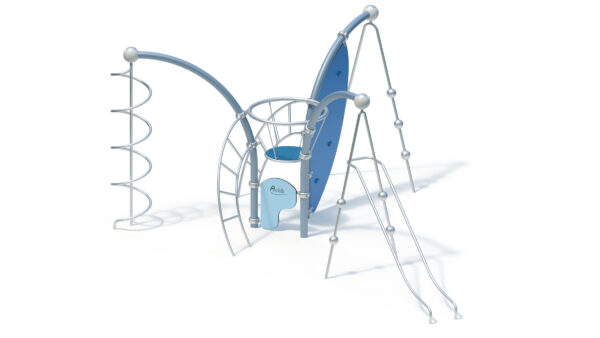

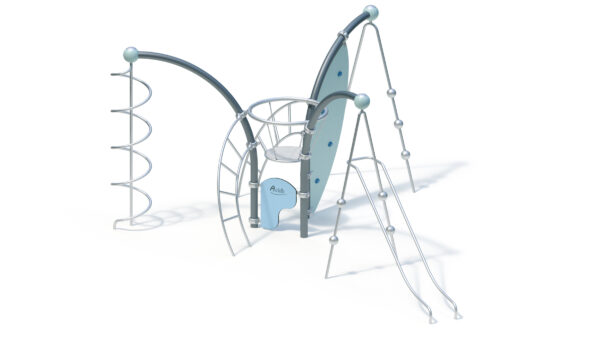

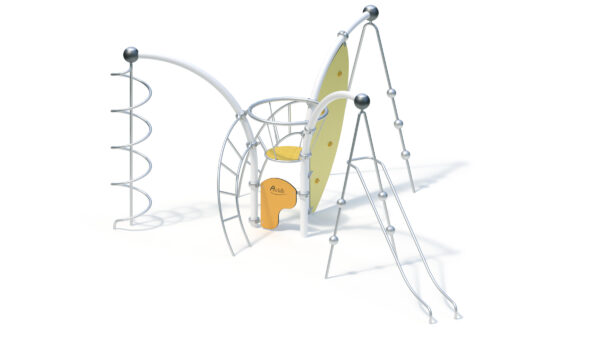

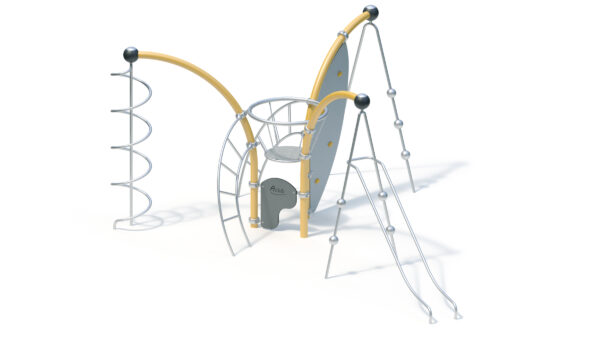

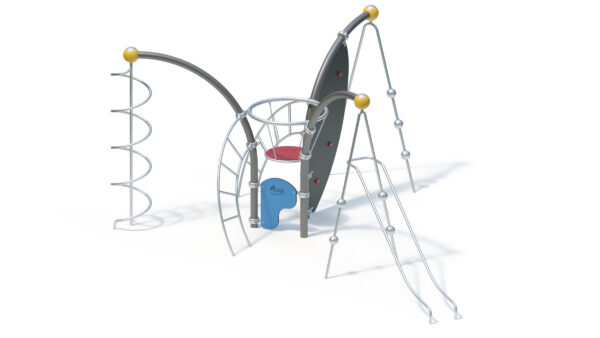

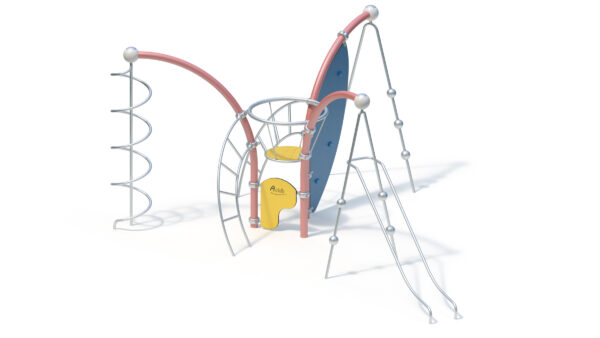

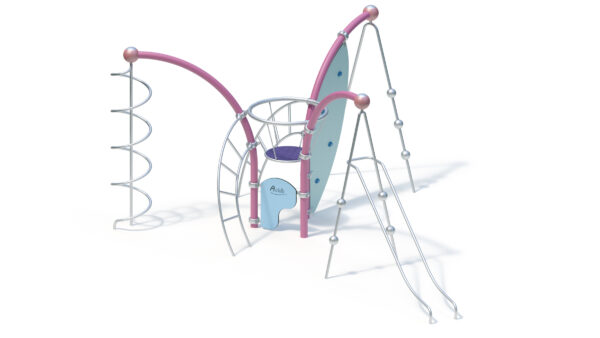

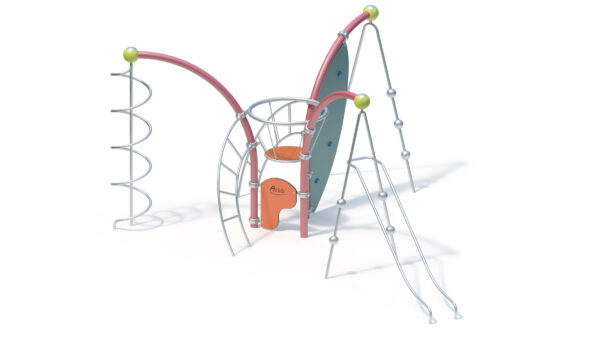

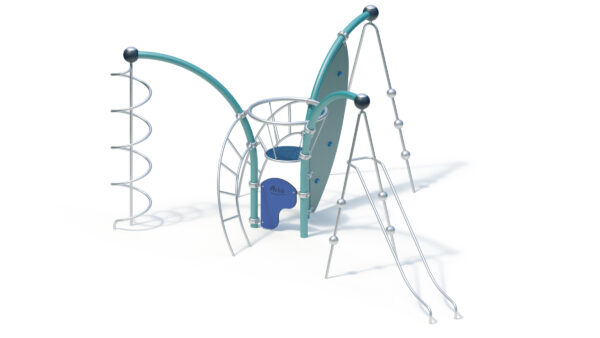

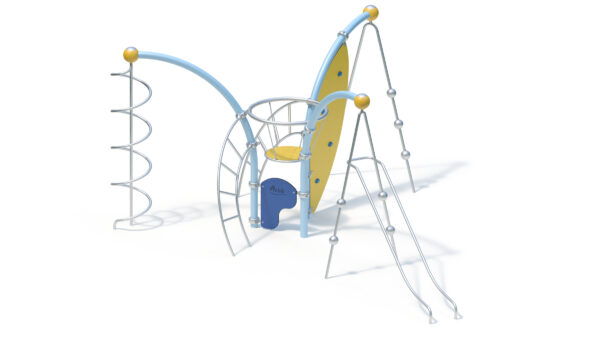

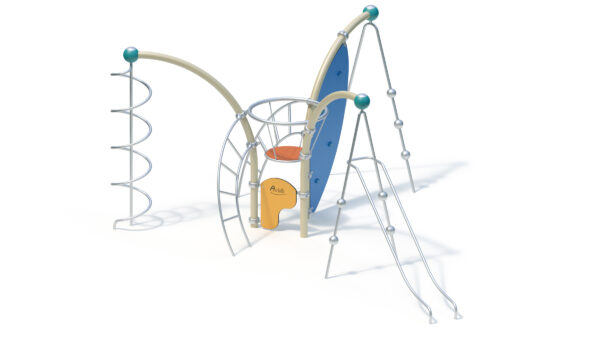

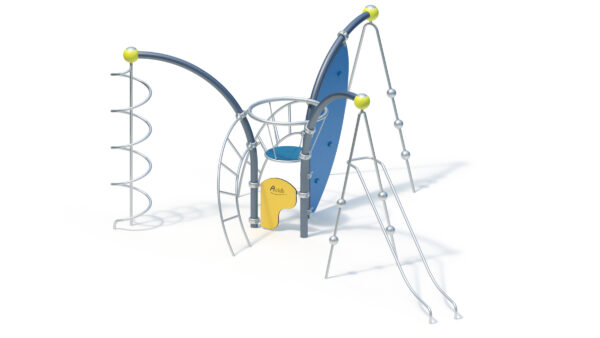

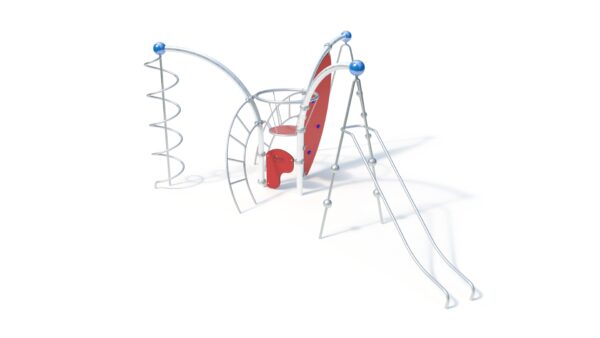

Technical data

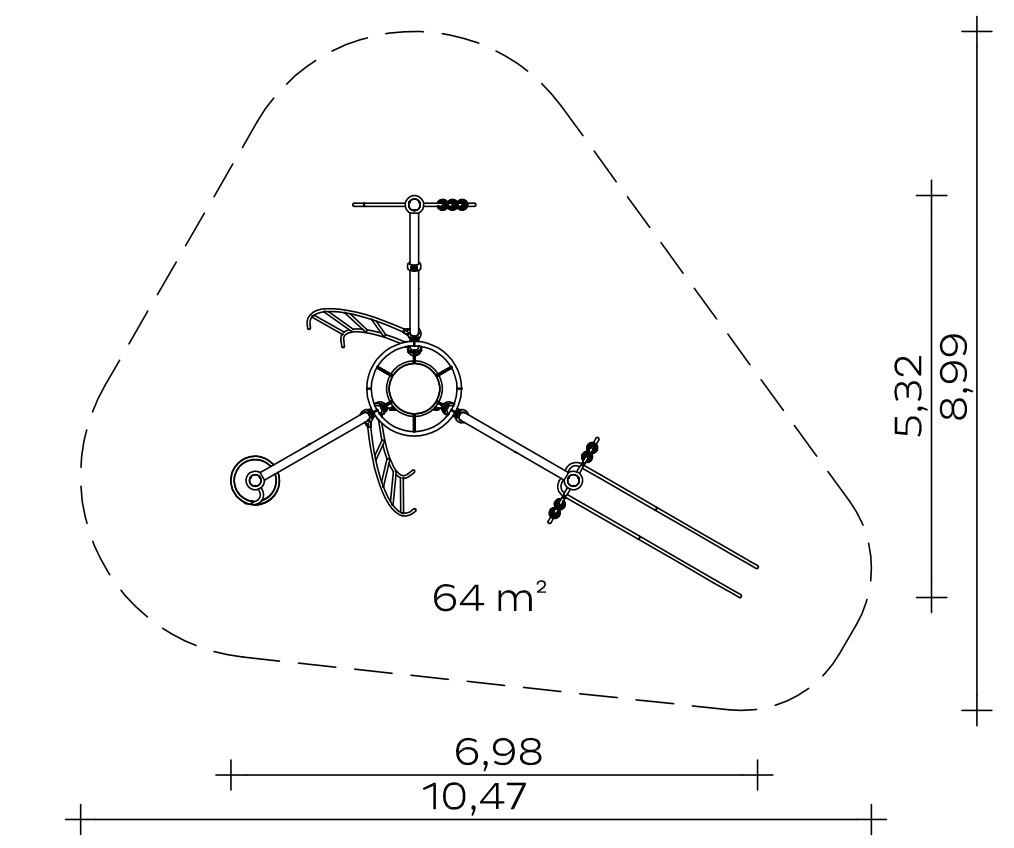

Equipment room: 6.98 x 5.32 x 2.93 m
Minimum space: 10.47 x 8.99 x 2.93 m
Impact area: 64 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
571 kg in total

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations

Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Wobble Disc
- Welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
- Non-slip standing surface made of EPDM
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

Number of components for optional powder coating
3 pipe bends 90°
12 pcs. Aluminium clamp Ø 114 mm

Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
3 units 0.90 x 0.40 x 0.50 m
5 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 2.50 m³

Assembly time
3 fitters 5 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027315001
