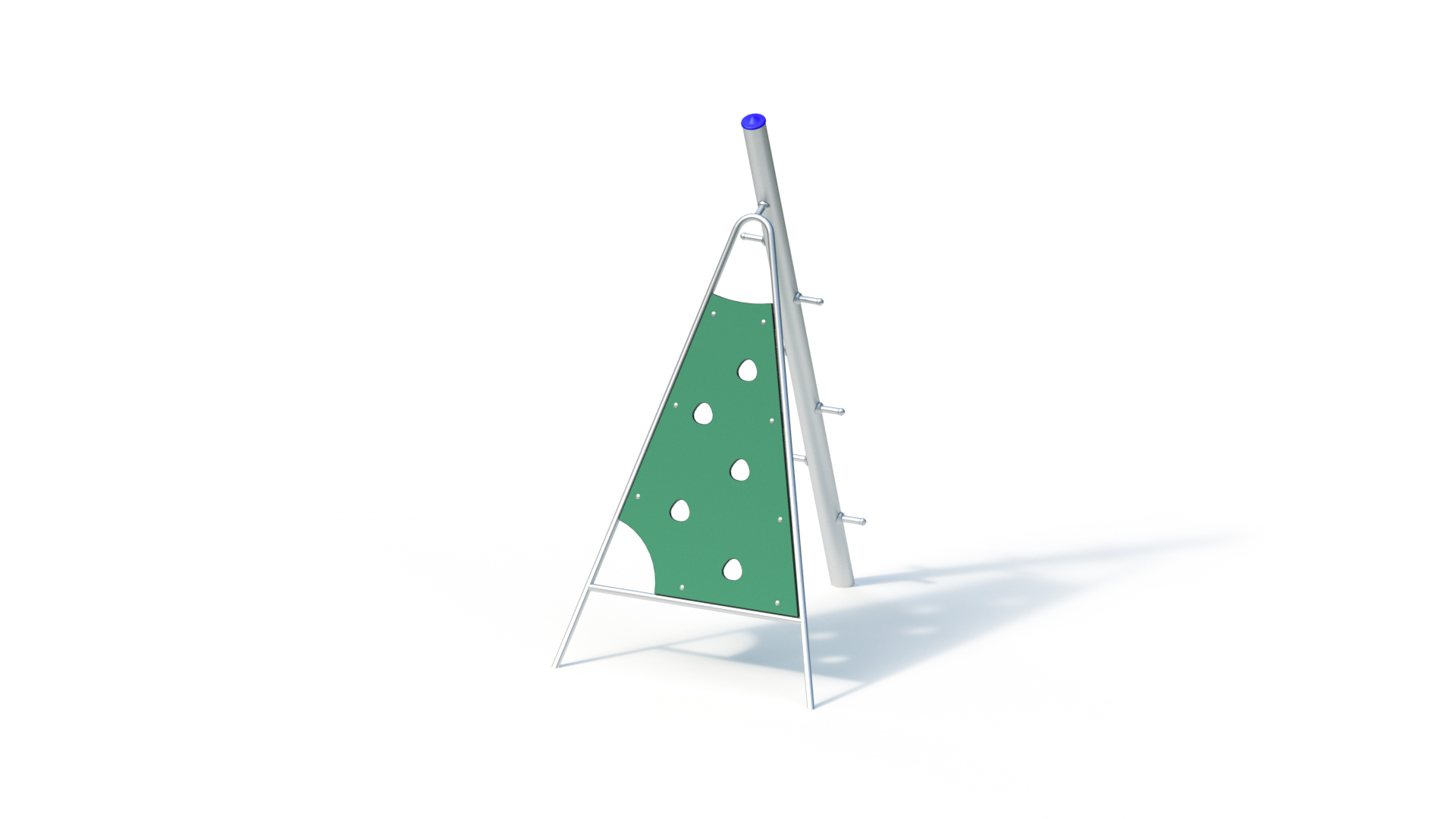

Climbing combination

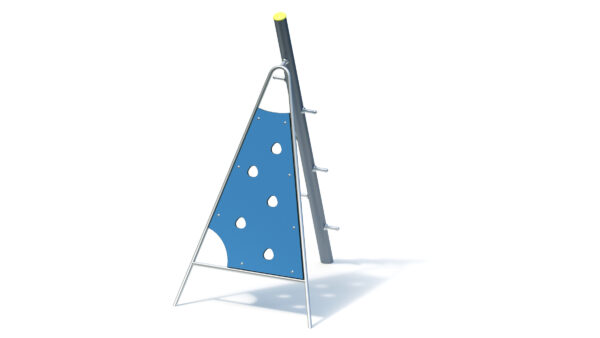

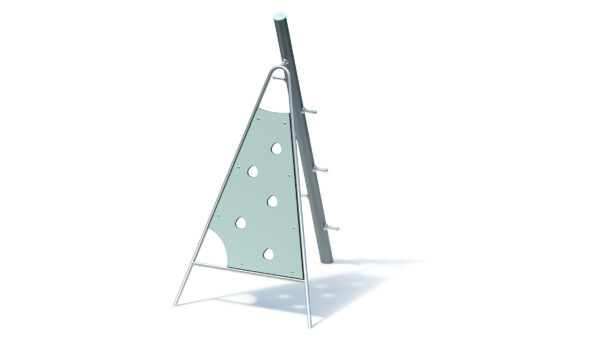

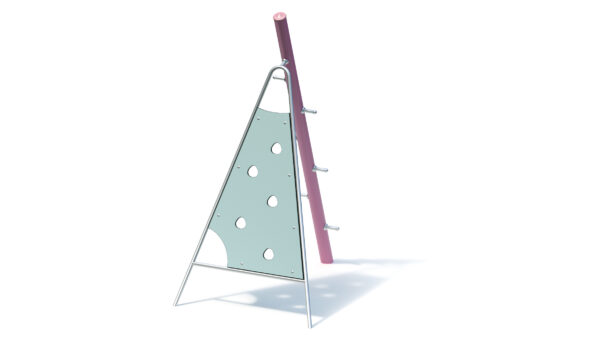

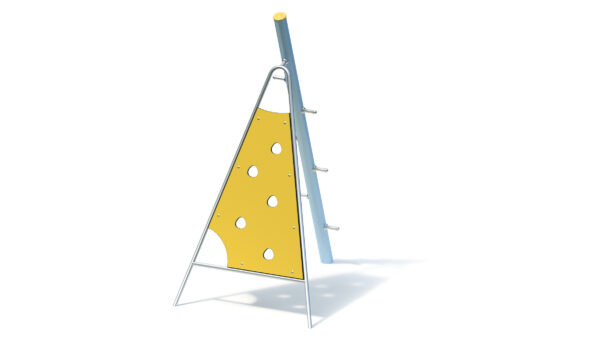

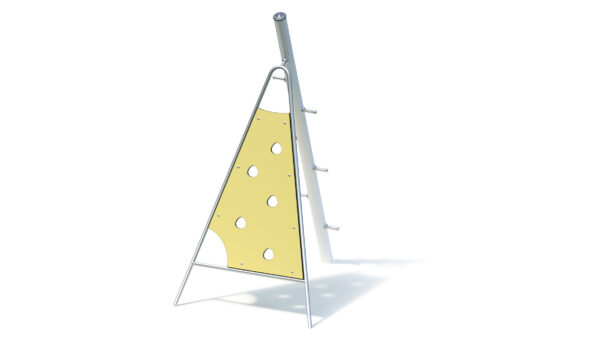

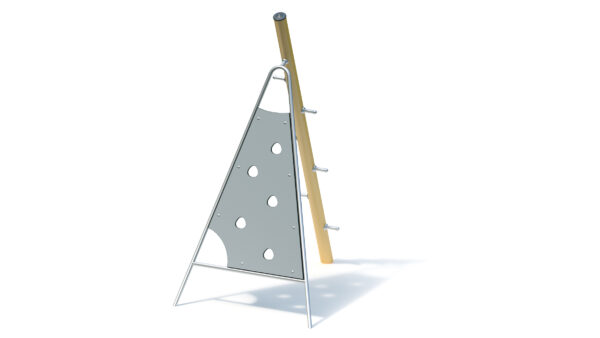

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 1,90 m |
|---|---|
| Gerätebreite ? | 1,50 m |
| Gerätehöhe ? | 2,80 m |
| Freie Fallhöhe ? | 2,05 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 90.00 kg |
| Schwerstes Einzelteil ? | 50.00 kg |
| Mindestraumlänge ? | 4,90 m |
| Mindestraumbreite ? | 4,50 m |
| Mindestraumhöhe ? | 2,80 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.6m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

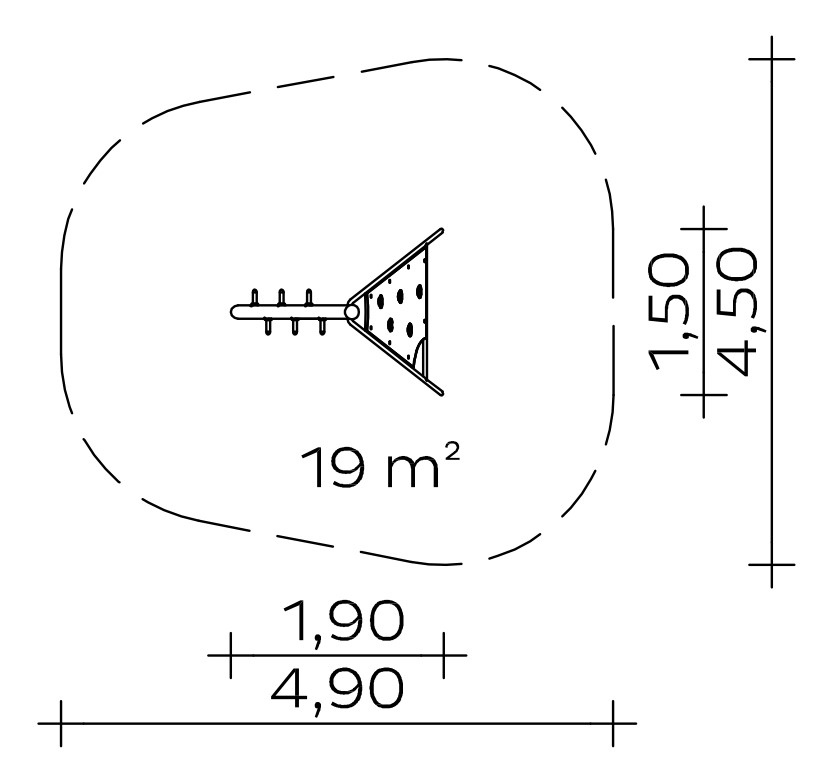

Base area: 1.50 x 1.90 m
Minimum space: 4.50 x 4.90 x 2.80 m (19 m²)
Total height: 2.80 m
Weight: 50 kg heaviest individual part
90 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing aid made of stainless steel tube 33.7 x 2 mm, glass bead blasted, with spherical end Ø 50 mm
- Triangular climbing wall made of highly weather-resistant HPL laminate, 20 mm. Frame made of stainless steel tube, climbing openings
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.60 x 0.40 x 0.40 m
Concrete quantity: 0.20 m³
Assembly time
2 fitters per 0.5 hour
(without foundation)
Free fall height
2,05 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities
Item number: 055120500
