Products
Climbing combination

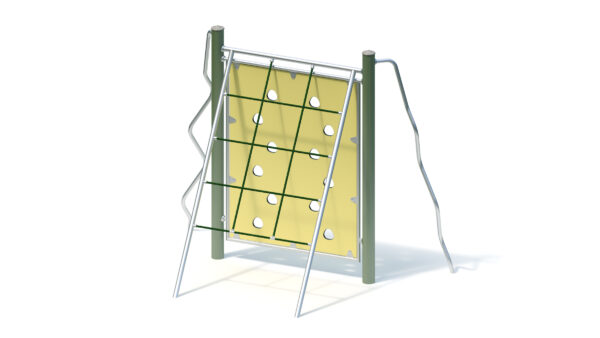

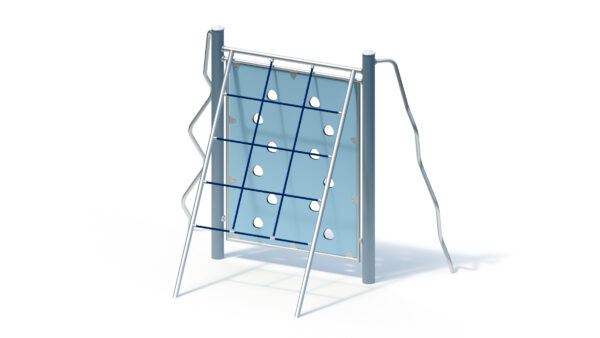

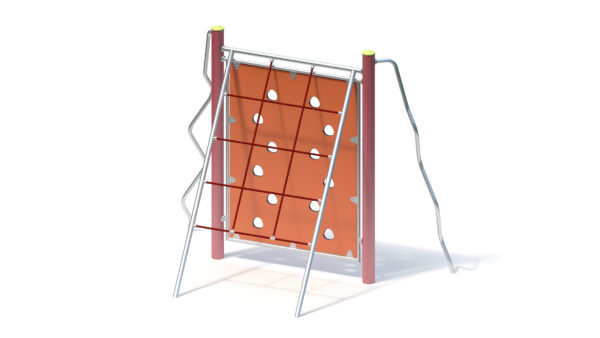

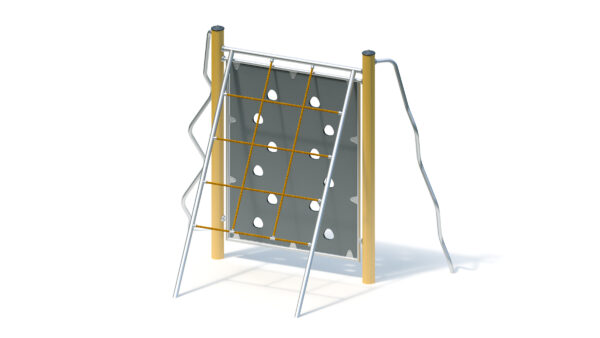

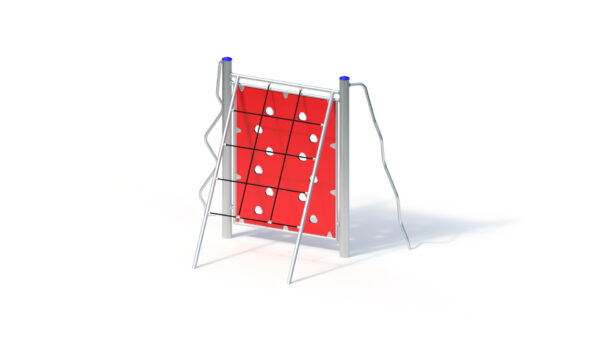

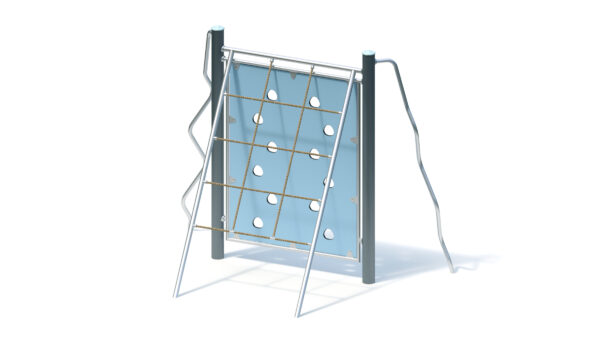

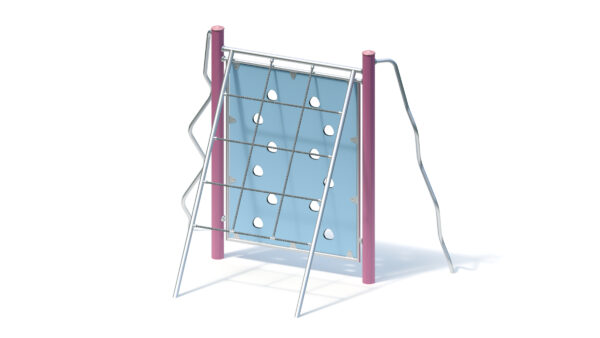

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 2,85 m |
|---|---|
| Gerätebreite ? | 1,85 m |
| Gerätehöhe ? | 2,35 m |
| Freie Fallhöhe ? | 2,15 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 160.00 kg |
| Schwerstes Einzelteil ? | 60.00 kg |
| Mindestraumlänge ? | 5,85 m |
| Mindestraumbreite ? | 4,85 m |
| Mindestraumhöhe ? | 2,35 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 2 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data
Floor area: 1.85 x 2.85 m
Minimum space: 4.85 x 5.85 m (24 m²)
Total height: 2.35 m
Weight: 60 kg heaviest individual part
160 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 12 climbing openings
- Boarding net made of Hercules rope on stainless steel crossbar
- Inclined climbing pole, corrugated, inclination 15°, made of stainless steel
Metal components: The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
2 units 0.40 x 0.40 x 0.60 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
2,22 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055390501
Dieses Kaiser & Kühne-Produkt ermöglicht:
