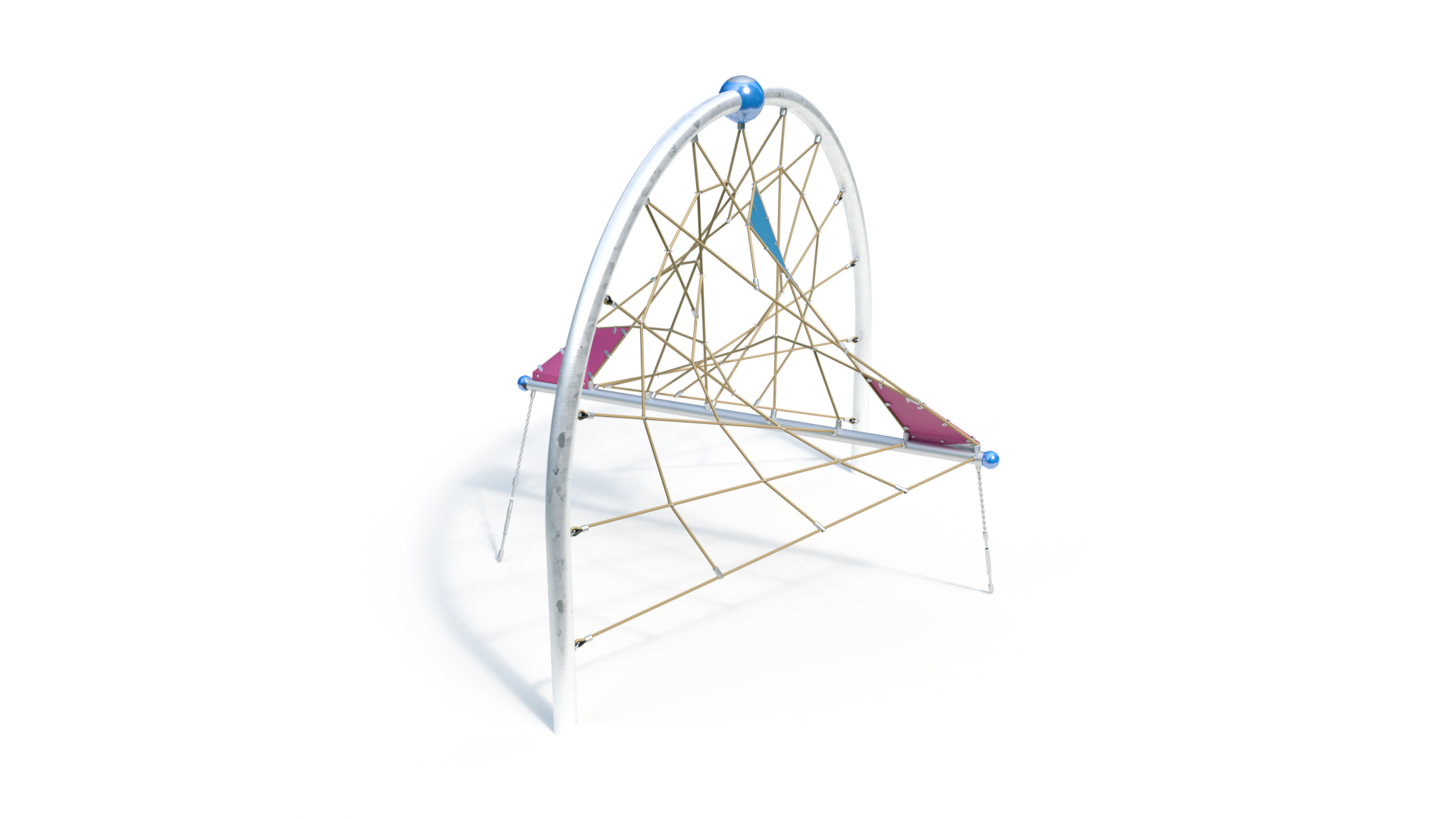

Actio 289

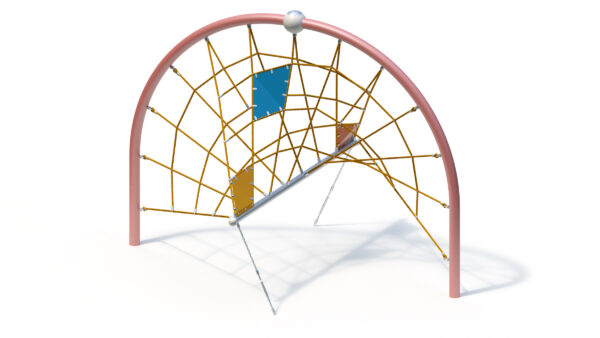

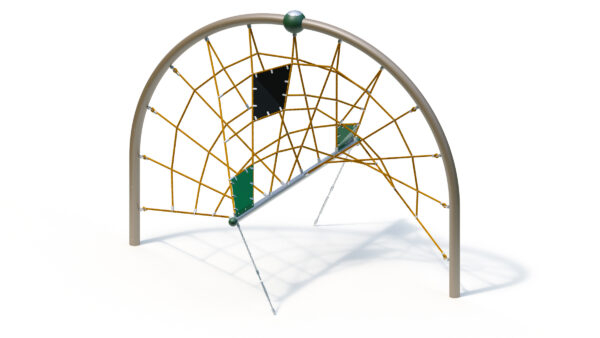

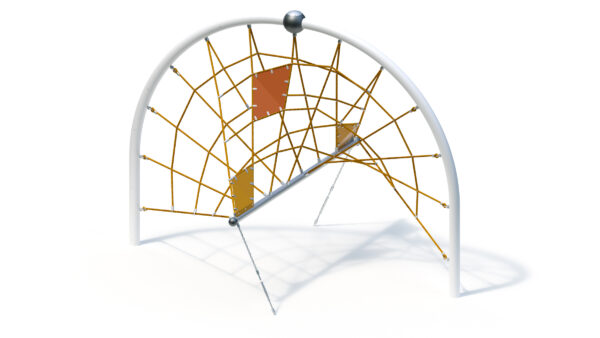

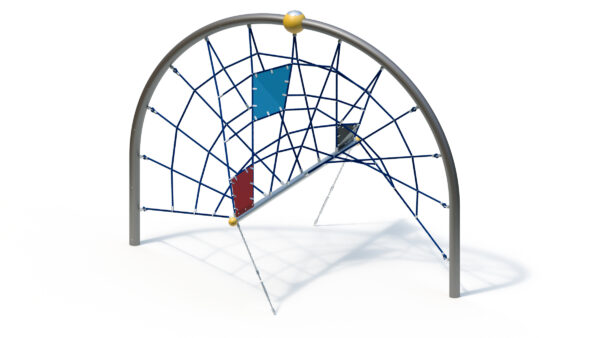

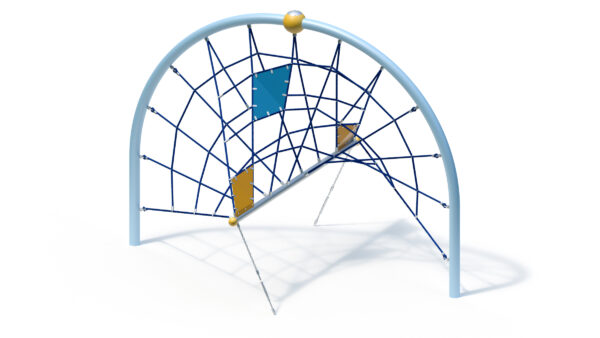

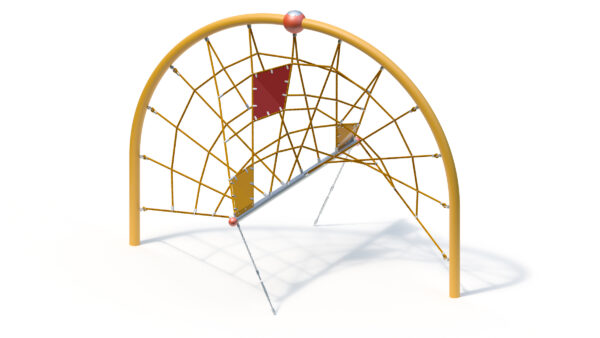

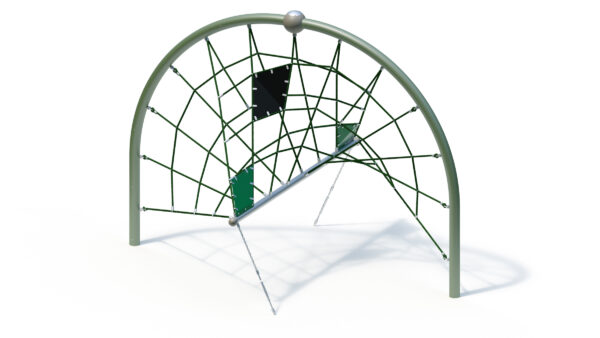

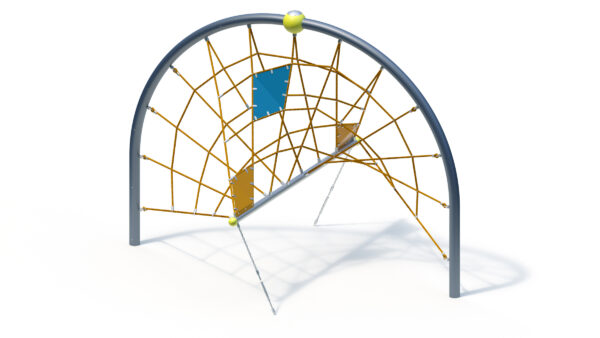

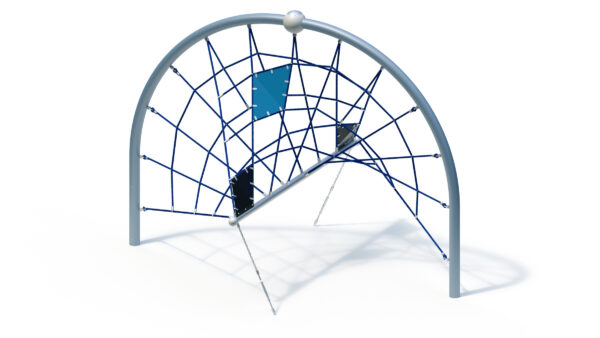

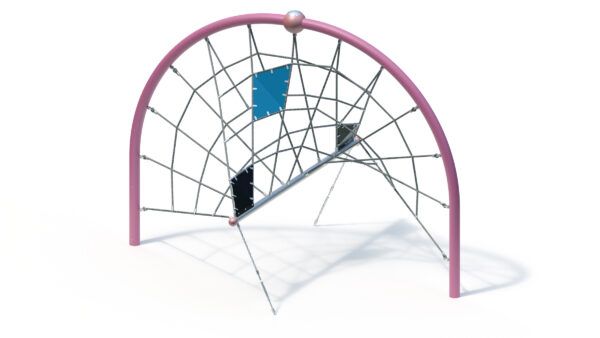

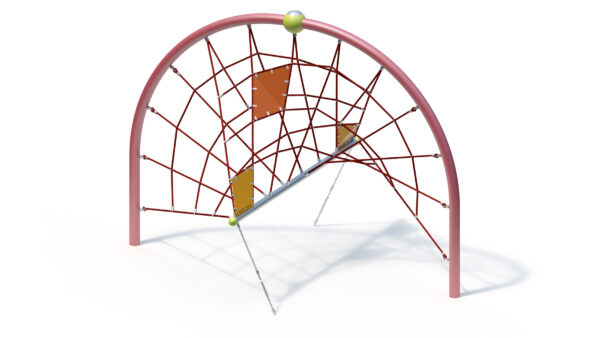

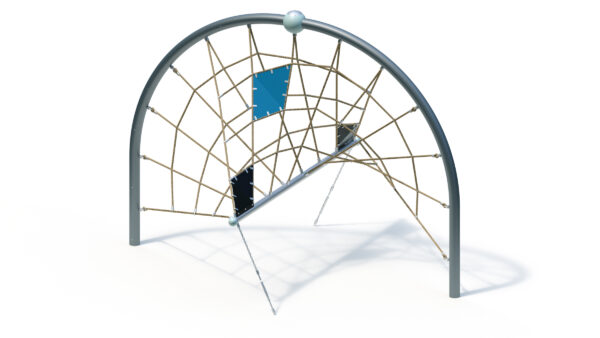

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 15 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 6,93 m |
|---|---|
| Minimum space width ? | 6,04 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 3,93 m |
| Equipment width ? | 3,04 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 180.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (1.3m x 0.5m x 0.5m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

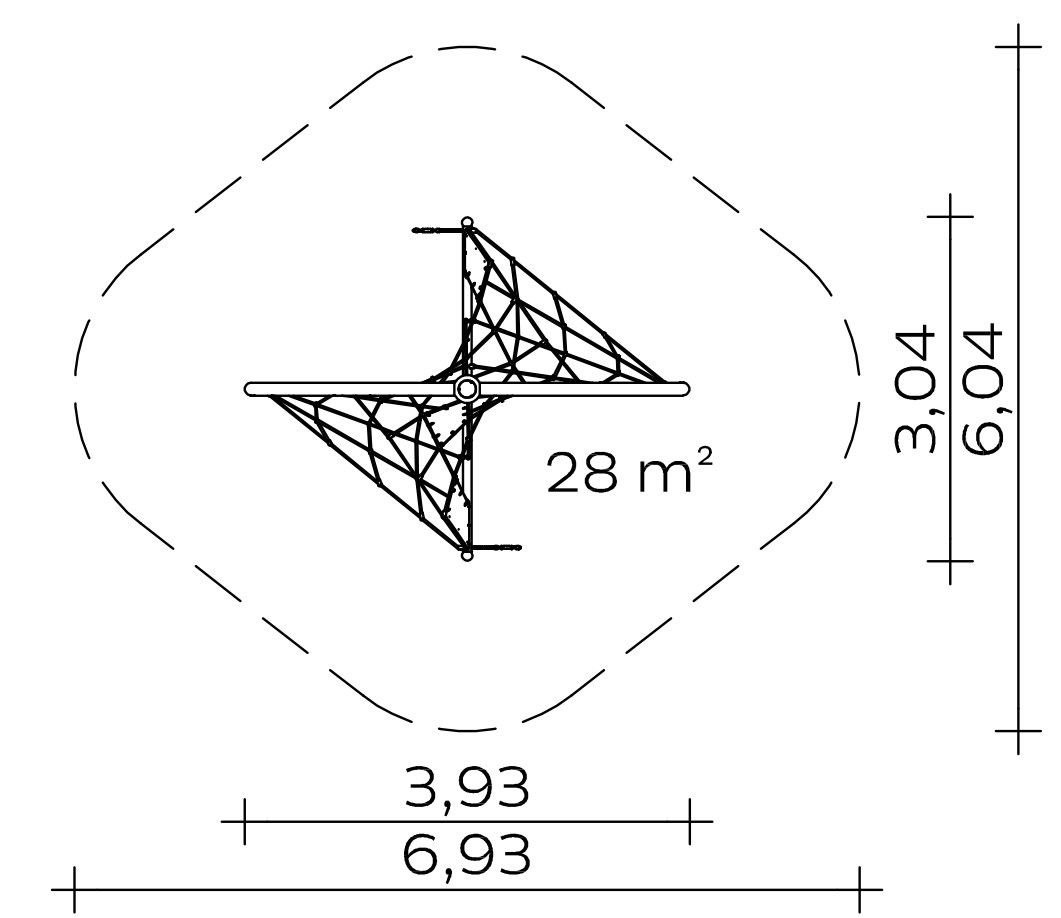

Equipment room: 3.93 x 3.04 x 2.93 m
Minimum space: 6.93 x 6.04 x 5.93 m
Impact area: 28 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
180 kg in total
Arc 90° Vortex
- Steel pipe bend, hot-dip galvanised, Ø 114.3 x 3.6 mm (powder-coated in RAL colour of choice on request)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 16.2 mm, with plain bearing bush IGUS (plastic)
Vortex
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connectors and T-connectors made of aluminium
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced
- Rubber mats attached using U-brackets (stainless steel)
- Cross tube (Ø 76.1 x 3.6 mm) welded with 16 x clamping tube, 2 x chain adapter, 2 x round ball holder, 2 x sheet metal for rubber holder
- Ground fixing: Stainless steel chains (Ø 7 mm), screwed at the top end with chain adapter, attached at the bottom to the foundation tube (Ø 38 x 2 mm)
Foundations (client-provided)
2 x 1.30 x 0.50 x 0.50 m
2 x 0.60 x 0.60 x 0.50 m
Concrete quantity: 1 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027289000
