Climbing combination

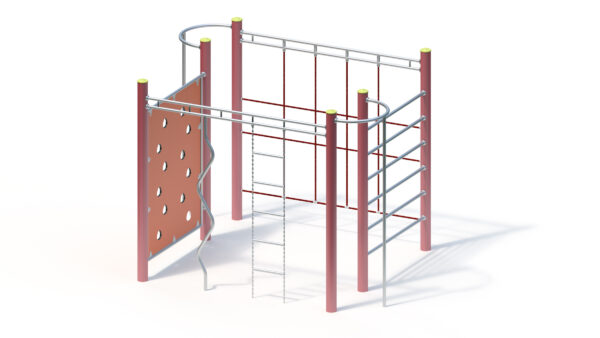

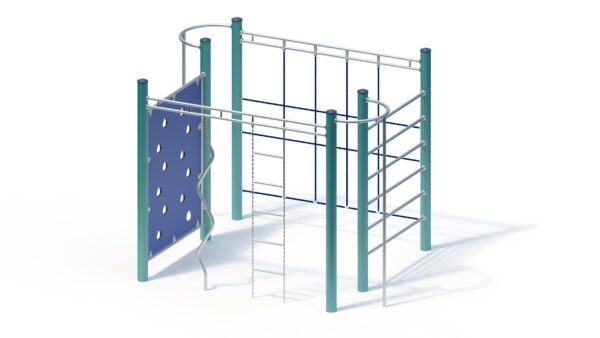

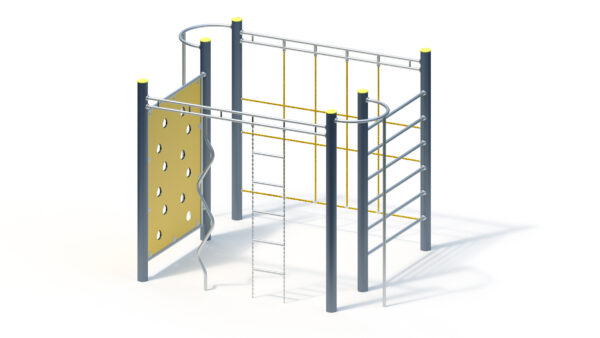

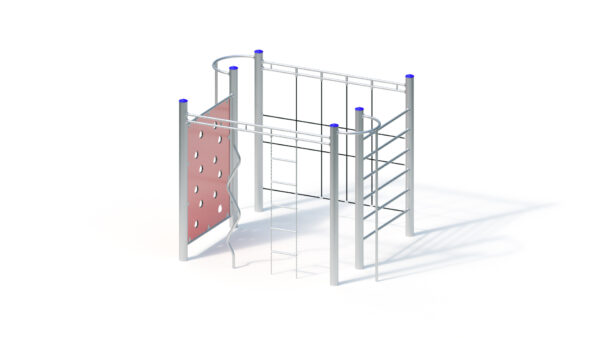

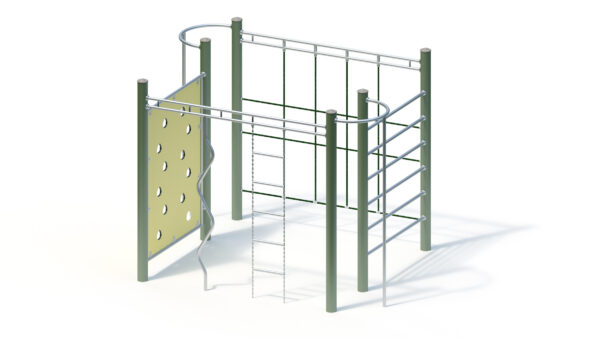

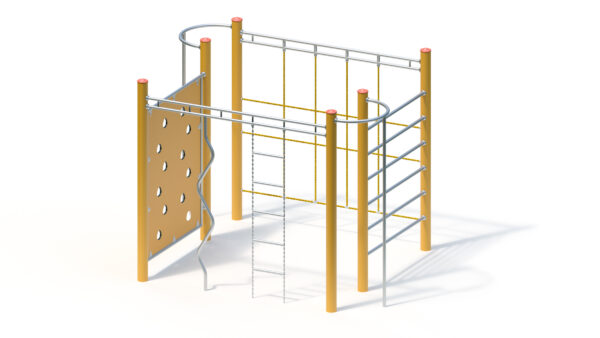

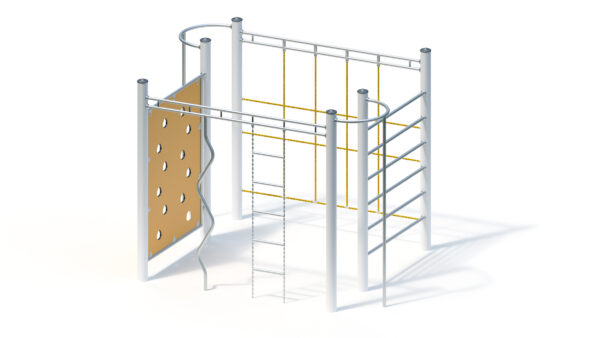

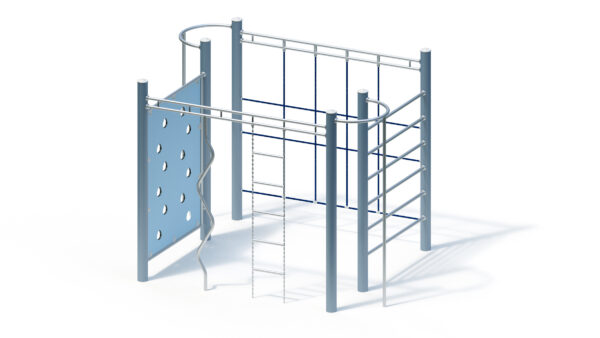

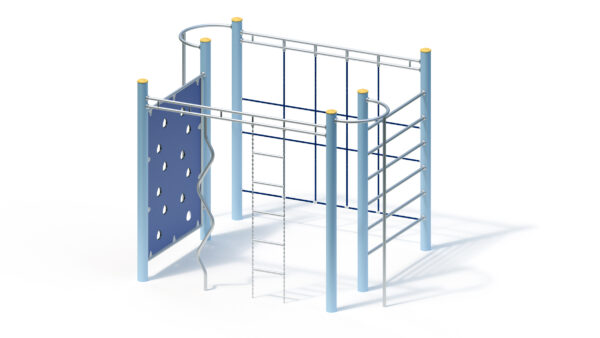

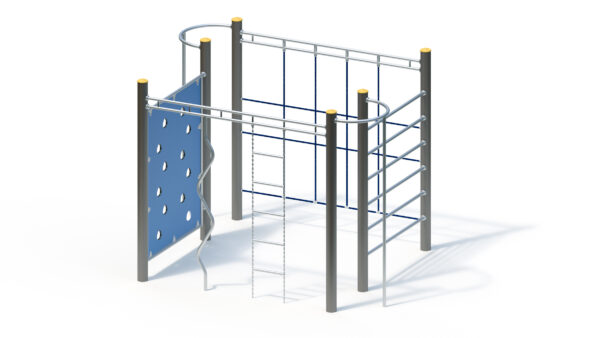

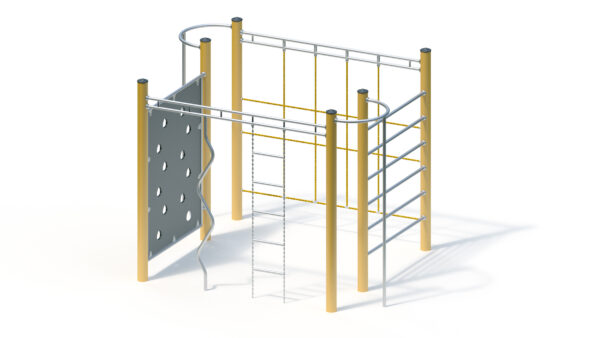

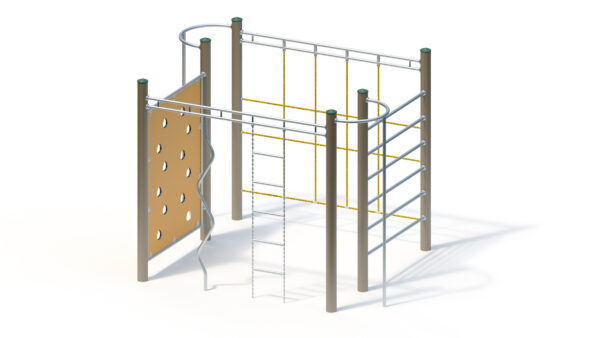

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 14 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 3,40 m |
|---|---|
| Gerätebreite ? | 2,55 m |
| Gerätehöhe ? | 2,45 m |
| Freie Fallhöhe ? | 2,32 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 285.00 kg |
| Schwerstes Einzelteil ? | 55.00 kg |
| Mindestraumlänge ? | 7,45 m |
| Mindestraumbreite ? | 6,60 m |
| Mindestraumhöhe ? | 2,45 m |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 2.55 x 3.40 m
Minimum space: 6.60 x 7.45 m (41 m²)
Total height: 2.45 m
Weight: 55 kg heaviest individual part
285 kg in total
Support post
Support posts made of stainless steel tube Ø 120×3 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Chain ladder with stainless steel rungs
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm (red), frame made of stainless steel tube, 12 climbing openings
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.49 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
2,32 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities.
Item number: 055441501
