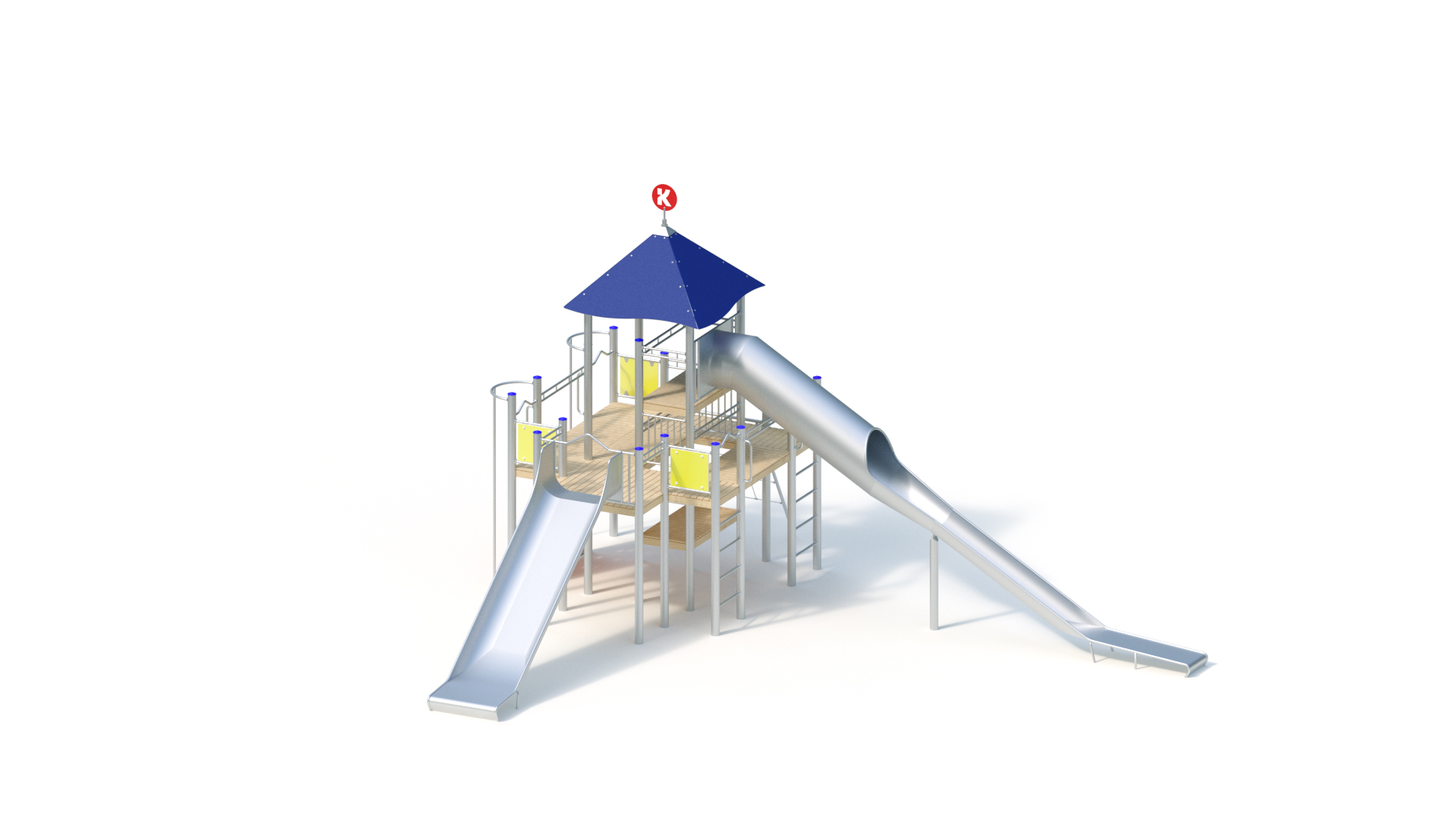

Climbing combination

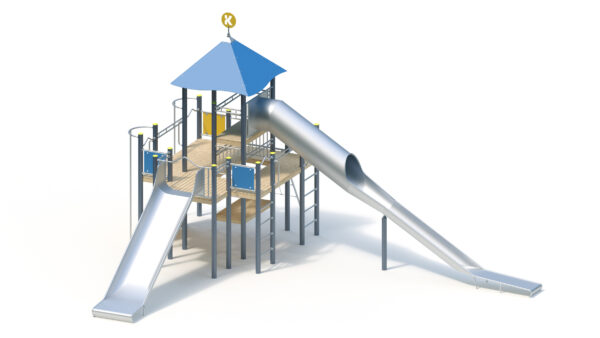

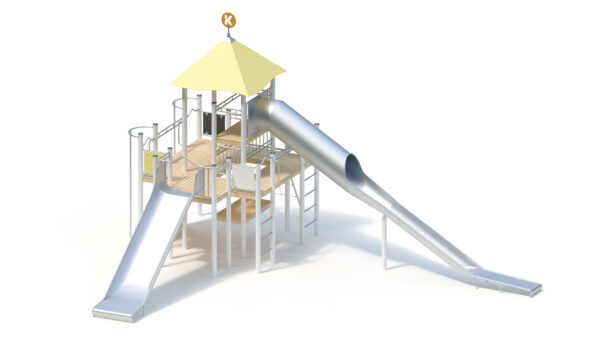

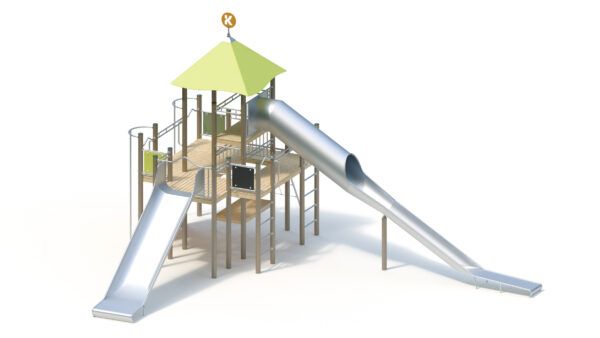

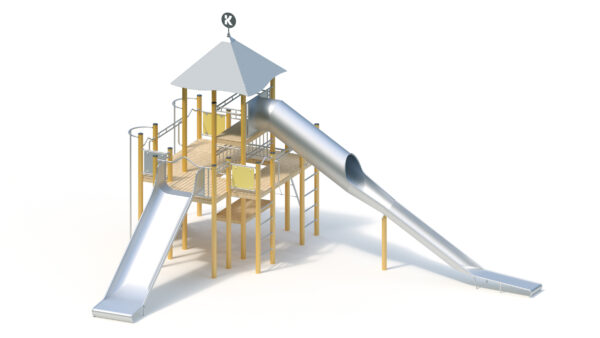

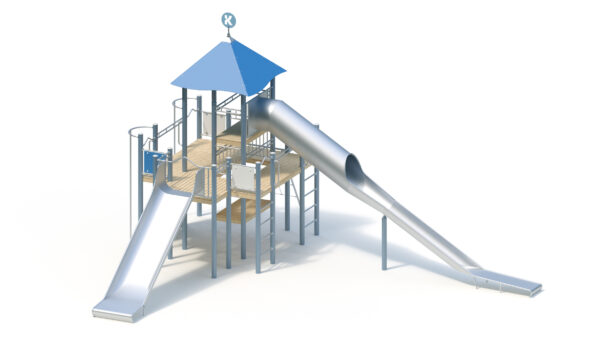

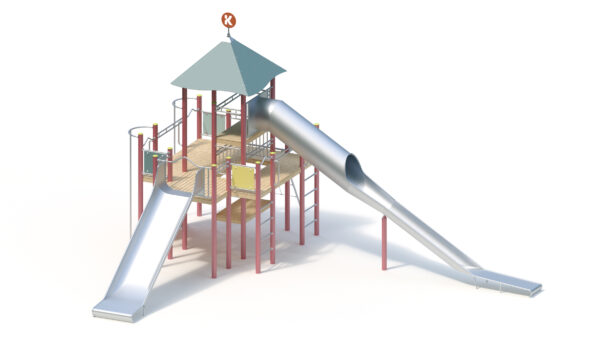

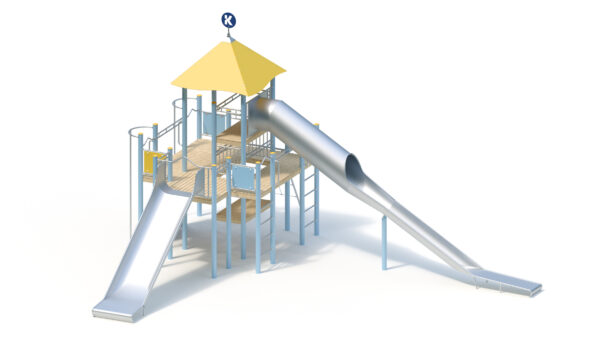

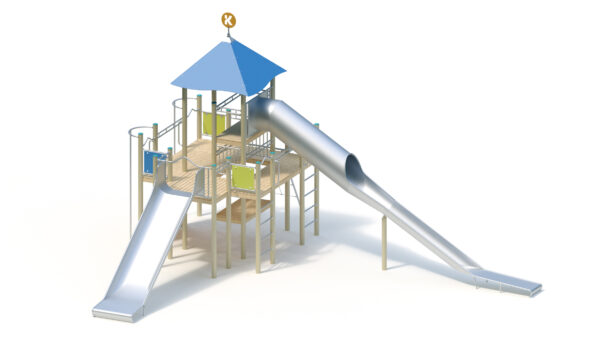

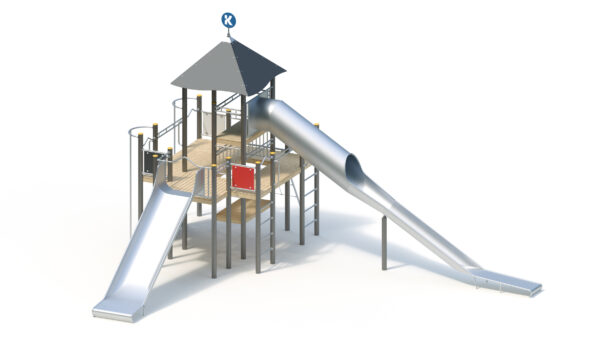

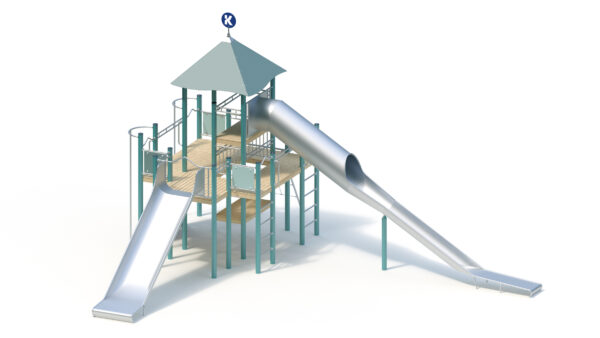

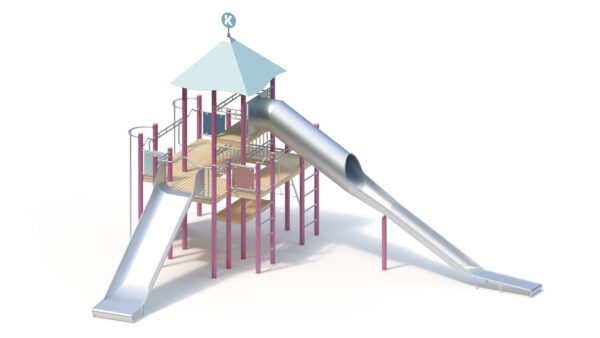

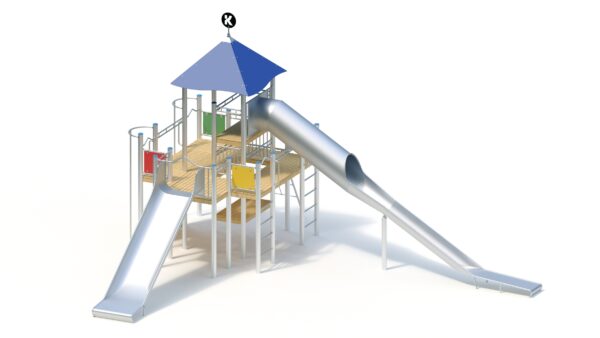

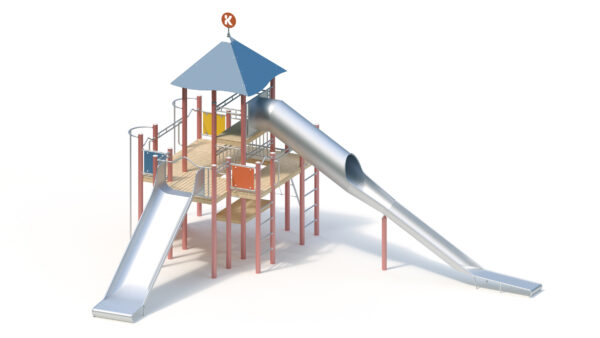

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 32 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 10,50 m |
|---|---|
| Device width ? | 9,25 m |
| Device height ? | 6,00 m |
| Free fall height ? | 2,10 m |
| Platform heights | - |
| Total weight ? | 1130.00 kg |
| Heaviest single item ? | 115.00 kg |
| Minimum room length ? | 14,30 m |
| Minimum room width ? | 12,75 m |
| Minimum room height ? | 6,00 m |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 4 persons |
| Lifting gear required | Yes |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

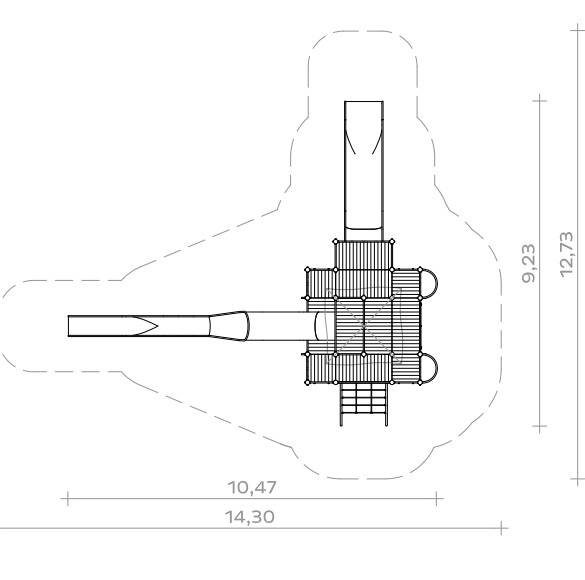

Floor area: 9.25 x 10.50 m
Minimum space: 12.75 x 14.30 m (95 m²)
Impact area: approx. 90 m²
Total height: 6.00 m
Platform height: 1.00/2.00/3.00 m
Seat height: 2.10/3.10 m
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (yellow), fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 12 climbing openings
- Boarding net made of Hercules rope on stainless steel crossbar
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Tent roof, inclination 45°, made of highly weather-resistant HPL laminate (blue), 13 mm, with wind chimes, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
- Tunnel slide, 0.60 m or 0.80 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with support posts made of stainless steel tube Ø 120 mm
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
20 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete volume: 2.07 m³
Assembly time
4 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
2,10 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 023831505
