Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

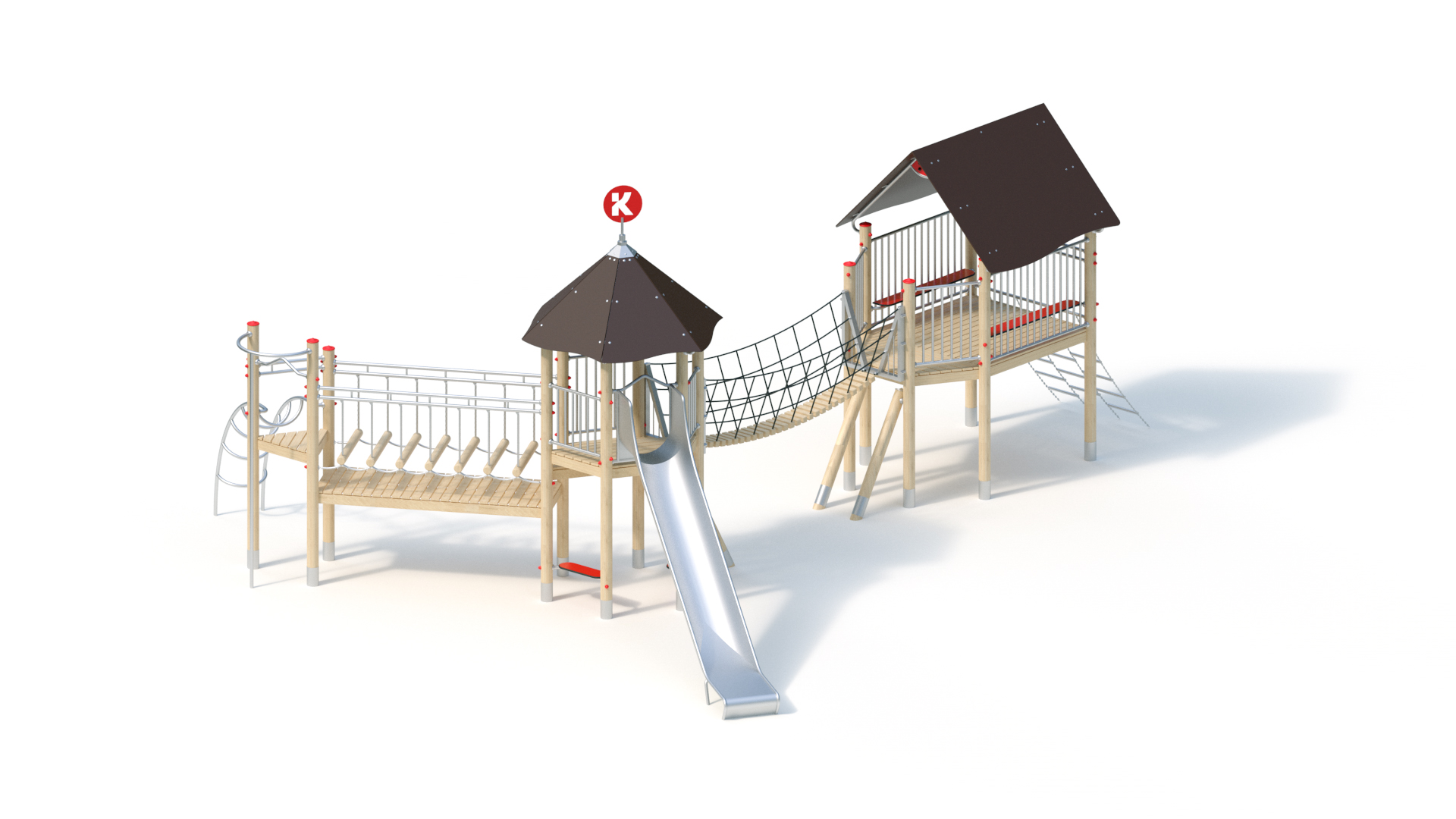

Play structure

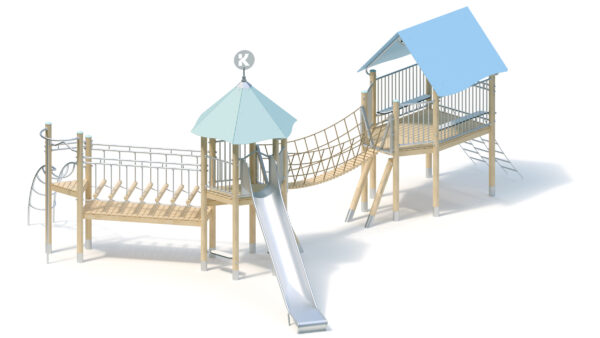

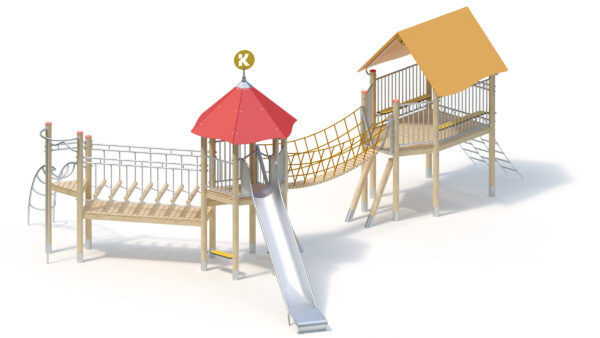

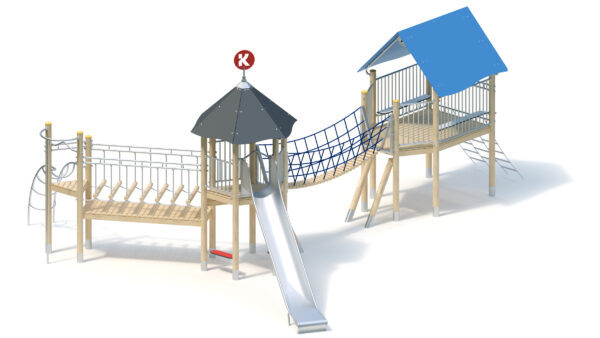

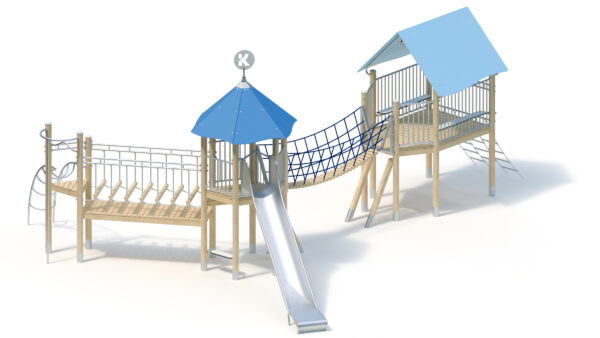

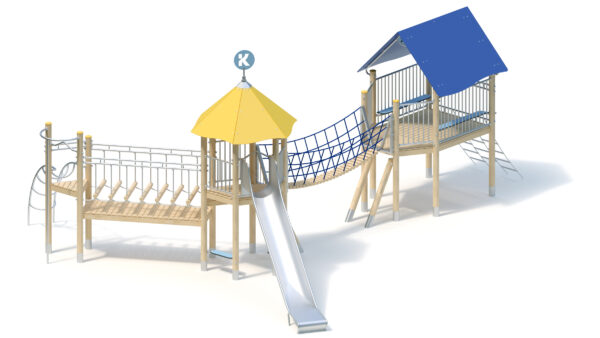

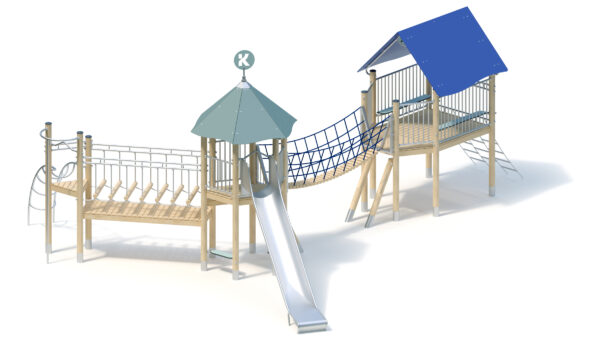

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 37 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 13,20 m |
|---|---|
| Mindestraumbreite ? | 11,80 m |
| Mindestraumhöhe ? | 4,35 m |
| Gerätelänge ? | 10,20 m |
| Gerätebreite ? | 8,30 m |
| Gerätehöhe ? | 4,35 m |
| Freie Fallhöhe ? | 1,70 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1525.00 kg |
| Schwerstes Einzelteil ? | 105.00 kg |
Assembly & Foundations
| Montagezeit ? | 14,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 15 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) Quantity: 2 (1m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data
Total height: 4.35 m

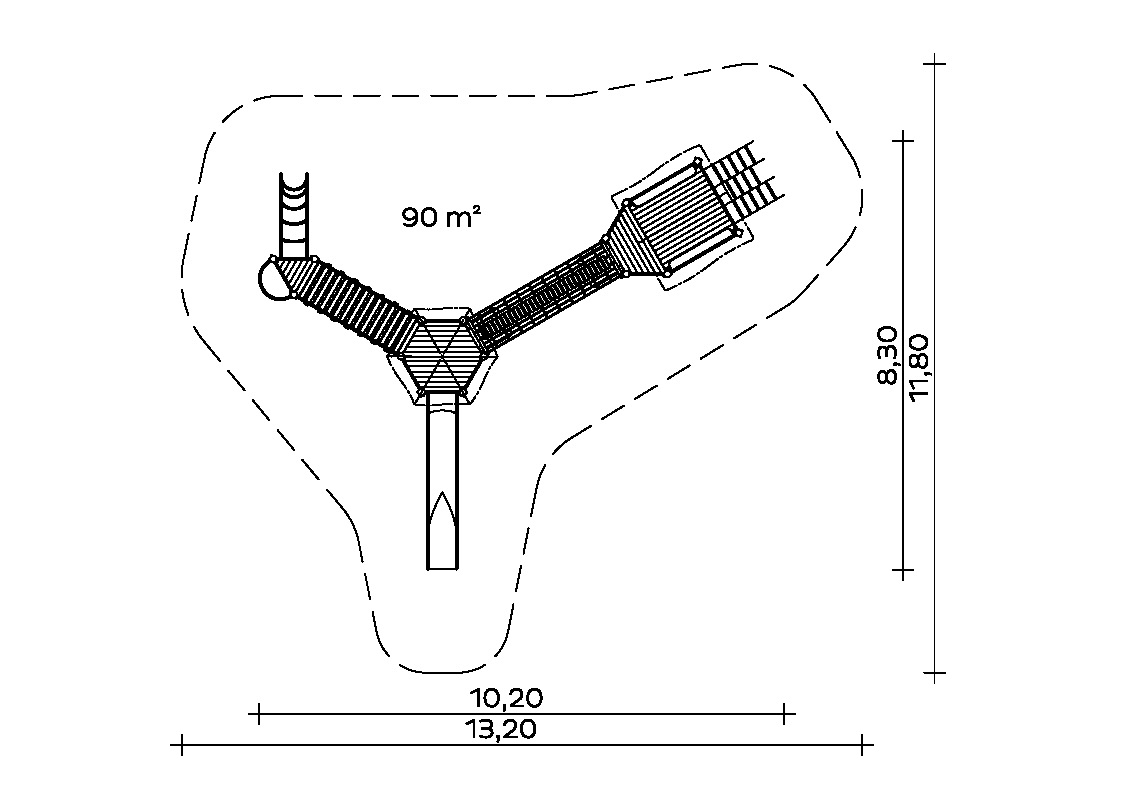

Floor area: 8.30 x 10.20 m
Minimum space: 11.80 x 13.20 m
Platform height: 1.00/1.40/1.60 m
Seat height: 1.70 m
Weight: 105 kg heaviest individual part
1525 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Footbridge: V-shaped net construction made of Forta-Herkules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Support post made of robinia plywood Ø 120 mm with tubular base made of stainless steel
- Wobbly bridge on tandem crossbar, 10 cm diameter robinia timbers, fine-linked stainless steel railing chains, robinia wood step-through protection
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Climbing pole made of stainless steel tube, Ø 38 mm
- Curved ladder made of stainless steel tube
- Chain ladder with stainless steel rungs
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
15 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
2 pcs. 0.60 x 1.00 x 0.50 m
Assembly time
2 fitters 14 hours each + hoist
(without foundation)
Free fall height
1,70 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 022166704
